Material

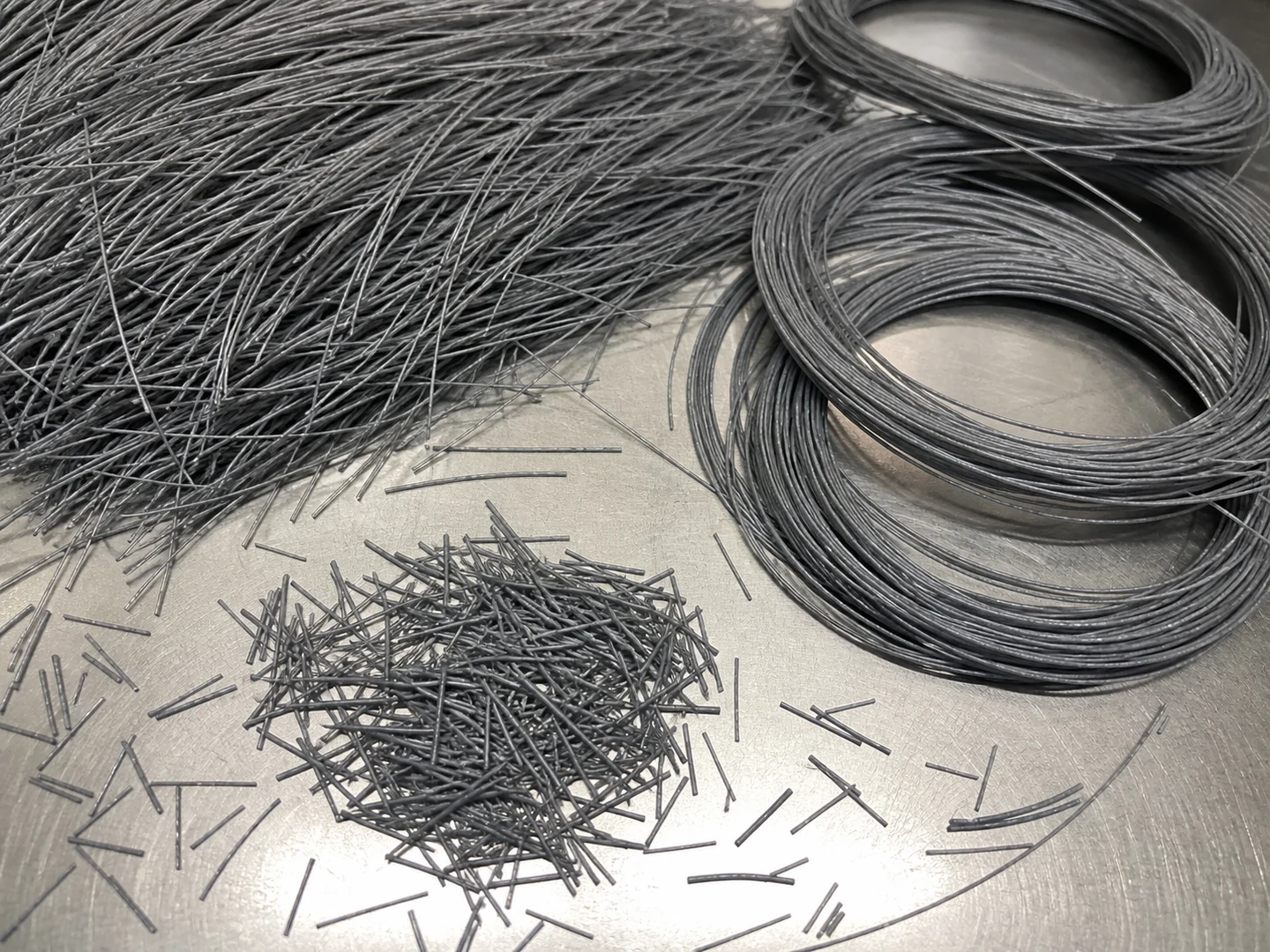

Abrasive Nylon
Abrasive Nylon is selected from its stiffness, recovery, wear, wet-service, chemical, and temperature behavior. Material name alone is not enough to set stiffness; we also need filament diameter, free trim, density, grade, and working conditions.
Material Overview
Abrasive nylon suspends mineral grit in a polyamide filament so fresh abrasive is exposed as the polymer wears.
In a finished brush, Abrasive Nylon does not create a fixed stiffness by itself. The final contact depends on filament diameter, free trim, density, tuft pattern, and interference; moisture, heat, and chemicals can change the response.
Material Properties
| Abrasive grit | 46–1,000 grit |
|---|---|
| Filament diameter | 0.20–1.80 mm |
| Abrasive loading | 20–40% by weight |
Brush Applications
For Abrasive Nylon, directly related brush structures include Wheel Brushes, Floor Scrubber Sweeper Brushes, Roller and Conveyor Brushes, and Tube & Pipe Bore Brushes. Applications related to Abrasive Nylon include Ceramic Glaze Line & Tile Brush Use, Polishing, Surface Finishing, and Deburring & Edge Breaking.
Specification and Customization
Material form
Abrasive Filament
Common forms
Abrasive filament; wheel/disc/roller fill.
Grade
Abrasive mineral and grit specified separately
Reference standard
ISO 527-1:2019; ASTM D638; ISO 62:2008; ASTM D570-22; ISO 868:2003; ASTM D2240-15(2021); ISO 4892-3:2024; ASTM G154-23; UL 94; ISO 6344 series; ISO 13061-1; ASTM D143
Limitations and Alternatives
Exposed grit can change a surface finish, and high heat or aggressive chemicals can weaken the polymer carrier.
Frequently Asked Questions
What are the key properties of Abrasive Nylon brush material?
Abrasive nylon suspends mineral grit in a polyamide filament so fresh abrasive is exposed as the polymer wears. Direct data: Abrasive grit: 46–1,000 grit; Filament diameter: 0.20–1.80 mm; Abrasive loading: 20–40% by weight; Brush operating range: -20–120°C.
Where is Abrasive Nylon used in cleaning brushes?
Edge blending, light deburring, oxide removal and surface preparation on metal, wood, plastic and machined bores.
How does filament geometry change Abrasive Nylon brush stiffness?
Abrasive Nylon changes brush stiffness through filament diameter, free trim, density, crimp, and contact. Use finer filament and longer trim for conformable contact; use coarser filament, shorter trim, or higher density for stronger displacement or cutting.
When should Abrasive Nylon be replaced by another material?
Compare Abrasive Nylon with PP, PBT, PET. Change material when wet stiffness, temperature, chemical resistance, conductivity, particle shedding, or surface marking becomes the limiting factor.
Continue Exploring
Recommended Reading & Related Brush Resources

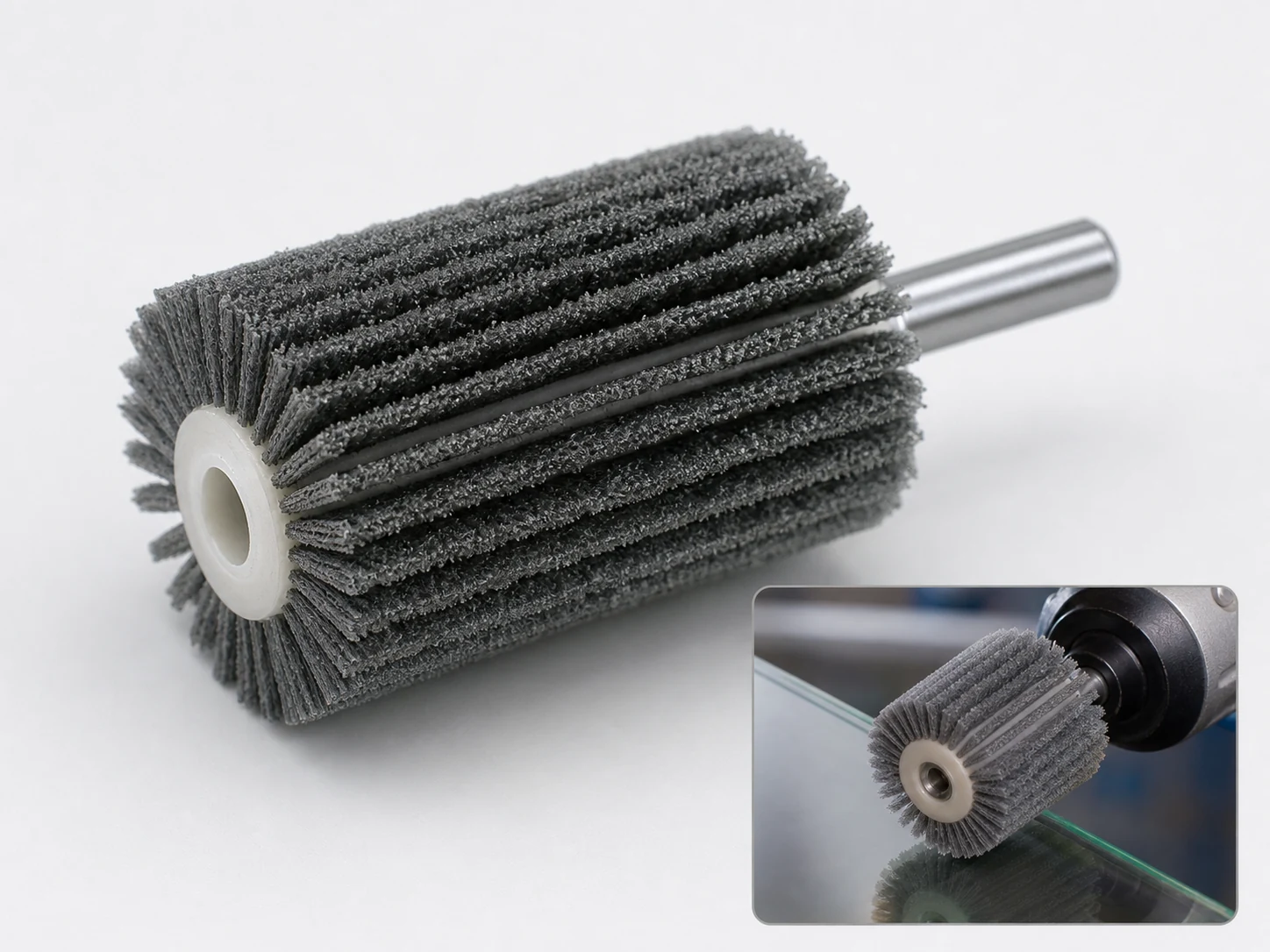

Abrasive Brush Glass
Custom Abrasive Brush Glass for surface finishing, deburring, and polishing, with the working head,…
Review product specifications
Custom Wheel Brushes
Choose a wheel brush when a rotating narrow face or edge must clean profiles,…
Explore this brush type

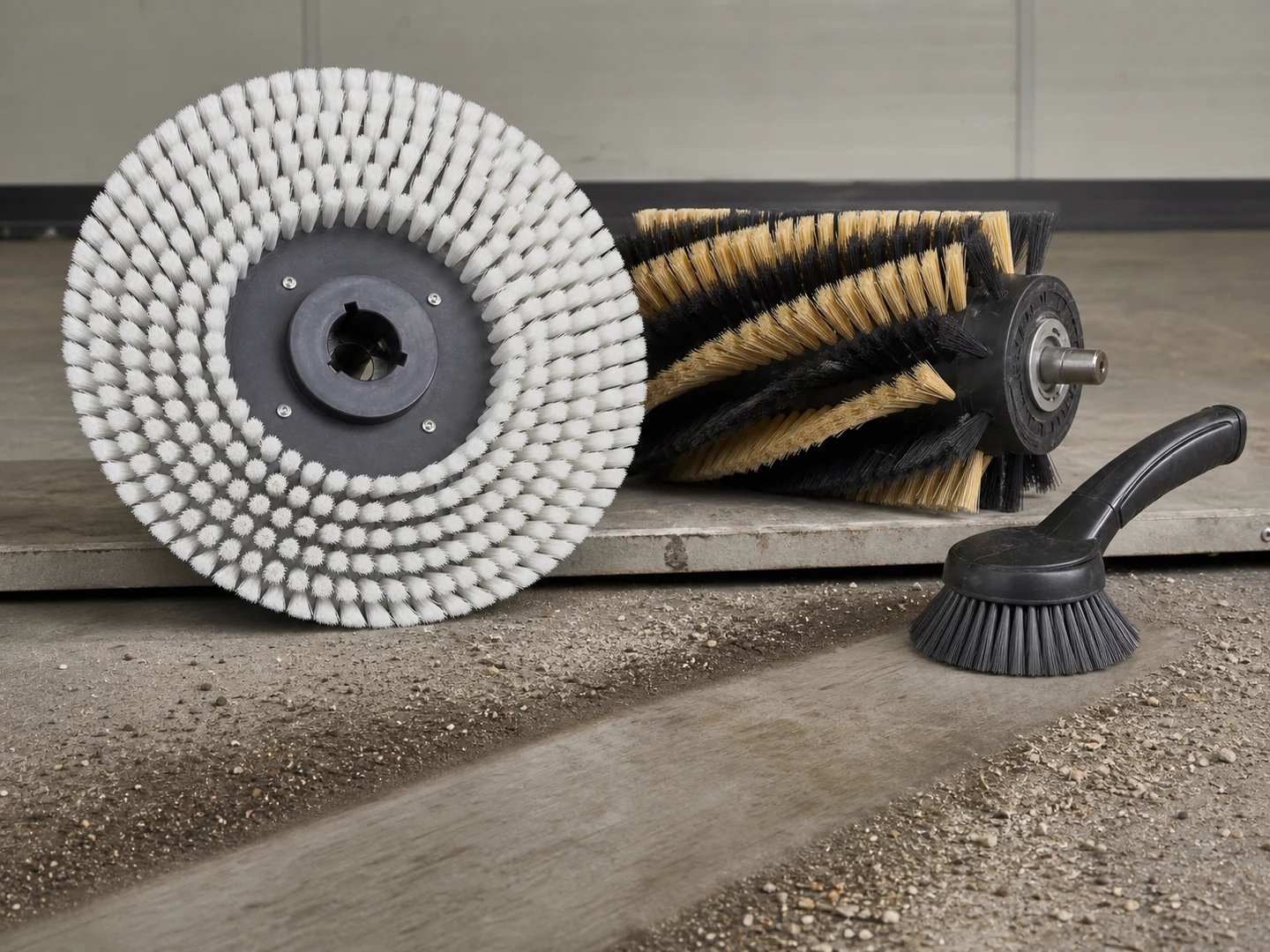

Custom Floor Scrubber Sweeper Brushes
