Roller Brush Conveyor Belt

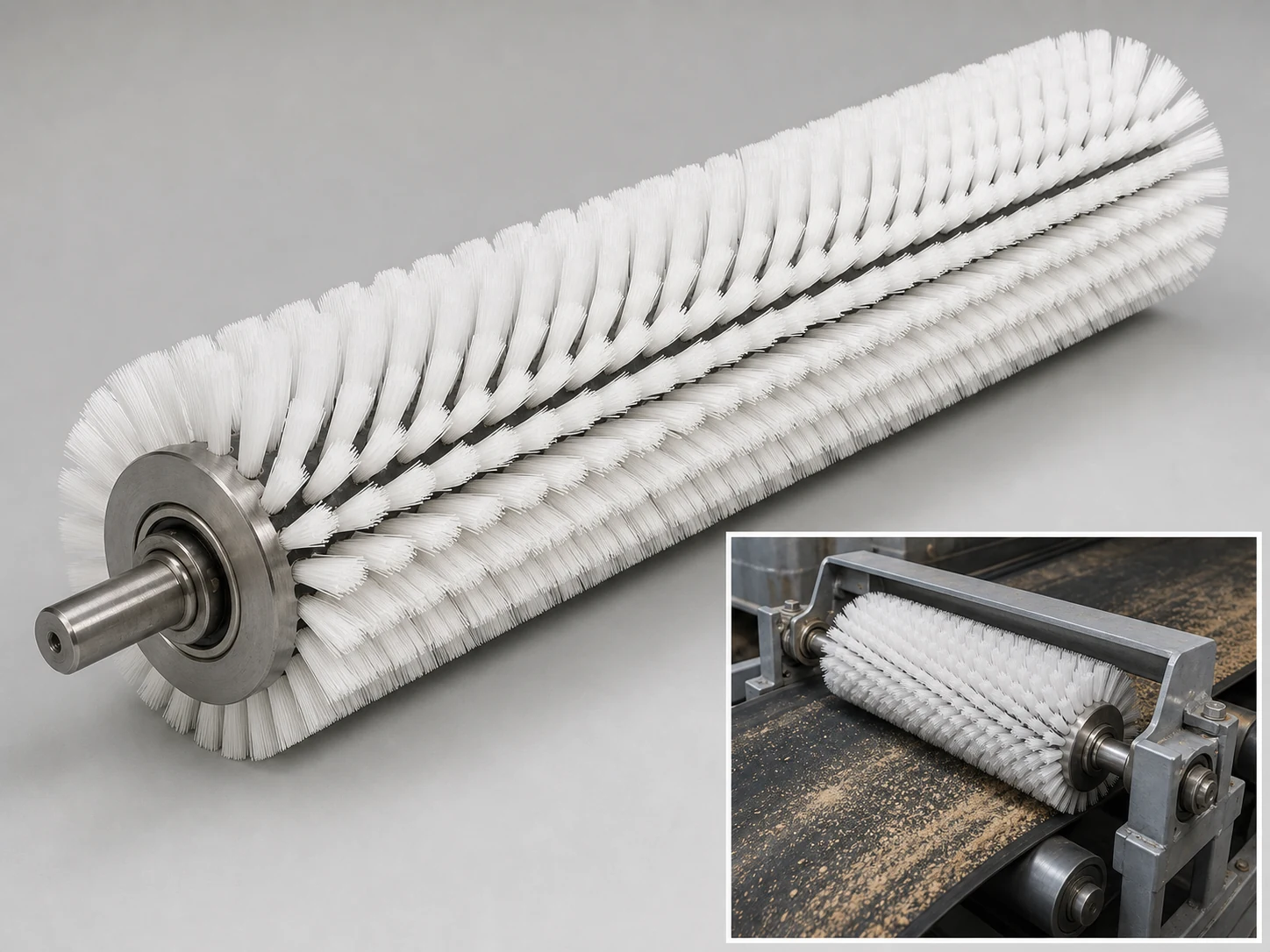

Roller Brush Conveyor Belt provides controlled brush contact for conveyor and production-line cleaning across belts, rollers, and chains. Working width, brush geometry, mounting, and fill are set around the machine path and the way powder, crumbs, and fibers must be released or carried away.
Product Features
Rotary cleaning across the belt width — The brush maintains continuous contact with the moving surface.
Straight and helical fill patterns — Tufting can provide uniform scrubbing or move debris toward one side.
PET filament for repeated belt contact — Bristle stiffness, trim, and density can be selected to balance residue removal with belt-surface protection.
Balanced shafted construction — Concentric assembly supports smooth operation and even wear.
Adjustable engagement — Mounting can allow contact to be reset as the fill wears.
Built to the belt line — Diameter, face width, shaft ends, fill, pattern, and contact pressure can be customized.
Product Overview
Roller Brush Conveyor Belt is used where repeatable contact is needed across belts, rollers, and chains rather than isolated hand cleaning. The active brush face clears powder, crumbs, and fibers while the holder, shaft, plate, or hub stays outside the interference path and supports the required working width. The brush must cover the moving path, accommodate tracking, and discharge residue away from the product zone.
Key dimensions start with Brush head diameter 60–500 mm and Brush head length 100–3000 mm. The brush is built around a roller or conveyor format to cover a continuous working path. The specified interface is shaft-mounted / fixed. PET Polyester are the principal material directions in the current specification. The machine connection and working speed must come from the customer equipment specification rather than a default brush value.
Technical Specifications
| working width | 100–3000 mm |
|---|---|
| brush diameter | 60–500 mm |
| Core diameter | 25–250 mm |
| Shaft diameter | 12–100 mm |
| Trim length | 15–100 mm |
| Contact setting | Set 2–10 mm radial engagement and cover the working width with 5–15 mm edge overlap per side. |
| Fill materials | PET Polyester |
| Cleaning zone | conveyor and production-line cleaning |
| Contact surface | belts, rollers, chains, rails, transfer points, web paths, and machine guides |
| Residue class | powder, crumbs, fibers, chips |
| Access and motion | the brush must cover the moving path, accommodate tracking, and discharge residue away from the product zone |
| Cleaning duty | conveyor, production-line cleaning on belts, rollers, chains, rails |
| Variant configuration | Roller Brush Conveyor Belt: roller construction with PET Polyester fill for conveyor and production-line cleaning on belts, rollers, chains, rails. |
Application Areas
Roller Brush Conveyor Belt is primarily mapped to Conveyor Belt Cleaning. If the brush will be used on a different job, confirm the surface, debris discharge path, and acceptable finish first.
- Roller Brush Conveyor Belt is best suited to conveyor belt cleaning and continuous residue control.
- The full-width cylinder, spiral roller, modular segment, or stationary strip brush follows flat, cleated, modular, mesh, or coated conveyor surfaces while the fill displaces dust, crumbs, granules, fibers, carryback, product residue, and fines.
- Use this configuration when the available access supports continuous line contact across a moving belt, screen, drum, or conveyor component.
Selection Guidance
Structure fit
Match the roller and conveyor brush geometry to belts, rollers, and chains, the available access, and powered operation. Confirm Brush head diameter 60–500 mm and Brush head length 100–3000 mm against the complete working envelope before finalizing the brush.
Contact material
Choose from PET Polyester according to the behavior of powder, crumbs, and fibers, the surface sensitivity, and any wet, chemical, temperature, or hygiene requirements. Do not choose stiffness from the material name alone. Filament size, free trim, and density control the final contact.
When to use another solution
For Roller Brush Conveyor Belt, use another cleaning method when powder, crumbs, and fibers cannot be released by controlled filament contact, when belts, rollers, and chains cannot tolerate the selected contact material, or when the access path prevents safe engagement and residue removal.
Customization Options
| Brush Head Diameter (mm) | 60–500 |
|---|---|
| Brush Head Length (mm) | 100–3000 |
| Handle Length (mm) | Not Applicable (No separate handle in this product configuration) |
| Handle Grip Diameter (mm) | Not Applicable (No explicit grip or handle-diameter dimension in the product specification) |
| Bristle Material | PET Polyester |
| Handle Material | Powder-Coated Carbon Steel |
| Mounting / Interface | Shaft-Mounted / Fixed |
| Grip Style | Not Applicable (Machine-Mounted Brush) |
| Color | Custom PANTONE Color ([Industry Reference Range]) |
| Logo Process | Laser Engraving / Screen Printing / Pad Printing ([Industry Reference Range]) |
| Surface Treatment | Smooth / Textured / Overmolded / Coated (Depending on Substrate; [Industry Reference Range]) |
Frequently Asked Questions
How should Roller Brush Conveyor Belt be selected?
Start with conveyor belt cleaning and continuous residue control, flat, cleated, modular, mesh, or coated conveyor surfaces, and dust, crumbs, granules, fibers, carryback, product residue, and fines. Then set working width, brush diameter, and Core diameter, choose the fill from the material and residue table, and match the mounting interface and operating condition.
Which dimensions define Roller Brush Conveyor Belt?
The primary dimensions are working width (100–3000 mm), brush diameter (60–500 mm), and Core diameter (25–250 mm). Also provide the minimum clearance, working envelope, trim or engagement, and the existing holder, shaft, stem, thread, or handle.
Which filament or contact material is used for Roller Brush Conveyor Belt?
The primary options are PET Polyester. The final choice follows surface sensitivity, residue adhesion, wet or dry use, temperature, chemicals, conductivity, and required cutting action.
When is Roller Brush Conveyor Belt not the best cleaning method?
Roller Brush Conveyor Belt is not the first choice when combine the brush with a scraper, spray bar, vacuum, or air knife for thick sludge or heavy carryback.
What information is required to quote Roller Brush Conveyor Belt?
Send the part or machine drawing, photos of flat, cleated, modular, mesh, or coated conveyor surfaces, working width, brush diameter, Core diameter, and Shaft diameter, the residue description, wet or dry conditions, motion or use method, temperature, preferred PET Polyester, quantity, and the existing interface or sample.
