Material
Anti-static Filament
Anti-static Filament is selected from its stiffness, recovery, wear, wet-service, chemical, and temperature behavior. The same material can produce different stiffness, so filament diameter, trim length, density, grade, and service conditions must also be defined.
Material Overview
Anti-static filament controls charge accumulation through dissipative polymer, conductive additives, or conductive surface treatment.
In a finished brush, Anti-static Filament does not create a fixed stiffness by itself. Filament diameter, trim length, density, tuft layout, and installed contact determine working force, while grade and environment affect durability and recovery.
Material Properties
| Surface resistance | 10⁶–10⁹ ohms |
|---|---|
| Filament diameter | 0.10–1.00 mm |
| Charge decay target | below 2 seconds in ESD-controlled designs |
Brush Applications
For Anti-static Filament, directly related brush structures include Roller and Conveyor Brushes, Strip Seal Brushes, Handheld Detail Brushes, and Tube & Pipe Bore Brushes. Applications related to Anti-static Filament include Brick, Tile & Building Material Machine Brush Use, Carpet Machine Cleaning, Mold Cavity Cleaning, and Dust Removal.
Specification and Customization
Material form
Filament
Common forms
Inherently dissipative polymer filament; additive-modified nylon or polyester; conductive-fiber blend.
Grade
Antistatic or inherently dissipative filament grade
Reference standard
IEC 61340-5-1:2024; IEC TS 61340-5-4:2021; ASTM D257
Limitations and Alternatives
The word anti-static alone cannot prove ESD protection, ATEX suitability, cleanroom suitability or lifetime conductivity.
Frequently Asked Questions
What are the key properties of Anti-static Filament brush material?
Anti-static filament controls charge accumulation through dissipative polymer, conductive additives, or conductive surface treatment. Direct data: Surface resistance: 10⁶–10⁹ ohms; Filament diameter: 0.10–1.00 mm; Brush operating range: -20–100°C; Charge decay target: below 2 seconds in ESD-controlled designs.
Where is Anti-static Filament used in cleaning brushes?
Static-control contact on paper, film, textile and electronics lines when the complete brush has a defined grounding path.
How does filament geometry change Anti-static Filament brush stiffness?
Anti-static Filament changes brush stiffness through filament diameter, free trim, density, crimp, and contact. Use finer filament and longer trim for conformable contact; use coarser filament, shorter trim, or higher density for stronger displacement or cutting.
When should Anti-static Filament be replaced by another material?
Compare Anti-static Filament with Conductive nylon, carbon fiber, metal fiber, ordinary nylon. Change material when wet stiffness, temperature, chemical resistance, conductivity, particle shedding, or surface marking becomes the limiting factor.
Continue Exploring
Recommended Reading & Related Brush Resources

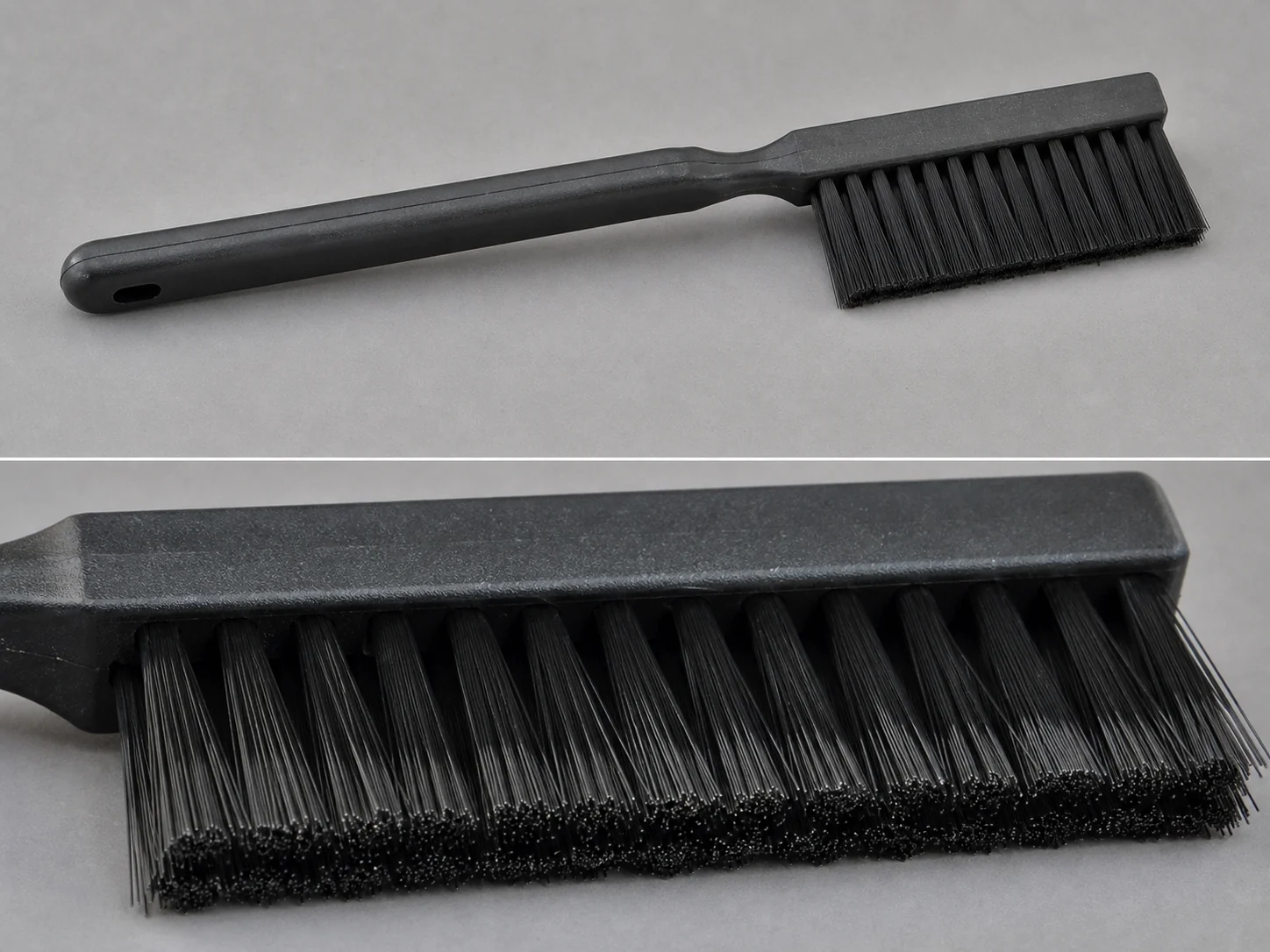

Antistatic Nylon Electronics Brush
Custom Antistatic Nylon Electronics Brush using PA-ESD contact material, 20 mm head diameter, 70…
Review product specifications

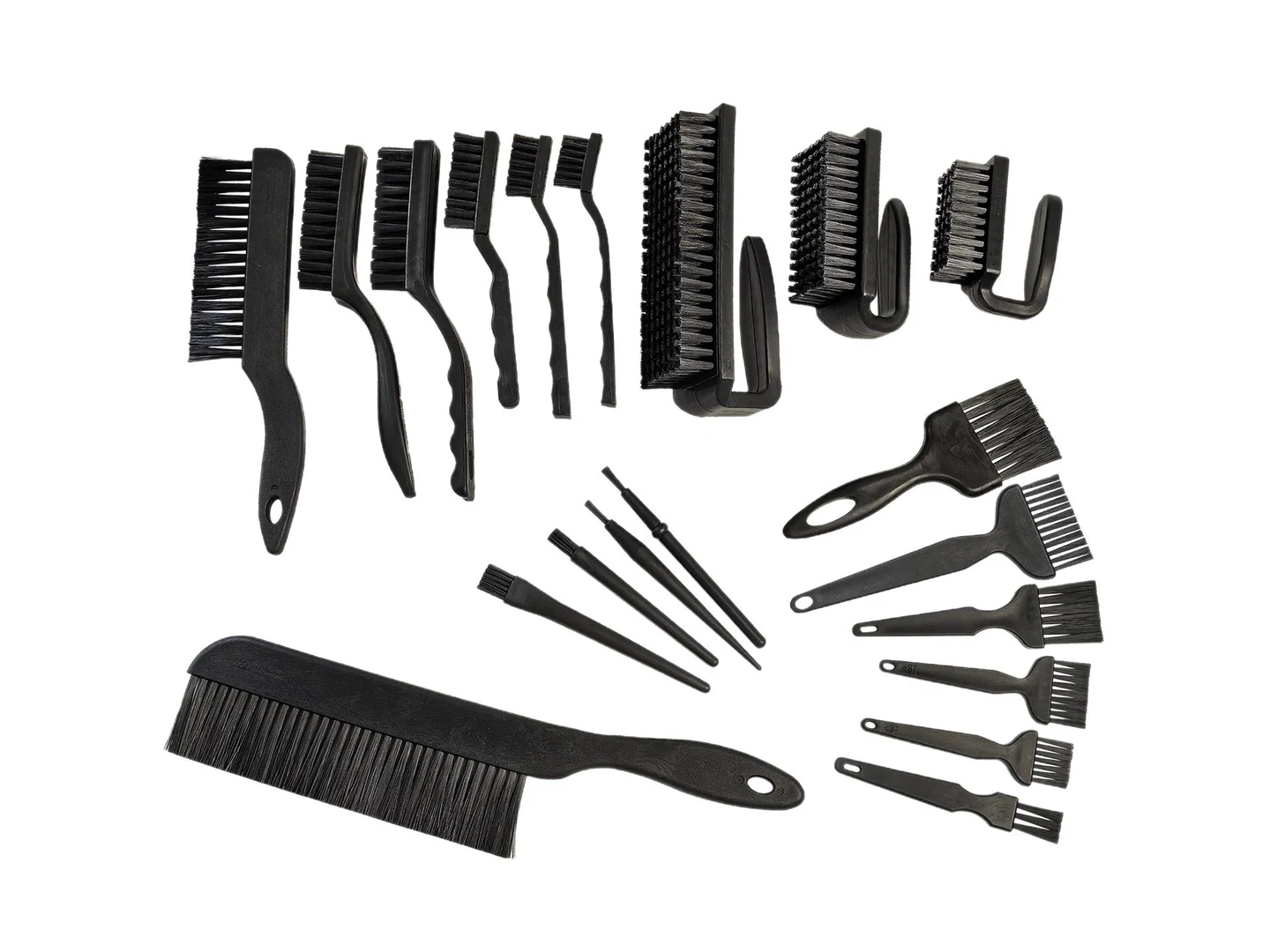

Anti Static Brush
Custom anti static brush for precision electronics, static-control cleaning, configured around contacts, slots, boards,…
Review product specifications

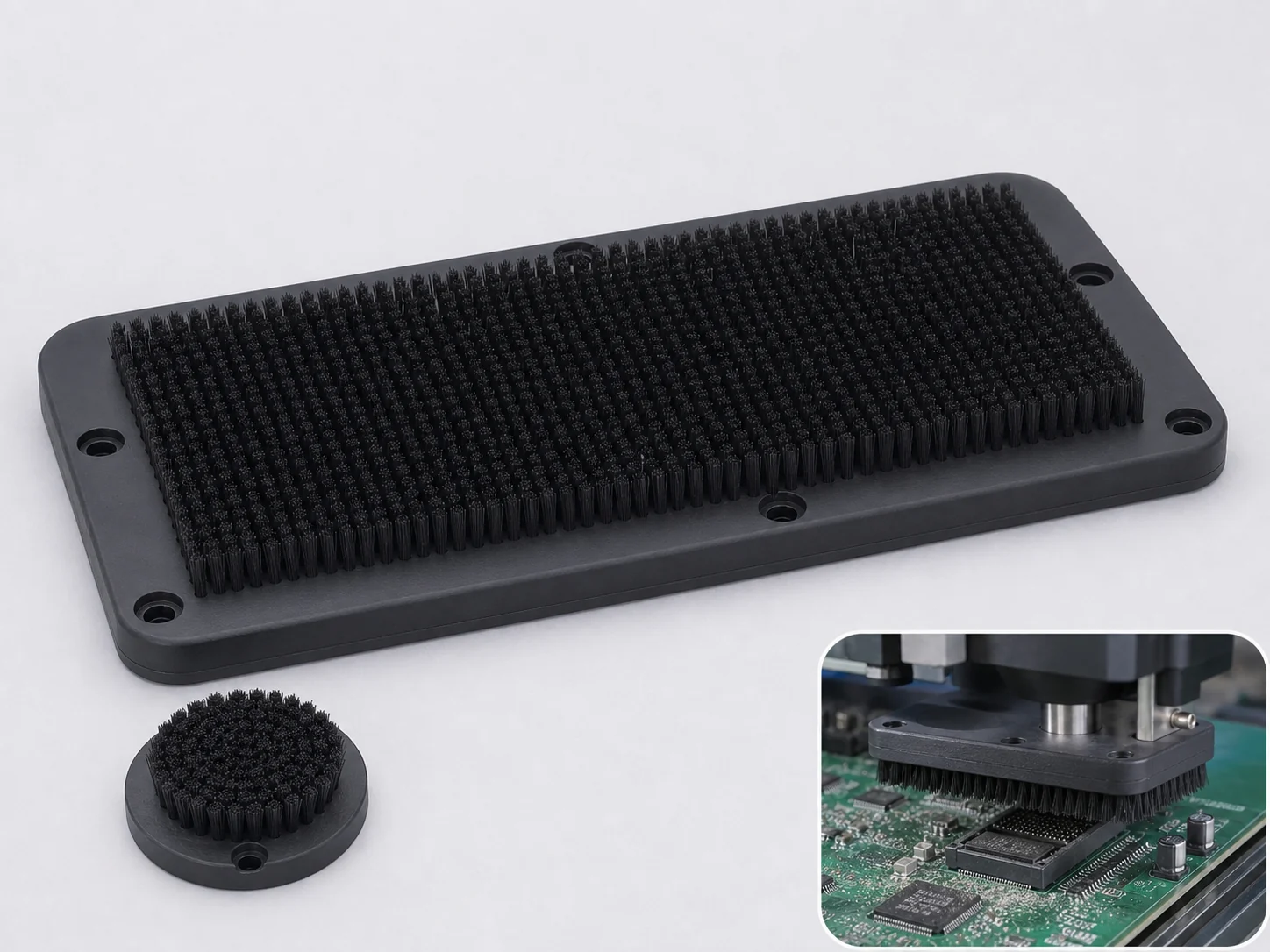

Anti-Static Brush Plate
Custom anti-static brush plate for precision electronics, static-control cleaning, configured around contacts, slots, boards,…
Review product specifications

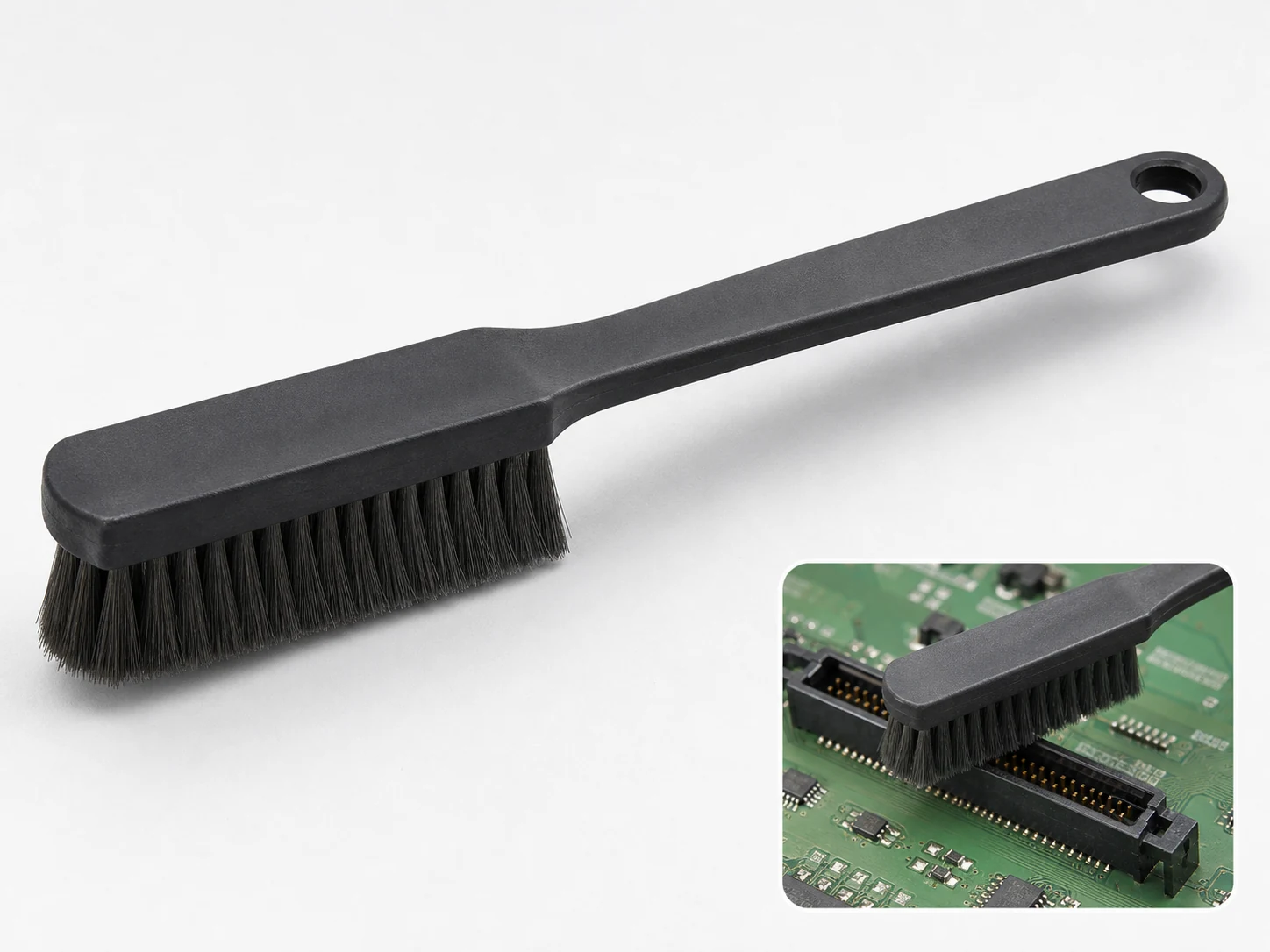

Anti-Static Carbon Fiber Brush
Custom Anti-Static Carbon Fiber Brush for precision electronics and static-control cleaning, with the working…
Review product specifications

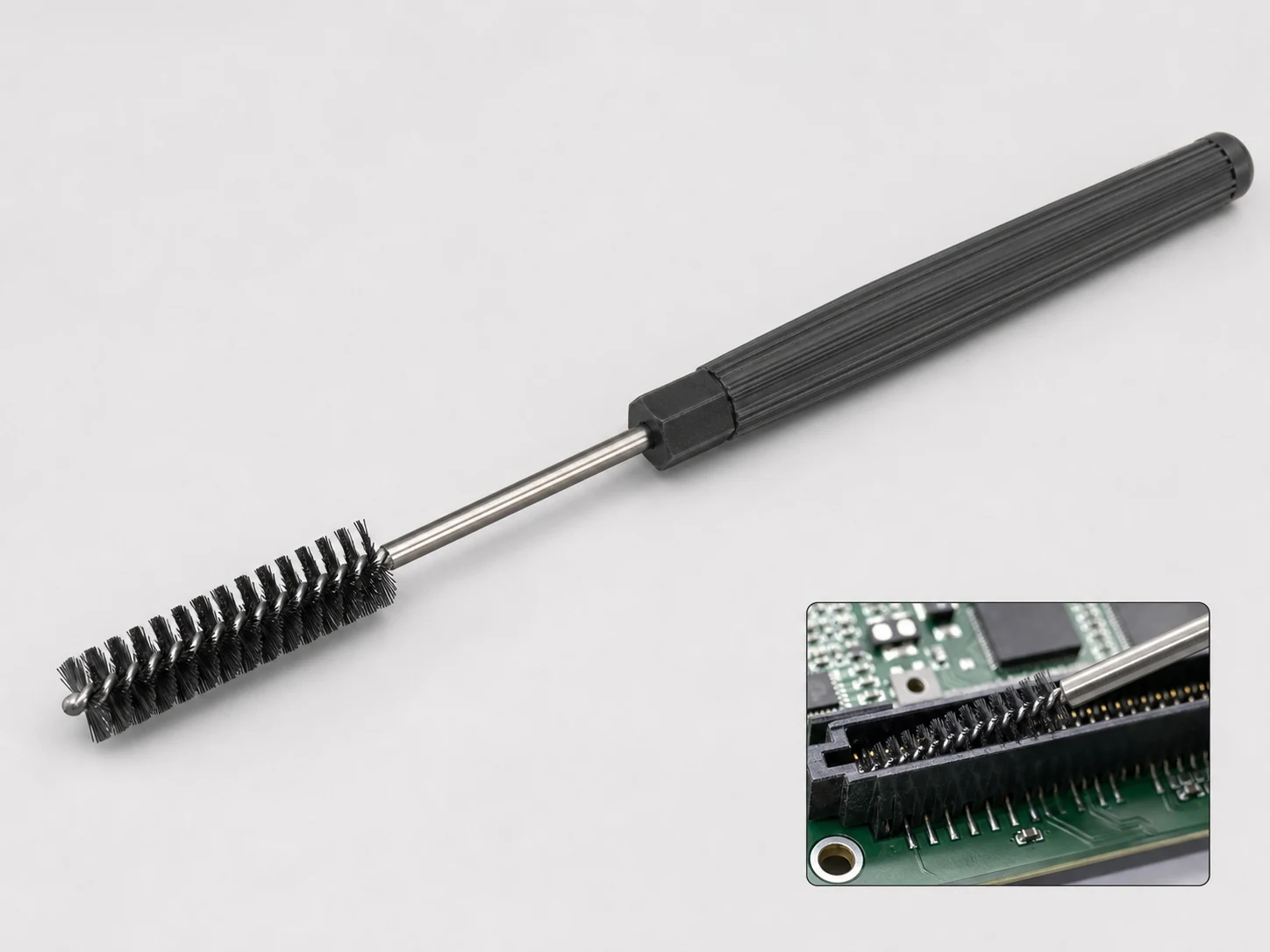

Anti-Static Carbon Fiber Printing Brush
Custom anti-static carbon fiber printing brush for precision electronics, static-control cleaning, configured around contacts,…
Review product specifications

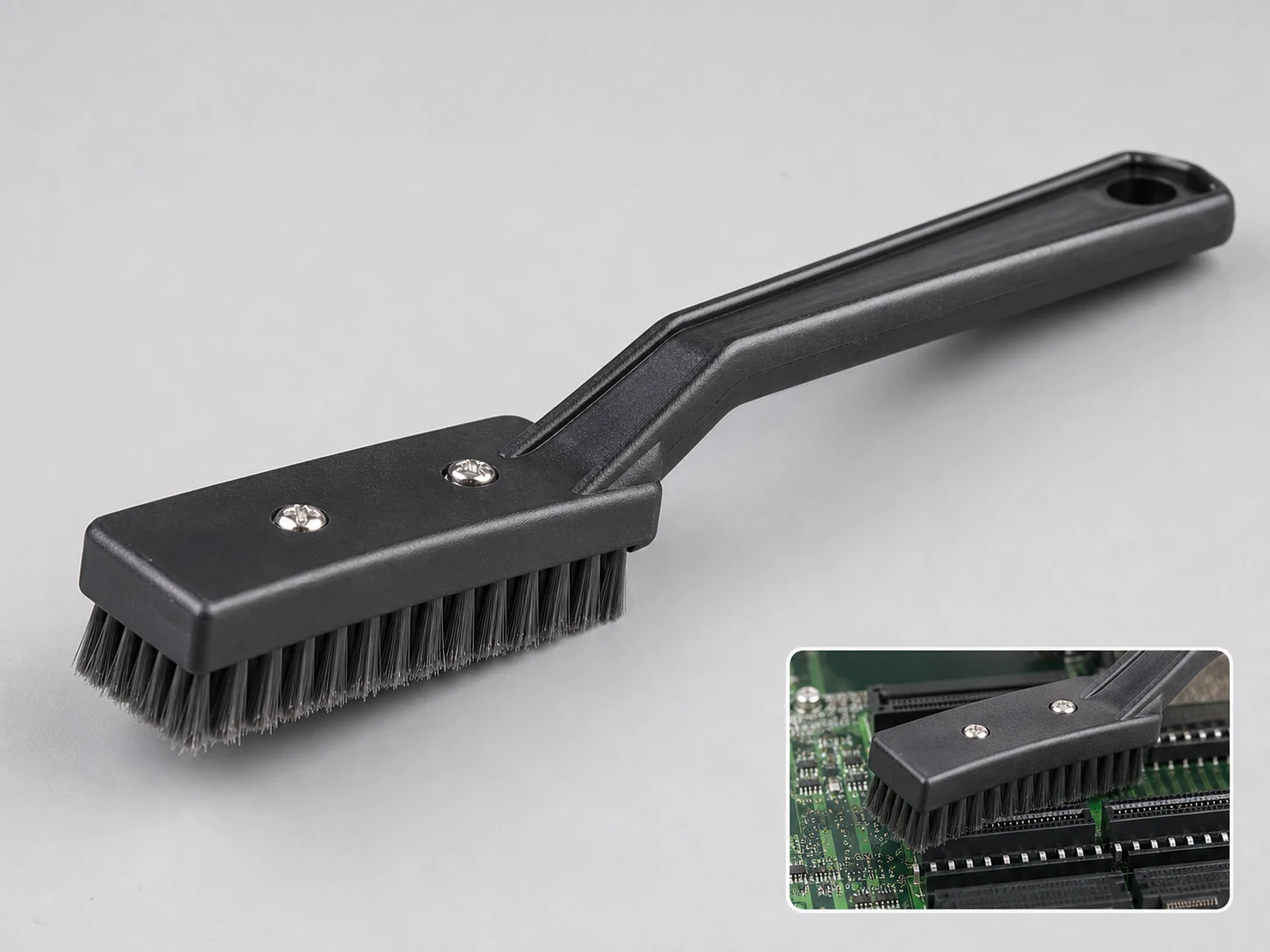

Anti-Static Dust Removal Brush
