Material
Brass Wire
Brass Wire is selected from its stiffness, recovery, wear, wet-service, chemical, and temperature behavior. For a usable stiffness specification, provide the material, filament diameter, free trim, density, grade, and operating conditions.
Material Overview
Brass is a copper-zinc alloy whose strength, ductility and corrosion behavior vary with zinc content and temper.
In a finished brush, Brass Wire does not create a fixed stiffness by itself. Working stiffness and recovery depend on filament size, free trim, density, tuft pattern, and contact. Grade and operating conditions determine how stable that behavior remains.
Material Properties
| Density | 8.4–8.7 g/cm³ |
|---|---|
| Wire diameter | 0.08–0.50 mm |
| Hardness | about HV 80–180 |
| Electrical conductivity | about 15–30% IACS by alloy |
Brush Applications
For Brass Wire, directly related brush structures include Handheld Detail Brushes, Tube & Pipe Bore Brushes, Wheel Brushes, and Roller and Conveyor Brushes. Applications related to Brass Wire include Pipe Robot Brush Attachment Use, Hose Cleaning, Tube & Pipe Cleaning, and Laboratory Tube Cleaning.
Specification and Customization
Material form
Wire
Common forms
Wire bristle.
Grade
Brush-wire brass grade; alloy specified by application
Reference standard
ISO 6892-1; ASTM E8/E8M; ASTM B117
Limitations and Alternatives
Avoid on stainless surfaces where copper contamination is restricted and on delicate coatings that mark under metal contact.
Frequently Asked Questions
What are the key properties of Brass Wire brush material?
Brass is a copper-zinc alloy whose strength, ductility and corrosion behavior vary with zinc content and temper. Direct data: Density: 8.4–8.7 g/cm³; Wire diameter: 0.08–0.50 mm; Hardness: about HV 80–180; Brush operating range: -20–200°C; Electrical conductivity: about 15–30% IACS by alloy.
Where is Brass Wire used in cleaning brushes?
Gentle oxide removal, mold cleaning and surface work on brass, copper and other softer nonferrous parts.
How does filament geometry change Brass Wire brush stiffness?
Brass Wire changes brush stiffness through filament diameter, free trim, density, crimp, and contact. Use finer filament and longer trim for conformable contact; use coarser filament, shorter trim, or higher density for stronger displacement or cutting.
When should Brass Wire be replaced by another material?
Compare Brass Wire with Steel wire, stainless wire, nylon. Change material when wet stiffness, temperature, chemical resistance, conductivity, particle shedding, or surface marking becomes the limiting factor.
Continue Exploring
Recommended Reading & Related Brush Resources

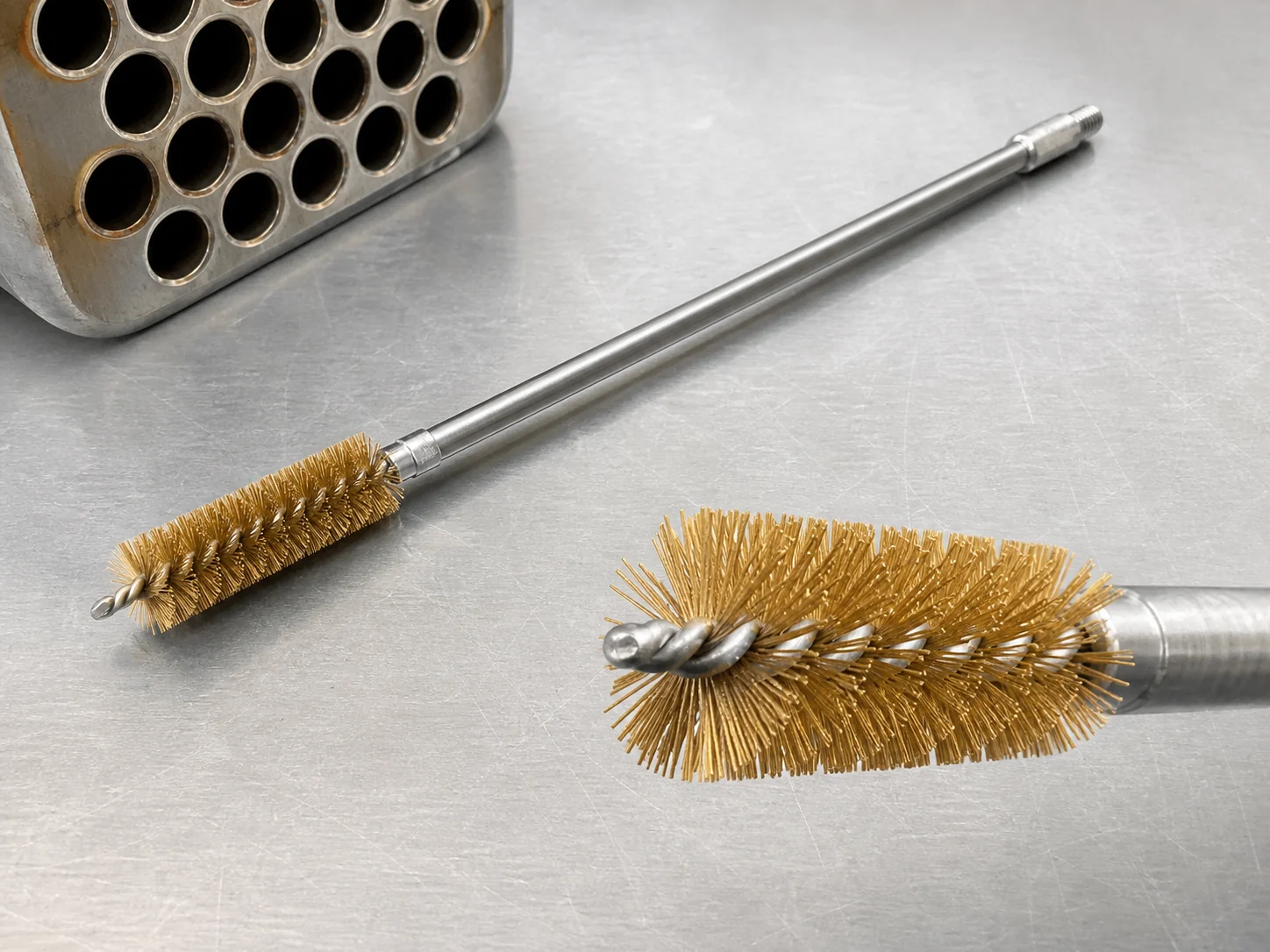

15mm Brass Tube Brush
Custom 15mm Brass Tube Brush using BRASS contact material, 15 mm head diameter, 80…
Review product specifications

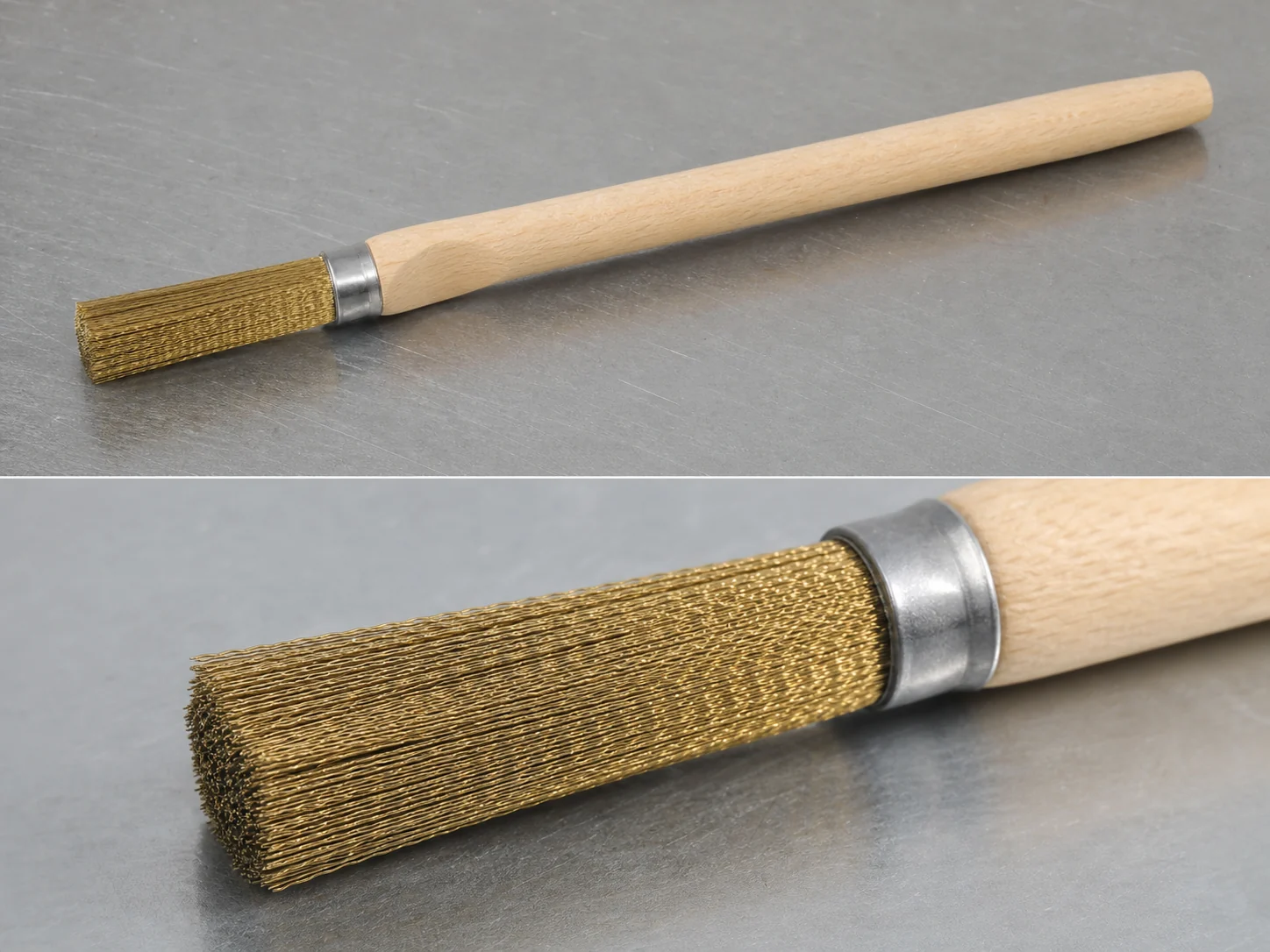

Brass Precision Parts Brush
Custom Brass Precision Parts Brush using BRASS contact material, 18 mm head diameter, 80…
Review product specifications

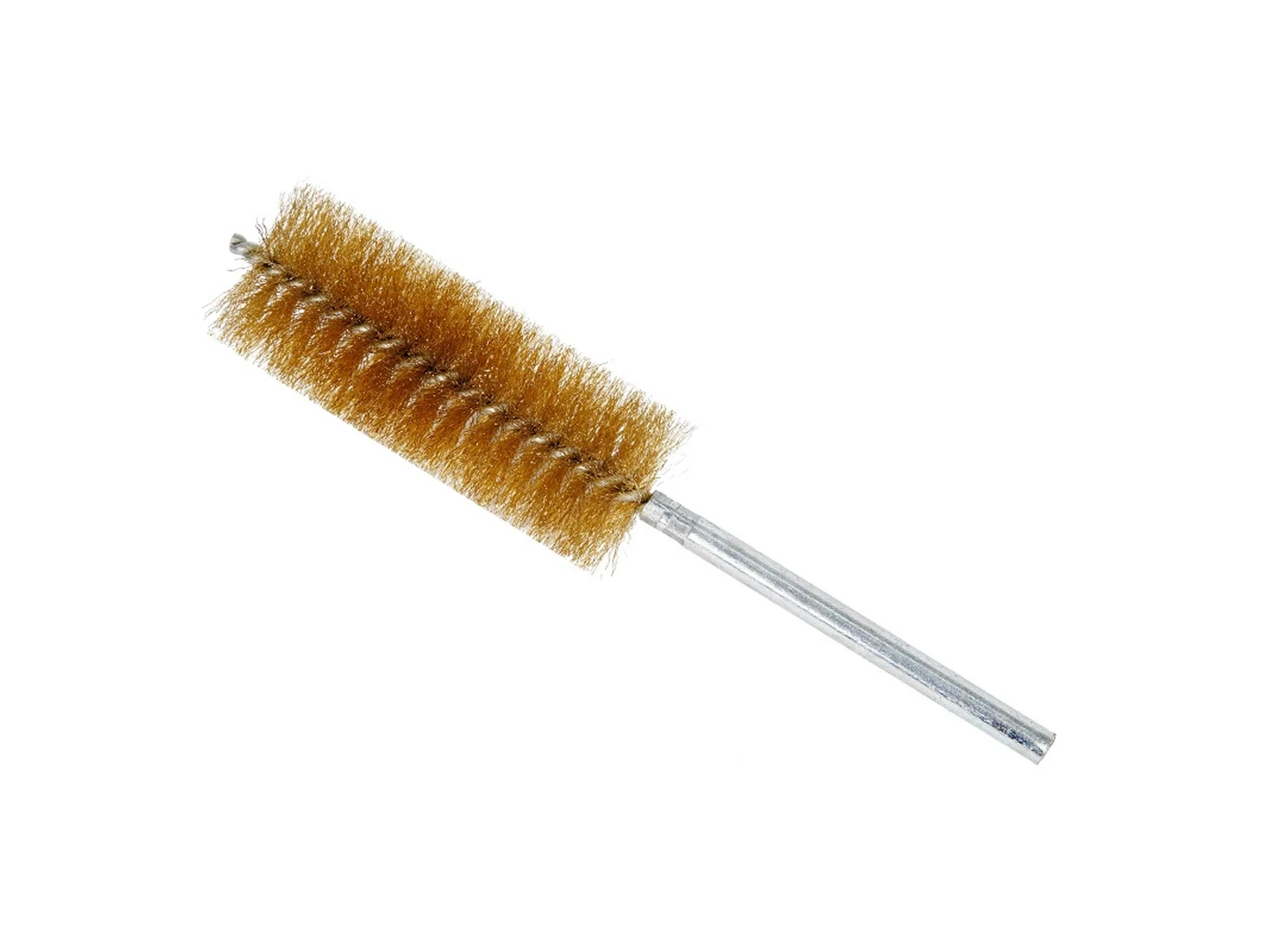

Brass Safety Brush
Custom brass safety brush for conductive, static-control, specialty-alloy brushing, configured around electrical contacts, sensitive…
Review product specifications

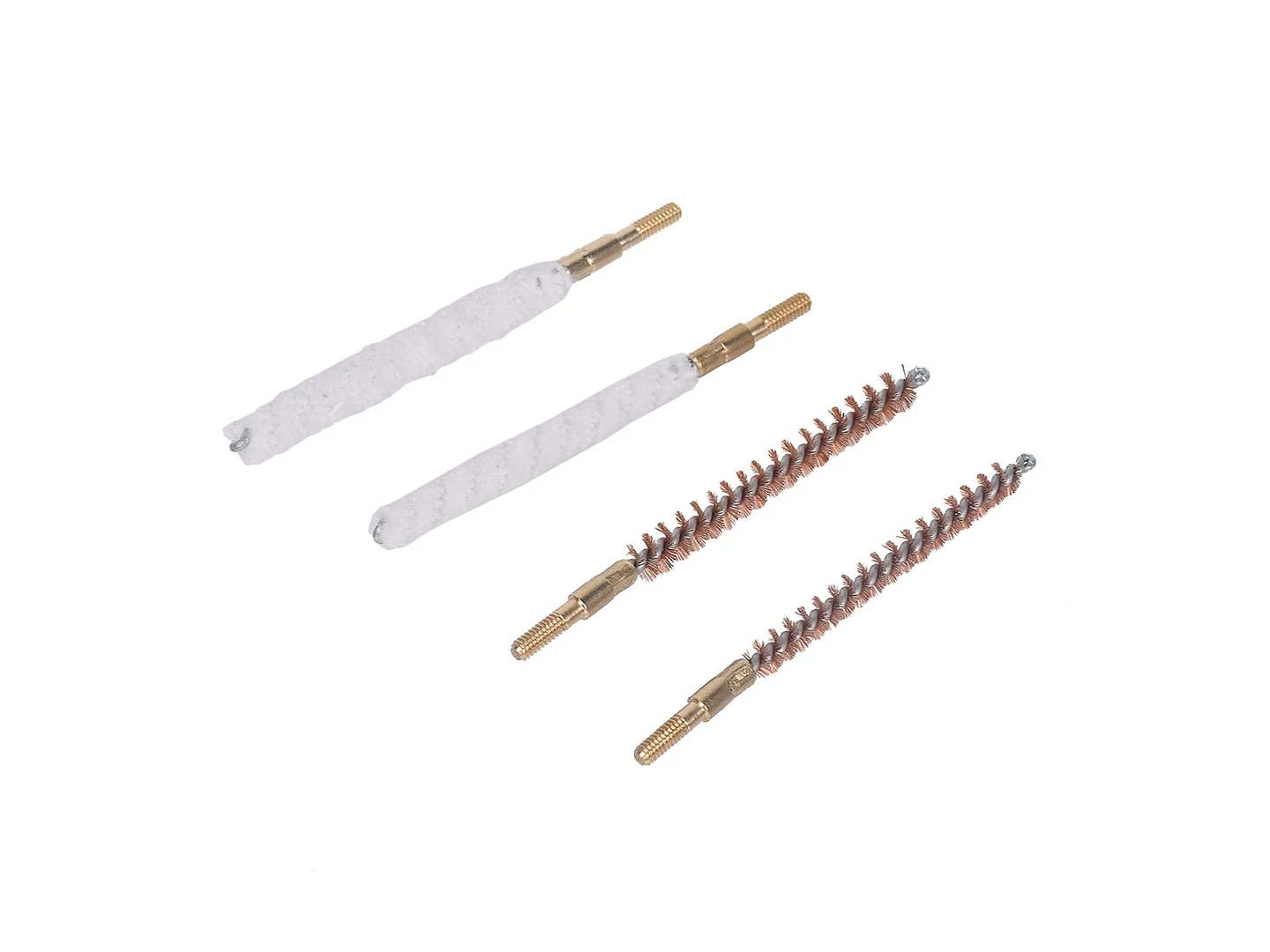

Brass Tube Brush
Custom brass tube brush for bore, tube, port, configured around internal walls, threads, blind…
Review product specifications

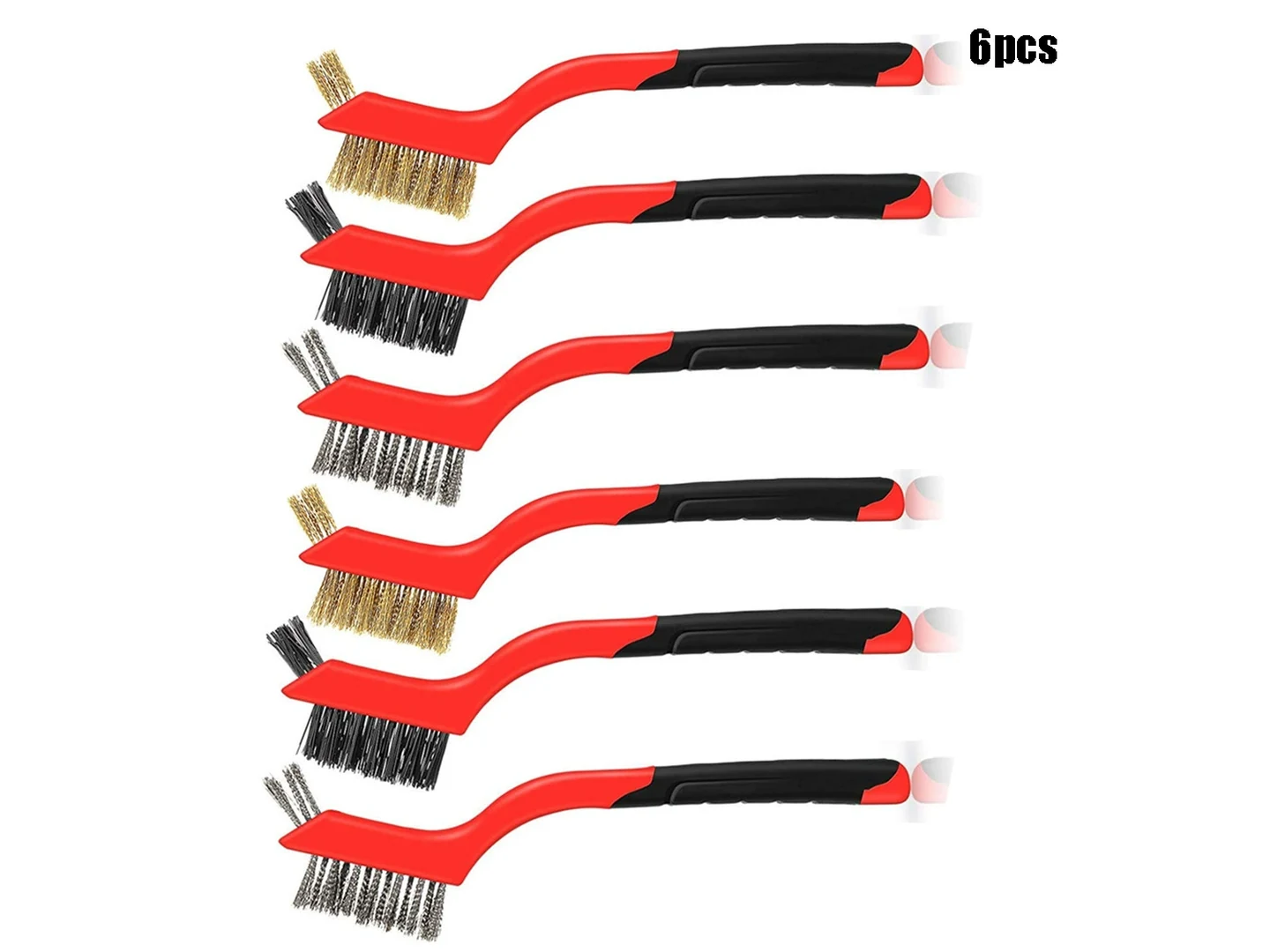

Double End Brass Steel Nylon Bristle Metal Cleaning Brushes
Custom double end brass steel nylon bristle metal cleaning brushes for double end brass…
Review product specifications

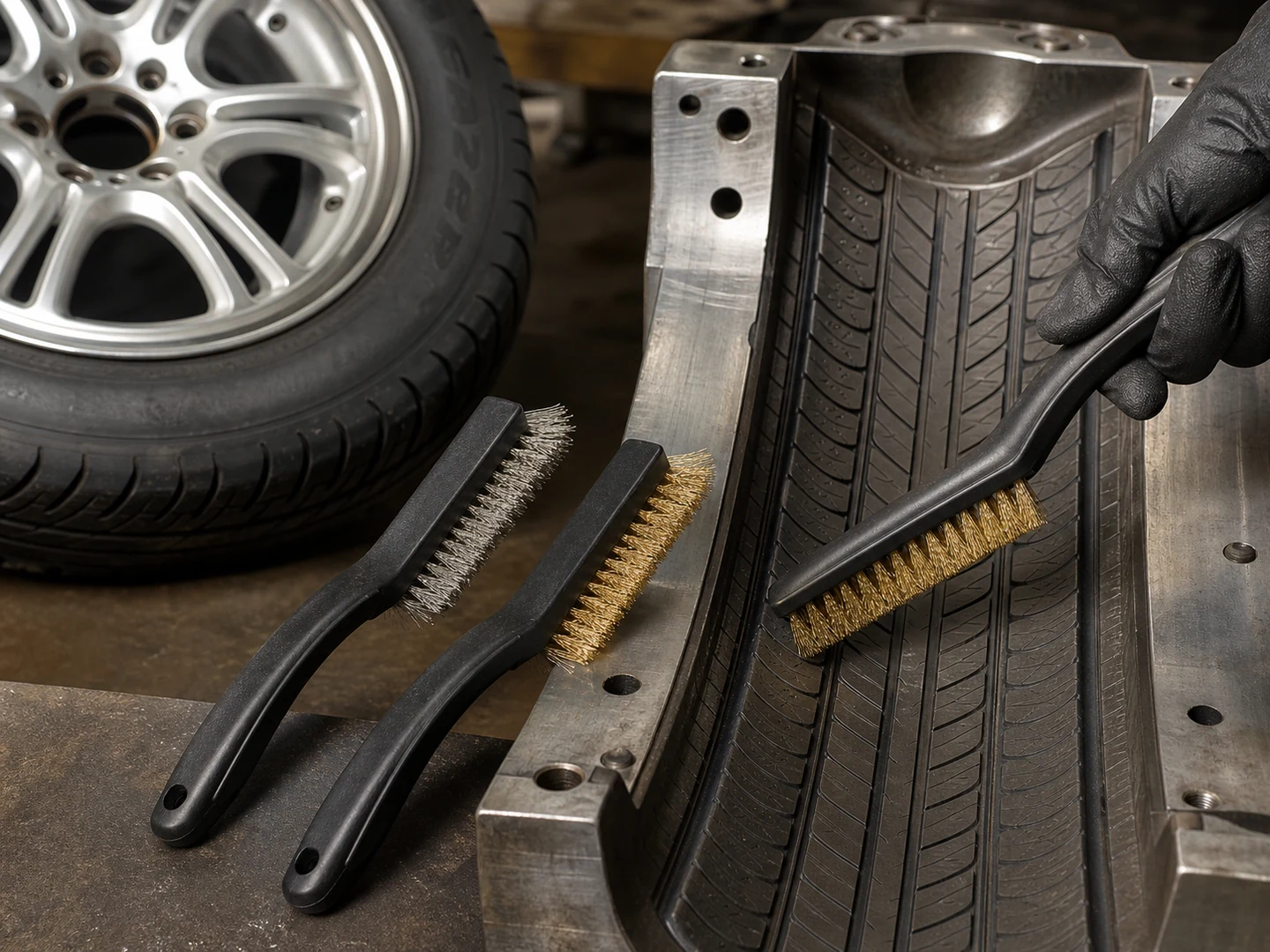

Stainless Steel Brass Mold Tire Brush
