Application
Laboratory Tube Cleaning
For Laboratory Tube Cleaning, the brush must reach the working area, disturb or collect chemical residue/precipitate/biofilm, and release it without creating unacceptable surface damage or process interference. The suitable brush structure depends on access, the required contact motion, and the cleaning method.
Application Overview
Laboratory Tube Cleaning connects the cleaning problem on internal container walls, necks, shoulders, bases, and narrow openings to brush geometry, material, operating conditions, and mounting.
The selection sequence for Laboratory Tube Cleaning starts with the access path and contact direction, then checks how the residue breaks free and leaves the work zone. The service environment is Wet Indoor Area. The cleaning method is Wet Brushing / Soaking / Ultrasonic Cleaning. Confirm temperature (120°C), chemical exposure (Acidic pH 1–5; Alkaline pH 9–13; Ethanol/Acetone), and documentation or compliance (Laboratory SOP; Material Chemical-Resistance and Non-Shedding Requirements) before finalizing the material and construction. The mapped product set includes manual, reciprocating, and powered motion; equipment inputs apply only to the branches that actually use a machine.
Common Challenges
Primary project question
What brush geometry works for cleaning test tubes, cylinders, beakers and flasks with varying openings and bottom shapes?
Operating conditions
For Laboratory Tube Cleaning, confirm required contact level (Soft–Medium), maximum stated temperature (120°C), chemical exposure (Acidic pH 1–5; Alkaline pH 9–13; Ethanol/Acetone), and documentation or compliance (Laboratory SOP; Material Chemical-Resistance and Non-Shedding Requirements).
Failure prevention
For Laboratory Tube Cleaning, verify access, installed engagement, contact direction, and the path for releasing chemical residue/precipitate/biofilm before increasing filament stiffness, density, or applied force. When brush access or cleaning performance is not enough, switch to a method that better matches the deposit and surface.
Selection and Project Inputs
For Laboratory Tube Cleaning, confirm the working area, residue, access opening or clearance, contact motion, acceptable surface condition, and the path for removing loosened material. The table below lists the measurements and operating limits that should be confirmed.
| Filament diameter | 0.08–0.25 mm; 0.30–1.00 mm |
|---|---|
| Overall length | 152–406 mm; 200–450 mm |
| Working length | 120–300 mm; 150–350 mm |
| Container opening / bore | 3–120 mm |
| Working insertion length | 80–1,000 mm |
Frequently Asked Questions
How is a brush selected for Laboratory Tube Cleaning?
Laboratory Tube Cleaning is specified from the actual internal container walls, necks, shoulders, bases, and narrow openings, the behavior of liquid film, product residue, biofilm, powder, and particles, the available brush envelope, and push, pull, rotate, or reciprocate through the opening. Select geometry first, then filament, engagement, motion or use method, and the mounting interface.
Which operating data are needed for Laboratory Tube Cleaning?
Send the drawing or photos of internal container walls, necks, shoulders, bases, and narrow openings, the dimensions in the table, the description of liquid film, product residue, biofilm, powder, and particles, motion and motion or use method, wet or dry conditions, temperature, chemicals, mounting space, quantity, and current failure symptoms.
Which brush materials are used for Laboratory Tube Cleaning?
Soft or medium nylon/PBT, natural fiber or sponge with protected stem; chemical compatibility follows laboratory solution.
When is a brush not the best method for Laboratory Tube Cleaning?
Use scraping, flushing, vacuum, air, chemical cleaning, ultrasonic cleaning, or another non-brush method when the deposit thickness, passage geometry, surface sensitivity, or required cleanliness is outside brush contact capability.
Continue Exploring
Recommended Reading & Related Brush Resources
35mm PBT Test Tube Brush
Custom 35mm PBT Test Tube Brush using PBT contact material, 35 mm head diameter,…
Review product specifications

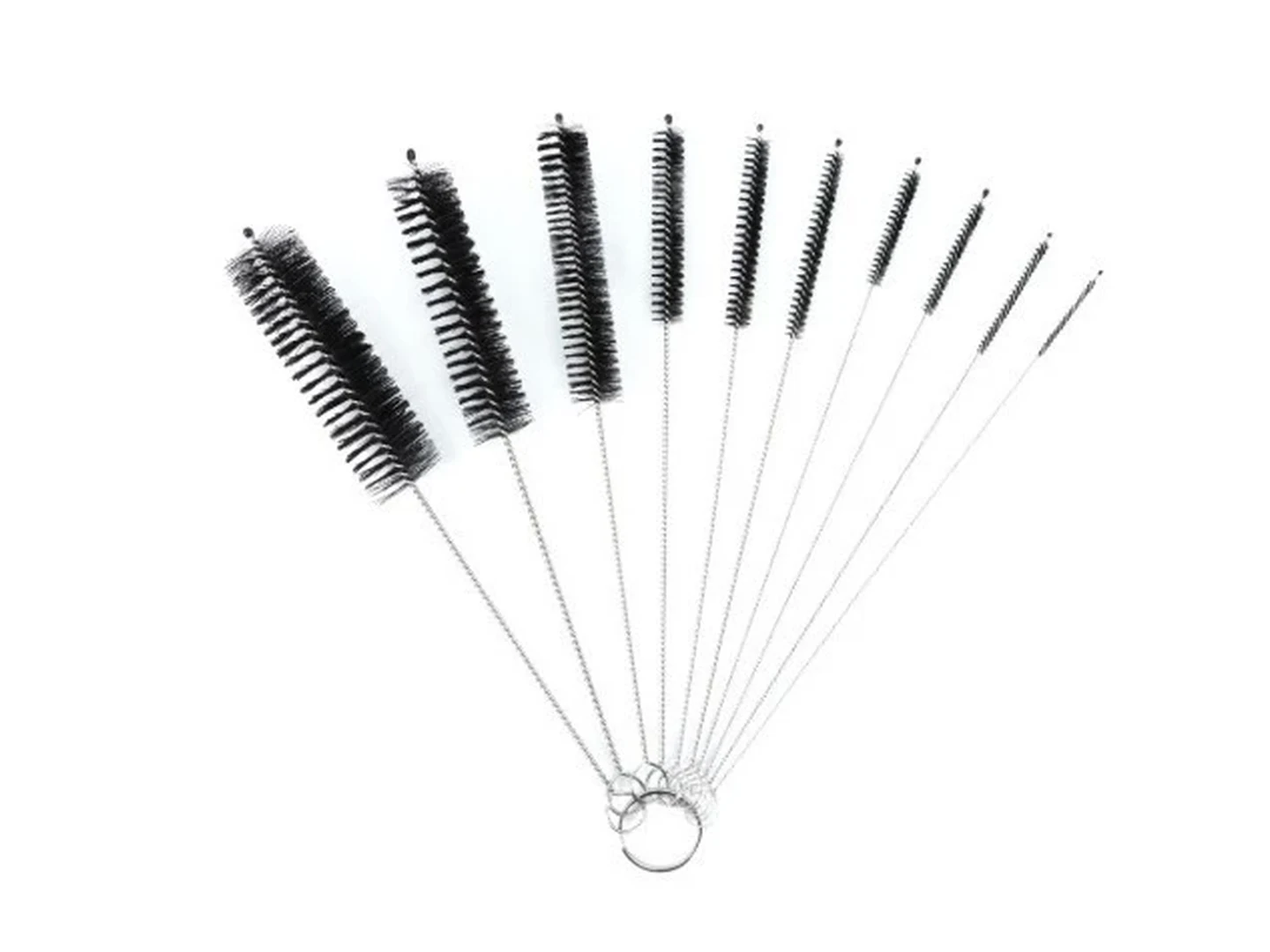

Test Tube Brush
Custom test tube brush for laboratory tube, glassware cleaning, configured around glass bores, tapered…
Review product specifications

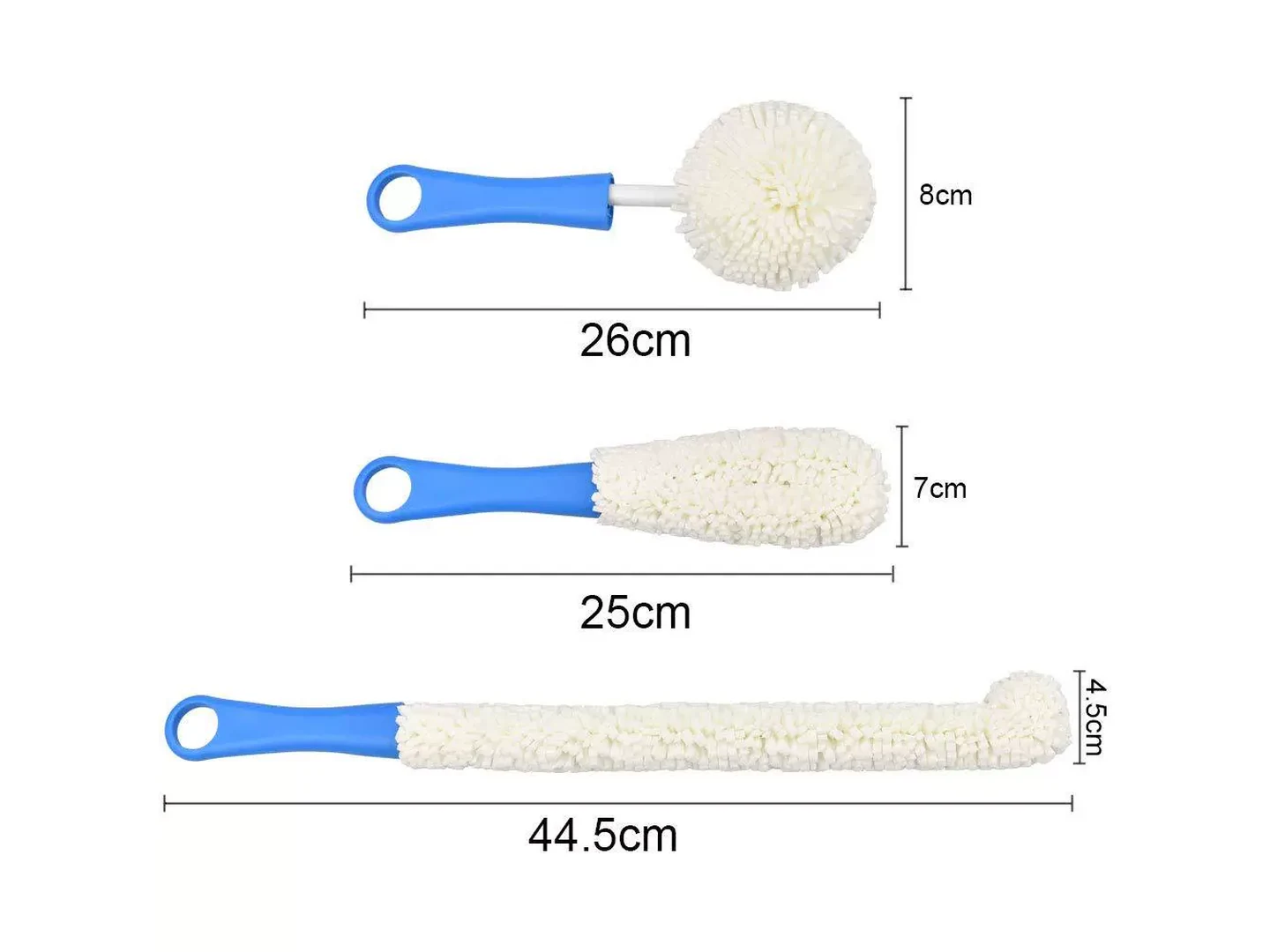

Glassware Cleaning Brush Kit
Custom glassware cleaning brush kit for laboratory tube, glassware cleaning, configured around glass bores,…
Review product specifications

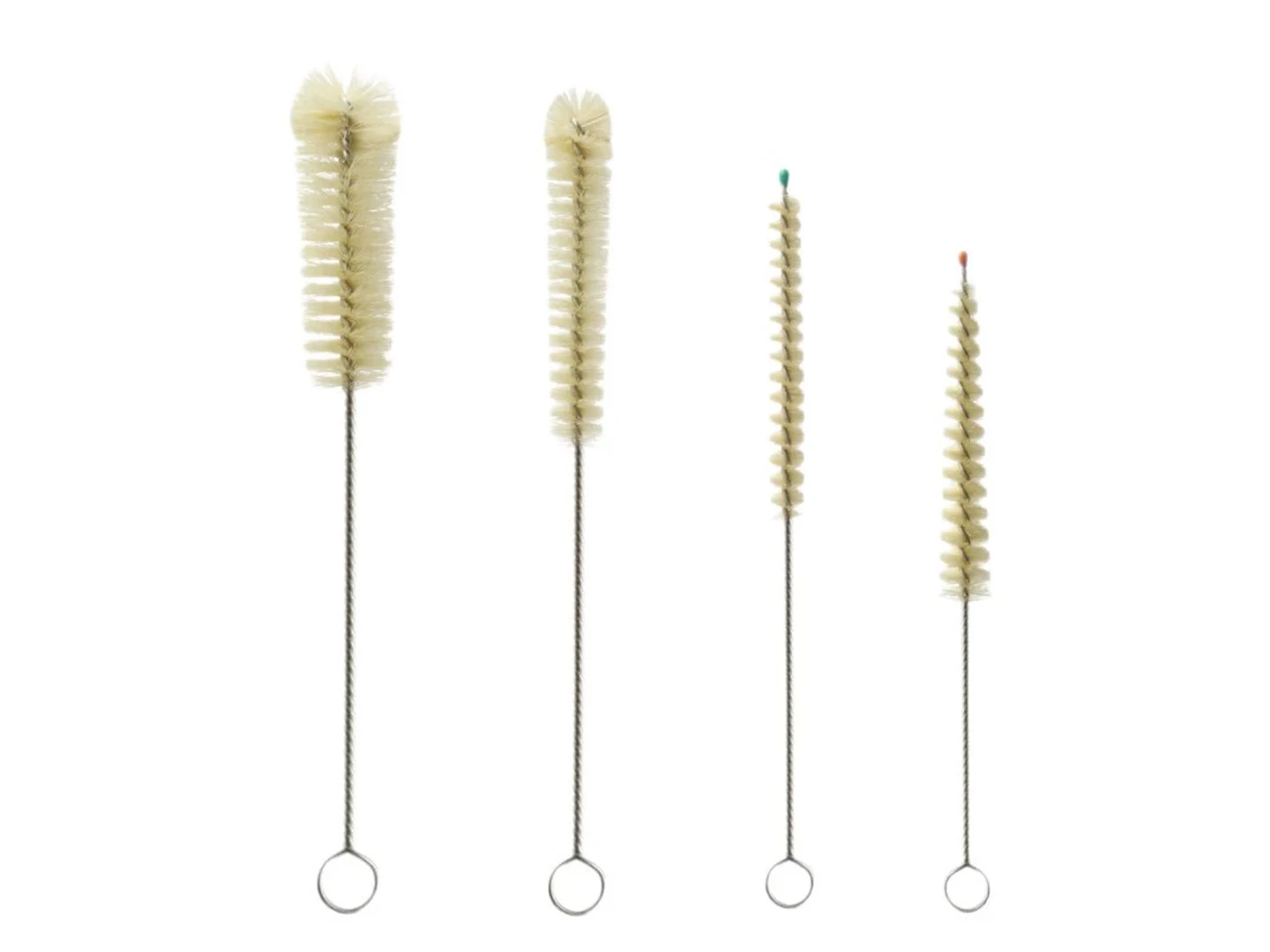

Laboratory Brush
Custom laboratory brush for laboratory vessel, instrument cleaning, configured around beakers, flasks, columns, glass…
Review product specifications

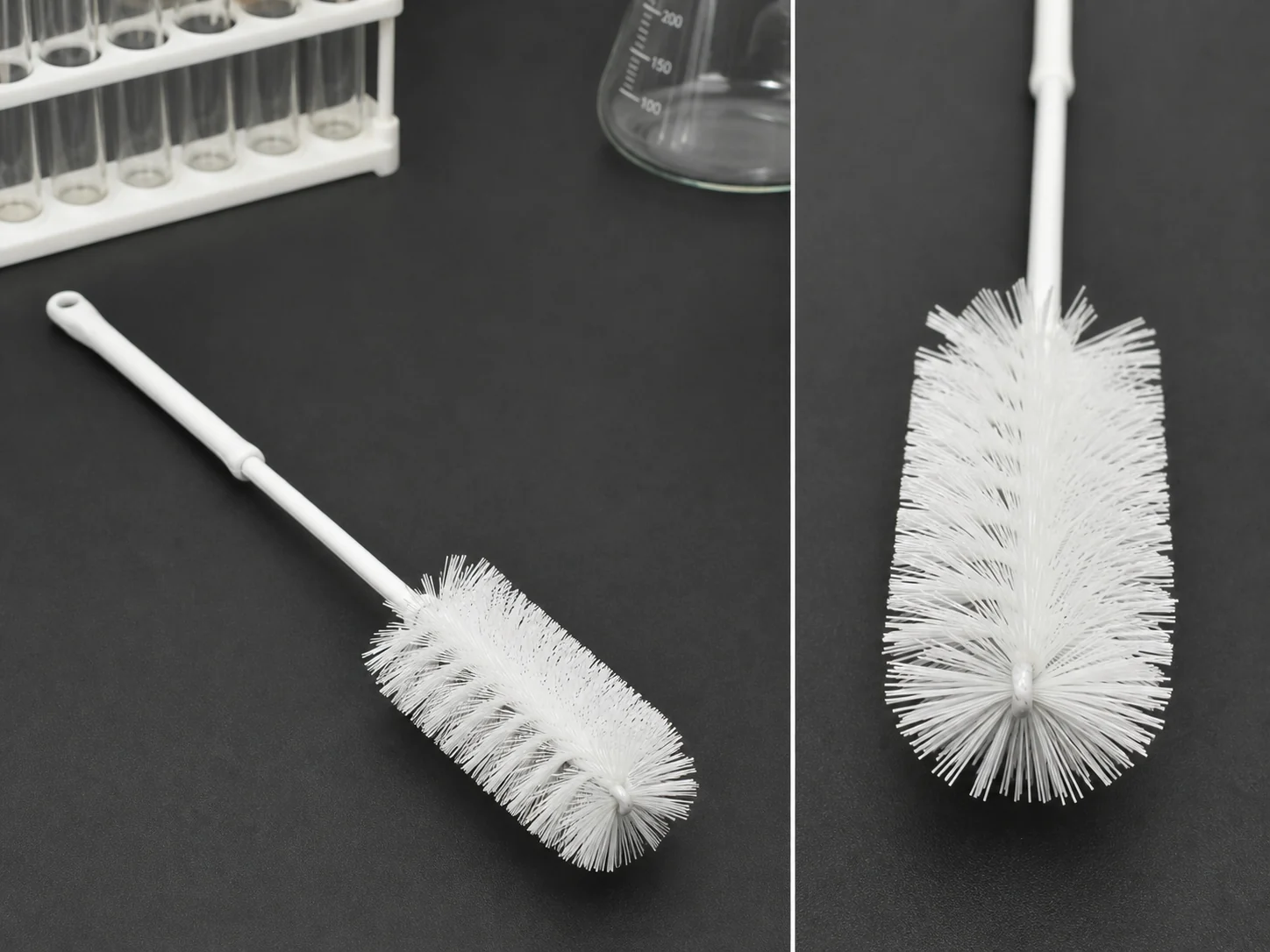

45mm PA66 Lab Bottle Brush
