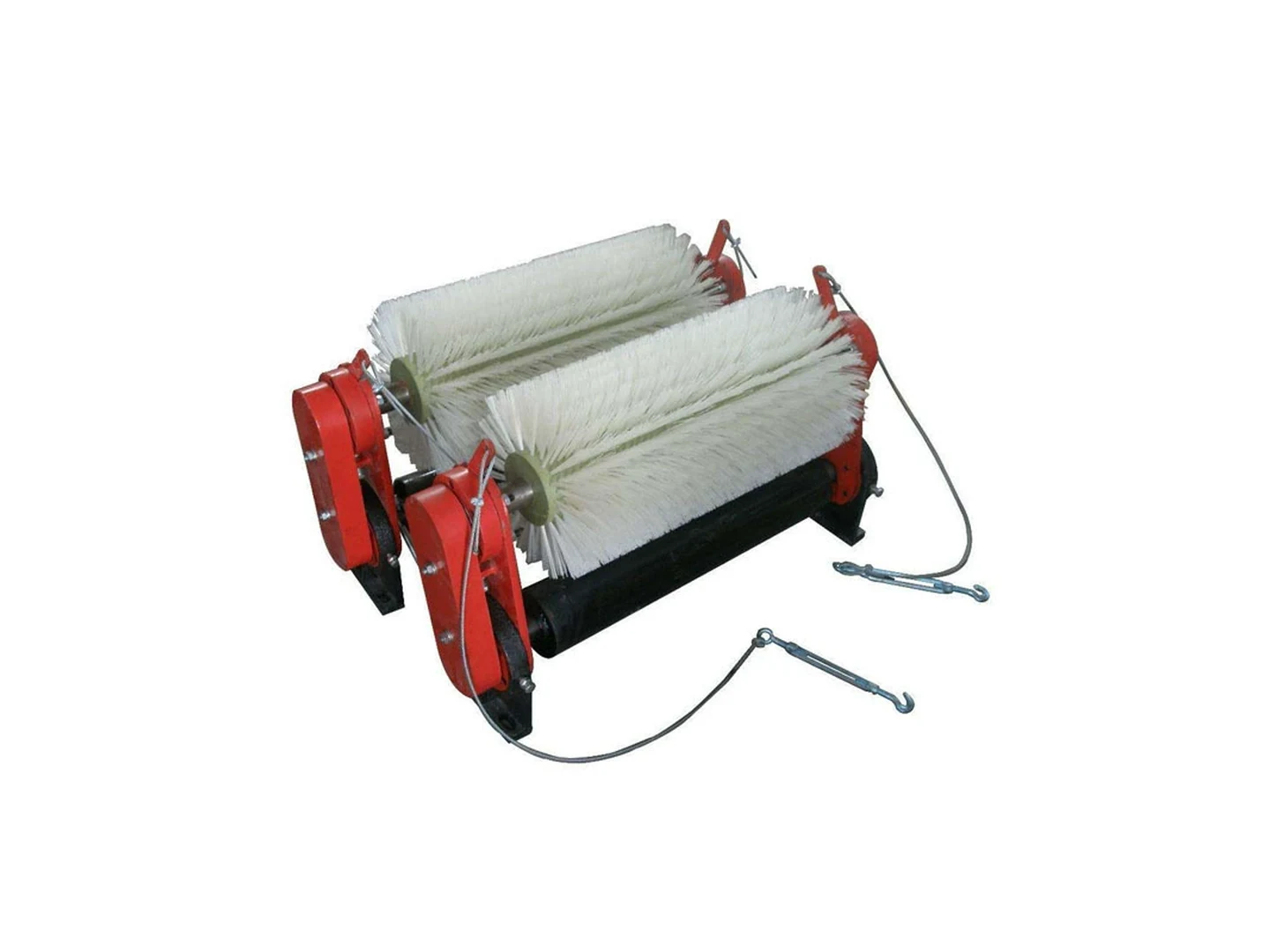

Conveyor Brush
Conveyor Brush provides controlled brush contact for conveyor and production-line cleaning across belts, rollers, and chains. Working width, brush geometry, mounting, and fill are set around the machine path and the way powder, crumbs, and fibers must be released or carried away.
Product Features
Roller contact can clean or guide product on a conveyor — The nylon working face is configured for the actual duty rather than treated as a universal brush format.
Continuous width coverage reduces missed bands — The cylindrical head reaches across the selected product or belt path.
Nylon stiffness is matched to product sensitivity — Fine filament supports delicate parts, while a firmer grade increases wiping or guiding force.
Straight or spiral tufting changes contact behavior — The pattern can provide even support or move light debris laterally.
Balanced core and shaft support stable rotation — Concentric construction helps maintain consistent engagement with the line.
Configured to the conveyor — Outside diameter, face width, nylon grade, trim, density, pattern, shaft ends, and mounting can be customized.
Product Overview
Conveyor Brush is used where repeatable contact is needed across belts, rollers, and chains rather than isolated hand cleaning. The active brush face clears powder, crumbs, and fibers while the holder, shaft, plate, or hub stays outside the interference path and supports the required working width. The brush must cover the moving path, accommodate tracking, and discharge residue away from the product zone.
Key dimensions start with Brush head diameter 60–500 mm and Brush head length 100–3000 mm. This is a roller-style brush design for repeatable contact over a wide or moving area. The specified interface is shaft-mounted / fixed. Nylon PA are the principal material directions in the current specification. Confirm the equipment model, shaft or hub interface, and actual operating speed; the brush does not use a universal speed rating.
Technical Specifications
| working width | 100–3000 mm |
|---|---|
| brush diameter | 60–500 mm |
| Core diameter | 25–250 mm |
| Shaft diameter | 12–100 mm |
| Trim length | 15–100 mm |
| Contact setting | Set 2–10 mm radial engagement and cover the working width with 5–15 mm edge overlap per side. |
| Fill materials | Nylon PA |
| Cleaning zone | conveyor and production-line cleaning |
| Contact surface | belts, rollers, chains, rails, transfer points, web paths, and machine guides |
| Residue class | powder, crumbs, fibers, chips |
| Access and motion | the brush must cover the moving path, accommodate tracking, and discharge residue away from the product zone |
| Cleaning duty | conveyor, production-line cleaning on belts, rollers, chains, rails |
| Variant configuration | Conveyor Brush: roller construction with Nylon PA fill for conveyor and production-line cleaning on belts, rollers, chains, rails. |
Application Areas
Conveyor Brush is primarily mapped to Conveyor Belt Cleaning. For a new use case, check the surface material, debris flow, and finish requirement before fixing the brush design.
- Conveyor Brush is best suited to conveyor belt cleaning and continuous residue control.
- The full-width cylinder, spiral roller, modular segment, or stationary strip brush follows flat, cleated, modular, mesh, or coated conveyor surfaces while the fill displaces dust, crumbs, granules, fibers, carryback, product residue, and fines.
- Use this configuration when the available access supports continuous line contact across a moving belt, screen, drum, or conveyor component.
Selection Guidance
Structure fit
Match the roller and conveyor brush geometry to belts, rollers, and chains, the available access, and powered operation. Confirm Brush head diameter 60–500 mm and Brush head length 100–3000 mm against the complete working envelope before finalizing the brush.
Contact material
Choose from Nylon PA according to the behavior of powder, crumbs, and fibers, the surface sensitivity, and any wet, chemical, temperature, or hygiene requirements. Stiffness is not decided by the material name alone. Filament diameter, free trim length, and density also matter.
When to use another solution
For Conveyor Brush, use another cleaning method when powder, crumbs, and fibers cannot be released by controlled filament contact, when belts, rollers, and chains cannot tolerate the selected contact material, or when the access path prevents safe engagement and residue removal.
Customization Options
| Brush Head Diameter (mm) | 60–500 |
|---|---|
| Brush Head Length (mm) | 100–3000 |
| Handle Length (mm) | Not Applicable (No separate handle in this product configuration) |
| Handle Grip Diameter (mm) | Not Applicable (No explicit grip or handle-diameter dimension in the product specification) |
| Bristle Material | Nylon PA |
| Handle Material | Powder-Coated Carbon Steel |
| Mounting / Interface | Shaft-Mounted / Fixed |
| Grip Style | Not Applicable (Machine-Mounted Brush) |
| Color | Custom PANTONE Color ([Industry Reference Range]) |
| Logo Process | Laser Engraving / Screen Printing / Pad Printing ([Industry Reference Range]) |
| Surface Treatment | Smooth / Textured / Overmolded / Coated (Depending on Substrate; [Industry Reference Range]) |
Frequently Asked Questions
How should Conveyor Brush be selected?
Start with conveyor belt cleaning and continuous residue control, flat, cleated, modular, mesh, or coated conveyor surfaces, and dust, crumbs, granules, fibers, carryback, product residue, and fines. Then set working width, brush diameter, and Core diameter, choose the fill from the material and residue table, and match the mounting interface and operating condition.
Which dimensions define Conveyor Brush?
The primary dimensions are working width (100–3000 mm), brush diameter (60–500 mm), and Core diameter (25–250 mm). Also provide the minimum clearance, working envelope, trim or engagement, and the existing holder, shaft, stem, thread, or handle.
Which filament or contact material is used for Conveyor Brush?
The primary options are Nylon PA. The final choice follows surface sensitivity, residue adhesion, wet or dry use, temperature, chemicals, conductivity, and required cutting action.
When is Conveyor Brush not the best cleaning method?
Conveyor Brush is not the first choice when combine the brush with a scraper, spray bar, vacuum, or air knife for thick sludge or heavy carryback.
What information is required to quote Conveyor Brush?
Send the part or machine drawing, photos of flat, cleated, modular, mesh, or coated conveyor surfaces, working width, brush diameter, Core diameter, and Shaft diameter, the residue description, wet or dry conditions, motion or use method, temperature, preferred Nylon PA, quantity, and the existing interface or sample.
