Custom Cleaning Brush
Cup Brush
Cup Brush concentrates edge, face, or tip contact on flat metal surfaces, welds, and edges for Surface cleaning, rust removal, and weld cleaning. Diameter, face width, fill, trim, and tool interface are selected around rust, oxide, and scale and the finish the surface must retain.
Product Features
Radial face cleaning — Bristles project from a cup-shaped base to clean broad flat areas, edges, welds, and corners with a powered or manual tool.
Choice of crimped or knotted wire — Crimped fill provides flexible general cleaning, while knots deliver stronger action on heavy rust and scale.
Nylon provides nonmetallic contact for sensitive surfaces, while brass wire supplies stronger cleaning on compatible metal parts.
Direct tool connection — Threaded hubs, shanks, and arbor sizes can be matched to grinders, drills, or dedicated machines.
Guarded working shape — The cup concentrates contact beneath the tool and supports stable surface engagement.
Customized for the application — Diameter, fill, wire gauge, trim, hub, thread, and rated operating conditions can be specified.
Product Overview
For Cup Brush, the direction of contact is selected first: edge contact for narrow profiles, face contact for broader surfaces, or end contact for localized recesses. On flat metal surfaces, welds, and edges, the fill should remove rust, oxide, and scale without using unnecessary pressure that would deform the filament or alter the finish. Cup diameter, active face width, filament projection, tool guard, and hub or shank must fit the complete working envelope.
Key dimensions start with Brush head diameter 30–120 mm, Brush head length 40–180 mm, and Handle length 150–450 mm. The structural layout follows the cup brush category. The specified interface is fixed. Brass Wire and Nylon PA are the principal material directions in the current specification. Confirm whether the brush will be used manually, in powered equipment, or both because the interface and working load are different.
Technical Specifications
| Cup outside diameter | Selected from the work area and tool guard |
|---|---|
| Active face width | Matched to the required contact band |
| Fill form | Crimped, knotted, or straight filament |
| Fill material | Stainless steel, carbon steel, brass, nylon, or abrasive nylon as approved |
| Trim length | Selected with filament diameter and required compliance |
| Connection | Threaded hub, arbor, shank, or custom holder |
| Equipment input | Customer-supplied tool interface, direction, and speed; final rating confirmed for the finished brush |
| Cleaning zone | Flat surfaces, edges, welds, corners, and localized work areas |
| Residue class | Rust, oxide, scale, coating residue, burrs, carbon, and process deposits |
Application Areas
Cup Brush is primarily mapped to Surface Finishing. Before changing the application, review the contact surface, debris removal path, and acceptable surface condition.
- Broad flat-surface and weld cleaning with a cup-shaped working face.
- Crimped, knotted, wire, nylon, or abrasive fill can be matched to the residue and surface.
- Threaded hubs, arbors, and shanks are built around the approved tool and guard envelope.
Selection Guidance
Structure fit
Match the cup brush geometry to flat metal surfaces, welds, and edges, the available access, and manual or powered operation. Confirm Brush head diameter 30–120 mm, Brush head length 40–180 mm, and Handle length 150–450 mm against the complete working envelope before finalizing the brush.
Contact material
Choose from Brass Wire and Nylon PA according to the behavior of rust, oxide, and scale, the surface sensitivity, and any wet, chemical, temperature, or hygiene requirements. Stiffness is not decided by the material name alone. Filament diameter, free trim length, and density also matter.
When to use another solution
For Cup Brush, use another cleaning method when rust, oxide, and scale cannot be released by controlled filament contact, when flat metal surfaces, welds, and edges cannot tolerate the selected contact material, or when the access path prevents safe engagement and residue removal.
Customization Options
| Brush Head Diameter (mm) | 30–120 |
|---|---|
| Brush Head Length (mm) | 40–180 |
| Handle Length (mm) | 150–450 |
| Handle Grip Diameter (mm) | Not Applicable (No explicit grip or handle-diameter dimension in the product specification) |
| Bristle Material | Brass Wire, Nylon PA |
| Handle Material | Polypropylene PP |
| Mounting / Interface | Fixed |
| Grip Style | Straight Handle / Angled Handle |
| Color | Custom PANTONE Color ([Industry Reference Range]) |
| Logo Process | Laser Engraving / Screen Printing / Pad Printing ([Industry Reference Range]) |
| Surface Treatment | Smooth / Textured / Overmolded / Coated (Depending on Substrate; [Industry Reference Range]) |
Frequently Asked Questions
How should Cup Brush be selected?
Start with cup, mug, teapot, tumbler, lid, and drinkware cleaning, inner wall, base, rim, handle junction, lid groove, spout, and thread, and tea stain, coffee oil, milk film, lipstick, sugar, and beverage residue. Then set Cup head diameter, Working section height, and Overall height or reach, choose the fill from the material and residue table, and match the mounting interface and operating condition.
Which dimensions define Cup Brush?
The primary dimensions are Cup head diameter (30–120 mm), Working section height (40–180 mm), and Overall height or reach (150–450 mm). Also provide the minimum clearance, working envelope, trim or engagement, and the existing holder, shaft, stem, thread, or handle.
Which filament or contact material is used for Cup Brush?
The primary options are Brass Wire and Nylon PA. The final choice follows surface sensitivity, residue adhesion, wet or dry use, temperature, chemicals, conductivity, and required cutting action.
When is Cup Brush not the best cleaning method?
Cup Brush is not the first choice for a tube brush, powered brush, scraper, wipe, sponge, or vacuum when the target is internal, heavily bonded, or highly delicate.
What information is required to quote Cup Brush?
Send the part or machine drawing, photos of inner wall, base, rim, handle junction, lid groove, spout, and thread, Cup head diameter, Working section height, Overall height or reach, and Filament or fin thickness, the residue description, wet or dry conditions, motion or use method, temperature, preferred Brass Wire and Nylon PA, quantity, and the existing interface or sample.
RELATED BRUSH RESOURCES
Recommended Reading & Related Brush Resources
Custom Cup Brushes
Choose a cup brush when a rotating brush face must cover a broader flat…
Explore this brush type
Surface Finishing
Surface Finishing is a process-use page rather than a general cleaning category.
Review application guidance
Steel Rust Removal
For Steel Rust Removal, the brush must reach the working area, disturb or collect…
Review application guidance
Brass Wire
Brass Wire is selected from its stiffness, recovery, wear, wet-service, chemical, and temperature behavior.
Compare material considerations
Nylon PA
Nylon PA is selected from its stiffness, recovery, wear, wet-service, chemical, and temperature behavior.
Compare material considerations

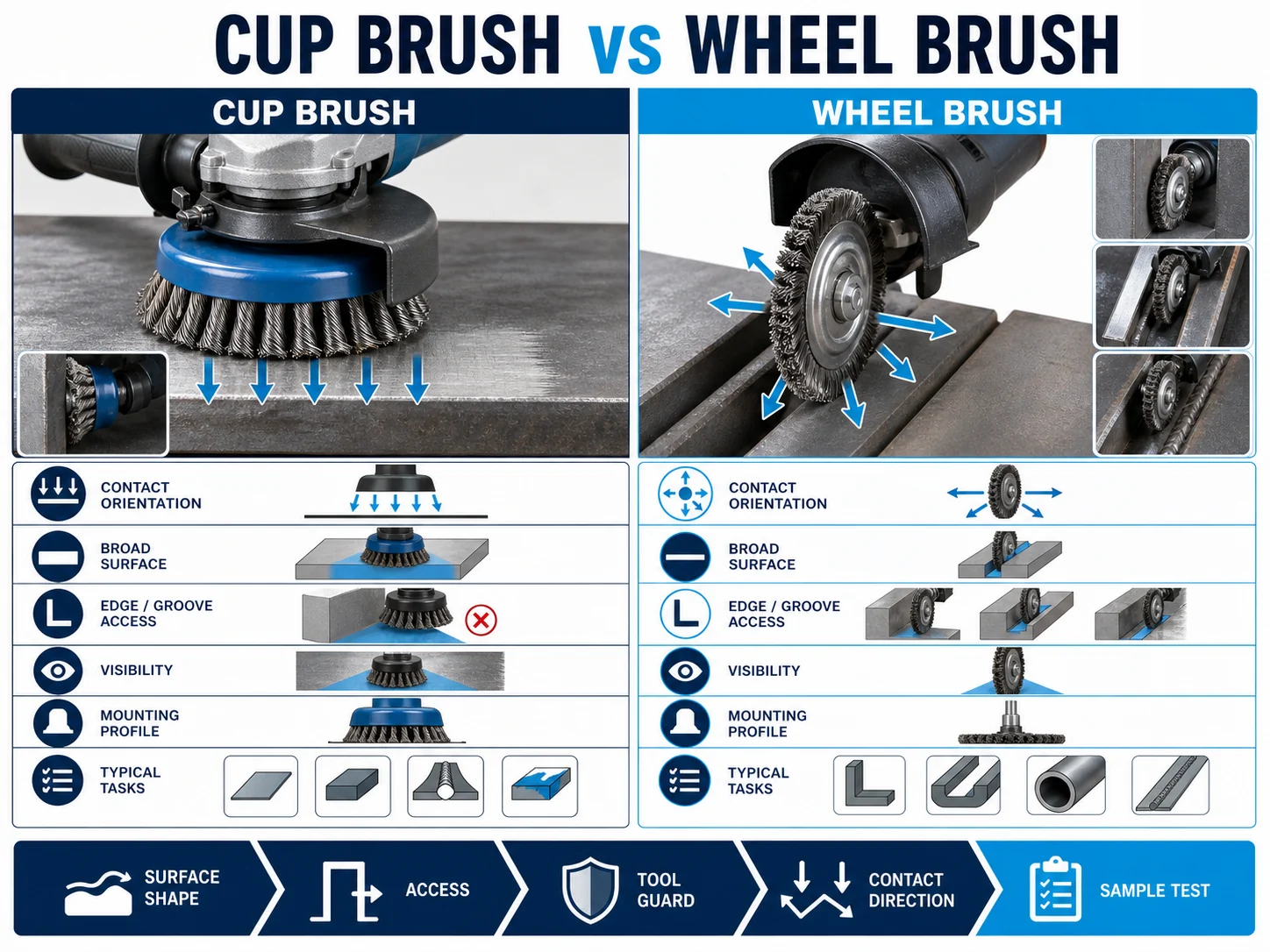

Cup Brush vs Wheel Brush: Which One to Use
Confused between a cup brush and a wheel brush?
Read related guide

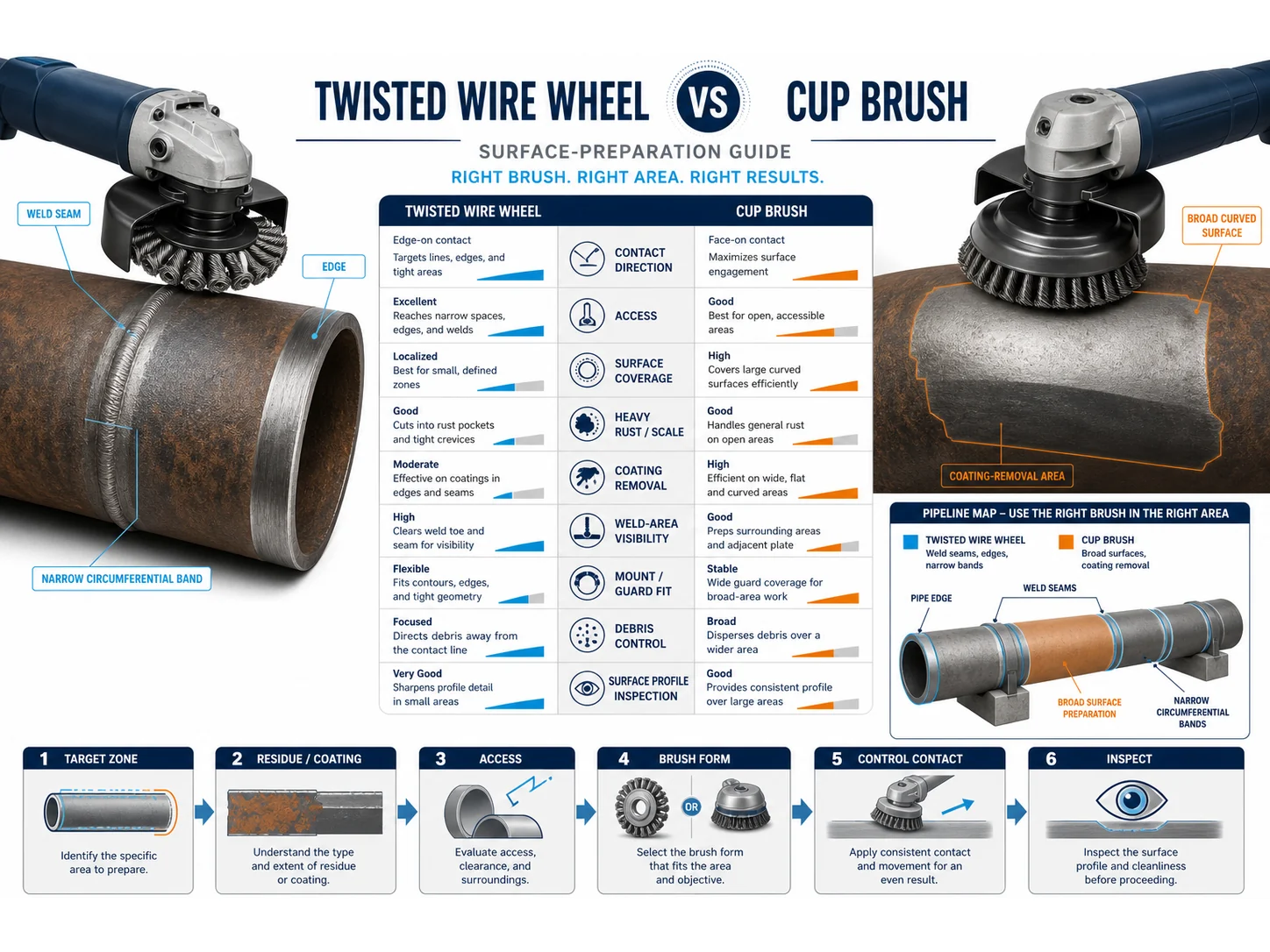

Oil and Gas Pipeline Surface Prep Brushes: Twisted Wire vs Cup Brush
