What Is a Washing Machine Cleaning Brush?
A washing machine cleaning brush is a cylindrical brush built with bristles arranged around a central core, usually designed to be attached to a rotating cleaning machine or used manually with a handle. The name comes from its common use in automatic or semi-automatic washing systems that flush appliance coils with water or cleaning solution while the brush mechanically agitates the surface. The brush is engineered to reach between densely packed coil fins and tubes, dislodging debris without bending the metal.
Why Appliance Coils Need Special Attention
For fire-safety language, this article uses USFA — Heating Fire Safety as the public-safety source.
For combustion-appliance and chimney-adjacent risk language, CPSC — Carbon Monoxide Information Center is used as a safety reference.
For fire-safety language, this article uses USFA — Clothes Dryer Fire Safety Flyer as the public-safety source.
For roof-access and work-at-height cautions, the supporting public-safety reference is HSE — Safe Working on Roofs.
For the safety point in this section, the relevant OSHA reference is OSHA — 1910.23 Ladders.
For the environmental or chemical-safety point in this section, the supporting reference is EPA — Nonpoint Source: Urban Areas.
Appliance coils are critical for heat exchange. When airflow is blocked by dust, pet hair, cooking grease, or lint, efficiency drops, energy costs rise, and components can overheat. The fins are thin (often 0.004–0.008 inch) and easy to damage. A regular wire brush or stiff scraper can flatten fins, permanently reducing performance. The right washing machine cleaning brush balances cleaning power with surface protection.
Common Types of Washing Machine Cleaning Brushes
Brushes differ by bristle material, diameter, stiffness, and core design. The most common options include:
- Soft nylon brushes – safe for routine dust removal on all coil types.
- Medium nylon brushes – handle light oil and greasy dust found in kitchens.
- Brass wire brushes – used for stubborn carbon or mineral deposits on robust coils.
- Stainless steel wire brushes – reserved for heavy industrial scale where coil damage is acceptable.
- Horsehair brushes – extremely gentle, chosen for antique or precision coils.
Each type is available with different handle options: a plain twisted wire stem, a plastic grip handle, or a quick-connect shank for powered cleaning machines.
Comparing Brush Options for Appliance Coils
The table below summarizes key differences to help narrow the selection.
| Brush Material & Type | Typical Diameter Range | Stiffness | Best for Residue Type | Surface Sensitivity | Chemical Compatibility | Handle/Core Options | Notes |
|---|---|---|---|---|---|---|---|
| Soft Nylon Bristle Twisted-in-Wire | 1/4 in. to 1 in. | Soft | Light dust, lint, pet hair | Very safe for thin aluminum and copper fins | Good with mild detergents and water | Wire core with loop handle or machine adapter | Ideal for frequent preventive maintenance |
| Medium Nylon Bristle Brush | 1/2 in. to 1-1/2 in. | Medium | Moderate grease, oily dust | Safe for most finned coils with careful pressure | Resistant to common degreasers; avoid strong solvents | Twisted wire, plastic handle, or power tool shank | Versatile; common choice for service technicians |
| Brass Wire Brush | 1/4 in. to 3/4 in. | Stiff | Baked-on carbon, light corrosion | Can scratch soft aluminum; use only on thick steel coils | Avoid acidic cleaners; can discolor brass | Twisted wire handle or rotary tool adapter | Do not use on standard fin-and-tube evaporators |
| Stainless Steel Wire Brush | 1/8 in. to 5/8 in. | Very Stiff | Heavy scale, rust, hardened deposits | Easily damages delicate coil fins | Highly chemical resistant | Twisted wire, long handle | Only for heavy-duty industrial coils where fin damage is acceptable |
| Horsehair Brush | Small to medium (custom) | Very Soft | Fine dust on antique or precision coils | Extremely safe; zero scratch risk | Limited; best for dry use only | Traditional wooden handle or custom mounts | Often custom-ordered for restoration work |
How to Choose the Right Washing Machine Cleaning Brush
Selecting the proper brush requires matching the tool to the specific cleaning challenge. Use the following factors to guide the decision.
- Residue type: Light dust needs a soft nylon brush. Greasy film demands medium stiffness and chemical compatibility. Baked-on deposits may require a brass wire brush, but only if the coil surface can handle it.
- Surface sensitivity: Standard residential and commercial evaporator fins are soft aluminum. Always test a hidden area first. If fins are easily bent by thumb pressure, stay with soft or medium nylon.
- Equipment interface: Will the brush be used by hand, in a drill, or in an automated washing machine? A brush with a standard 1/4 in. hex shank fits many rotary cleaning systems, while a loop handle suits manual cleaning.
- Wet or chemical exposure: If using alkaline coil cleaners or acidic descalers, verify bristle material resistance. Nylon is generally safe with pH 2–12 solutions; brass and steel may corrode or react.
- Hygiene expectations: Food processing or pharmaceutical coils may require brushes made from FDA-compliant materials or those that withstand high-temperature sanitizing cycles. Confirm with the brush supplier.
- Maintenance frequency: For daily or weekly cleaning, a durable medium nylon brush with a machine adapter reduces operator fatigue. For annual cleaning, a manual soft brush may be enough.
- Custom size requirements: Off-the-shelf brushes may not fit tightly spaced coils or unusual tube patterns. In such cases, consider a custom diameter, trim length, or stem configuration. A drawing or sample test with the supplier helps avoid ordering the wrong brush.
Setup, Usage, and Placement Factors
Real-world conditions affect brush performance and safety.
- Access: Coils buried behind panels or inside ducting may require a long, flexible shaft brush or a brush with an angled head. Make sure the brush can reach the full coil face.
- Orientation: Downflow, upflow, or horizontal coils change how debris and cleaning solution drain. Brushes used with a washing machine often work best when the coil can be flushed from top to bottom.
- Safety: Lock out electrical power and discharge capacitors before cleaning any appliance. Rotary brushes create entanglement hazards; loose clothing, hair, and jewelry must be secured.
- Frequency: High-use coils in greasy environments may need weekly cleaning. Choose a brush and cleaning system that minimizes downtime—a machine-mounted brush that fits the coil width can save hours.
- Water and chemical use: If applying water, verify that the appliance’s electrical components are shielded. Use the lowest effective pressure to avoid driving moisture into sensitive areas.

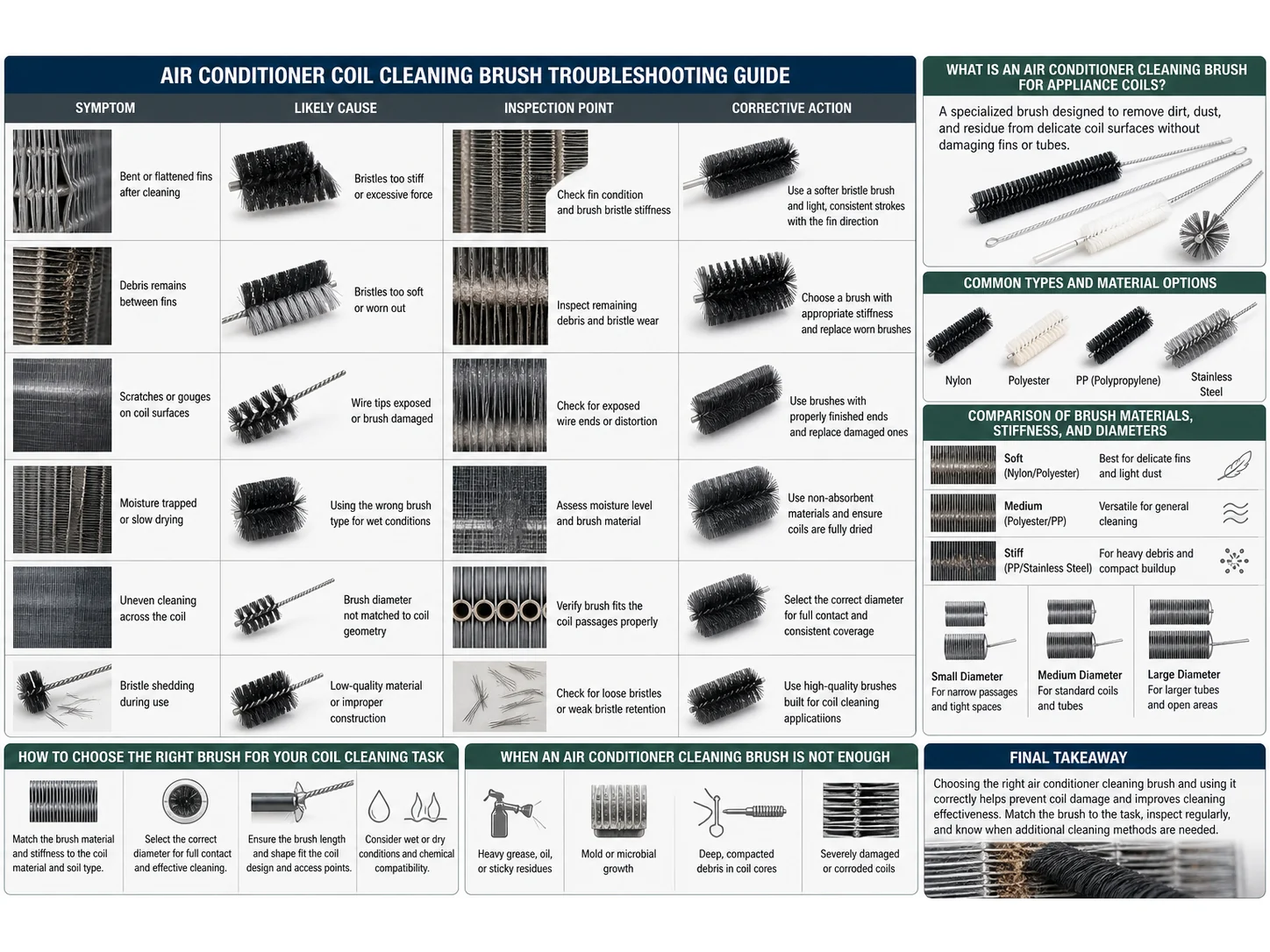

Common Mistakes to Avoid
- Using a wire brush on soft aluminum fins. Even light pressure can fold fins flat. Save wire brushes for heavy-gauge steel coils only.
- Ignoring bristle stiffness. A brush that “feels” right by hand may still be too aggressive when spun at 500 RPM. Always test on a scrap or hidden area.
- Overlooking chemical compatibility. Some cleaners degrade nylon or discolor brass. Check the brush material data sheet when using anything stronger than soap and water.
- Choosing by diameter alone. A brush must match the tube spacing, not just the overall coil width. A brush that is too wide will jam between tubes; too narrow leaves residue behind.
- Neglecting handle attachment. A brush that spins in a drill chuck can over-tighten and snap the wire stem. Use a quick-connect adapter rated for the expected torque.
- Cleaning only one side. Coils get dirty from both sides. If the appliance design allows, clean both inlet and outlet faces.
- Skipping a sample test with custom brushes. When ordering a non-standard size, request a prototype or at least a dimensioned drawing. This avoids expensive production runs that don’t fit.
When a Washing Machine Cleaning Brush Is Not Enough
A washing machine cleaning brush handles routine mechanical cleaning well, but it has limits. Stop and reconsider if any of these conditions apply:
- Coils are heavily fouled with hardened, baked-on deposits. A brush alone may not remove carbonized grease or scale. Pre-soaking with an approved coil cleaner or using a steam cleaning system is needed first.
- Fins are already severely bent or crushed. Running any brush over damaged fins worsens the problem. Fins should be straightened with a fin comb before brushing.
- The appliance requires disassembly to access coils safely. Trying to force a brush through narrow openings can damage internal components. Professional service may be required.
- Hygiene standards demand validated cleaning results. In pharmaceutical, food, or cleanroom environments, visual inspection might not be enough. Validated clean-in-place (CIP) systems or disposable wipes with documented procedures may be required.
- The coil material is extremely delicate or coated. Some specialty coils have nano-coatings or microchannel construction that can be damaged by any bristle. Consult the instrument manufacturer’s manual before brushing.
- Electrical safety cannot be not Help confirmd. If water or metal brush particles could enter live electrical compartments, do not proceed. Use dry, non-conductive cleaning methods.
Final Takeaway
A washing machine cleaning brush is an excellent choice when the task involves moderate, greasy or dusty buildup on standard fin-and-tube coils, frequent maintenance cycles, and access that allows a rotary or manual brush to reach the surface safely. Match the bristle material and stiffness to the residue type and coil sensitivity, and always verify chemical compatibility. If the deposits are hardened, the fins are delicate, or hygiene validation is required, a brush is only part of the solution—or the wrong one entirely. When standard sizes do not fit, work with a supplier to develop a custom brush that meets your exact specification.
Frequently Asked Questions
Can I use a washing machine cleaning brush on a residential refrigerator condenser coil?
Yes, a soft nylon brush on a hand-held wand or low-speed drill is usually safe for residential condenser coils. Move the brush gently in the direction of the fin channels and vacuum up loosened debris immediately.
What diameter brush should I use for standard 3/8 inch tube spacing?
For coils with 3/8 inch tube spacing, a brush diameter between 1/4 and 5/16 inch often fits well. Always measure the actual gap between tubes and subtract about 1/16 inch to allow bristle flex and avoid jamming.
How often should I clean appliance coils with a brush?
Frequency depends on the environment. In a typical home, cleaning every 6–12 months is enough. In a commercial kitchen or dusty workshop, coils may need monthly or even weekly cleaning. Inspect the coil face: if you see a visible dust mat, it is time to clean.
Is a washing machine cleaning brush better than using a vacuum alone?
A vacuum removes loose surface dust, but it cannot break up oily or stuck-on debris. A brush agitates and dislodges this residue, allowing the vacuum or a washing system to carry it away. Using both together works best: brush first, then vacuum or rinse.
Can I use a washing machine cleaning brush with chemical coil cleaners?
Generally, yes. Nylon brushes tolerate most commercial coil cleaners. Always check the cleaner’s safety data sheet for any material restrictions, and rinse the brush thoroughly after use to prevent bristle degradation over time.
What is the difference between a tube brush and a coil cleaning brush?
A tube brush is usually a smaller diameter brush designed to clean the inside of pipes or tubes. A coil cleaning brush is wider and designed to sweep across the outside of fin-and-tube coils, cleaning the fin surfaces rather than the tube interiors. Some brushes can serve both purposes if sized correctly.
When should I order a custom washing machine cleaning brush instead of an off-the-shelf size?
Consider a custom brush if your coil has non-standard tube spacing, you need a longer overall length to reach deep coils, or you require a special bristle material for unique chemical or temperature demands. A dimensioned drawing and a sample coil section sent to the brush supplier dramatically reduce the risk of ordering an incorrect brush.
