Material
EPDM Rubber Brush Blade
EPDM Rubber Brush Blade is selected from its stiffness, recovery, wear, wet-service, chemical, and temperature behavior. For brush stiffness, do not give only the material name. Filament diameter, free trim, density, grade, and service conditions must be specified together.
Material Overview
EPDM Rubber Brush Blade is used as brush fill or contact media where its property profile fits the cleaning duty.
In a finished brush, EPDM Rubber Brush Blade does not create a fixed stiffness by itself. The brush response is shaped by filament geometry, fill density, tuft pattern, and interference, then modified by moisture, temperature, and chemical exposure.
Material Properties
| Filament diameter | 0.50–6.00 mm |
|---|---|
| Hardness | Shore A 40–90 |
| Continuous temperature | 120–150°C |
| Peak temperature | 170–180°C |
| Water absorption | 0.5–2.0%(Grade/Formulation Dependent, ISO 62/ASTM D570) |
Brush Applications
For EPDM Rubber Brush Blade, directly related brush structures include Disc Brushes. Applications related to EPDM Rubber Brush Blade include Conveyor Belt Cleaning, Conveyor Bulk Material Cleaning, and Industrial Machine Cleaning.
Specification and Customization
Material form
Molded Brush Blade / Wiper
Common forms
Filament; strip fill; roller fill; molded blade or foam pad as applicable.
Grade
EPDM hardness and cure grade specified separately
Reference standard
ISO 37; ASTM D412; ISO 48-4; ASTM D2240-15(2021); ISO 4892-3:2024; ASTM G154-23; UL 94
Limitations and Alternatives
Final performance depends on filament diameter, trim length, density, chemical concentration and operating temperature; [Industry Reference Range].
Continue Exploring
Recommended Reading & Related Brush Resources

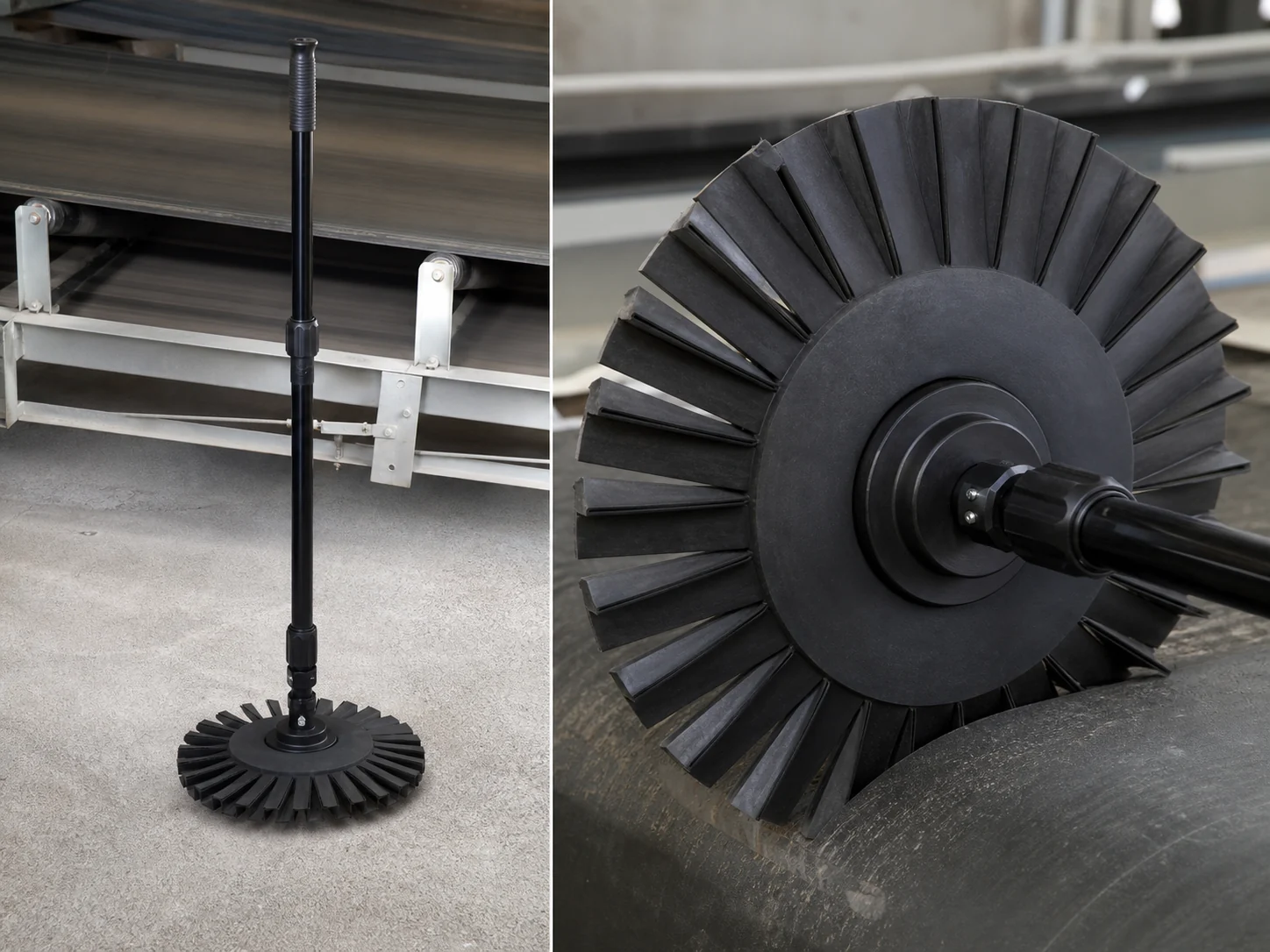

400mm EPDM Wiper Disc Brush
