Material
PTFE Filament
PTFE Filament is selected from its stiffness, recovery, wear, wet-service, chemical, and temperature behavior. To define stiffness, confirm the material together with filament diameter, free trim length, density, grade, and service conditions.
Material Overview
PTFE is a fluoropolymer with low friction and high chemical inertness; finished-brush performance also is controlled by filament form, anchoring and holder construction.
In a finished brush, PTFE Filament does not create a fixed stiffness by itself. Filament size, exposed length, density, tuft layout, and contact setting control the brush feel, while grade and service conditions control long-term behavior.
Material Properties
| Density | 2.14–2.20 g/cm³ |
|---|---|
| Melting point | 327°C |
| Water absorption | below 0.01% |
| Continuous service | -200–260°C |
| Filament diameter | 0.15–1.50 mm |
Brush Applications
For PTFE Filament, directly related brush structures include Handheld Detail Brushes, Tube & Pipe Bore Brushes, and Bottle & Container Brushes. Applications related to PTFE Filament include Industrial Machine Cleaning, Dust Removal, Brick, Tile & Building Material Machine Brush Use, and Mold Cavity Cleaning.
Specification and Customization
Material form
Filament
Common forms
Filament.
Grade
Virgin or modified PTFE brush-filament grade
Reference standard
ISO 527-1:2019; ASTM D638; ISO 62:2008; ASTM D570-22; ISO 868:2003; ASTM D2240-15(2021); ISO 4892-3:2024; ASTM G154-23; UL 94
Limitations and Alternatives
Not ideal when high mechanical cutting or aggressive deburring is needed.
Frequently Asked Questions
What are the key properties of PTFE Filament brush material?
PTFE is a fluoropolymer with low friction and high chemical inertness; finished-brush performance also is controlled by filament form, anchoring and holder construction. Direct data: Density: 2.14–2.20 g/cm³; Melting point: 327°C; Water absorption: below 0.01%; Continuous service: -200–260°C; Filament diameter: 0.15–1.50 mm.
Where is PTFE Filament used in cleaning brushes?
Chemical-process, laboratory and specialty cleaning where low friction and broad chemical resistance outweigh cutting action.
How does filament geometry change PTFE Filament brush stiffness?
PTFE Filament changes brush stiffness through filament diameter, free trim, density, crimp, and contact. Use finer filament and longer trim for conformable contact; use coarser filament, shorter trim, or higher density for stronger displacement or cutting.
When should PTFE Filament be replaced by another material?
Compare PTFE Filament with Nylon, PBT, stainless steel. Change material when wet stiffness, temperature, chemical resistance, conductivity, particle shedding, or surface marking becomes the limiting factor.
Continue Exploring
Recommended Reading & Related Brush Resources
120mm PTFE Solvent Vessel Brush
Custom 120mm PTFE Solvent Vessel Brush using PTFE contact material, 120 mm head diameter,…
Review product specifications
25mm PTFE Chemical Tube Brush
Custom 25mm PTFE Chemical Tube Brush using PTFE contact material, 25 mm head diameter,…
Review product specifications

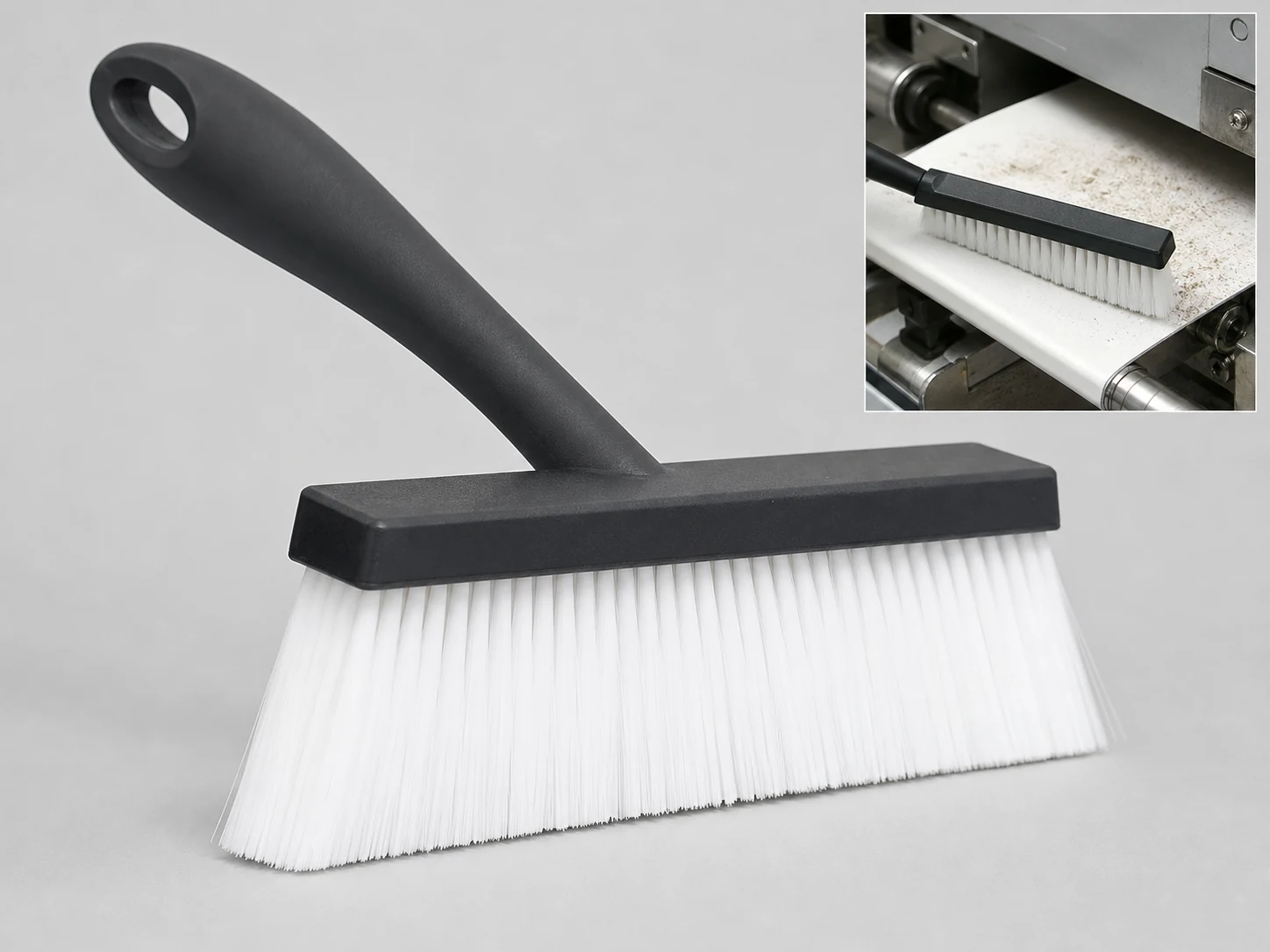

PTFE Brush
