Application
Beverage Equipment Cleaning
For Beverage Equipment Cleaning, the brush must reach the working area, disturb or collect syrup/adhered residue/biofilm, and release it without creating unacceptable surface damage or process interference. Access space, brush movement, and cleaning method are the main factors in selecting the structure.
Application Overview
Beverage Equipment Cleaning connects the cleaning problem on food equipment, belts, trays, tanks, containers, and process parts to brush geometry, material, operating conditions, and mounting.
The selection sequence for Beverage Equipment Cleaning starts with the access path and contact direction, then checks how the residue breaks free and leaves the work zone. The service environment is Wet Indoor Area. The cleaning method is Wet Brushing / Soaking / Steam Cleaning. Confirm temperature (100°C), chemical exposure (Neutral to Alkaline pH 6–12; Peracetic Acid), and documentation or compliance (FDA 21 CFR；EU 10/2011；HACCP) before finalizing the material and construction. The mapped product set includes manual, powered, and fixed-contact motion; equipment inputs apply only to the branches that actually use a machine.
Common Challenges
Primary project question
What brush geometry works for removing syrup, protein, yeast, scale or cleaning residue from beverage tanks, fittings and filling equipment?
Operating conditions
For Beverage Equipment Cleaning, confirm required contact level (Soft–Medium), maximum stated temperature (100°C), chemical exposure (Neutral to Alkaline pH 6–12; Peracetic Acid), and documentation or compliance (FDA 21 CFR；EU 10/2011；HACCP).
Failure prevention
For Beverage Equipment Cleaning, verify access, installed engagement, contact direction, and the path for releasing syrup/adhered residue/biofilm before increasing filament stiffness, density, or applied force. Change the cleaning process when the brush cannot contact the residue effectively or achieve the required finish.
Selection and Project Inputs
For Beverage Equipment Cleaning, confirm the working area, residue, access opening or clearance, contact motion, acceptable surface condition, and the path for removing loosened material. Use the table below to note the dimensions and operating limits for this project.
| Filament diameter | 0.10–0.50 mm; 0.25–0.80 mm |
|---|---|
| Overall length | 200–450 mm; 200–600 mm |
| Trim length | 20–60 mm; 15–100 mm |
| Working width / head size | 20–2,000 mm |
| Wash temperature | 20–85°C |
Frequently Asked Questions
How is a brush selected for Beverage Equipment Cleaning?
Beverage Equipment Cleaning is specified from the actual food equipment, belts, trays, tanks, containers, and process parts, the behavior of crumbs, flour, fat, protein, syrup, dough, and product film, the available brush envelope, and cleanable wet or dry manual and machine contact. Select geometry first, then filament, engagement, motion or use method, and the mounting interface.
Which operating data are needed for Beverage Equipment Cleaning?
Send the drawing or photos of food equipment, belts, trays, tanks, containers, and process parts, the dimensions in the table, the description of crumbs, flour, fat, protein, syrup, dough, and product film, motion and motion or use method, wet or dry conditions, temperature, chemicals, mounting space, quantity, and current failure symptoms.
Which brush materials are used for Beverage Equipment Cleaning?
PBT, PP, PA612 or specialist polymer selected from acid/alkali cycle; stainless components where appropriate and documented.
When is a brush not the best method for Beverage Equipment Cleaning?
Use scraping, flushing, vacuum, air, chemical cleaning, ultrasonic cleaning, or another non-brush method when the deposit thickness, passage geometry, surface sensitivity, or required cleanliness is outside brush contact capability.
Continue Exploring
Recommended Reading & Related Brush Resources

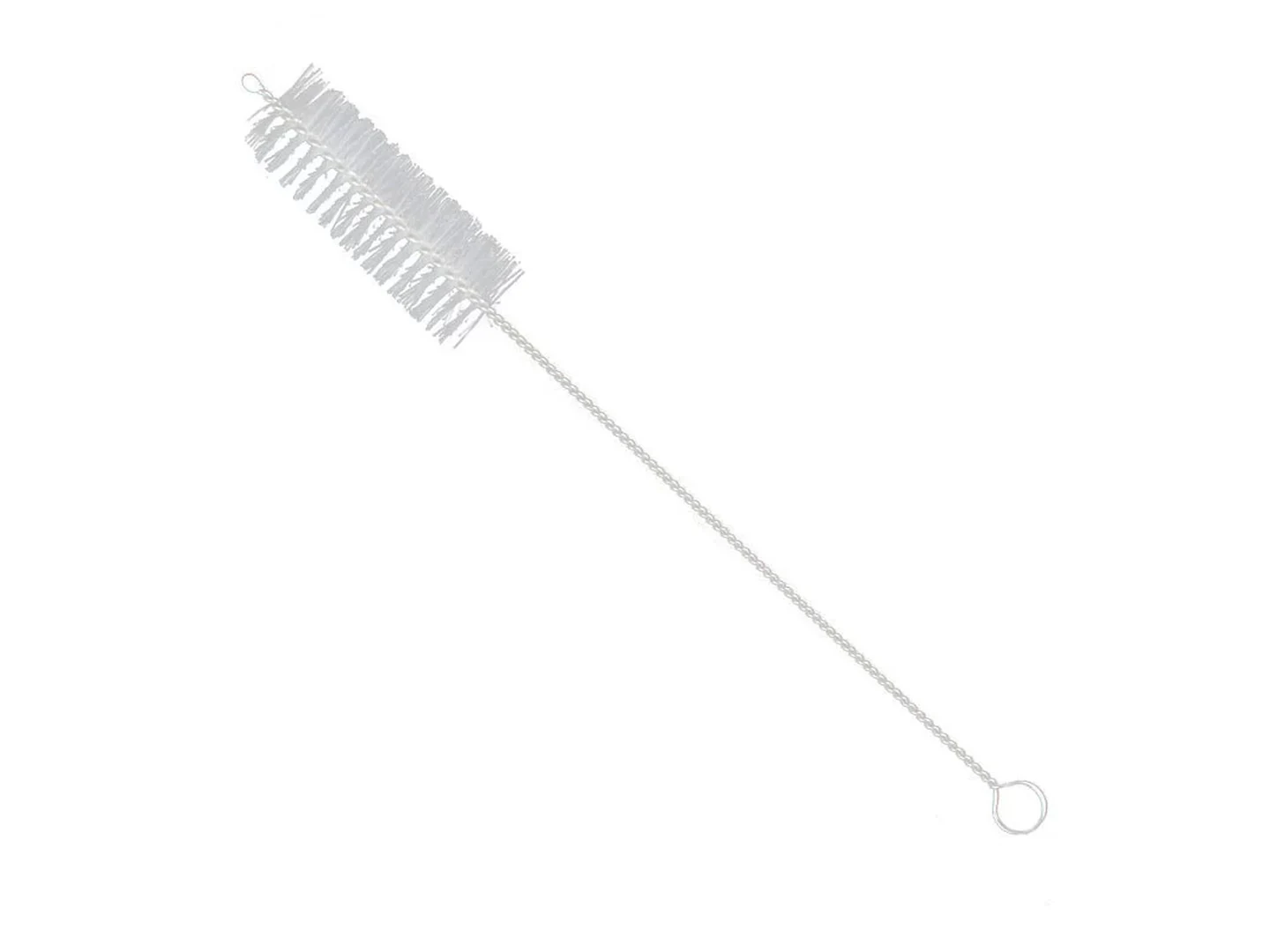

Bottle Filling Line Brush
Custom bottle filling line brush for bottle-filling line guide, transfer cleaning, configured around star…
Review product specifications
350mm Silicone Food Transfer Disc Brush
Custom 350mm Silicone Food Transfer Disc Brush using SILICONE contact material, 350 mm head…
Review product specifications

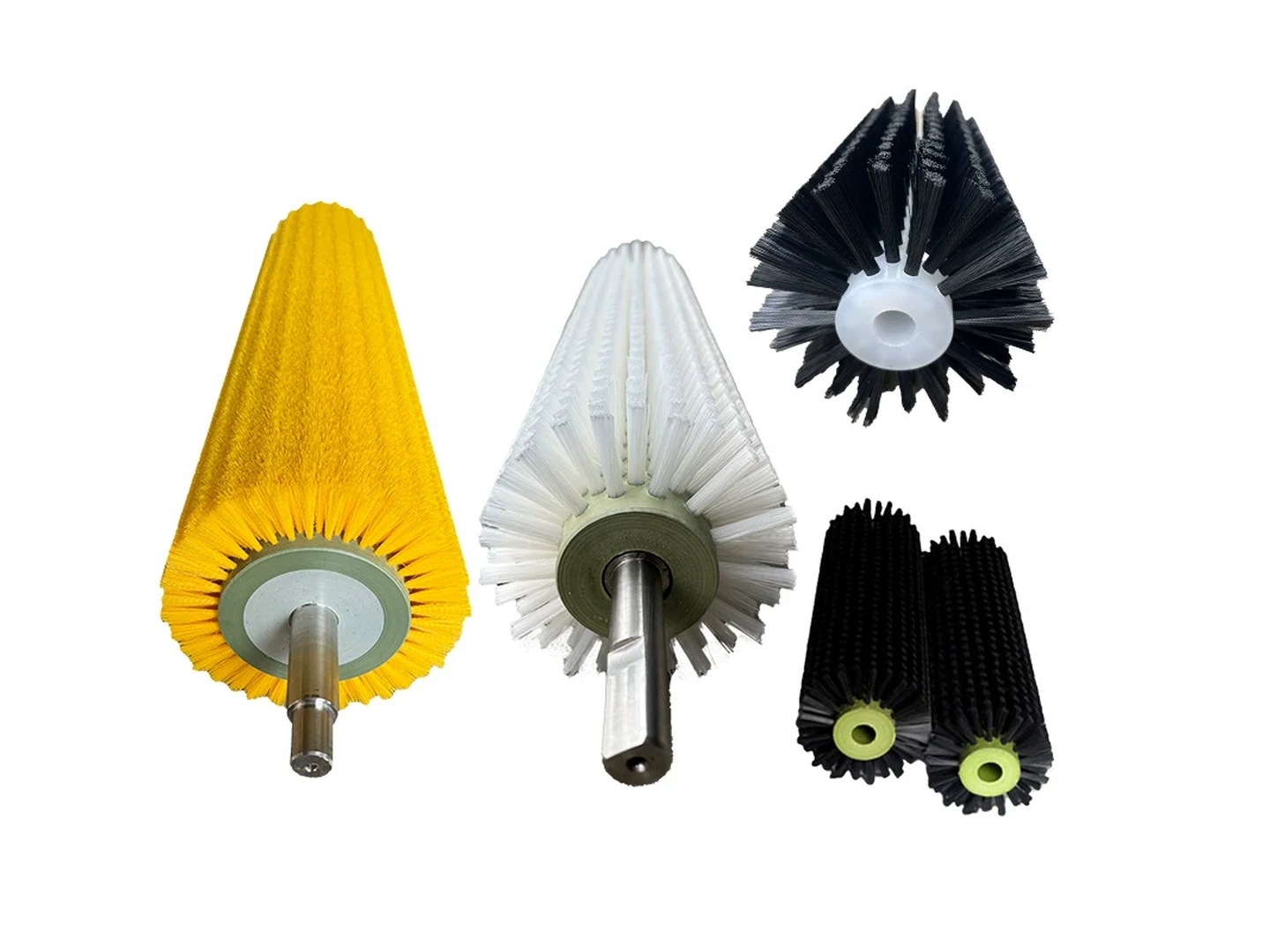

Brewery Tank Brush
Custom brewery tank brush for tank, vessel wall cleaning, configured around curved walls, welds,…
Review product specifications

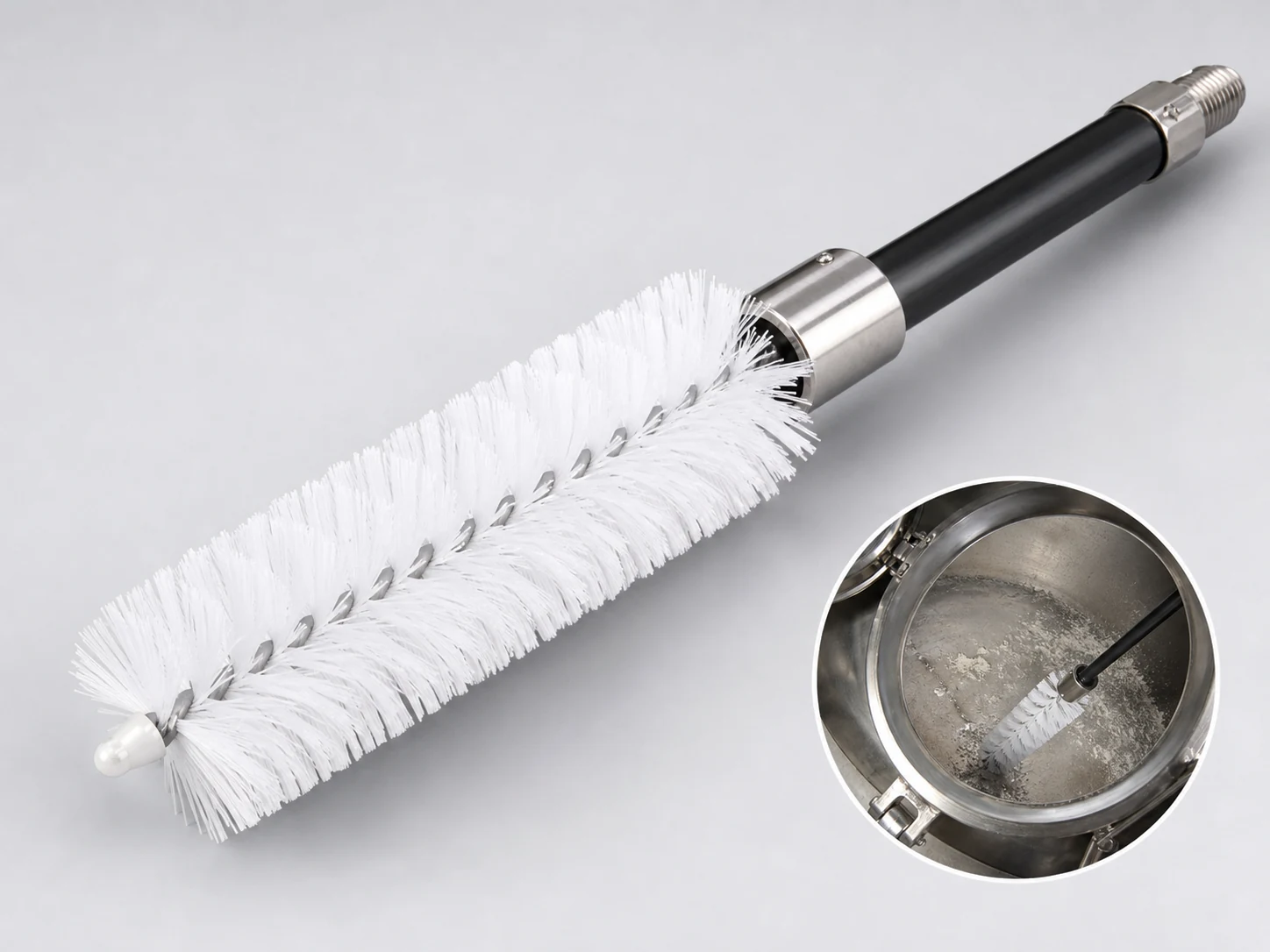

Tank Brush
