Conductive Nylon

Conductive nylon combines a polyamide matrix with carbon, metal or other conductive technology to provide a lower electrical resistance than ordinary nylon. Direct data: Surface resistance: 10³–10⁶ ohms; Filament diameter: 0.10–1.00 mm; Brush operating range: -20–100°C; Water absorption: polyamide carrier behavior; PA612 or PBT carrier is used where lower wet-stiffness change is required; Carbon additive: normally 10–30% by compound.

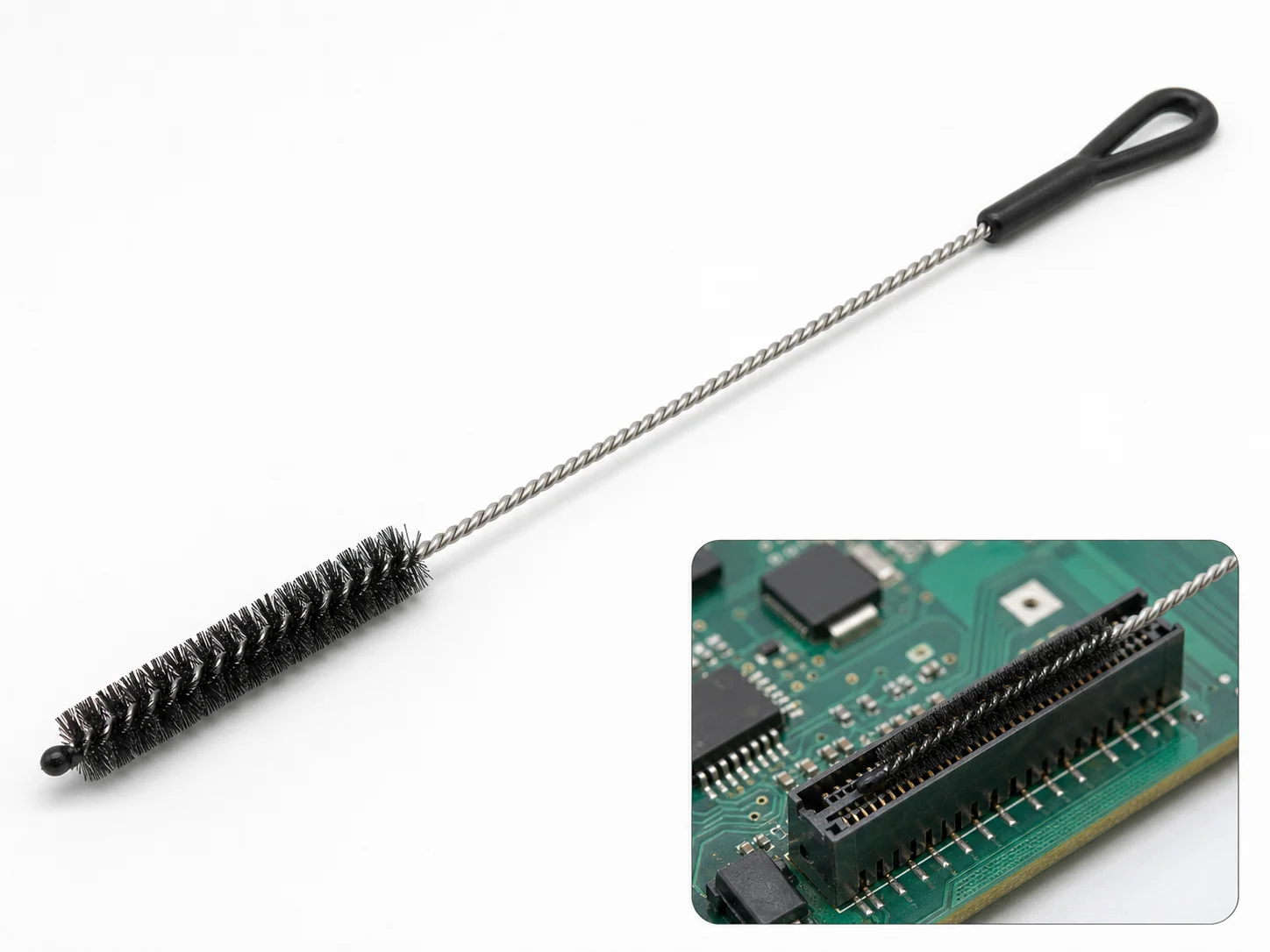

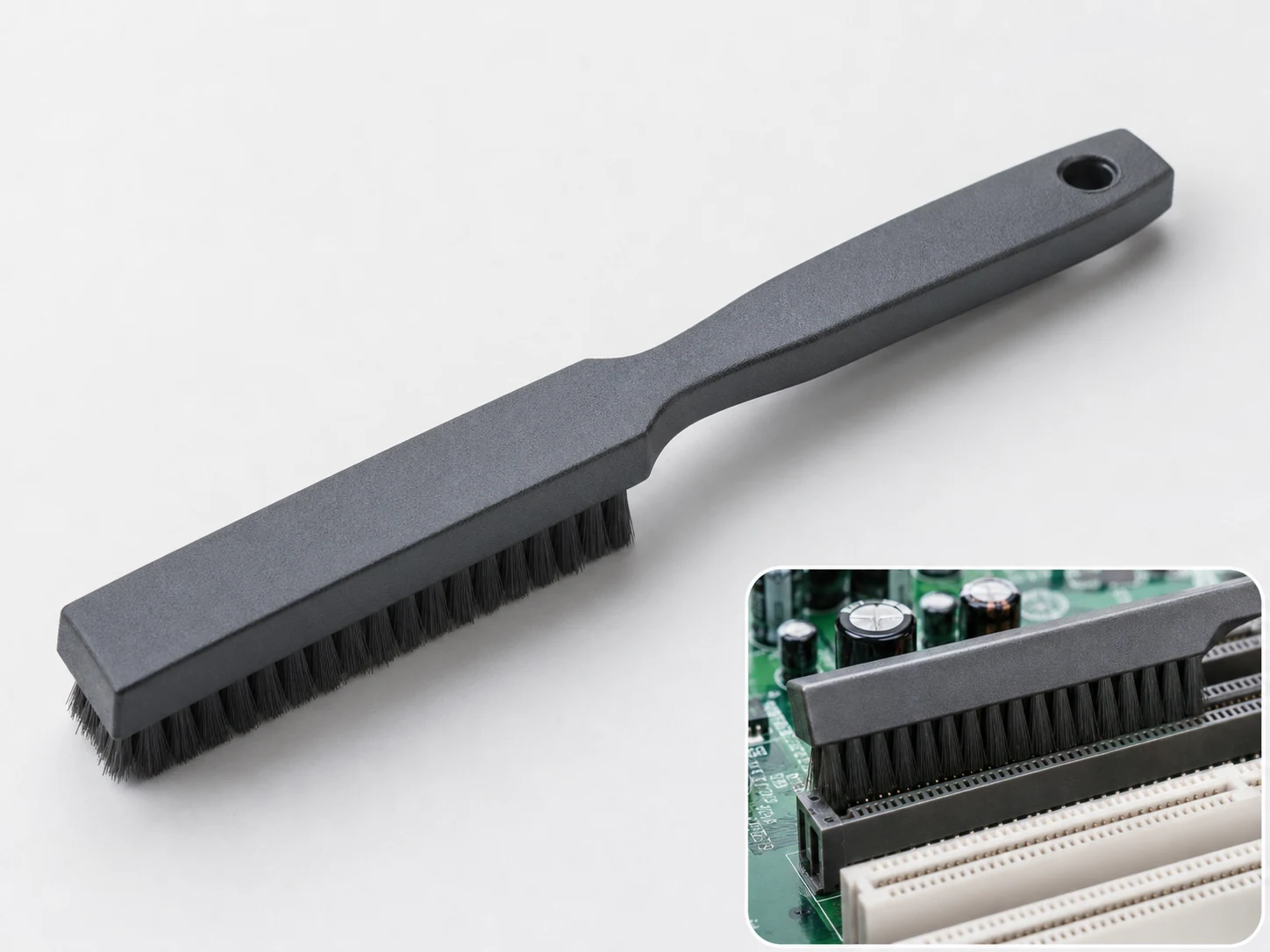

Grounded ESD strip, roller and detail brushes used around films, electronics and charge-sensitive components.

Conductive Nylon changes brush stiffness through filament diameter, free trim, density, crimp, and contact. Use finer filament and longer trim for conformable contact; use coarser filament, shorter trim, or higher density for stronger displacement or cutting.

Compare Conductive Nylon with Anti-static filament, carbon fiber, stainless conductive filament, standard PA6. Change material when wet stiffness, temperature, chemical resistance, conductivity, particle shedding, or surface marking becomes the limiting factor.
