Application
PCB Cleaning
For PCB Cleaning, the brush must reach the working area, disturb or collect flux/weld slag/dust, and release it without creating unacceptable surface damage or process interference. The suitable brush structure depends on access, the required contact motion, and the cleaning method.
Application Overview
PCB Cleaning connects the cleaning problem on connectors, slots, PCB, wafers, print paths, and precision components to brush geometry, material, operating conditions, and mounting.
The selection sequence for PCB Cleaning starts with the access path and contact direction, then checks how the residue breaks free and leaves the work zone. The service environment is Dry Indoor Area / Cleanroom. The cleaning method is Dry Brushing / Wet Brushing / Ultrasonic Cleaning. Confirm temperature (100°C), chemical exposure (Isopropyl Alcohol/Electronics Cleaner/Deionized Water), and documentation or compliance (IEC 61340-5-1; IPC Process Specifications; ESD Control) before finalizing the material and construction. The mapped product set includes powered and manual motion; equipment inputs apply only to the branches that actually use a machine.
Common Challenges
Primary project question
What brush geometry works for removing particles, oxide or process residue from PCB surfaces and holes without damaging copper or components?
Operating conditions
For PCB Cleaning, confirm required contact level (Soft–Medium), maximum stated temperature (100°C), chemical exposure (Isopropyl Alcohol/Electronics Cleaner/Deionized Water), and documentation or compliance (IEC 61340-5-1; IPC Process Specifications; ESD Control).
Failure prevention
For PCB Cleaning, verify access, installed engagement, contact direction, and the path for releasing flux/weld slag/dust before increasing filament stiffness, density, or applied force. If the brush cannot contact the full deposit or meet the finish requirement, change the cleaning method.
Selection and Project Inputs
For PCB Cleaning, confirm the working area, residue, access opening or clearance, contact motion, acceptable surface condition, and the path for removing loosened material. Use the table below to note the dimensions and operating limits for this project.
| ESD resistance | 10³–10⁹ ohms where required |
|---|---|
| Trim length | 10–40 mm; 5–40 mm |
| Mounting | Grounded handle, strip, plate, or machine holder; Grounded handle, strip, plate, shaft, or machine holder |
| Carbon or metal fiber diameter | 0.008–0.012 mm |
| Working width / head size | 3–500 mm |
| Contact load | 0.1–2 N/cm² |
Frequently Asked Questions
How is a brush selected for PCB Cleaning?
PCB Cleaning is specified from the actual connectors, slots, PCB, wafers, print paths, and precision components, the behavior of fine dust, oxide, fibers, toner, slurry, and static-charged particles, the available brush envelope, and low-load conductive, antistatic, PVA, or precision filament contact. Select geometry first, then filament, engagement, motion or use method, and the mounting interface.
Which operating data are needed for PCB Cleaning?
Send the drawing or photos of connectors, slots, PCB, wafers, print paths, and precision components, the dimensions in the table, the description of fine dust, oxide, fibers, toner, slurry, and static-charged particles, motion and motion or use method, wet or dry conditions, temperature, chemicals, mounting space, quantity, and current failure symptoms.
Which brush materials are used for PCB Cleaning?
Soft nylon/antistatic filament for dust; fine abrasive nylon or nonwoven only in defined bare-board processes.
When is a brush not the best method for PCB Cleaning?
Use scraping, flushing, vacuum, air, chemical cleaning, ultrasonic cleaning, or another non-brush method when the deposit thickness, passage geometry, surface sensitivity, or required cleanliness is outside brush contact capability.
Continue Exploring
Recommended Reading & Related Brush Resources

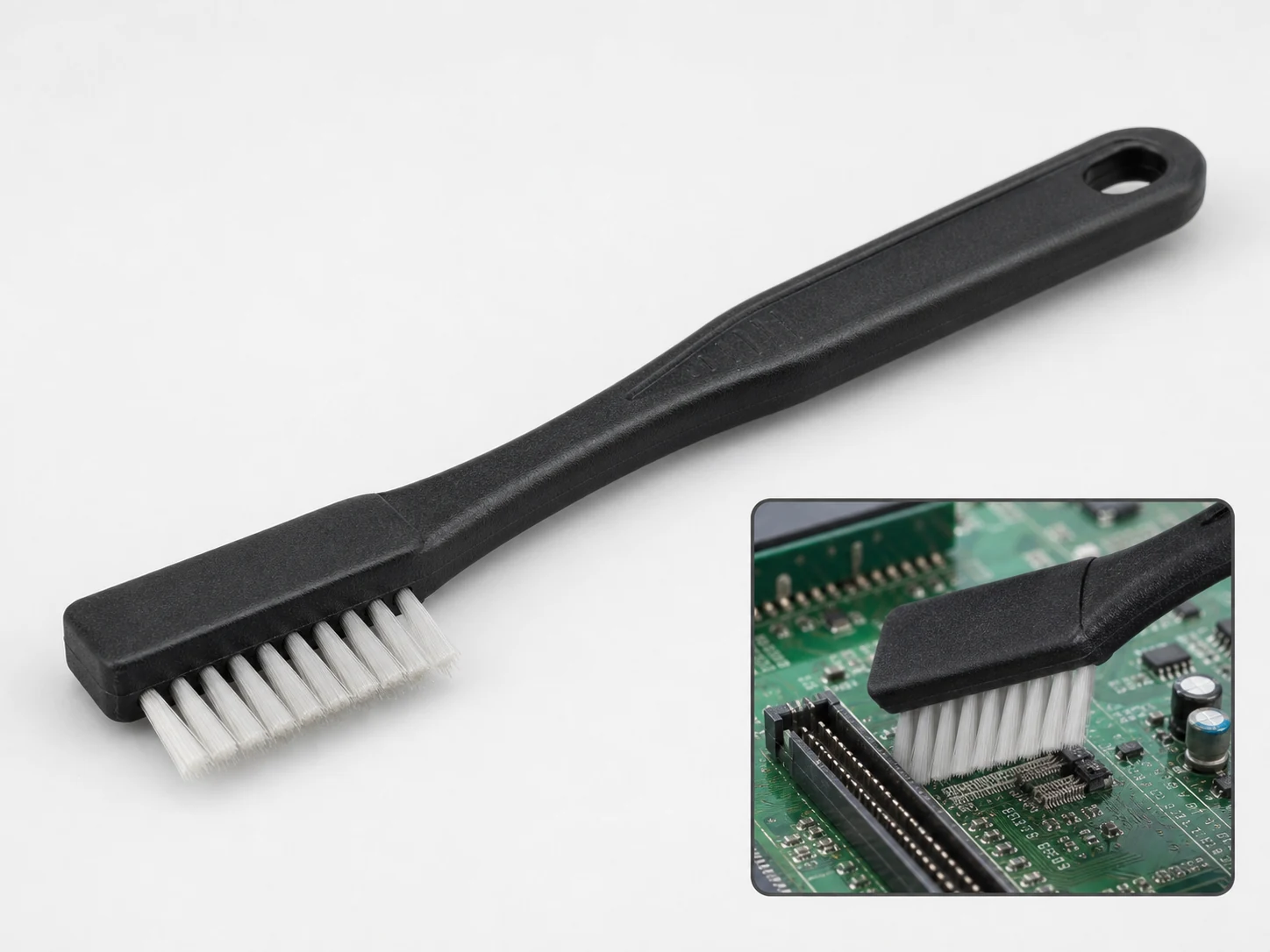

PCB Electronics Brush
Custom PCB Electronics Brush for precision electronics and static-control cleaning, with the working head,…
Review product specifications
100x600mm Conductive PCB Roller Brush
Custom 100x600mm Conductive PCB Roller Brush using PA-CONDUCTIVE contact material, 100 mm head diameter,…
Review product specifications
180mm Conductive PCB Disc Brush
Custom 180mm Conductive PCB Disc Brush using PA-CONDUCTIVE contact material, 180 mm head diameter,…
Review product specifications

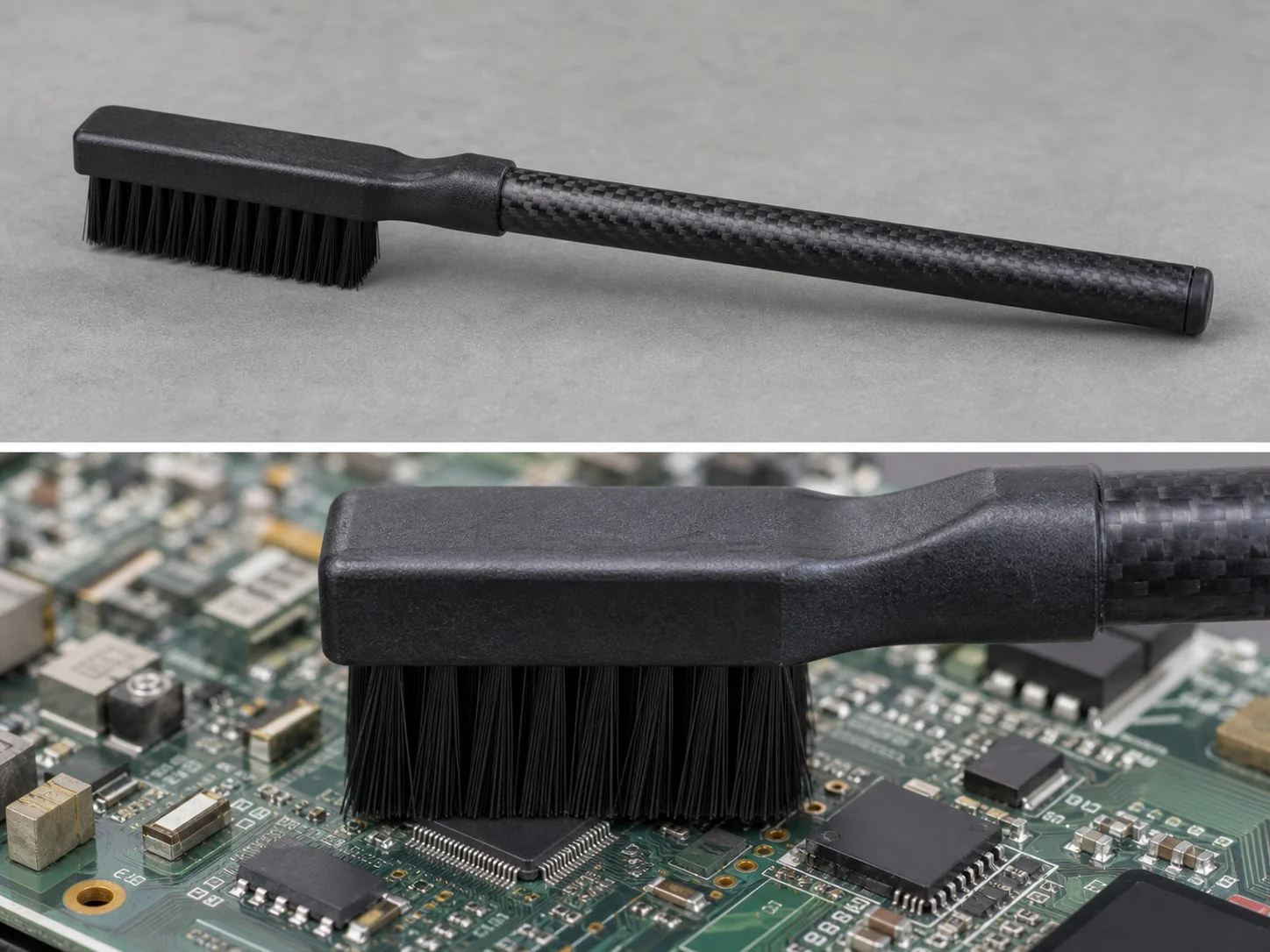

Conductive Nylon PCB Hand Brush
Custom Conductive Nylon PCB Hand Brush using PA-CONDUCTIVE contact material, 25 mm head diameter,…
Review product specifications

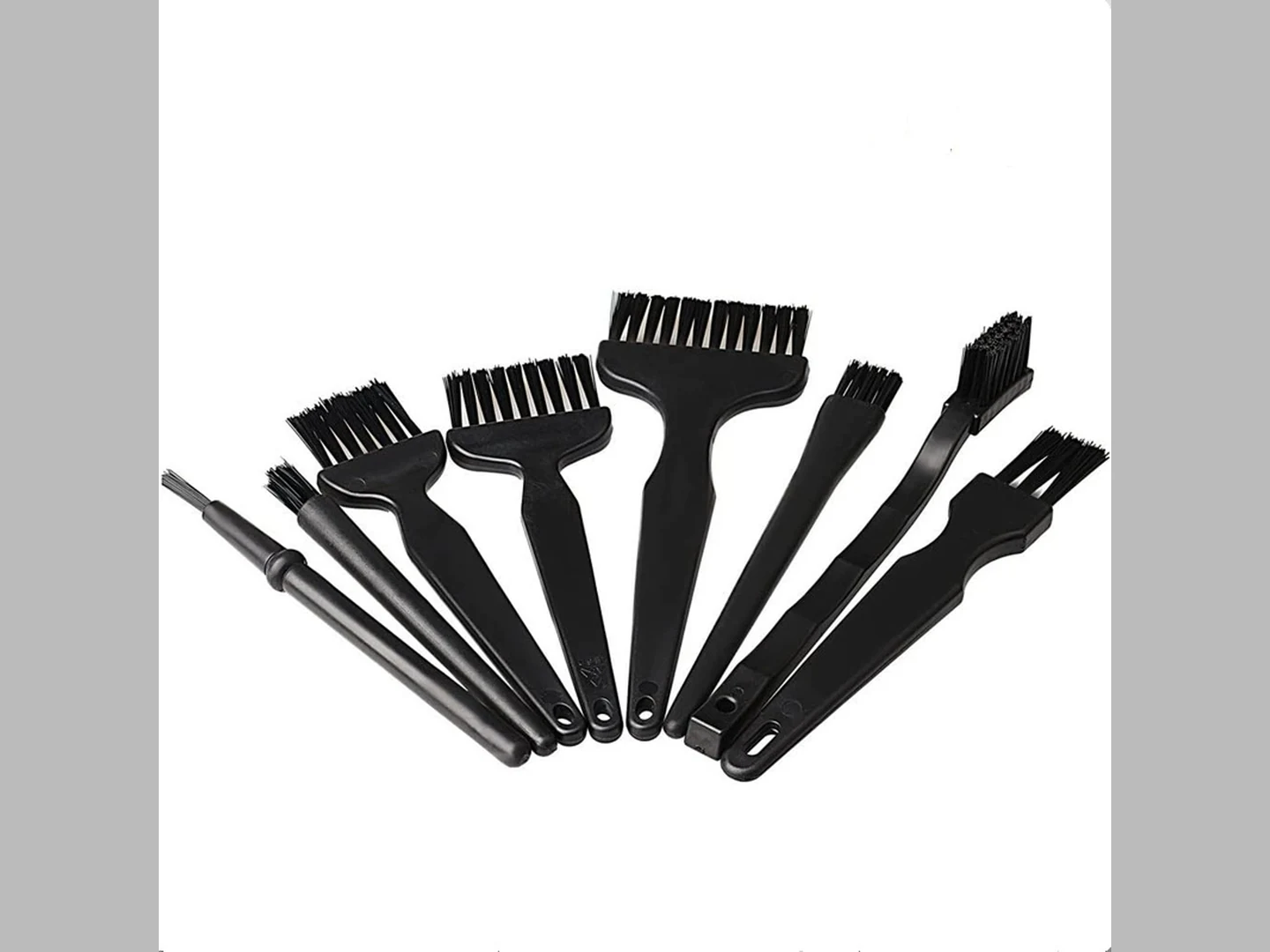

PCB Brush
Custom PCB Brush for precision electronics and static-control cleaning, with the working head, filament,…
Review product specifications

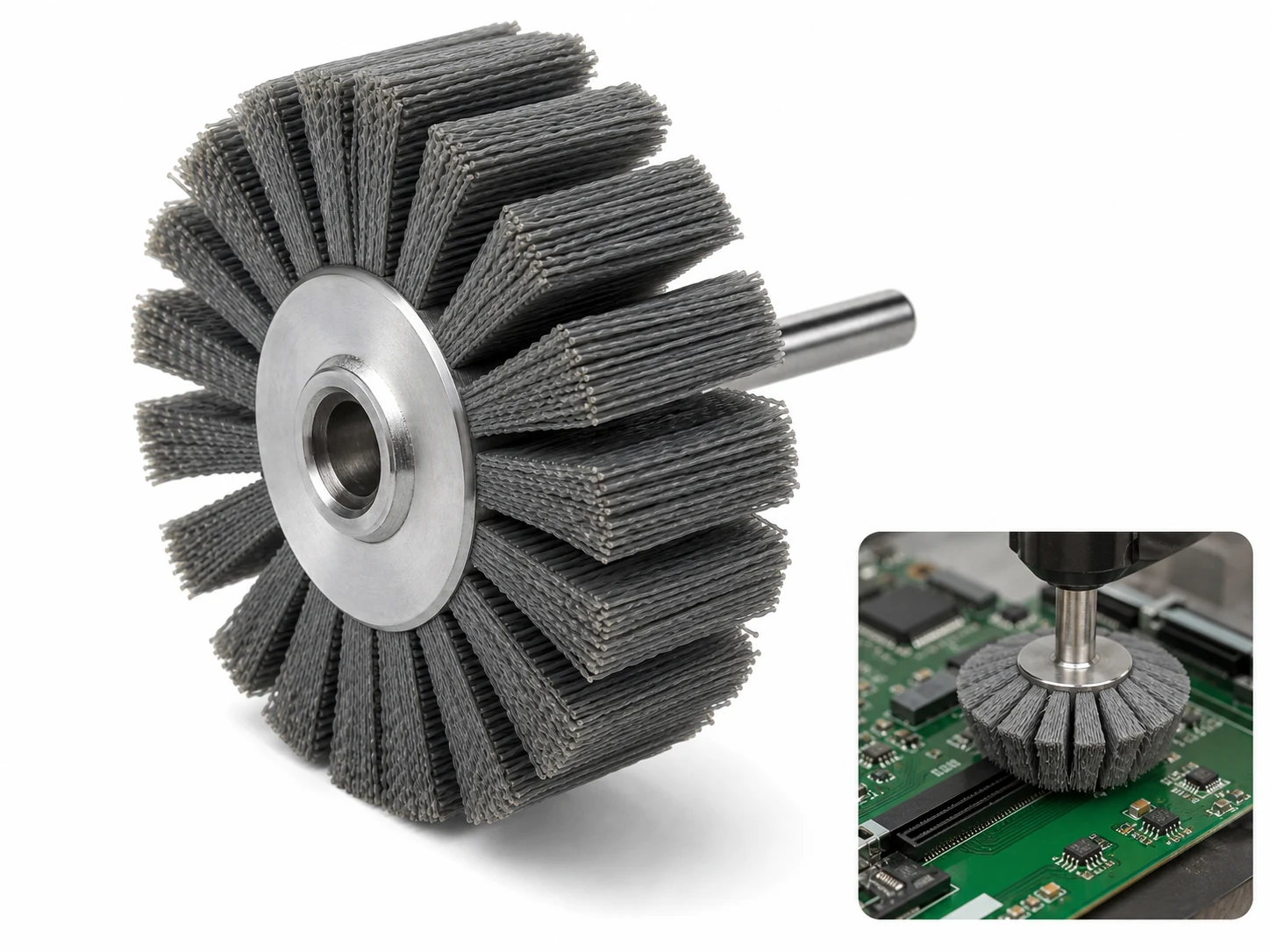

Disc Brush PCB
