Material
Silicon Carbide Abrasive Nylon
Silicon Carbide Abrasive Nylon is selected from its stiffness, recovery, wear, wet-service, chemical, and temperature behavior. The same material can produce different stiffness, so filament diameter, trim length, density, grade, and service conditions must also be defined.
Material Overview
This filament embeds silicon-carbide abrasive in a nylon carrier and is available across brush forms and grit sizes for cleaning, deburring and finishing.
In a finished brush, Silicon Carbide Abrasive Nylon does not create a fixed stiffness by itself. Contact force and recovery depend on filament diameter, free trim, density, tuft pattern, and installed interference. Grade, moisture, temperature, and chemistry affect how that behavior changes in service.
Material Properties
| Abrasive grit | 46–1,000 grit silicon carbide |
|---|---|
| Filament diameter | 0.20–1.80 mm |
| Mohs hardness | about 9.5 |
Brush Applications
For Silicon Carbide Abrasive Nylon, directly related brush structures include Handheld Detail Brushes, Tube & Pipe Bore Brushes, Roller and Conveyor Brushes, and Strip Seal Brushes. Applications related to Silicon Carbide Abrasive Nylon include Pipe Robot Brush Attachment Use, Brick, Tile & Building Material Machine Brush Use, Carpet Machine Cleaning, and Hose Cleaning.
Specification and Customization
Material form
Abrasive Filament
Common forms
Abrasive filament.
Grade
Silicon-carbide abrasive nylon; grit specified separately
Reference standard
ISO 527-1:2019; ASTM D638; ISO 62:2008; ASTM D570-22; ISO 868:2003; ASTM D2240-15(2021); ISO 4892-3:2024; ASTM G154-23; UL 94; ISO 6344 series
Limitations and Alternatives
Silicon carbide cuts quickly and can over-radius edges or mark coatings when grit, filament size, trim or motion is too aggressive.
Frequently Asked Questions
What are the key properties of Silicon Carbide Abrasive Nylon brush material?
This filament embeds silicon-carbide abrasive in a nylon carrier and is available across brush forms and grit sizes for cleaning, deburring and finishing. Direct data: Abrasive grit: 46–1,000 grit silicon carbide; Filament diameter: 0.20–1.80 mm; Mohs hardness: about 9.5; Brush operating range: -20–120°C.
Where is Silicon Carbide Abrasive Nylon used in cleaning brushes?
Aggressive deburring, bore finishing, scale removal and edge radiusing on harder metals and engineered parts.
How does filament geometry change Silicon Carbide Abrasive Nylon brush stiffness?
Silicon Carbide Abrasive Nylon changes brush stiffness through filament diameter, free trim, density, crimp, and contact. Use finer filament and longer trim for conformable contact; use coarser filament, shorter trim, or higher density for stronger displacement or cutting.
When should Silicon Carbide Abrasive Nylon be replaced by another material?
Compare Silicon Carbide Abrasive Nylon with PP, PBT, PET. Change material when wet stiffness, temperature, chemical resistance, conductivity, particle shedding, or surface marking becomes the limiting factor.
Continue Exploring
Recommended Reading & Related Brush Resources
100mm P120 SiC Cup Brush
Custom 100mm P120 SiC Cup Brush using PA-SIC contact material, 100 mm head diameter,…
Review product specifications
18mm P180 SiC Tube Brush
Custom 18mm P180 SiC Tube Brush using PA-SIC contact material, 18 mm head diameter,…
Review product specifications

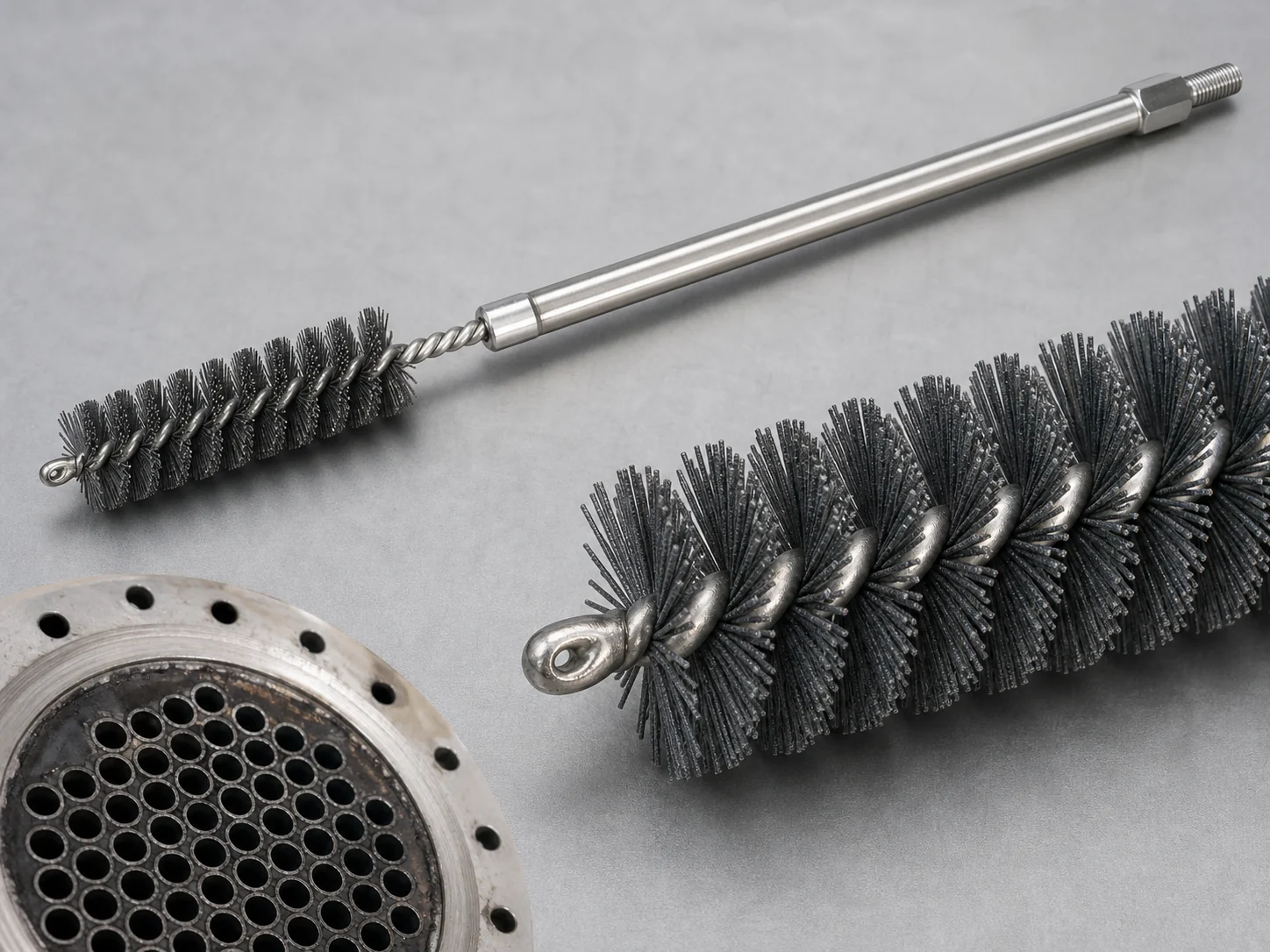

40mm P120 SiC Descaling Brush
Custom 40mm P120 SiC Descaling Brush using PA-SIC contact material, 40 mm head diameter,…
Review product specifications
500mm SiC Heavy Duty Floor Disc Brush
Custom 500mm SiC Heavy Duty Floor Disc Brush using PA-SIC contact material, 500 mm…
Review product specifications

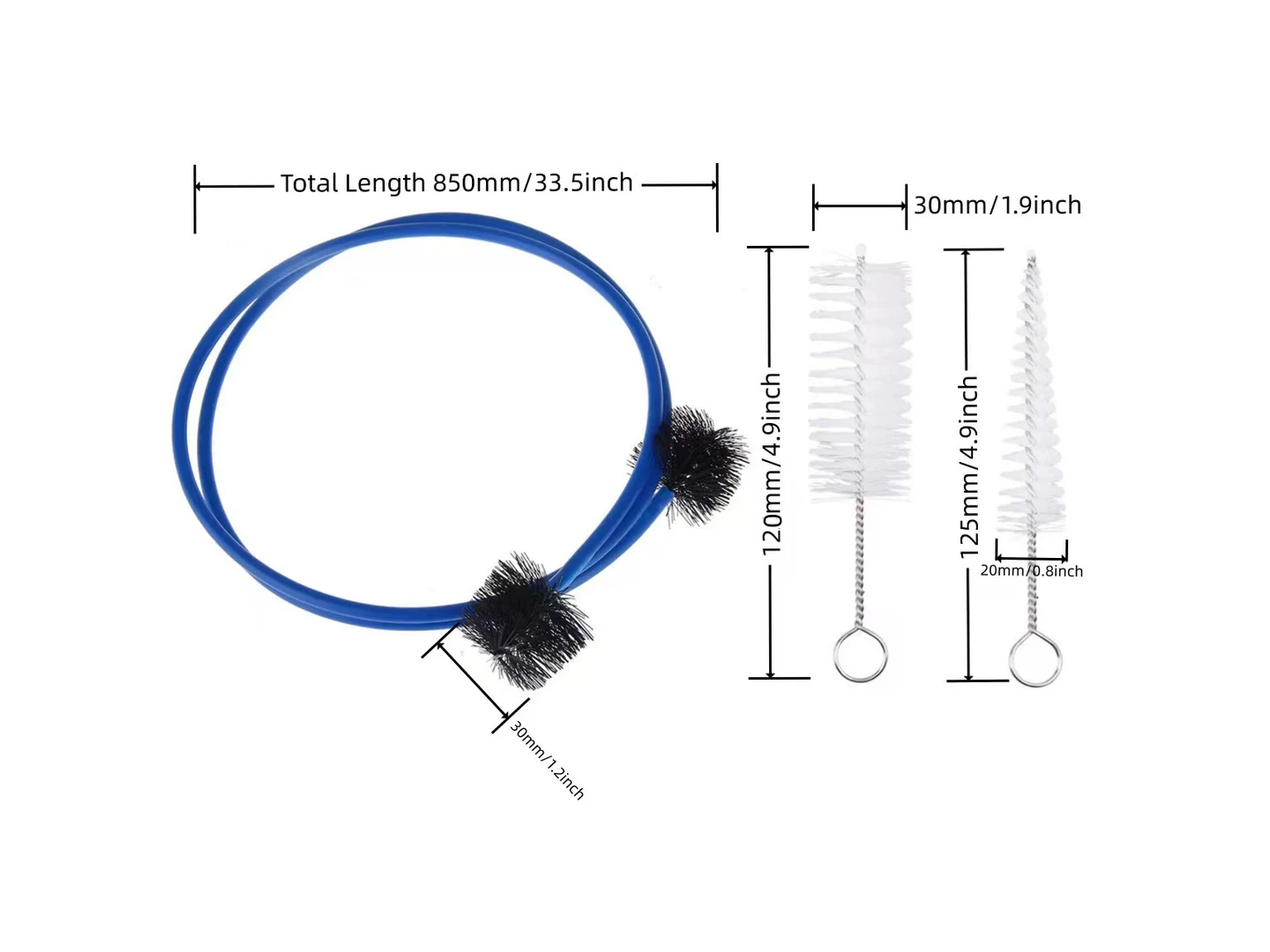

Musical Instrument Brush
Custom musical instrument brush for musical-instrument bore, valve, key, configured around mouthpieces, lead pipes,…
Review product specifications

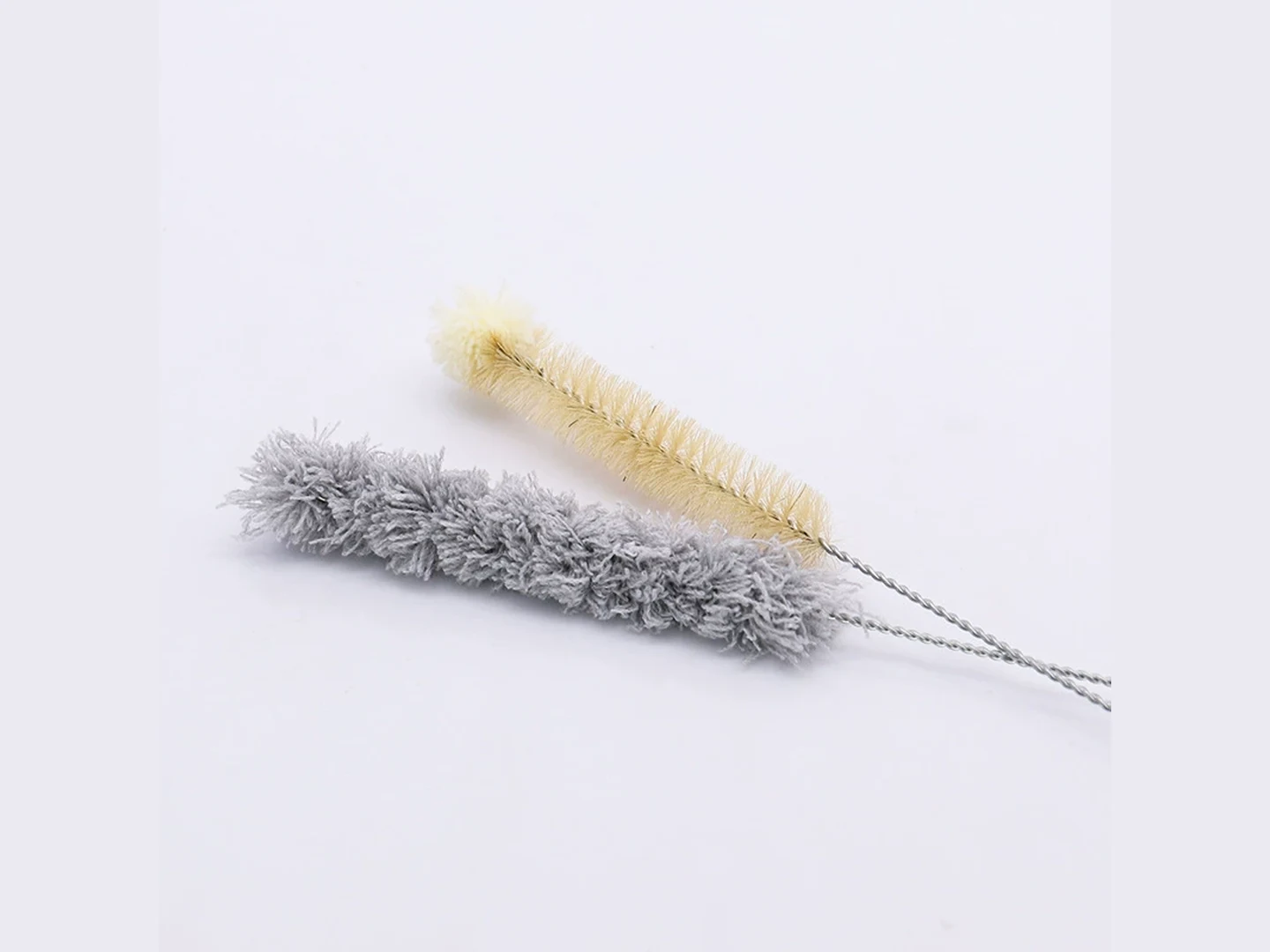

Musical Instrument Cleaning Brush
