What Is a Steel Wire Brush Attachment?
A steel wire brush attachment is a rotary or cup-shaped brush designed to mount on a power tool such as a drill or angle grinder. The bristles are made from carbon steel or stainless steel, and can be arranged in a crimped (wavy) or knotted (twisted) pattern. These attachments are used for aggressive cleaning, deburring, surface preparation, and rust removal in workshops, fabrication shops, and maintenance operations.
For abrasive wheel and high-speed rotating tool safety context, this section references OSHA — 1910.215 Abrasive Wheel Machinery.
For portable and hand-held power-tool safety context, this section references OSHA — 1910.242 Hand and Portable Powered Tools.
For PPE and operator protection context, this section references OSHA — Personal Protective Equipment.
For engineering drawing, dimensions, tolerance, thread, fit, and RFQ specification context, this section references ASME — Y14.5 Dimensioning and Tolerancing.
For lockout/tagout and maintenance isolation context, this section references OSHA — 1910.147 Control of Hazardous Energy.
For stainless steel corrosion, contamination, passivation, and chloride-sensitivity context, this section references World Stainless — Corrosion Resistance of Stainless Steels.
Common Types of Steel Wire Brushes for Power Tools
Understanding the basic shapes helps you match the brush to the workpiece geometry:
- Wheel brushes – Flat radial bristles for cleaning large flat surfaces, edges, and weld seams. Best on angle grinders.
- Cup brushes – Bristles form a cup shape for flat and contoured surfaces. Good for floor and wall work, heavy rust, and paint removal.
- End brushes – Small diameter, with bristles extending from the tip. Used inside holes, corners, and tight spaces on drills or die grinders.
- Tube or bore brushes – Designed to clean inside pipes, cylinders, or gun barrels. Often used with drills.
Comparing Steel Wire Brush Materials
The bristle material affects corrosion resistance, cleaning power, and material compatibility. Use this table to choose the right wire material.
| Attribute | Carbon Steel | Stainless Steel |
|---|---|---|
| Rust resistance | Low – can rust and leave iron particles | High – suitable for wet or corrosive environments |
| Cost | Generally lower | Higher |
| Common applications | General steel, cast iron, non-stainless weld cleaning, paint removal on carbon steel | Stainless steel surfaces, aluminum (with caution), food- grade equipment, outdoor or marine environments |
| Workpiece compatibility | Do not use on stainless steel or aluminum if cross‑contamination is a concern | Safe for stainless steel; can be used on carbon steel but may transfer stainless residue |
| Typical use case | Heavy rust and scale removal on mild steel | Cleaning stainless welds, rust removal where no iron contamination allowed |
Rule of thumb: if your workpiece is stainless steel or will be exposed to moisture or chemicals, choose a stainless steel wire brush to prevent after-rust staining.
Comparing Wire Styles: Crimped vs. Knotted (Twisted)
Wire style determines how aggressively the brush cuts and the surface finish it leaves.
| Attribute | Crimped Wire | Knotted (Twisted) Wire |
|---|---|---|
| Aggressiveness | Moderate – lighter cutting action | High – aggressive stock removal |
| Flexibility | High – bristles flex individually to follow contours | Low – stiff bristle bundles resist bending |
| Finish quality | Smoother, more uniform finish | Rougher surface; can leave brush marks |
| Typical tasks | Light rust, thin paint, surface blending, cleaning without deep scratching | Heavy rust, thick scale, weld slag, deep oxidation, heavy mill scale |
| Heat buildup | Lower – less friction | Higher – more friction and heat generation |
For delicate substrates or a smoother finish, start with a crimped wire brush. For tough, thick deposits, switch to a knotted wire brush.
Understanding Brush Mounting Styles
The mounting interface must match your tool’s spindle or chuck. Common styles include:
- Arbor hole with nut – Typical for wheel brushes on angle grinders with a threaded spindle (e.g., 5/8″-11).
- Threaded hub – Cup brushes often have a female thread that spins directly onto the grinder spindle.
- Shank (round or hex) – End brushes and small wheels for drills or die grinders come with a cylindrical shank that fits in a chuck.
- Quick-change (e.g., Roloc-style) – Some small brushes use a quick‑change disc system for fast swap‑outs on low‑speed tools.
Always verify your tool’s spindle thread, RPM range, and arbor size before ordering an attachment. Using an improper mount can cause dangerous wobble or brush ejection.
How to Choose Based on Your Cleaning Task
Follow this decision path to narrow down the right brush:
- Identify the residue: Is it light rust, heavy mill scale, thick paint, weld slag, or corrosion? The thickness and hardness dictate wire style.
- Determine the substrate material: Carbon steel, stainless steel, aluminum, or other alloy? Choose carbon or stainless bristles accordingly.
- Consider the surface area: Flat, curved, corner, inside a hole, or a large floor? This decides between wheel, cup, or end brush.
- Define the required finish: Do you need a smooth paint‑ready surface or just rough stock removal? Crimped for finish, knotted for removal.
- Check tool compatibility: Match the brush’s maximum safe RPM to your tool’s no‑load speed, and confirm the mounting arbor fits.
- Evaluate the environment: Will the brush be used near moisture, chemicals, or food contact? Stainless steel wires prevent corrosion contamination.
Operational Tips: Speed, Pressure, and Safety
Even the right brush performs poorly if used incorrectly. Keep these in mind:
- Speed: Operate within the brush’s rated maximum RPM. Exceeding can throw wires or cause imbalance. A variable‑speed grinder set to a moderate speed often gives better control and longer brush life.
- Pressure: Let the brush tips do the work. Excessive pressure bends the wires, reduces life, and may damage the substrate. A light, steady contact is usually enough.
- Safety gear: Always wear safety glasses or a full face shield, hearing protection, a respirator or dust mask (for rust or paint dust), and heavy‑duty gloves. Wire brush attachments can eject bristles at high speed.
- Guards and positioning: Keep the tool’s guard in place and position the brush so that sparks and debris fly away from you and others.

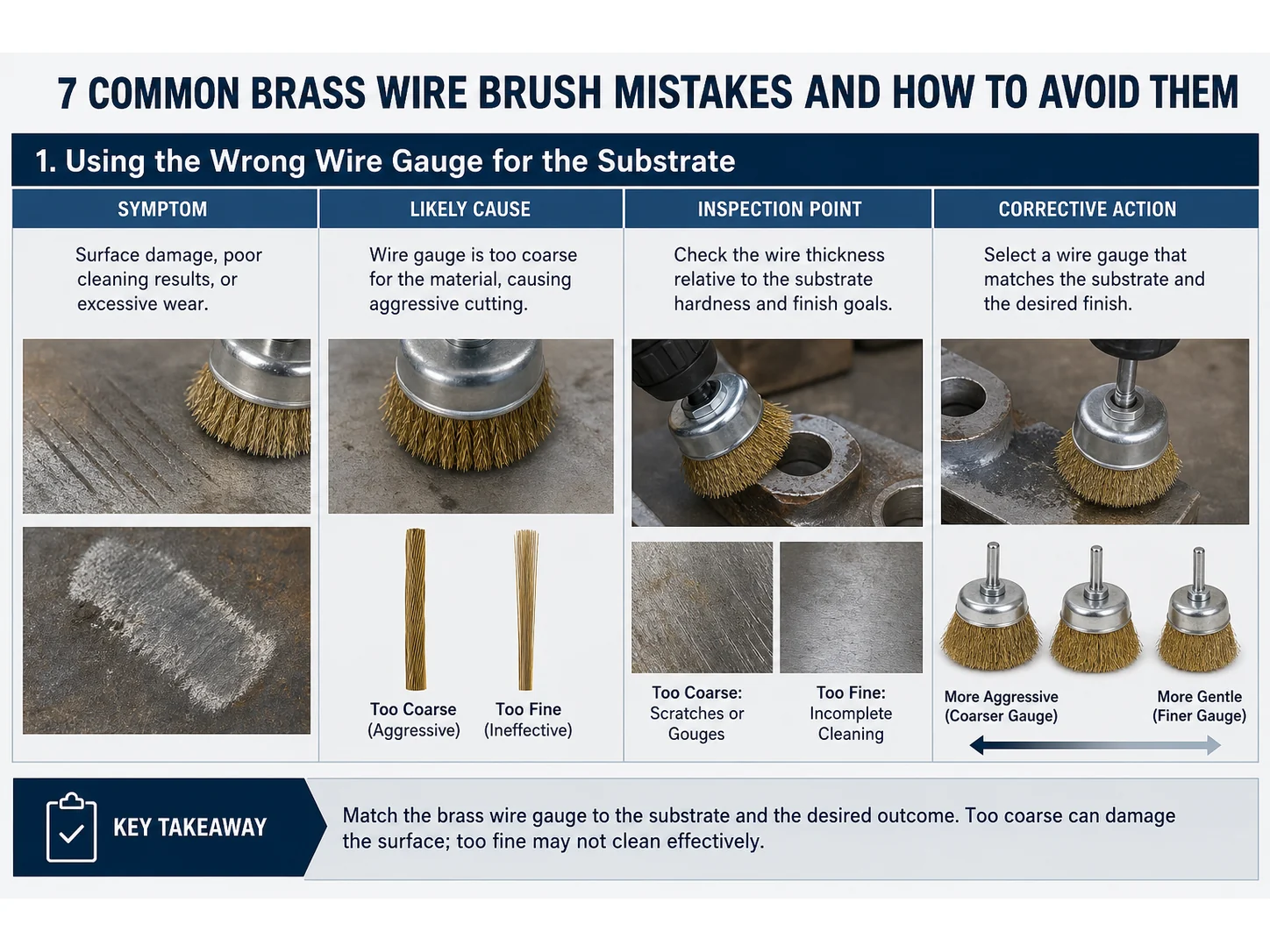

Common Mistakes to Avoid
- Using a carbon steel brush on stainless steel surfaces. This can embed iron particles into the stainless surface, causing red rust stains or galvanic corrosion.
- Picking a knotted brush for delicate finishing. The aggressive action leaves deep scratches that require additional smoothing.
- Ignoring the maximum RPM rating. Exceeding the rated speed can cause catastrophic brush failure and serious injury.
- Mixing brushes between material types. Don’t use a brush that cleaned carbon steel later on stainless or aluminum without thorough cleaning, to avoid cross‑contamination.
- Applying too much pressure from the start. This over‑bends the wires and drastically shortens brush life without improving cleaning speed.
When a Steel Wire Brush May Not Be the Best Choice
Steel wire brushes are excellent for many surface preparation tasks, but they have limits:
- Soft metals: On aluminum, copper, or brass, steel wires can gouge the surface or leave embedded particles. Consider a brass wire brush or a non‑metallic abrasive disc instead.
- Precision machined surfaces: If surface flatness or tolerance is critical, wire brushing may alter the surface profile. Abrasive blasting or chemical stripping might be better.
- Thin sheet metal or coatings: Aggressive knotted brushes can warp thin panels or tear through a galvanized coating. Use a crimped brush or a lower‑energy method.
- Heavy corrosion over large areas: For ships, storage tanks, or large structural pieces, industrial sandblasting or power washing is more efficient.
- Controlled etch profiles: When preparing for high‑performance coatings that require a specific anchor profile, a brush can be inconsistent. Test with a sample or consult the coating manufacturer.
Final Takeaway
Choosing the right steel wire brush comes down to three main decisions: wire material (carbon steel vs. stainless steel), wire style (crimped vs. knotted), and brush shape (wheel, cup, or end). Start by identifying the residue and the workpiece, then match the brush aggressiveness to the task. Always respect speed limits and wear proper safety gear. When in doubt, test on a scrap piece or contact your supplier with a detailed description of your application, including the substrate material, the type of coating or residue, and the tool you plan to use. A well‑matched brush saves time and protects your workpiece.
Frequently Asked Questions
Can I use a carbon steel wire brush on stainless steel surfaces?
No. Carbon steel bristles can leave iron deposits that cause rust spots or galvanic corrosion on stainless steel. Always use a stainless steel wire brush for stainless workpieces.
What is the difference between a crimped and a knotted wire brush?
Crimped wire brushes have wavy, individual bristles that are flexible and produce a smoother finish. Knotted (twisted) wire brushes group bristles into tight bundles, making them much more aggressive for heavy removal but rougher on the surface.
How do I identify the correct mounting type for my angle grinder?
Check your grinder’s spindle thread size. The most common is 5/8″-11 UNC. Cup brushes often screw directly onto this thread. Wheel brushes typically use an arbor hole and retaining nut. Always consult your grinder’s manual.
What safety gear should I wear when using a wire brush attachment?
At minimum, wear safety glasses or a full face shield, heavy‑duty gloves, long sleeves, and hearing protection. For dusty jobs, add a respirator.
Can I use a wire brush on wood or plastic?
Generally not. Steel wire brushes are too aggressive and will damage soft surfaces. For wood, nylon abrasive brushes or sandpaper are better choices.
How often should I replace a wire brush attachment?
Replace the brush when the bristles are worn, deformed, or significantly shorter than when new. Uneven bristle length can cause imbalance and increase vibration, reducing effectiveness and safety.
Why do some wire brushes have a maximum speed rating?
Exceeding the rated RPM can cause the brush to centrifuge, throwing wires or even disintegrating under centrifugal force. The rating ensures safe operation within the brush’s structural limits.
Is a higher RPM always better for faster cleaning?
No. Optimal cleaning happens at moderate speeds where the bristle tips cut effectively without overheating or excessive wire breakage. Too high an RPM often reduces brush life and can glaze the surface without removing material efficiently.
