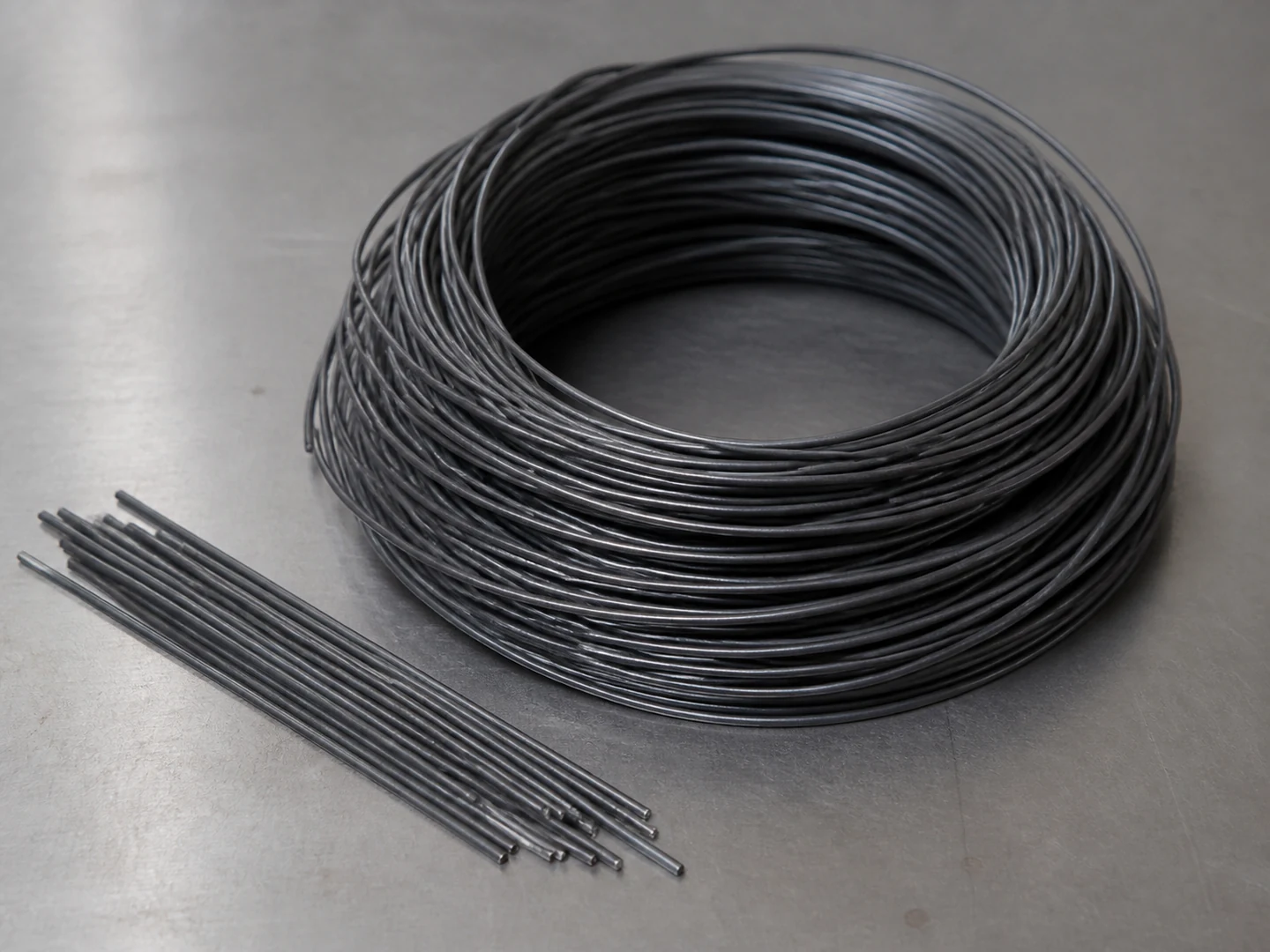

Carbon Steel Wire

In the ferrous metal wire filament family, Carbon Steel Wire is specified, supplied as wire bristle, drawn in round, crimped round and flat sections and set in straight rows, helical, staggered, zoned and wavy fill patterns.

Carbon Steel Wire is used in custom cleaning brushes for fast rust, paint, scale and burr removal from carbon steel, cast iron and robust fabricated parts.

It is usually weighed against Brass Wire and Abrasive Nylon, and the deciding difference is moisture uptake and working temperature rather than anything you can read off the name.

Compare Carbon Steel Wire with Carbon steel wire, brass wire, abrasive nylon. Change material when wet stiffness, temperature, chemical resistance, conductivity, particle shedding, or surface marking becomes the limiting factor.

Carbon Steel Wire is very firm metallic wire; hardness is controlled by high-carbon/tempered wire grade; carbon Steel Wire changes brush stiffness through filament diameter, free trim, density, crimp, and contact. Use finer filament and longer trim for conformable contact; use coarser filament, shorter trim, or higher density for stronger displacement or cutting.

Filament-level figures for this grade and the ones it is usually compared to. A finished brush behaves differently again.

The part people get wrong: the same grade can feel soft or aggressive depending on diameter, trim and density. Specify that geometry before the material, or the sample will surprise you.

Carbon steel wire absorbs no water; what wet service costs you here is rust, and it starts as soon as the brush is put away damp.

Metal wire does not absorb water; alloy and holder corrosion resistance control wet service.

What this means for your application: the trim and the spring rate are the same wet or dry, so nothing about the contact changes. What changes is the wire itself, which will flash-rust between shifts.

A practical check: leave a sample wet overnight and look at it. If it has coloured, the brush needs drying, oiling or a different wire, not a different geometry.

Suitable for high-temperature brushing; oxidation increases in hot wet service.

The filament tables quote 200–300°C continuous and 350–450°C peak. The tighter number above is the one to build to, because a brush is loaded while it is hot.

Where it stops working: validate with a sample if the process sits near the top of that band. A permanent bend under load means the answer is a higher-temperature filament family, not a heavier trim.

Diameter, trim length and applied load all shift the real limit, so a thin filament touching lightly survives conditions that would flatten a thick one under pressure.

Strong mechanical cleaning performance; dry storage or protective coating limits rust.

Compatibility is a function of concentration, temperature and contact time together. A short rinse in a dilute solution is a different exposure from an overnight soak in a concentrated one, even with the same chemical on the label.

Before you commit to a quantity: Specify the exact Carbon Steel Wire grade or alloy, filament or profile size, color, straight or crimped form, working temperature, wet or dry use, chemical exposure, surface finish, and any required material documentation.

The floor is roughly 0.05 mm; finer than that and the filament snaps rather than flexes. In practice you are choosing inside 0.05–1.20 mm.

Free trim runs 3–180 mm, and the two interact: a finer filament needs a shorter trim to keep useful stiffness, while a thicker one carries a longer trim and still lands pressure on the tip.

Split the range by duty: roughly 0.05–0.34 mm for light wiping, dusting and surfaces that mark easily, and 0.34–1.20 mm where residue is packed on and point pressure matters more than surface risk.

Tip treatments available on this filament: straight, crimped, brass-plated, zinc-plated, phosphated and rust-preventive oil.

In practical brush terms: reaching deep into a bore or crevice is a diameter problem before it is a length problem. A thicker filament on a moderate trim pushes further in before the tips fold over.

Fast rust, paint, scale and burr removal from carbon steel, cast iron and robust fabricated parts.

Where it turns up in practice:

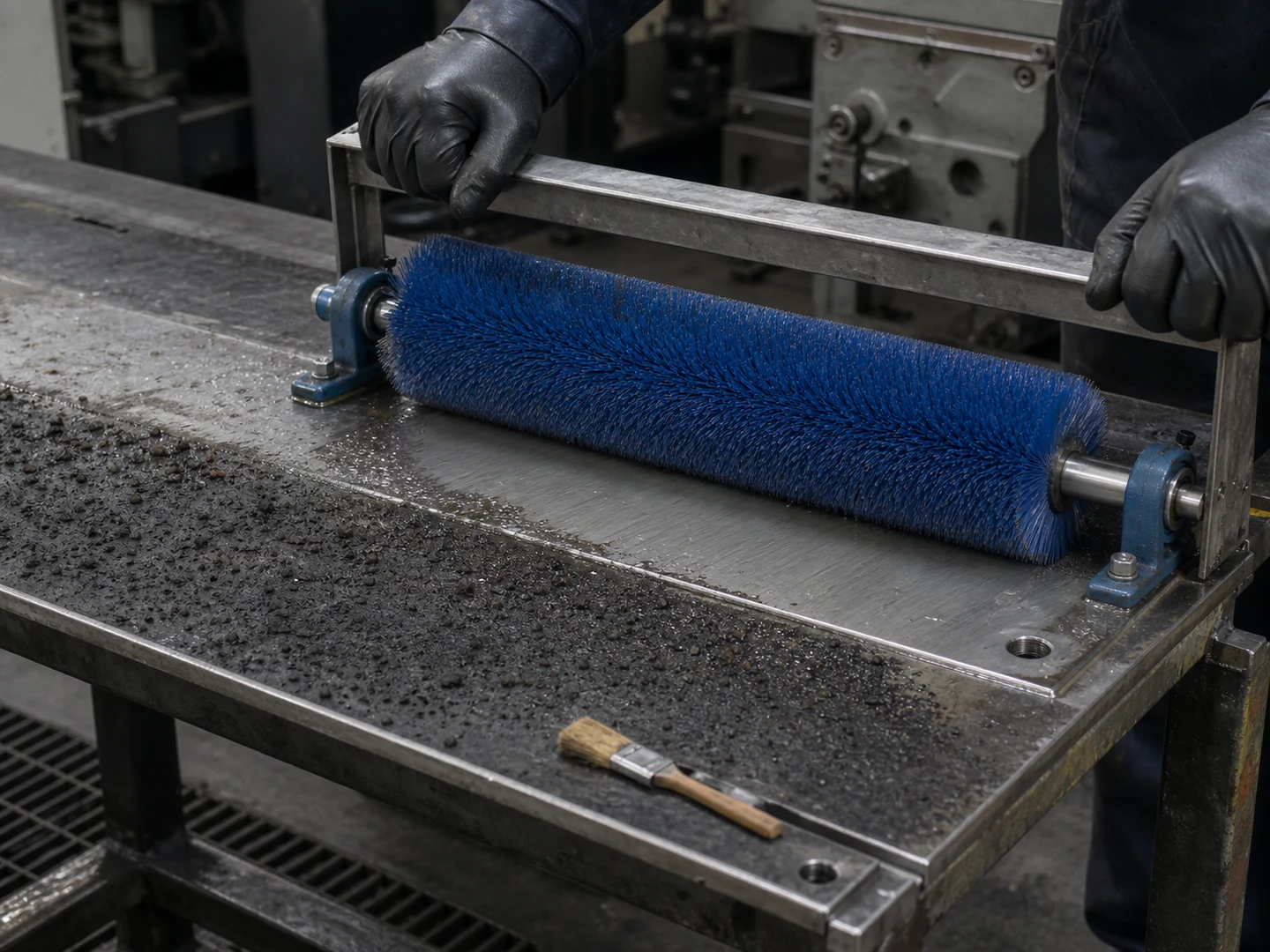

• Industrial Machine Cleaning

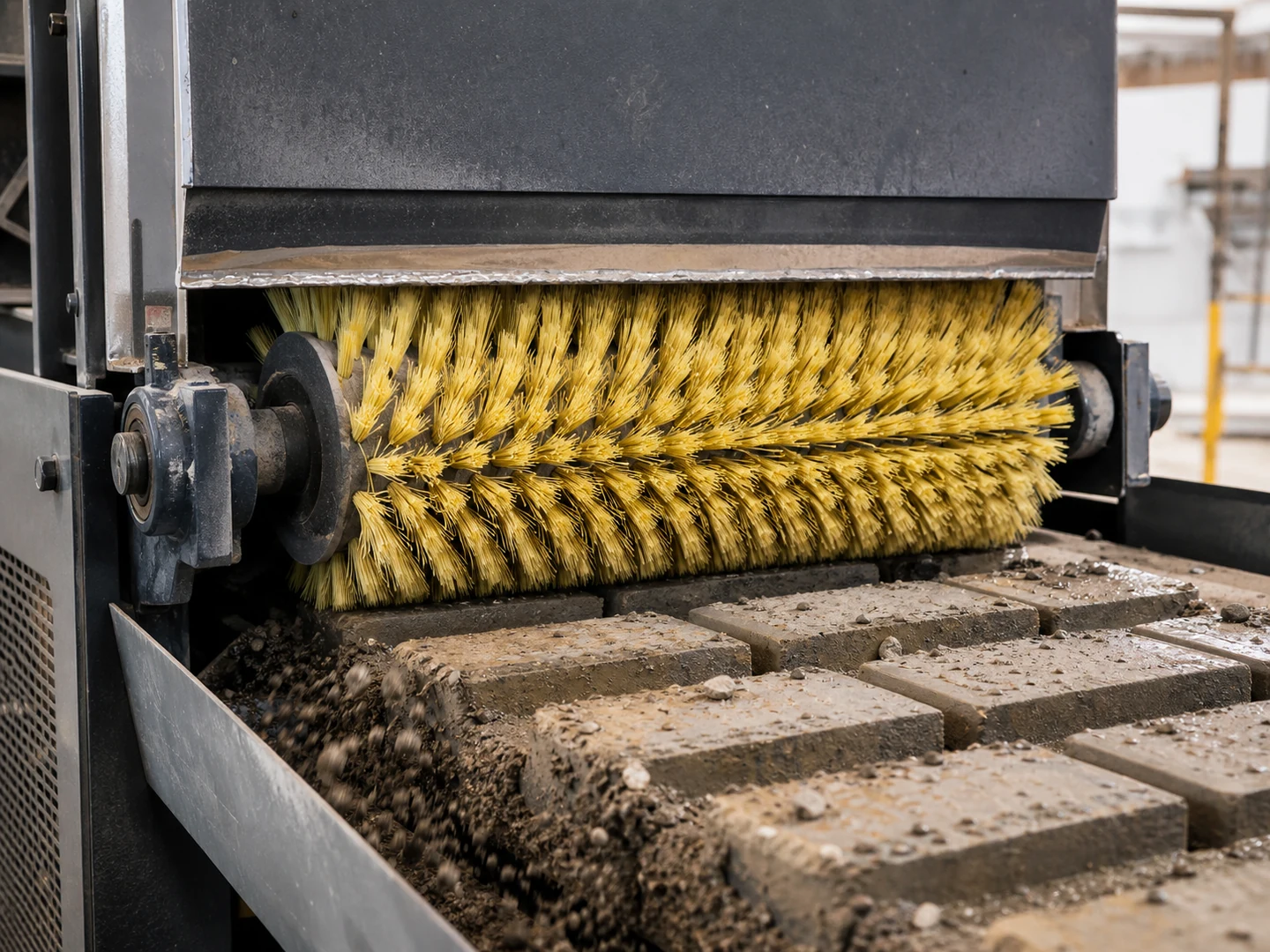

• Brick, Tile & Building Material Machine Brush Use
• Carpet Machine Cleaning
• Dust Removal
• Metal Acid Pickling & Degreasing Line Brush Use
• Conveyor Belt Cleaning

It is normally set into these constructions:

• Custom Wheel Brushes

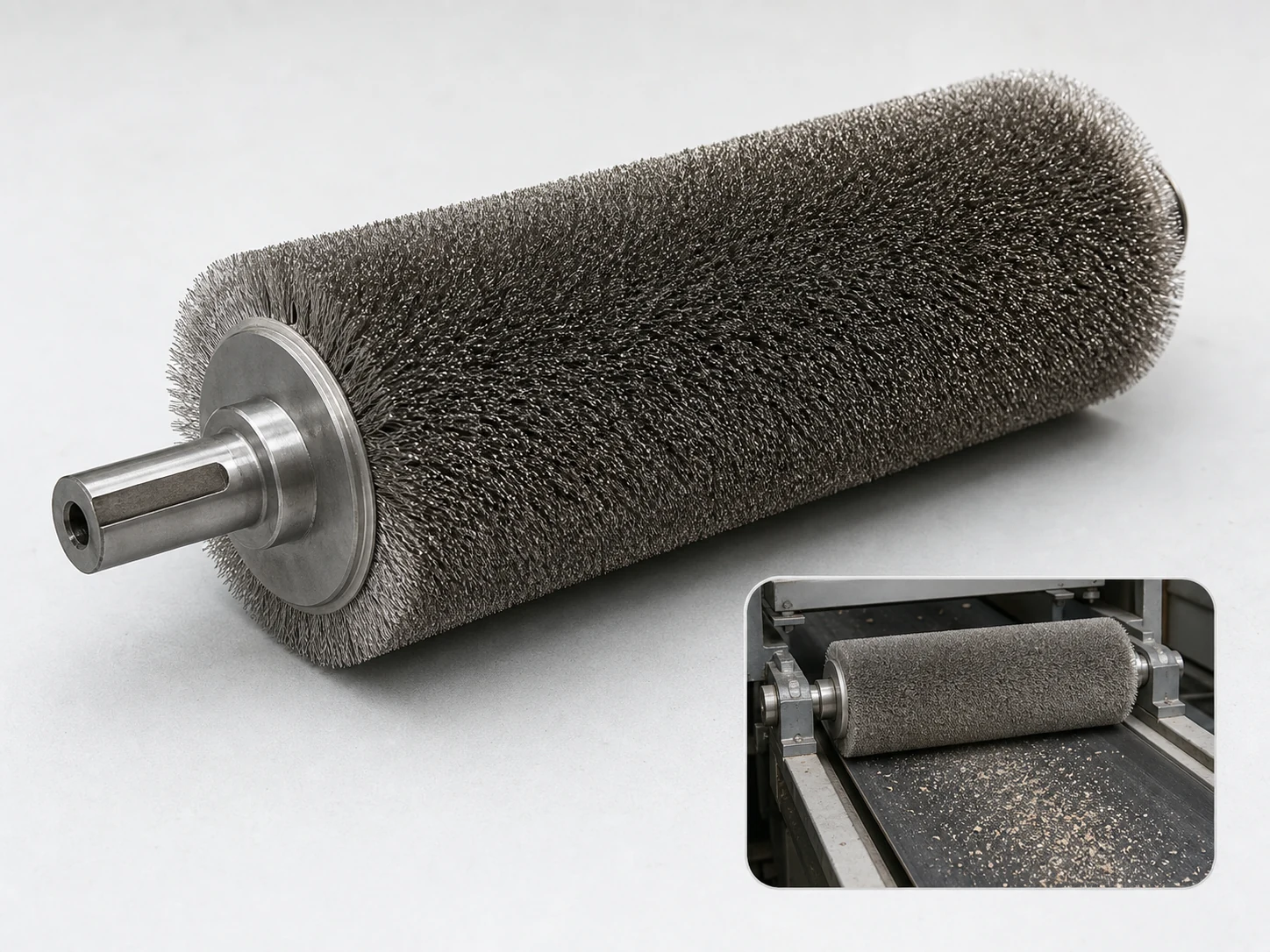

• Custom Roller and Conveyor Brushes

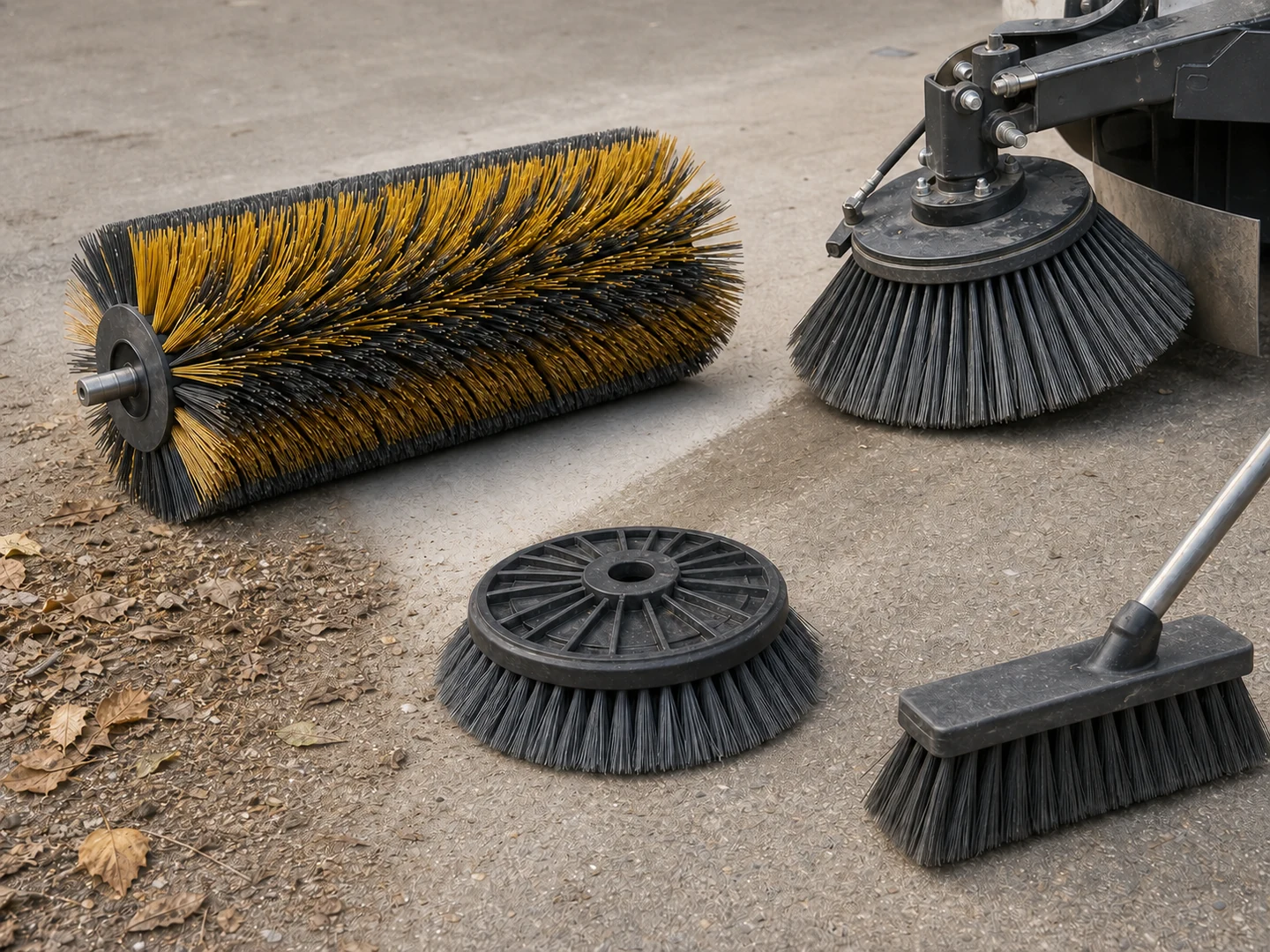

• Custom Road Sweeper Brooms
• Custom Handheld Detail Brushes
• Custom Polishing Buffing Wheels

If the sample comes back rejected: Not for soft plastic, glass, PCB, coated solar glass or polished paint.

Send the brush type, filament diameter, free trim length, density, contact setting, wet or dry duty, working temperature and the actual cleaning chemistry together. Any one of them on its own leaves the stiffness undefined.

What usually goes wrong at this step:

• Selecting Carbon Steel Wire from the material name alone without setting filament diameter, trim length, and density
• Using dry stiffness to predict wet behavior without checking moisture absorption or liquid exposure
• Ignoring trapped abrasive particles, chemical concentration, temperature, or contact motion when assessing surface risk

Reference standards behind the figures on this page: ISO 6892-1; ASTM E8/E8M; ASTM B117.

Source: American Brush Manufacturers Association — ANSI B165.1 power brush safety. Carbon steel wire is specified by tensile grade and diameter, and it rusts wherever the coating is broken. The safety limit that governs a powered carbon-steel brush is its rated maximum speed, not the wire temperature.
