Silicon Carbide Abrasive Nylon

Silicon Carbide Abrasive Nylon belongs to the abrasive-filled polyamide filament group, supplied as abrasive filament, drawn in round and rectangular sections and set in straight rows, helical, staggered and zoned fill patterns.

Silicon Carbide Abrasive Nylon is used in custom cleaning brushes for aggressive deburring, bore finishing, scale removal and edge radiusing on harder metals and engineered parts.

The realistic alternatives are Polypropylene PP, PBT and PET Polyester. What separates them here is moisture uptake and working temperature, not headline strength.

Compare Silicon Carbide Abrasive Nylon with PP, PBT, PET. Change material when wet stiffness, temperature, chemical resistance, conductivity, particle shedding, or surface marking becomes the limiting factor.

Silicon Carbide Abrasive Nylon is aggressive abrasive filament; abrasive grit commonly 46#-5000# and filament diameter 0.3-2.5mm in MW abrasive filament data; silicon Carbide Abrasive Nylon changes brush stiffness through filament diameter, free trim, density, crimp, and contact. Use finer filament and longer trim for conformable contact; use coarser filament, shorter trim, or higher density for stronger displacement or cutting.

Published ranges for the filament itself. Read them as a shortlist tool, not as brush performance.

The part people get wrong: stiffness is not a property of the material on its own. A 0.50 mm filament on a 15 mm trim is stiffer than a 0.30 mm filament on a 25 mm trim in the same grade. Fix diameter and trim first, then confirm the material.

Silicon Carbide Abrasive Nylon takes up 0.3–2.0% (Depending on Nylon Carrier, ISO 62/ASTM D570).

PA6 and PA66 absorb moisture; PA610, PA612 and PA12 retain stiffness better in wet service; this moisture response matters in aggressive deburring, bore finishing, scale removal and edge radiusing on harder metals and engineered parts.

What this means for your application: the filament grows and softens as it takes on water, and tip pressure goes with it. The reach you measured dry is not the reach you get wet.

A practical check: run one wet cycle and compare tip contact against the dry state. If the wet brush leaves residue behind or no longer reaches the bottom of the bore, change the material rather than the geometry.

Heat limit follows the nylon carrier, abrasive loading, filament diameter, contact speed, and finished brush construction. Avoid using one 90–120°C value as a universal abrasive-nylon service rating.

The filament tables quote 80–120°C continuous and 140–170°C peak. The tighter number above is the one to build to, because a brush is loaded while it is hot.

Where it stops working: validate with a sample if the process sits near the top of that band. If the filament takes a permanent set under load, step up to PET Polyester or PBT, which hold a higher continuous temperature.

Diameter, trim length and applied load all shift the real limit, so a thin filament touching lightly survives conditions that would flatten a thick one under pressure.

It stands up to water, oils, mild detergents and dilute alkalis.

What degrades it: strong mineral acids, phenols and strong oxidizers.

Compatibility is a function of concentration, temperature and contact time together. A short rinse in a dilute solution is a different exposure from an overnight soak in a concentrated one, even with the same chemical on the label.

Before you commit to a quantity: Specify the exact Silicon Carbide Abrasive Nylon grade or alloy, filament or profile size, color, straight or crimped form, working temperature, wet or dry use, chemical exposure, surface finish, and any required material documentation.

The floor is roughly 0.15 mm; finer than that and the filament snaps rather than flexes. In practice you are choosing inside 0.15–2.50 mm.

Free trim runs 5–150 mm, and the two interact: a finer filament needs a shorter trim to keep useful stiffness, while a thicker one carries a longer trim and still lands pressure on the tip.

Split the range by duty: roughly 0.15–0.74 mm for light wiping, dusting and surfaces that mark easily, and 0.74–2.50 mm where residue is packed on and point pressure matters more than surface risk.

Tip treatments available on this filament: cut-to-length, controlled end rounding and resin coupling treatment.

In practical brush terms: reaching deep into a bore or crevice is a diameter problem before it is a length problem. A thicker filament on a moderate trim pushes further in before the tips fold over.

Aggressive deburring, bore finishing, scale removal and edge radiusing on harder metals and engineered parts.

The applications that keep coming back to this grade:

• Pipe Robot Brush Attachment Use
• Brick, Tile & Building Material Machine Brush Use
• Carpet Machine Cleaning
• Hose Cleaning
• Industrial Machine Cleaning
• Tube & Pipe Cleaning

The constructions that usually carry it:

• Custom Handheld Detail Brushes
• Custom Tube & Pipe Bore Brushes
• Custom Roller and Conveyor Brushes
• Custom Strip Seal Brushes

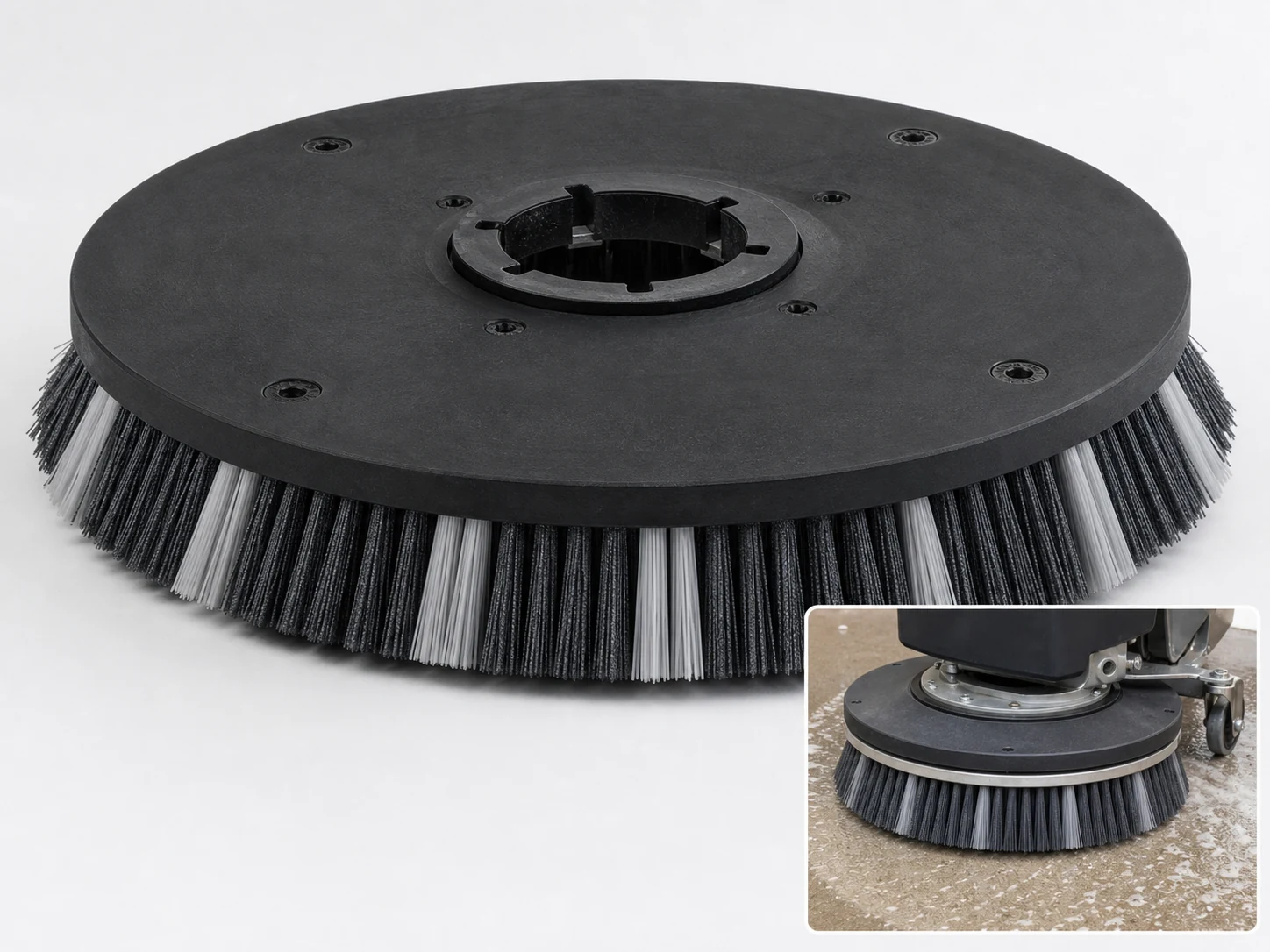

• Custom Floor Scrubber Sweeper Brushes

If the sample comes back rejected: Silicon carbide cuts quickly and can over-radius edges or mark coatings when grit, filament size, trim or motion is too aggressive.

Send the brush type, filament diameter, free trim length, density, contact setting, wet or dry duty, working temperature and the actual cleaning chemistry together. Any one of them on its own leaves the stiffness undefined.

What usually goes wrong at this step:

• Selecting Silicon Carbide Abrasive Nylon from the material name alone without setting filament diameter, trim length, and density
• Using dry stiffness to predict wet behavior without checking moisture absorption or liquid exposure
• Ignoring trapped abrasive particles, chemical concentration, temperature, or contact motion when assessing surface risk

Reference standards behind the figures on this page: ISO 527-1:2019; ASTM D638; ISO 62:2008; ASTM D570-22; ISO 868:2003; ASTM D2240-15(2021); ISO 4892-3:2024; ASTM G154-23; UL 94; ISO 6344 series.

Source: Evonik — VESTAMID polyamide for abrasive filament. Silicon-carbide-filled polyamide is heat-sensitive in service: frictional heat softens the carrier and the filament begins to smear rather than cut. Set surface speed and dwell from the actual filament data, and treat brush speed and heat as a safety item under ANSI B165.1.
