Laboratory Tube Cleaning

The main difficulty is removing liquid film, product residue, biofilm, powder, and particles from internal container walls, necks, shoulders, bases, and narrow openings without damaging the surface, loading the brush, or carrying contamination back into the process.

The work happens in wet indoor area against chemical residue, precipitate and biofilm.

The part people get wrong: this is not one job. The same equipment carries several targets, each with a different opening and a different residue, and one brush rarely covers them all.

There are 5 distinct targets here, and the brush that suits one will usually not reach another.

The dimensional envelope those targets impose on the brush:

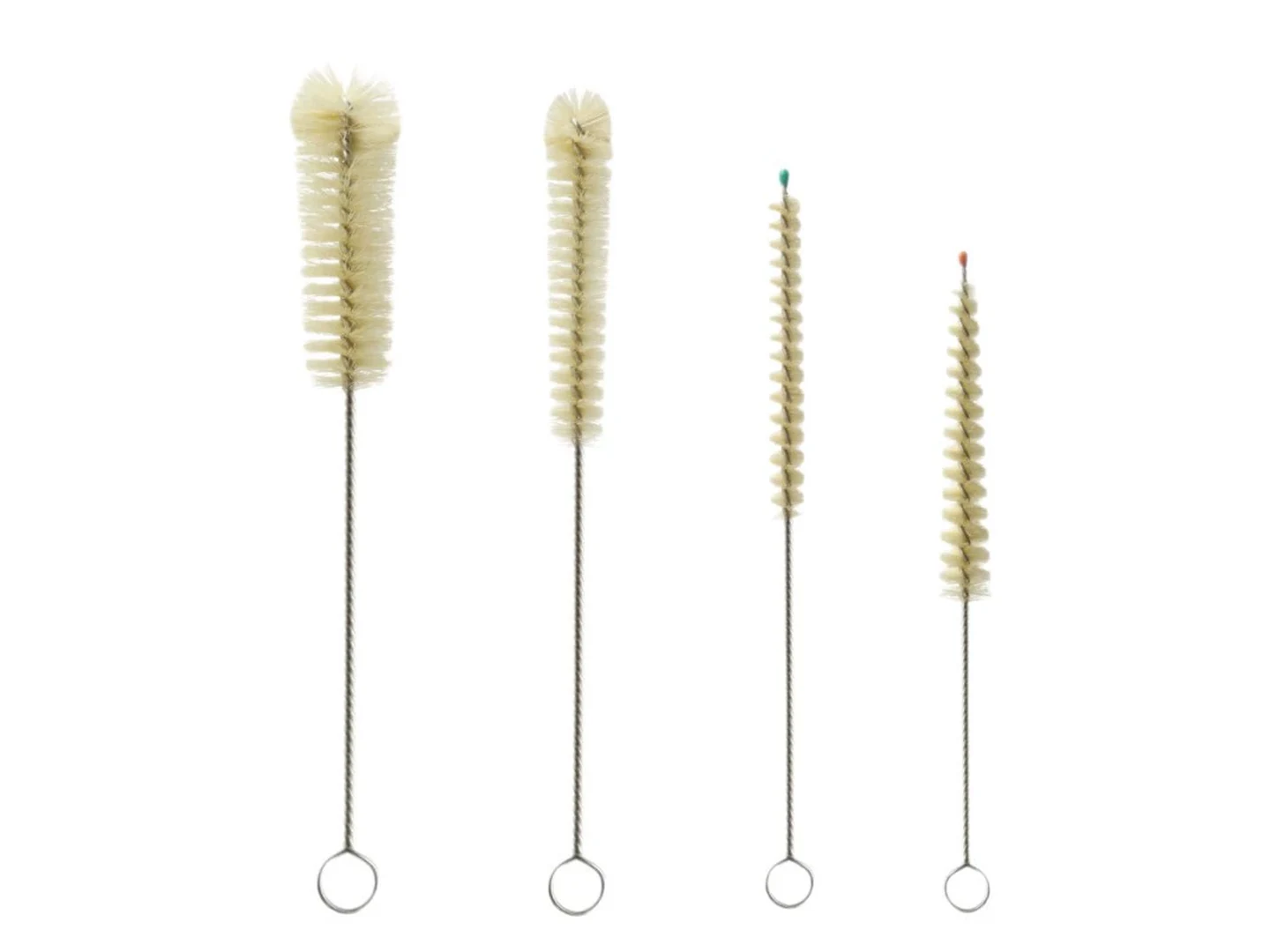

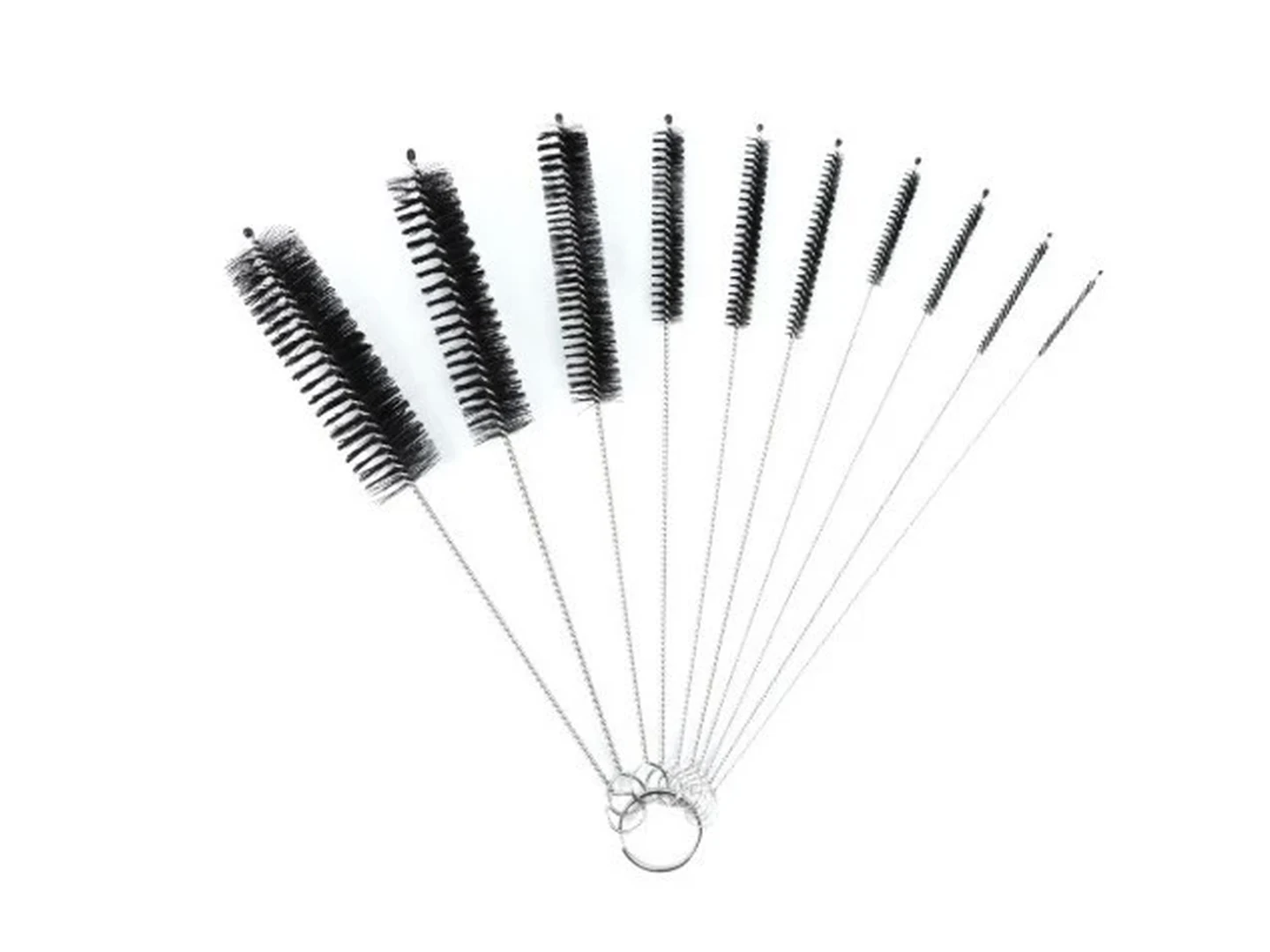

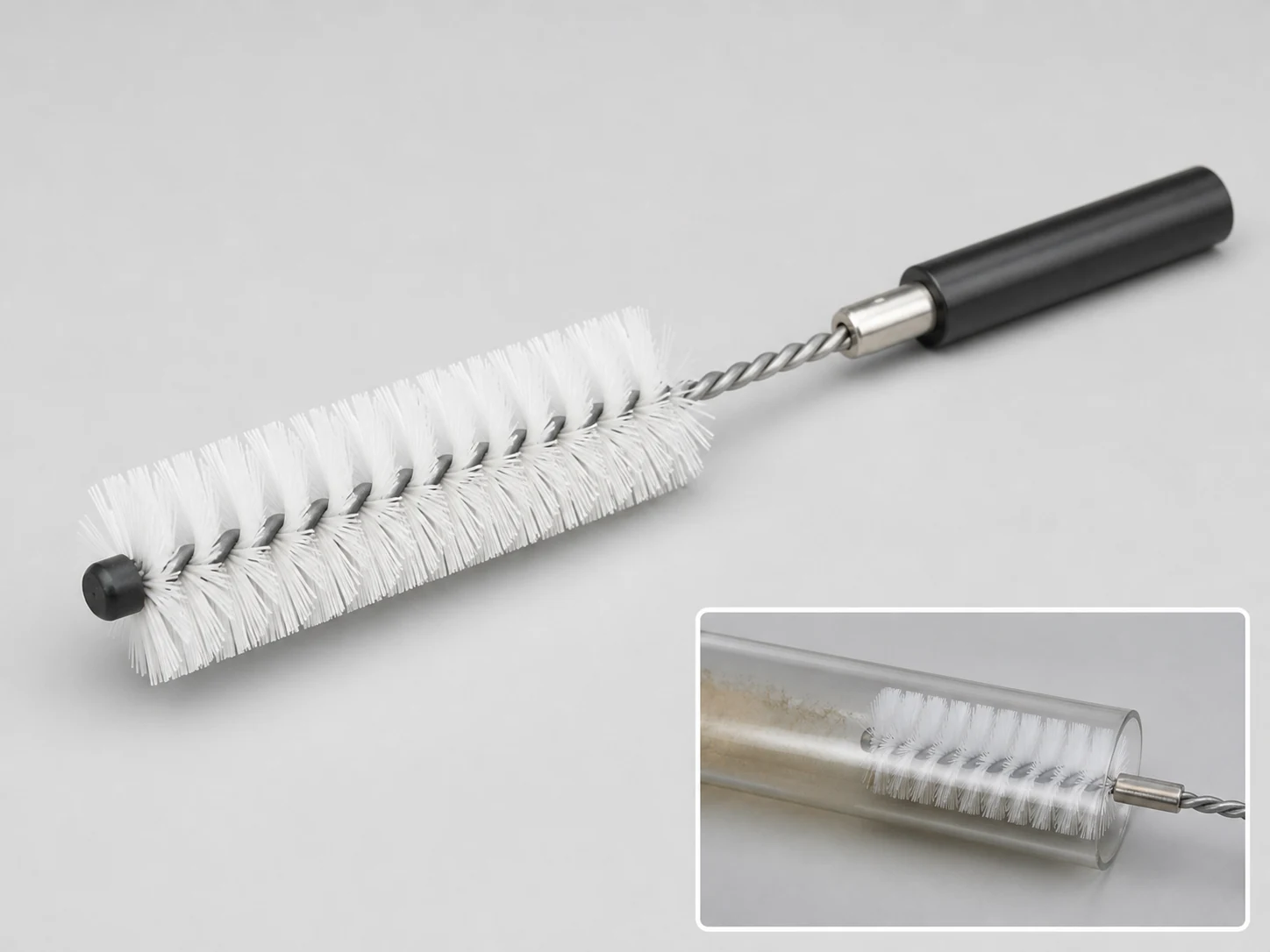

Tufted-end test-tube, cylinder or flask brush sized to opening, body and depth.

The layouts this application is normally built in:

• Driven brush — use when liquid film, product residue, biofilm, powder, and particles needs repeatable scrubbing or controlled relative movement
• Passive or free-running brush — use for loose contamination and lower process complexity on internal container walls, necks, shoulders, bases, and narrow openings
• Localized hand, strip, or tube brush — use where only an edge, gap, port, or maintenance point needs contact

In practical brush terms: reach first, then residue. A brush that fits but is too soft can be stiffened; a brush that does not fit is simply the wrong tool.

Soft or medium nylon/PBT, natural fiber or sponge with protected stem; chemical compatibility follows laboratory solution.

The constraints this application puts on the filament:

Match three dimensions — opening, body diameter, depth — then check the fill against the solutions the vessel actually holds.

The order that avoids rework:

1. Identify the target part and measure the access opening or clearance
2. Describe the residue: what it is, how thick it sits, and how strongly it holds
3. Choose the construction that can physically reach that target
4. Set the filament from surface risk, working temperature and cleaning chemistry
5. Fix filament diameter, free trim length and density for the contact pressure you need
6. Run one cycle and check the result before committing to a production quantity

Before you commit to a quantity, send the opening diameter, body diameter and depth for each vessel, and the solutions they hold.

A base bath, an ultrasonic tank or a laboratory glassware washer removes residue no brush reaches inside a capillary or a graduated neck. Glassware that is etched, starred or chemically attacked is discarded, because cleaning cannot restore the wall.

• Giving tube volume rather than the opening, body diameter and depth the brush has to match
• Changing brush material while leaving excessive engagement, poor alignment, or no discharge path unchanged
• Copying a worn brush without recording motion, direction, mounting, and the original working diameter

When a brush is running but not cleaning, start here rather than adding pressure:
