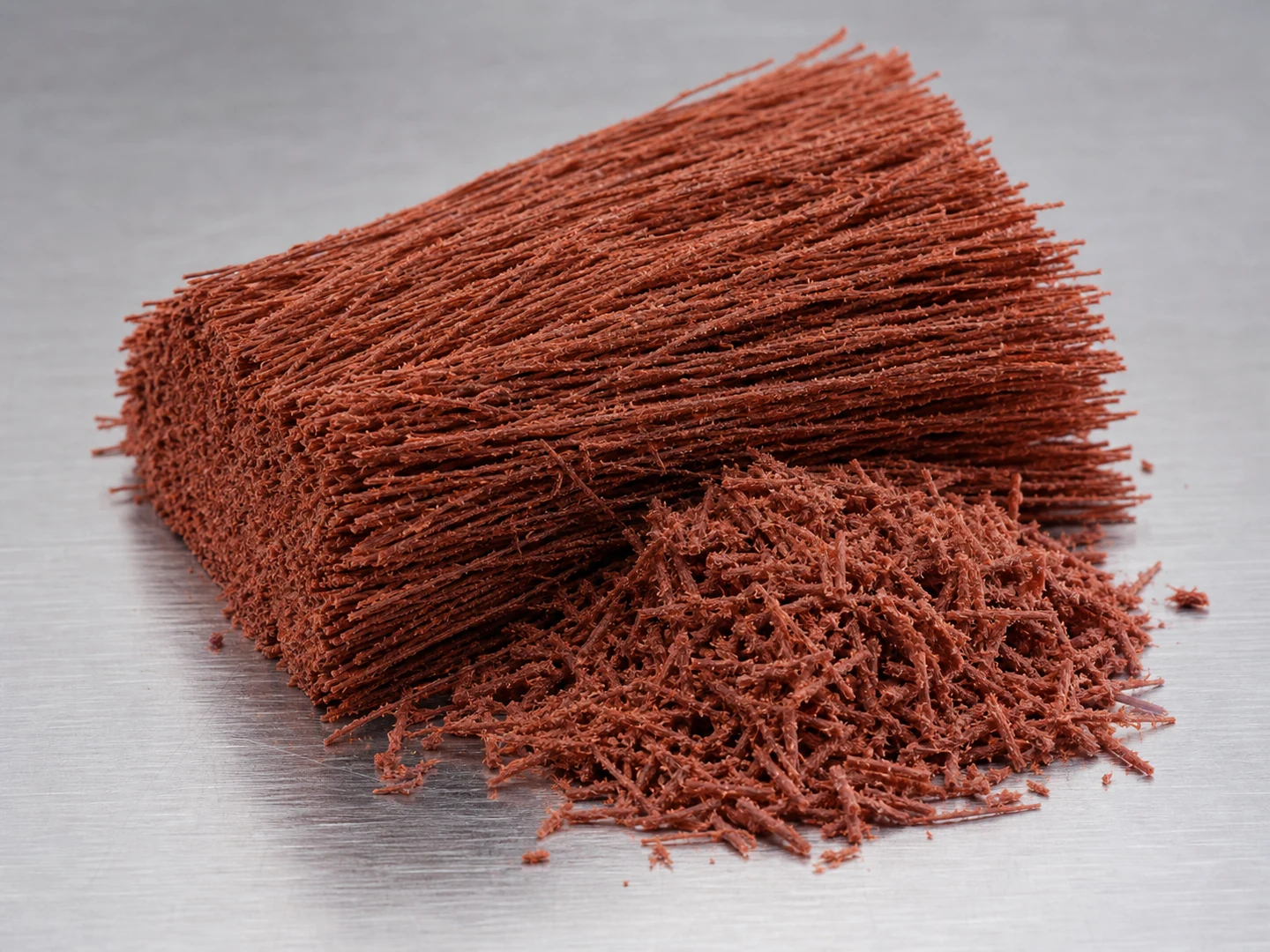

Ceramic Abrasive Fiber

In the abrasive composite filament family, Ceramic Abrasive Fiber is specified, supplied as abrasive fiber, drawn in round and rectangular sections and set in straight rows, helical, staggered and zoned fill patterns.

Ceramic Abrasive Fiber is used in custom cleaning brushes for high-cut deburring and surface conditioning on hard metals, ceramic parts and precision manufactured edges.

Compare Ceramic Abrasive Fiber with Compare with aluminum-oxide nylon for moderate finishing, silicon-carbide nylon for conformable cutting and wire for metal removal. Change material when wet stiffness, temperature, chemical resistance, conductivity, particle shedding, or surface marking becomes the limiting factor.

Ceramic Abrasive Fiber is abrasive filament; stiffness and cutting level is controlled by PA base, grit type, grit size, filament diameter and trim height, which is why Ceramic Abrasive Fiber changes brush stiffness through filament diameter, free trim, density, crimp, and contact. Use finer filament and longer trim for conformable contact; use coarser filament, shorter trim, or higher density for stronger displacement or cutting.

The part people get wrong: the same grade can feel soft or aggressive depending on diameter, trim and density. Specify that geometry before the material, or the sample will surprise you.

Ceramic Abrasive Fiber takes up 0.3–2.0% (Depending on Nylon Carrier, ISO 62/ASTM D570).

Is controlled by base polymer; choose PA610/PA612 for low water absorption where available.

What this means for your application: absorbed water swells the filament and drops contact pressure, so a brush that reached the far end of a bore when dry may stop short once it is wet.

A practical check: soak a sample for an hour and re-measure the trim. If it has moved enough to change the contact band, the grade is wrong for the duty.

Temperature capability depends on whether the ceramic abrasive is carried in nylon, another synthetic bristle, or a different bonded system. Confirm the actual abrasive filament and backing/holder instead of applying one 90–150°C limit.

Design to that answer rather than to a raw-material datasheet figure: a brush rating already accounts for the filament working under load rather than raw fiber sitting in an oven.

Where it stops working: validate with a sample if the process sits near the top of that band. A permanent bend under load means the answer is a higher-temperature filament family, not a heavier trim.

The usable limit also moves with diameter, trim and contact pressure. A fine filament under light load tolerates more than a thick one under heavy scrubbing.

MW describes abrasive filament as corrosion-resistant; avoid unvalidated strong acids/alkalis because the nylon base controls chemical limits.

The same cleaner can be harmless or destructive depending on how strong it is, how hot it runs and how long it sits. Quote the concentration and the dwell time, not just the product name.

Before you commit to a quantity: Specify the exact Ceramic Abrasive Fiber grade or alloy, filament or profile size, color, straight or crimped form, working temperature, wet or dry use, chemical exposure, surface finish, and any required material documentation.

About 0.20 mm. Below that the filament turns fragile and breaks under ordinary contact pressure, so 0.20–2.50 mm is the working range.

Free trim runs 5–120 mm, and the two interact: a finer filament needs a shorter trim to keep useful stiffness, while a thicker one carries a longer trim and still lands pressure on the tip.

Split the range by duty: roughly 0.20–0.77 mm for light wiping, dusting and surfaces that mark easily, and 0.77–2.50 mm where residue is packed on and point pressure matters more than surface risk.

Tip treatments available on this filament: cut-to-length and resin coupling treatment.

In practical brush terms: reaching deep into a bore or crevice is a diameter problem before it is a length problem. A thicker filament on a moderate trim pushes further in before the tips fold over.

High-cut deburring and surface conditioning on hard metals, ceramic parts and precision manufactured edges.

Where it turns up in practice:

• Ceramic Glaze Line & Tile Brush Use
• Polishing
• Surface Finishing
• Deburring & Edge Breaking
• Tile Grout Cleaning
• Household Dish, Teapot & Kitchen Detail Cleaning

It is normally set into these constructions:

• Custom Wheel Brushes
• Custom Floor Scrubber Sweeper Brushes
• Custom Roller and Conveyor Brushes
• Custom Tube & Pipe Bore Brushes

If the sample comes back rejected: Not for delicate coatings, soft plastics or finished paint unless the removal target and finish are process-proven.

A usable specification carries the construction, the filament diameter and free trim, the density and contact setting, and the service conditions: wet or dry, temperature, and what the cleaner actually is.

The mistakes that most often send a sample back:

• Selecting Ceramic Abrasive Fiber from the material name alone without setting filament diameter, trim length, and density
• Using dry stiffness to predict wet behavior without checking moisture absorption or liquid exposure
• Ignoring trapped abrasive particles, chemical concentration, temperature, or contact motion when assessing surface risk

Reference standards behind the figures on this page: ISO 6344 series.

Source: 3M — Scotch-Brite Bristle Disc — Ceramic Abrasive. Ceramic abrasive products can use different synthetic carrier systems. Product-level construction, not the ceramic mineral alone, determines brush-service temperature.
