Brass Wire

In the copper-alloy wire filament family, Brass Wire is specified, supplied as wire bristle, drawn in round, crimped round and flat sections and set in straight rows, helical, staggered, zoned and wavy fill patterns.

Brass Wire is used in custom cleaning brushes for gentle oxide removal, mold cleaning and surface work on brass, copper and other softer nonferrous parts.

It is usually weighed against Carbon Steel Wire and Nylon PA, and the deciding difference is moisture uptake and working temperature rather than anything you can read off the name.

Compare Brass Wire with Steel wire, stainless wire, nylon. Change material when wet stiffness, temperature, chemical resistance, conductivity, particle shedding, or surface marking becomes the limiting factor.

Brass Wire is firm non-ferrous metallic wire; softer than carbon/stainless steel wire and less aggressive on softer metal parts. It Brass Wire changes brush stiffness through filament diameter, free trim, density, crimp, and contact. Use finer filament and longer trim for conformable contact; use coarser filament, shorter trim, or higher density for stronger displacement or cutting.

Filament-level figures for this grade and the ones it is usually compared to. A finished brush behaves differently again.

The part people get wrong: the same grade can feel soft or aggressive depending on diameter, trim and density. Specify that geometry before the material, or the sample will surprise you.

Brass wire absorbs no water, and it is chosen partly because it will not rust the way a steel wire does in the same duty.

Metal wire does not absorb water; alloy and holder corrosion resistance control wet service.

What this means for your application: contact pressure is unchanged by the fluid; brass is the softer wire, so the reason to be here is that the workpiece must not be scratched or sparked.

A practical check: wipe the work after one pass and look for brass transfer. A yellow smear means the wire is too soft or the load too high for the surface.

Use the finished brush rating rather than a generic brass-alloy number. A mechanically clamped brass fill in a metal-bodied brush is built here to about 260°C (500°F), but holder, anchoring, alloy, speed and process conditions must match that construction, and a staple-set block reaches its own limit long before the wire does.

The filament tables quote 150–200°C continuous and 250–300°C peak. The tighter number above is the one to build to, because a brush is loaded while it is hot.

Where it stops working: validate with a sample if the process sits near the top of that band. If the filament takes a permanent set under load, step up to Carbon Steel Wire, which hold a higher continuous temperature.

Diameter, trim length and applied load all shift the real limit, so a thin filament touching lightly survives conditions that would flatten a thick one under pressure.

Good corrosion resistance with softer metal contact than carbon or stainless steel wire.

Compatibility is a function of concentration, temperature and contact time together. A short rinse in a dilute solution is a different exposure from an overnight soak in a concentrated one, even with the same chemical on the label.

Before you commit to a quantity: Specify the exact Brass Wire grade or alloy, filament or profile size, color, straight or crimped form, working temperature, wet or dry use, chemical exposure, surface finish, and any required material documentation.

The floor is roughly 0.05 mm; finer than that and the filament snaps rather than flexes. In practice you are choosing inside 0.05–0.80 mm.

Free trim runs 3–150 mm, and the two interact: a finer filament needs a shorter trim to keep useful stiffness, while a thicker one carries a longer trim and still lands pressure on the tip.

Split the range by duty: roughly 0.05–0.24 mm for light wiping, dusting and surfaces that mark easily, and 0.24–0.80 mm where residue is packed on and point pressure matters more than surface risk.

Tip treatments available on this filament: straight, crimped, polished and anti-oxidation coating.

In practical brush terms: reaching deep into a bore or crevice is a diameter problem before it is a length problem. A thicker filament on a moderate trim pushes further in before the tips fold over.

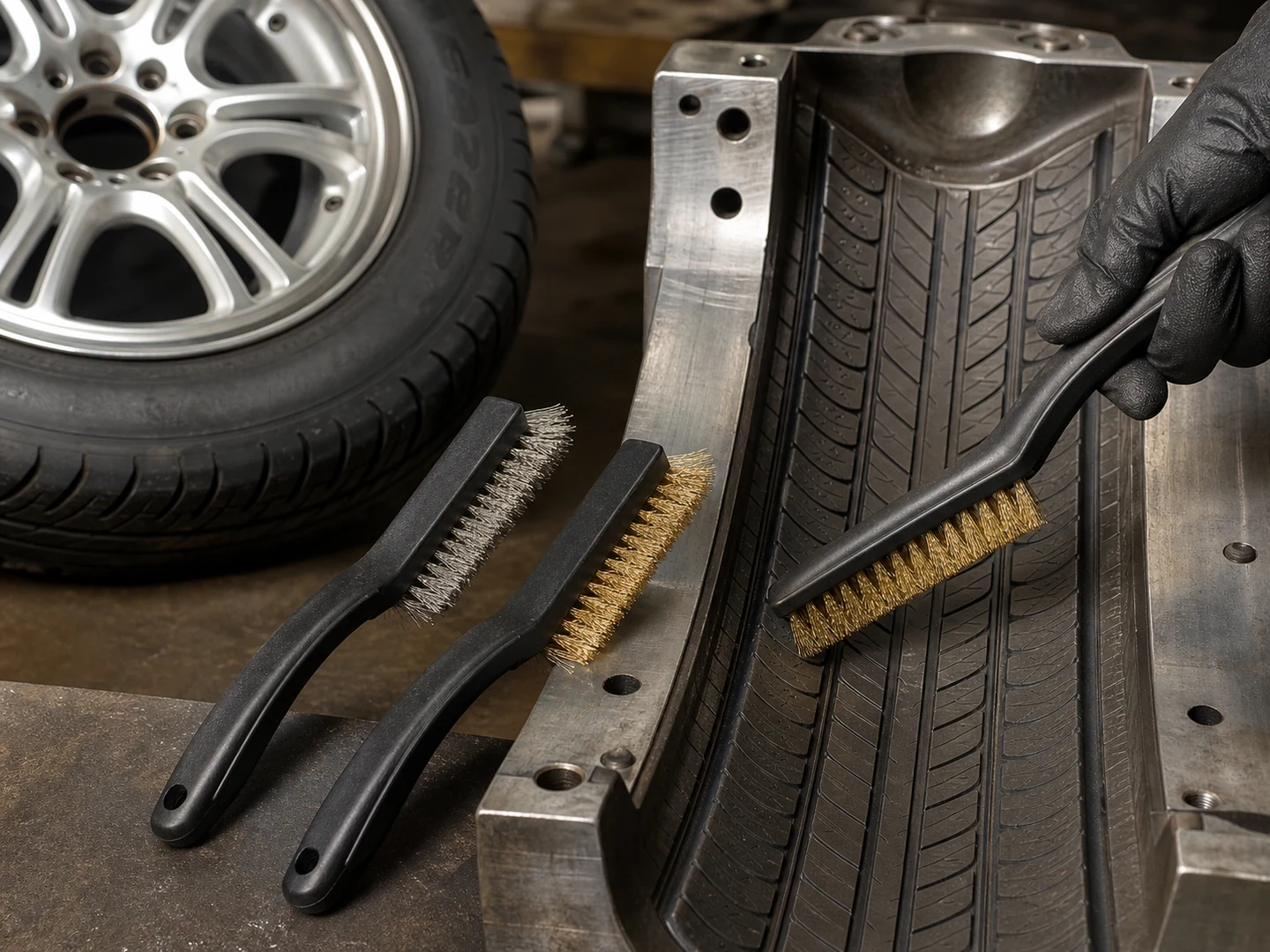

Gentle oxide removal, mold cleaning and surface work on brass, copper and other softer nonferrous parts.

Where it turns up in practice:

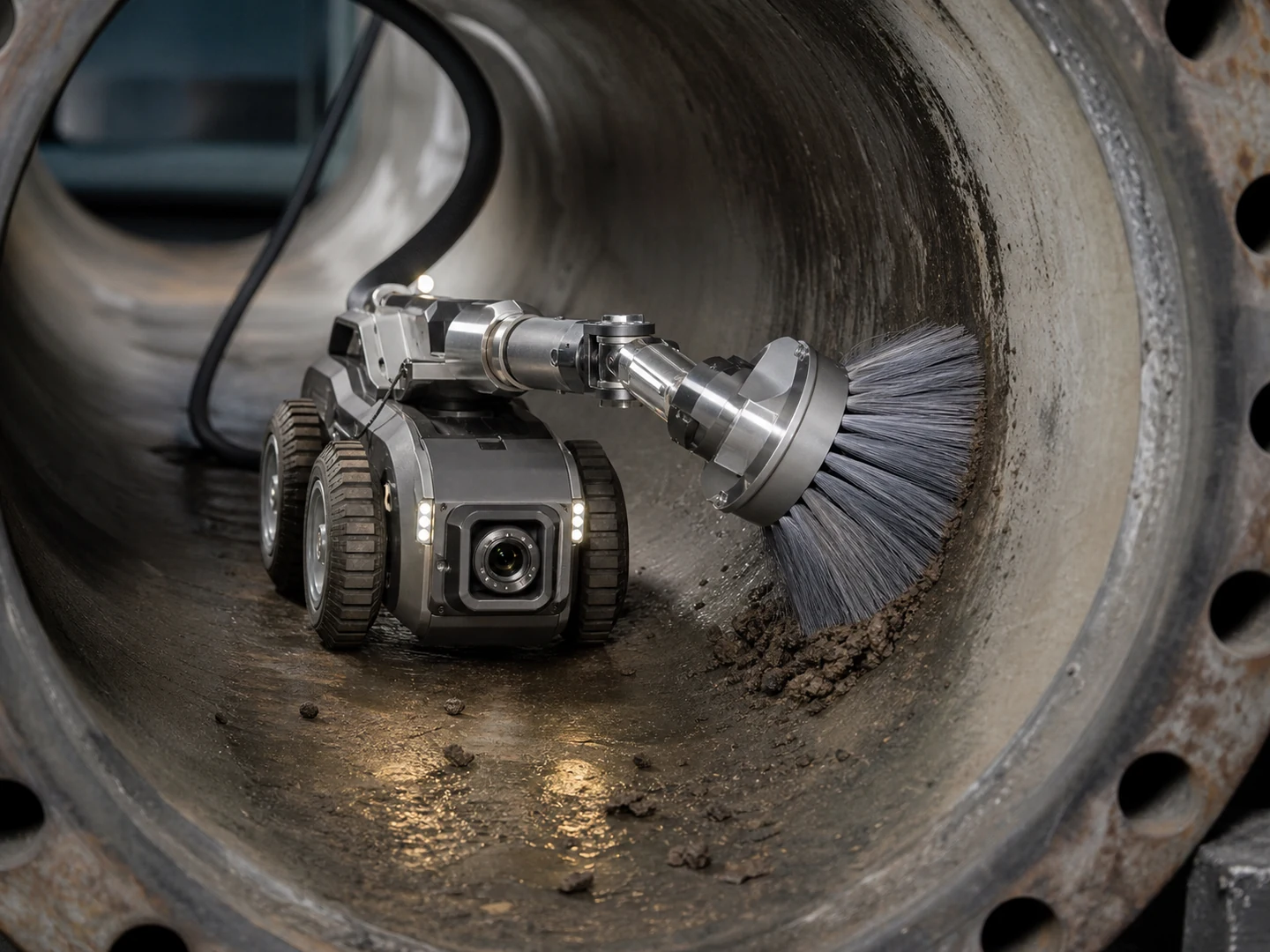

• Pipe Robot Brush Attachment Use

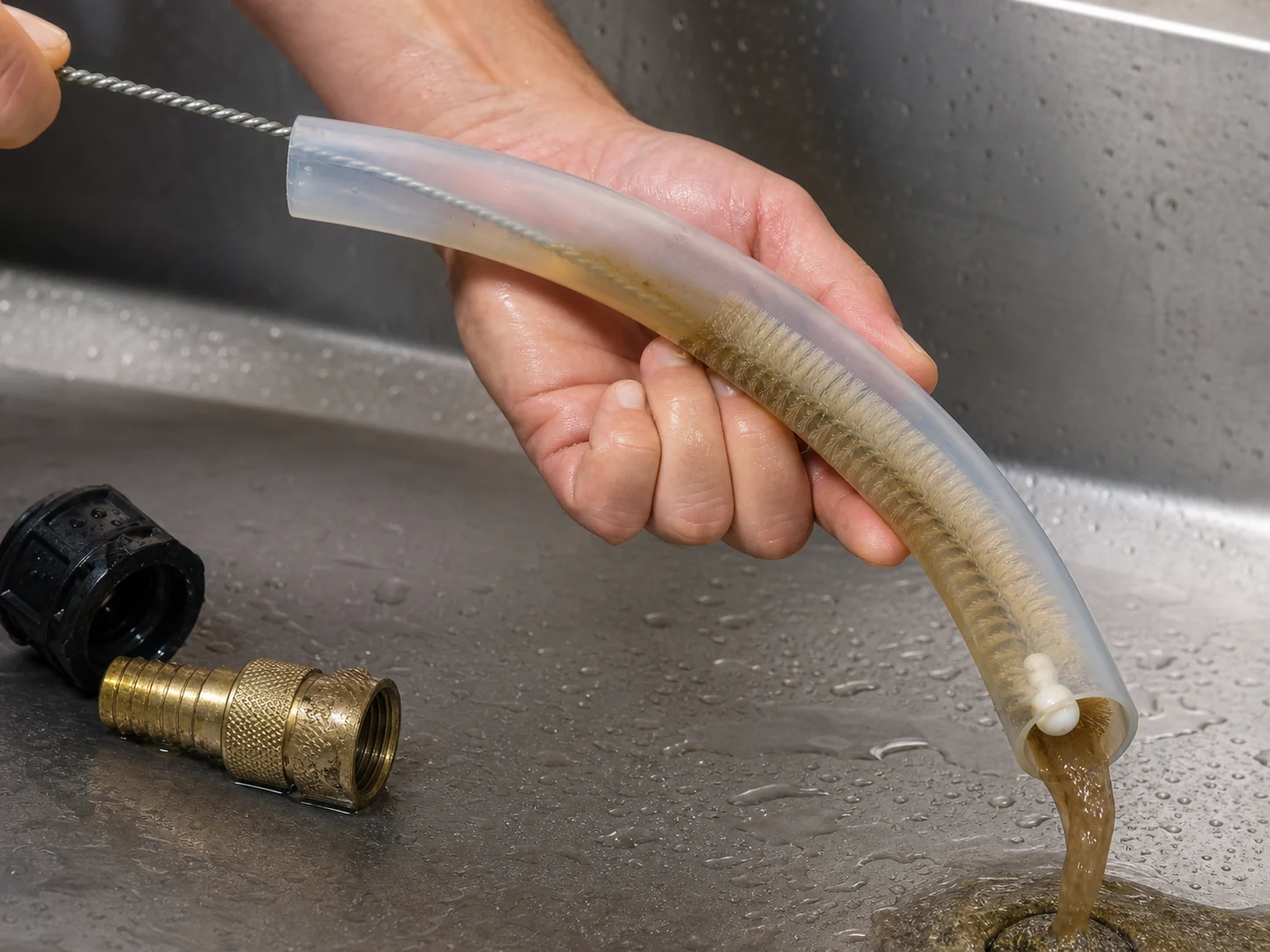

• Hose Cleaning
• Tube & Pipe Cleaning
• Laboratory Tube Cleaning
• CPAP Hose Cleaning
• Industrial Machine Cleaning

It is normally set into these constructions:

• Custom Handheld Detail Brushes
• Custom Tube & Pipe Bore Brushes
• Custom Wheel Brushes
• Custom Roller and Conveyor Brushes

If the sample comes back rejected: Avoid on stainless surfaces where copper contamination is restricted and on delicate coatings that mark under metal contact.

Send the brush type, filament diameter, free trim length, density, contact setting, wet or dry duty, working temperature and the actual cleaning chemistry together. Any one of them on its own leaves the stiffness undefined.

What usually goes wrong at this step:

• Selecting Brass Wire from the material name alone without setting filament diameter, trim length, and density
• Using dry stiffness to predict wet behavior without checking moisture absorption or liquid exposure
• Ignoring trapped abrasive particles, chemical concentration, temperature, or contact motion when assessing surface risk

Reference standards behind the figures on this page: ISO 6892-1; ASTM E8/E8M; ASTM B117.

Source: Copper Development Association — Wrought brasses — UNS alloy data. Brass here is a copper-zinc wire, chosen for its non-sparking behaviour and for being softer than the surface it works on. The alloy data sets the wire properties; the finished brush limit is set by how the fill is held.
