Application
Wheel & Rim Cleaning
A wheel needs three brushes: a long wool or microfiber barrel brush, 40–100 mm across on a covered core, that reaches behind the spokes; a soft face brush for the spokes and lacquer; and a 35–55 mm lug-nut brush for the bolt recesses. All of it is soft fill used with a pH-neutral or alkaline wheel cleaner.
At a glance
- Cleaning target
- Brake Dust/Iron Particles/Oil and Grease/Road Salt
- Working environment
- Wet Indoor Area / Outdoor
- Cleaning method
- Wet Brushing
- Requirements to check
- Low-Scratch Requirements for Coated / Polished Surfaces; Chemical Compatibility
Why is a wheel harder to clean than the rest of the car?
Brake dust is the reason. It is fine iron and carbon thrown off the pads and discs, hot when it lands, and it bakes onto the wheel in a brown film. Most of it collects where you cannot see or reach: on the inside of the barrel, behind the spokes, and packed into the bolt recesses.
The wheel itself is a finished surface. Painted, clear-coated, polished, powder-coated or chromed, it scratches as easily as the body. So the brush has to reach a closed, curved space through narrow spoke gaps, scrub baked dust, and never let a bare wire or a hard edge touch the finish.
So a wheel brush is judged on small details: whether the core is covered, whether the head passes the spoke gap, and how soft the fill is.
Which parts of a wheel need a brush?
| Part or area | Residue type | Cleaning requirement |
|---|---|---|
| Wheel Face | Brake dust and road film on the painted or polished face | Soft fill that lifts brake dust from a painted or polished face without swirl marks. |
| Wheel Barrel | Baked-on brake dust, iron particles and road salt | A long brush with a covered core that reaches through the spokes to the inside of the rim. |
| Spoke and Narrow Gap | Brake dust packed between spokes | A slim head that fits between spokes and cleans both sides. |
| Lug Nut and Bolt Recess | Brake dust and grease packed into the recess | A small round head that turns inside the recess and lifts packed dust. |
| Brake Caliper | Brake dust and road grime on the caliper body | Fill that tolerates wheel cleaner and reaches the caliper through the spokes. |
Sizes from the wheel brushes we make:
| Parameter | Typical range |
|---|---|
| Barrel brush head diameter | 40–100 mm, to pass the spoke gap |
| Barrel brush working length | 120–300 mm |
| Barrel brush overall length | 300–500 mm |
| Barrel brush core | 3–10 mm, stainless or coated steel |
| Lug-nut brush head | 35–55 mm, 50–150 mm working length |
| Filament diameter | 0.10–0.40 mm |
| Fill deflection on painted surfaces | 1–5 mm |
Which brush reaches each part of the wheel?
| Cleaning target | Recommended brush type | Why it fits |
|---|---|---|
| Wheel Face | Handheld Detail Brushes | A wheel face is a curved, interrupted surface carrying a clear coat or a polished finish, so a compliant hand-guided head follows it through the spoke gaps without cutting into the lacquer. |
| Wheel Barrel | Tube & Pipe Bore Brushes | The barrel is the inside of the rim, entered through the spoke gaps, so a long bore brush runs the length of that closed curve and holds contact with the wall that carries most of the brake dust. |
| Spoke and Narrow Gap | Handheld Detail Brushes | The gap between spokes is narrower than any pad, so a slim head passes through it and cleans both sides of the spoke. |
| Lug Nut and Bolt Recess | A bolt recess is a blind hole in the wheel face, so a small head on a handle reaches the bottom of it where the corrosion starts. | |
| Brake Caliper | A caliper is a fixed casting behind the wheel, so a hand-guided head on a long stem reaches round its body without the wheel having to come off. |

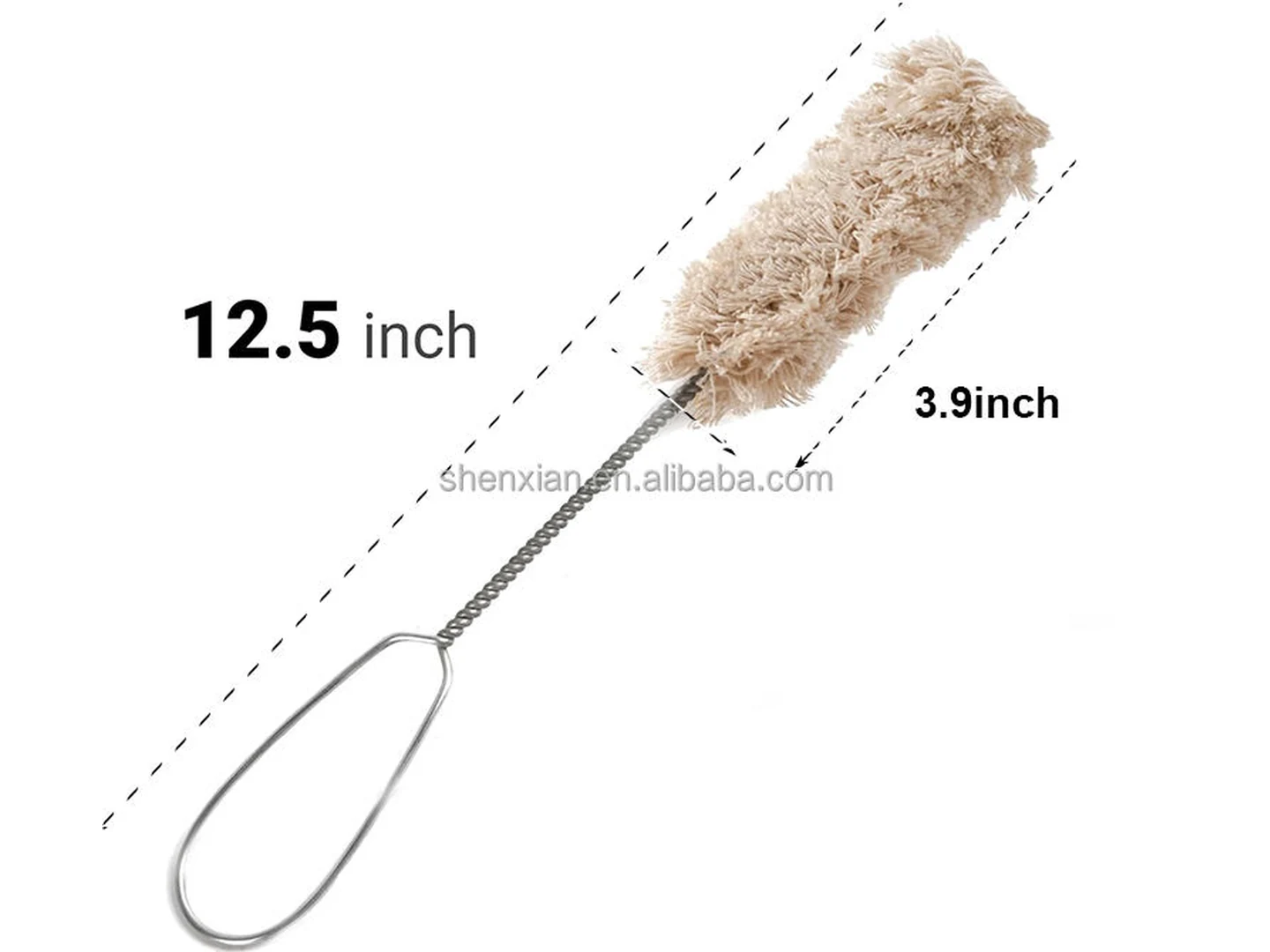

The barrel brush is the one that sells a wheel kit. It is a twisted-wire brush with synthetic wool or microfiber fill, a flexible core and a cover or tufted end over the tip, so the wire never touches the rim. Size the head to pass the narrowest spoke gap with a little squeeze and still fill the barrel.
The face brush is a soft, dense round or fan head on a short handle. The lug-nut brush is a small round head with a tapered or rounded nose that turns inside the recess. A 50 mm PBT brush with a 300 mm handle covers calipers and the inner face of open wheels.
Which fill is safe on wheel finishes?
| If the condition is… | Filament to start with | Why |
|---|---|---|
| Barrels behind painted or polished spokes | Wool | Synthetic wool holds a lot of wheel cleaner and is the softest contact on the finish |
| Barrels on daily drivers with heavy dust | Microfiber | Grabs brake dust and covers the core completely |
| Wheel faces, spokes and lug recesses | Nylon PA | Soft and springy at 0.10–0.25 mm, and good with alkaline wheel cleaners |
| Calipers and heavy grime on the inner face | PBT | Firmer at 0.30–0.50 mm and keeps its stiffness wet |
| Budget brushes in multi-packs | Polypropylene PP | Light and resistant to wheel chemicals, at a lower price |
Keep brass and steel wire off finished wheels altogether. The common wheel cleaners, alkaline and pH-neutral, are fine with all of the fills above; tell us if your cleaner is acidic, and we confirm the fill against it.

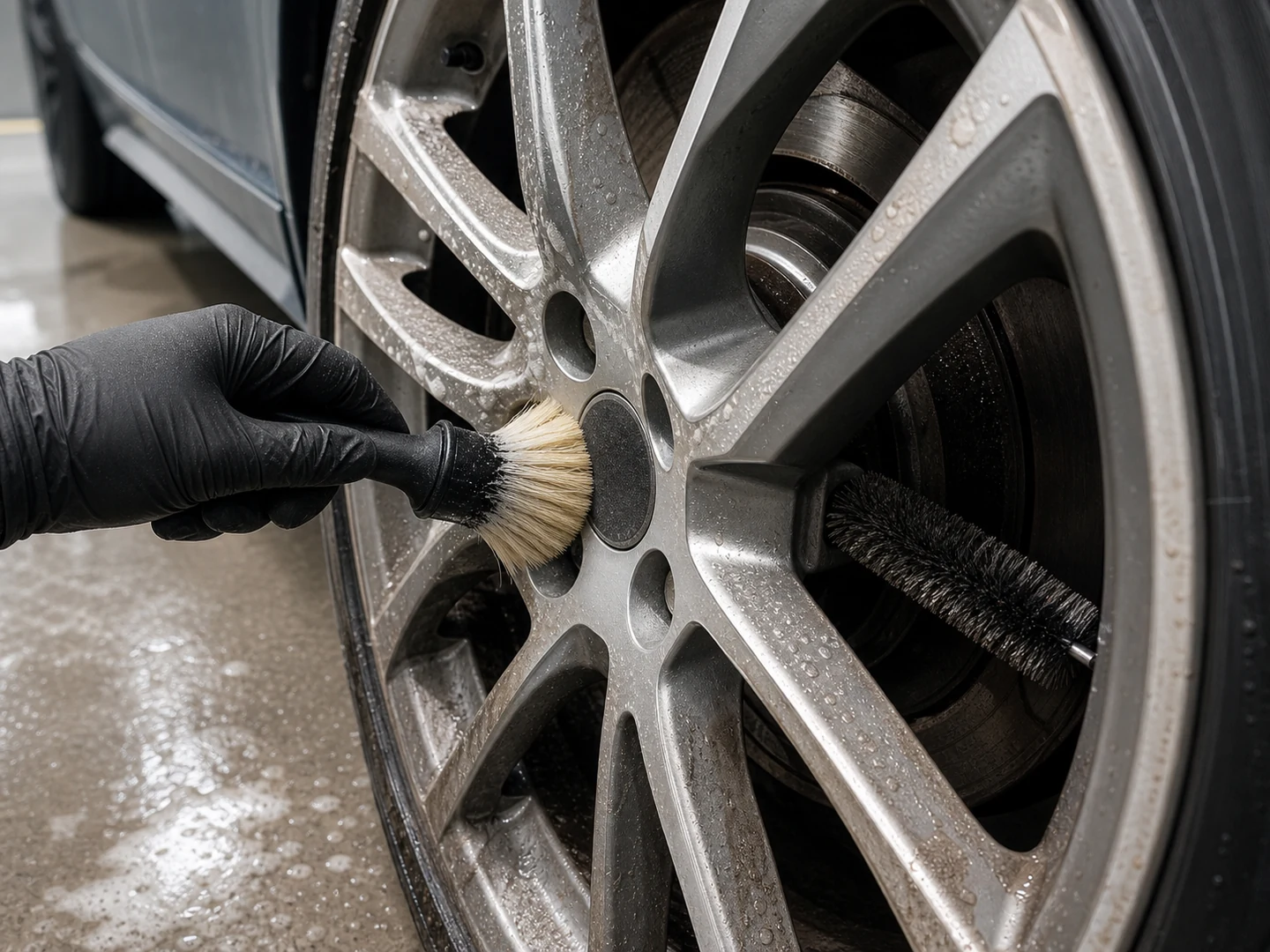

How is a wheel cleaned with brushes?
- Work on cool wheels, never straight after a drive.
- Rinse, spray the wheel cleaner, and give it the dwell time on the label.
- Barrel first: push the long brush through the spoke gaps and turn it round the inside of the rim.
- Then the face and spokes with the soft brush, then each bolt recess with the lug-nut brush.
- Rinse the wheel and the brushes, and keep the wheel brushes away from the paint.
What do we need to quote wheel brushes?
- Single brushes or a kit, and which brushes are in it.
- The narrowest spoke gap and the deepest barrel the kit should handle.
- Fill for each brush: wool, microfiber, nylon or PBT.
- Handle, color, logo and retail packaging.
- Quantity per design; for small hand brushes our minimum is 500 pieces.
When will brushing not clean a wheel?
Brake dust that has been baked on for months needs an iron remover to dissolve the embedded particles first; brushing alone only smears it. Corrosion under the lacquer, or lacquer that has lifted, cannot be cleaned off; the wheel needs refinishing. Curb rash is damage, not dirt.
What mistakes damage wheels during cleaning?
- A barrel brush with an exposed wire tip, which scores the inside of the rim every time.
- Cleaning hot wheels, so the cleaner dries and stains before it can be rinsed.
- Stiff tire brushes used on the wheel face.
- A barrel head too large for the spoke gap, forced through until the fill crushes.
- Using the same brush on wheels and paint.
Questions buyers ask about Wheel & Rim Cleaning
What size wheel barrel brush do I need?
One whose head passes your narrowest spoke gap with a little squeeze and still fills the barrel. We make them 40–100 mm across and 300–500 mm long, with the wire tip covered.
Will a wheel brush scratch my rims?
Not if the fill is soft and no wire is exposed. Use wool, microfiber or soft nylon, keep brass and steel wire off finished wheels, and rinse grit out of the brush between wheels.
Can you make a wheel brush kit under our brand?
Yes. We make barrel, face and lug-nut brushes as a kit, in your colors and packaging, with your logo. The minimum is 500 pieces per design.
Continue Exploring
Recommended Reading & Related Brush Resources
Wheel & Rim Cleaning Brush
A rigid stem 300 to 500 mm long reaches inner barrels, caliper faces and suspension components through the spokes without removing the wheel.
See the specification

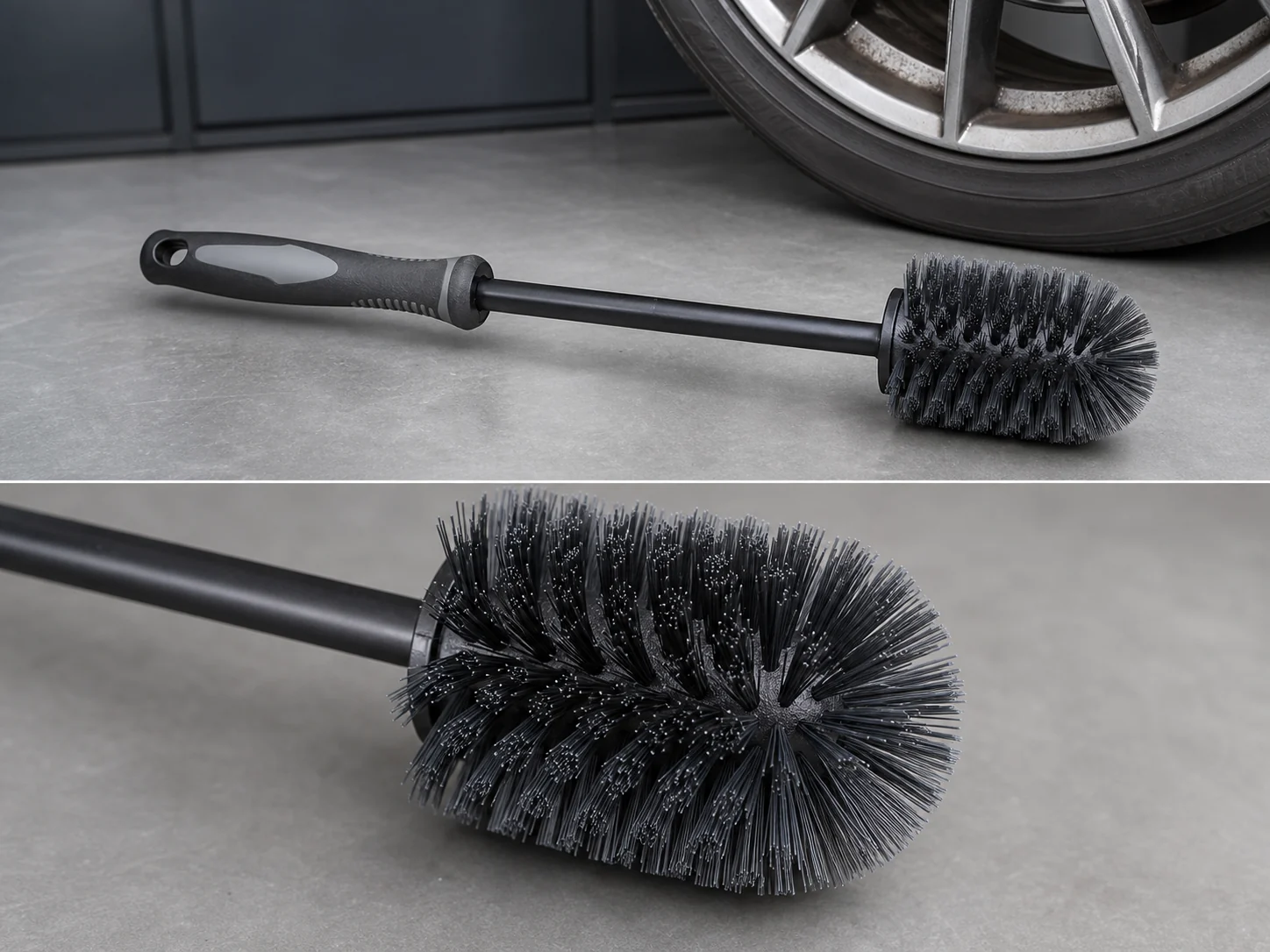

PBT Wheel Rim Brush
PBT wheel rim brush with 50 mm round head and 180 mm bristle length for cleaning brake dust, road film, and grime from wheel barrels and behind spokes.
See the specification

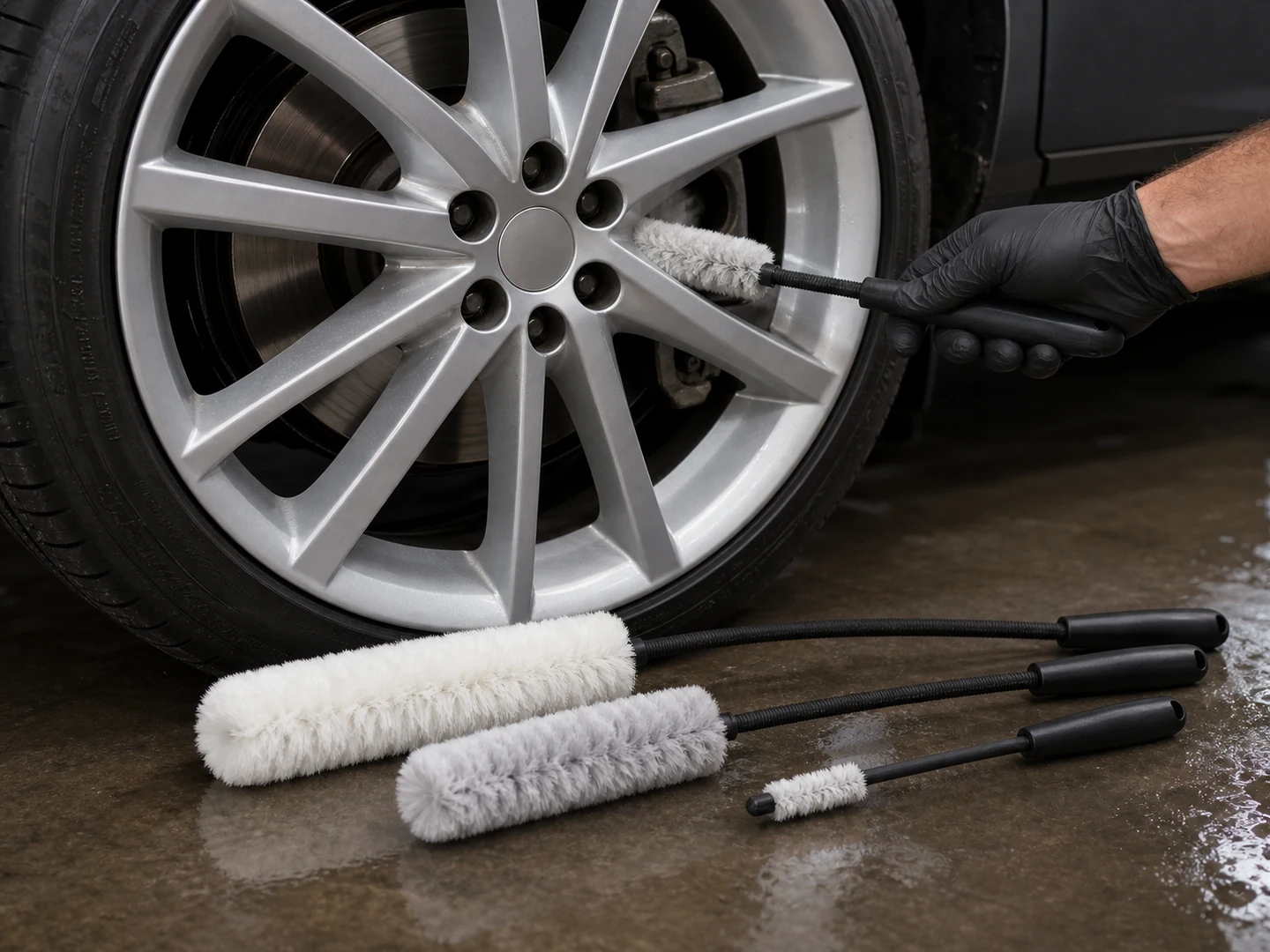

Synthetic Wool Wheel Cleaning Brush
