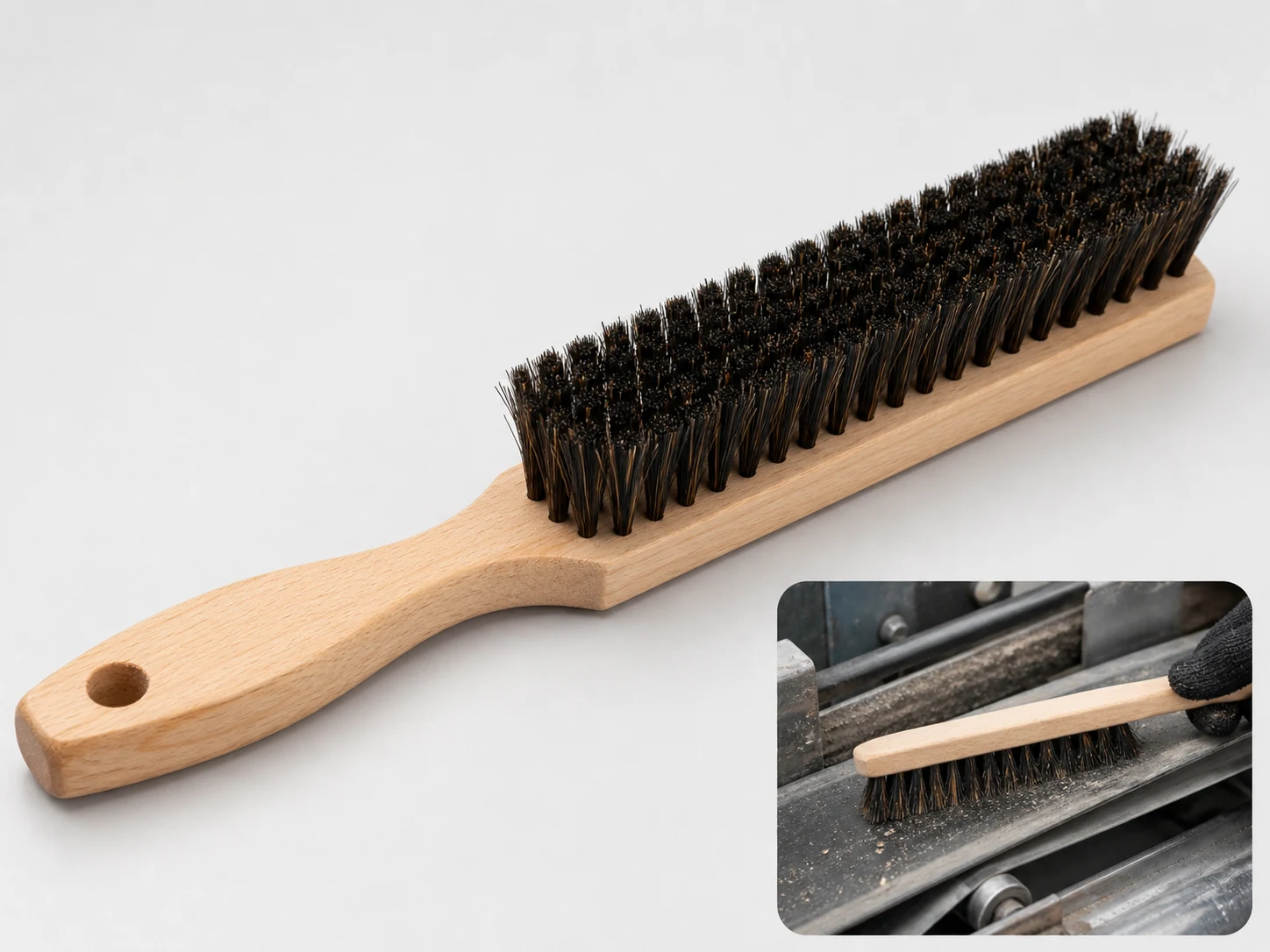

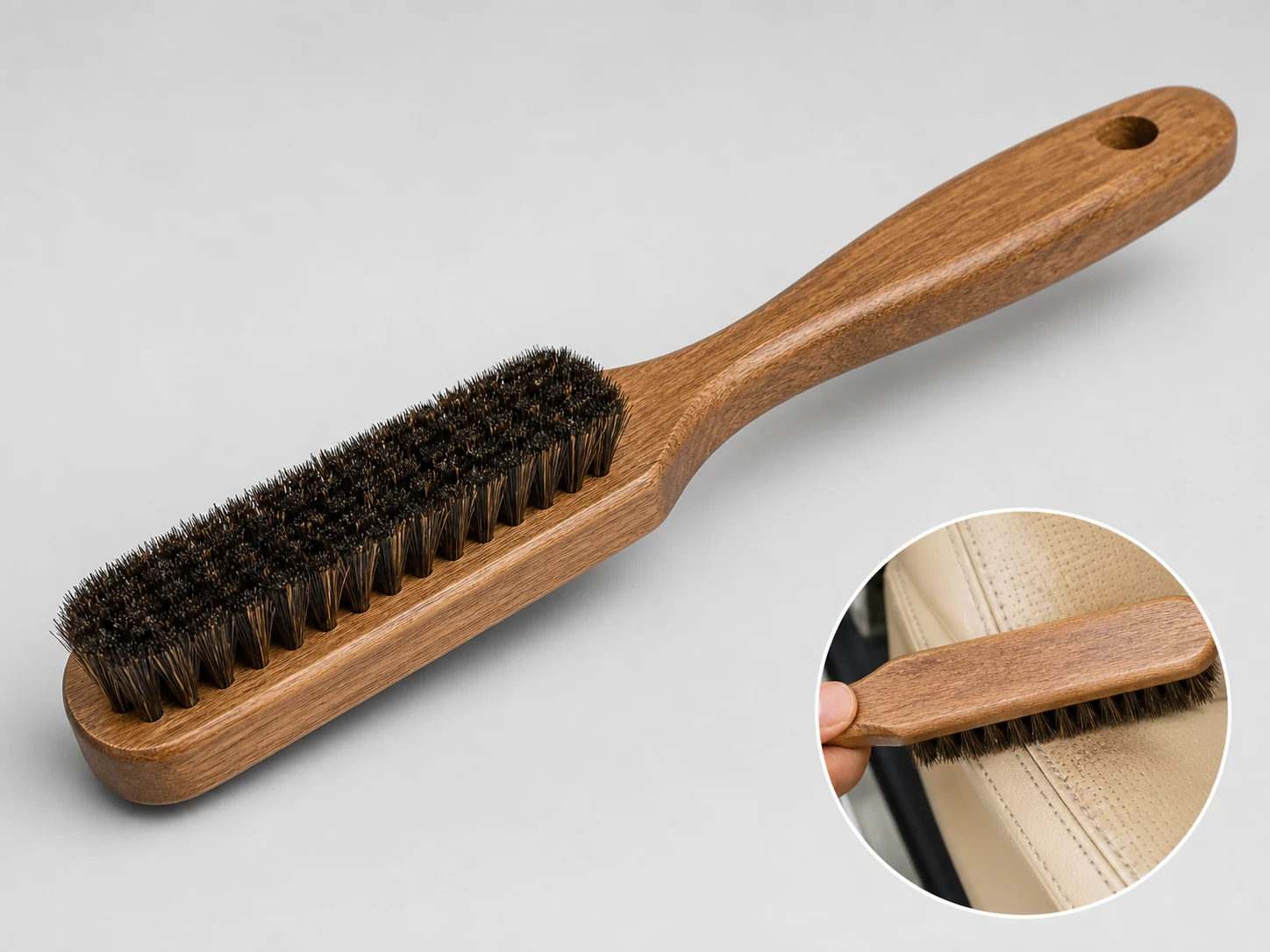

Boar Bristle

In the natural animal bristle family, Boar Bristle is specified, supplied as natural bristle, drawn in natural near-round and flagged tips sections and set in straight rows, staggered, zoned and random fill patterns.

Boar Bristle is used in custom cleaning brushes for vehicle detailing, polishing and controlled hand cleaning where natural split tips provide useful agitation.

It is usually weighed against Horsehair, Nylon PA and PBT, and the deciding difference is moisture uptake and working temperature rather than anything you can read off the name.

Compare Boar Bristle with Horsehair, nylon, PBT. Change material when wet stiffness, temperature, chemical resistance, conductivity, particle shedding, or surface marking becomes the limiting factor.

Boar Bristle is medium natural bristle; stiffer than horsehair but softer than nylon/wire. It Boar Bristle changes brush stiffness through filament diameter, free trim, density, crimp, and contact. Use finer filament and longer trim for conformable contact; use coarser filament, shorter trim, or higher density for stronger displacement or cutting.

Filament-level figures for this grade and the ones it is usually compared to. A finished brush behaves differently again.

The part people get wrong: the same grade can feel soft or aggressive depending on diameter, trim and density. Specify that geometry before the material, or the sample will surprise you.

Boar bristle holds roughly 10–18% moisture at equilibrium, which is what lets the tip carry water into the work and soften slightly as it does.

Absorbent fiber that carries liquid and softens slightly when wet.

What this means for your application: absorbed water swells the filament and drops contact pressure, so a brush that reached the far end of a bore when dry may stop short once it is wet.

A practical check: run one wet cycle and compare tip contact against the dry state. If the wet brush leaves residue behind or no longer reaches the bottom of the bore, change the material rather than the geometry.

Use animal-hair fills mainly at ambient to moderate process temperatures unless the supplier provides a validated higher-temperature rating for the exact brush. Avoid treating a generic 70–80°C value as a universal continuous limit.

The filament tables quote 60–80°C continuous and 100–120°C peak. The tighter number above is the one to build to, because a brush is loaded while it is hot.

Where it stops working: validate with a sample if the process sits near the top of that band. If the filament takes a permanent set under load, step up to PBT or Nylon PA, which hold a higher continuous temperature.

Diameter, trim length and applied load all shift the real limit, so a thin filament touching lightly survives conditions that would flatten a thick one under pressure.

Compatible with water and mild detergent; strong alkali, bleach and prolonged soaking shorten fiber life.

Compatibility is a function of concentration, temperature and contact time together. A short rinse in a dilute solution is a different exposure from an overnight soak in a concentrated one, even with the same chemical on the label.

Before you commit to a quantity: Specify the exact Boar Bristle grade or alloy, filament or profile size, color, straight or crimped form, working temperature, wet or dry use, chemical exposure, surface finish, and any required material documentation.

The floor is roughly 0.10 mm; finer than that and the filament snaps rather than flexes. In practice you are choosing inside 0.10–0.35 mm.

Free trim runs 8–120 mm, and the two interact: a finer filament needs a shorter trim to keep useful stiffness, while a thicker one carries a longer trim and still lands pressure on the tip.

Split the range by duty: roughly 0.10–0.16 mm for light wiping, dusting and surfaces that mark easily, and 0.16–0.35 mm where residue is packed on and point pressure matters more than surface risk.

Tip treatments available on this filament: cleaning and degreasing, bleaching, dyeing, carding and sanitizing treatment.

In practical brush terms: reaching deep into a bore or crevice is a diameter problem before it is a length problem. A thicker filament on a moderate trim pushes further in before the tips fold over.

Vehicle detailing, polishing and controlled hand cleaning where natural split tips provide useful agitation.

Where it turns up in practice:

• Bottle & Container Cleaning
• Cup & Mug Cleaning
• Hydration Bag Cleaning
• Dust Removal
• Household Dish, Teapot & Kitchen Detail Cleaning
• Beverage Equipment Cleaning

It is normally set into these constructions:

• Custom Handheld Detail Brushes
• Custom Roller and Conveyor Brushes
• Custom Polishing Buffing Wheels

The trade-off: Not for high-temperature, strong chemical or sterile process claims.

Send the brush type, filament diameter, free trim length, density, contact setting, wet or dry duty, working temperature and the actual cleaning chemistry together. Any one of them on its own leaves the stiffness undefined.

What usually goes wrong at this step:

• Selecting Boar Bristle from the material name alone without setting filament diameter, trim length, and density
• Using dry stiffness to predict wet behavior without checking moisture absorption or liquid exposure
• Ignoring trapped abrasive particles, chemical concentration, temperature, or contact motion when assessing surface risk

Reference standards behind the figures on this page: ISO 139; ISO 5079; ISO 20743.

Source: American Brush Manufacturers Association — Brush Lingo — natural bristle. Boar bristle has a natural flag at the tip and a taper along its length, which is why a bristle brush lays a smoother film than a cut synthetic of the same stiffness. Grade is set by length, colour and stiffness, not by a single specification.
