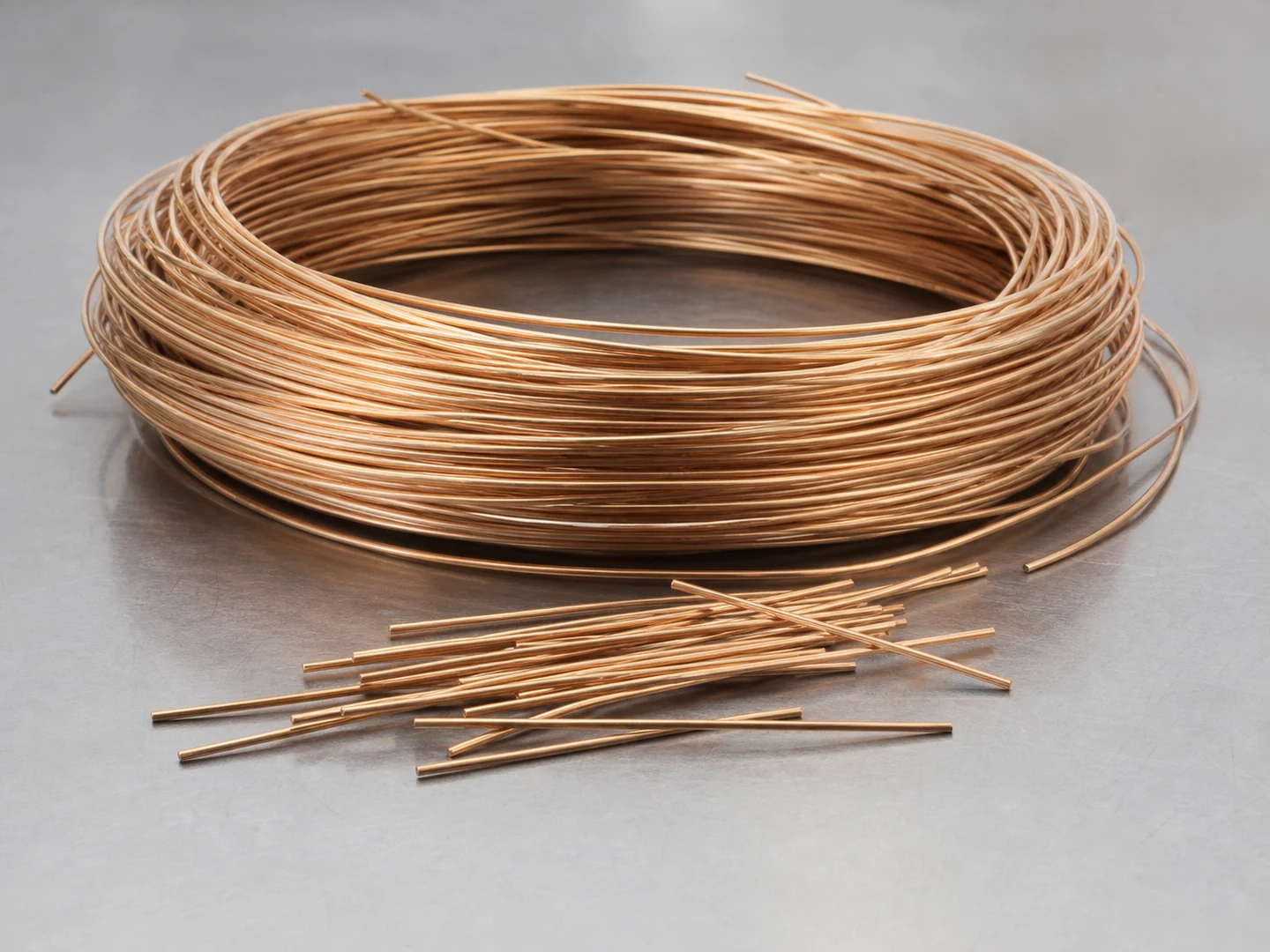

Phosphor Bronze Wire

Phosphor Bronze Wire sits in the copper-alloy wire filament family, supplied as wire bristle, drawn in round, crimped round and flat sections and set in straight rows, helical, staggered, zoned and wavy fill patterns.

Phosphor Bronze Wire is used in custom cleaning brushes for electrical contact, resilient conductive brushing and gentle cleaning where steel contamination is undesirable.

Compare Phosphor Bronze Wire with Compare with brass for softer copper-alloy contact, copper for conductivity and stainless wire for stronger cutting. Change material when wet stiffness, temperature, chemical resistance, conductivity, particle shedding, or surface marking becomes the limiting factor.

Phosphor Bronze Wire is firm non-ferrous metallic wire; softer than carbon/stainless steel wire and less aggressive on softer metal parts. It Phosphor Bronze Wire changes brush stiffness through filament diameter, free trim, density, crimp, and contact. Use finer filament and longer trim for conformable contact; use coarser filament, shorter trim, or higher density for stronger displacement or cutting.

The part people get wrong: the number that decides scrubbing pressure is diameter over trim length, not the grade name. Two brushes in this material can behave nothing alike.

Phosphor bronze wire absorbs no water, and it holds its spring far better than plain copper in repeated wet duty.

Metal wire does not absorb water; alloy and holder corrosion resistance control wet service.

What this means for your application: wet and dry contact pressure are the same; what phosphor bronze buys over copper is fatigue life, so the tips stay set for longer.

A practical check: compare tip set after a few hundred cycles rather than after a soak. Loss of spring, not swelling, is the failure mode here.

Phosphor bronze fill in a mechanically clamped metal body is built here to about 260°C (500°F). Apply that only when the actual wire grade, holder, anchoring, and brush construction support the same condition.

The filament tables quote 180–220°C continuous and 280–320°C peak. The tighter number above is the one to build to, because a brush is loaded while it is hot.

Where it stops working: validate with a sample if the process sits near the top of that band. A permanent bend under load means the answer is a higher-temperature filament family, not a heavier trim.

Diameter, trim length and applied load all shift the real limit, so a thin filament touching lightly survives conditions that would flatten a thick one under pressure.

Good corrosion resistance with softer metal contact than carbon or stainless steel wire.

Compatibility is a function of concentration, temperature and contact time together. A short rinse in a dilute solution is a different exposure from an overnight soak in a concentrated one, even with the same chemical on the label.

Before you commit to a quantity: Specify the exact Phosphor Bronze Wire grade or alloy, filament or profile size, color, straight or crimped form, working temperature, wet or dry use, chemical exposure, surface finish, and any required material documentation.

The floor is roughly 0.03 mm; finer than that and the filament snaps rather than flexes. In practice you are choosing inside 0.03–0.80 mm.

Free trim runs 3–150 mm, and the two interact: a finer filament needs a shorter trim to keep useful stiffness, while a thicker one carries a longer trim and still lands pressure on the tip.

Split the range by duty: roughly 0.03–0.22 mm for light wiping, dusting and surfaces that mark easily, and 0.22–0.80 mm where residue is packed on and point pressure matters more than surface risk.

Tip treatments available on this filament: straight, crimped, polished and anti-oxidation coating.

In practical brush terms: reaching deep into a bore or crevice is a diameter problem before it is a length problem. A thicker filament on a moderate trim pushes further in before the tips fold over.

Electrical contact, resilient conductive brushing and gentle cleaning where steel contamination is undesirable.

The cleaning work it is specified for most often:

• Tube & Pipe Cleaning
• Pipe Robot Brush Attachment Use
• Hose Cleaning
• Nozzle Cleaning
• Metal Acid Pickling & Degreasing Line Brush Use
• CPAP Hose Cleaning

Brush types built with this fill:

• Custom Tube & Pipe Bore Brushes
• Custom Wheel Brushes

If the sample comes back rejected: More costly and less aggressive than carbon steel; alloy and temper should be specified for corrosion and contact force.

Send the brush type, filament diameter, free trim length, density, contact setting, wet or dry duty, working temperature and the actual cleaning chemistry together. Any one of them on its own leaves the stiffness undefined.

What usually goes wrong at this step:

• Selecting Phosphor Bronze Wire from the material name alone without setting filament diameter, trim length, and density
• Using dry stiffness to predict wet behavior without checking moisture absorption or liquid exposure
• Ignoring trapped abrasive particles, chemical concentration, temperature, or contact motion when assessing surface risk

Reference standards behind the figures on this page: ISO 6892-1; ASTM E8/E8M; ASTM B117; IEC 61340-5-1:2024; IEC TS 61340-5-4:2021; ASTM D257.

Source: Copper Development Association — Wrought copper alloys — phosphor bronze. Phosphor bronze is a copper-tin alloy with tin raising both strength and spring recovery, which is why it survives repeated deflection better than brass. Corrosion behaviour still follows the environment, not the alloy alone.
