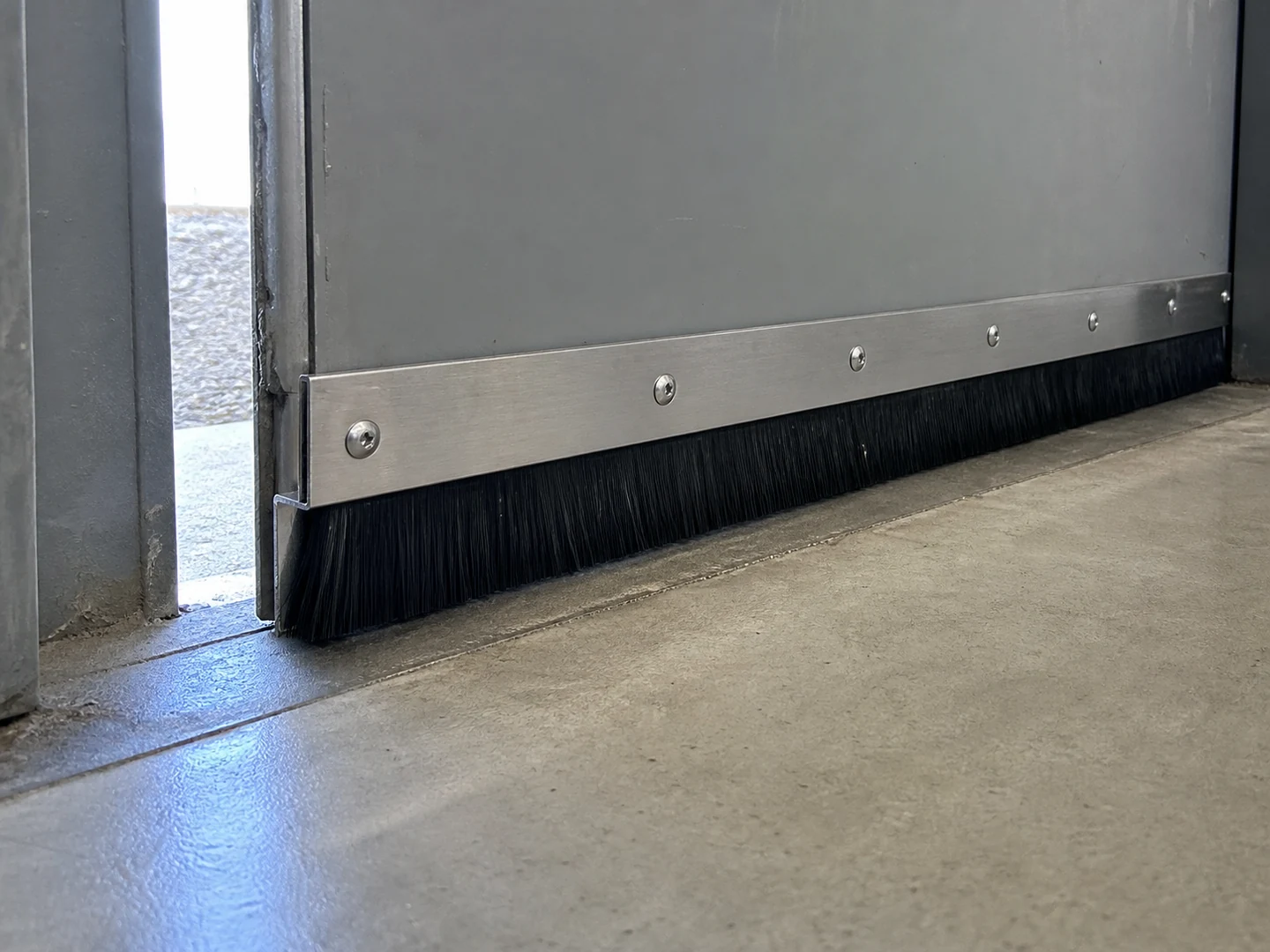

Door Gap Sealing

The main difficulty is removing dust, airflow leakage, chips, light, noise, and loose particles from gaps, edges, door leaves, cable openings, rails, and machine enclosures without damaging the surface, loading the brush, or carrying contamination back into the process.

The work happens in indoor, outdoor and damp area against dust, insects, airflow and splash water.

The part people get wrong: the residue tells you the filament, but the access opening tells you the construction. Get them in that order and the shortlist is short.

5 targets, each with its own opening, residue and contact requirement.

What the equipment leaves you to work inside:

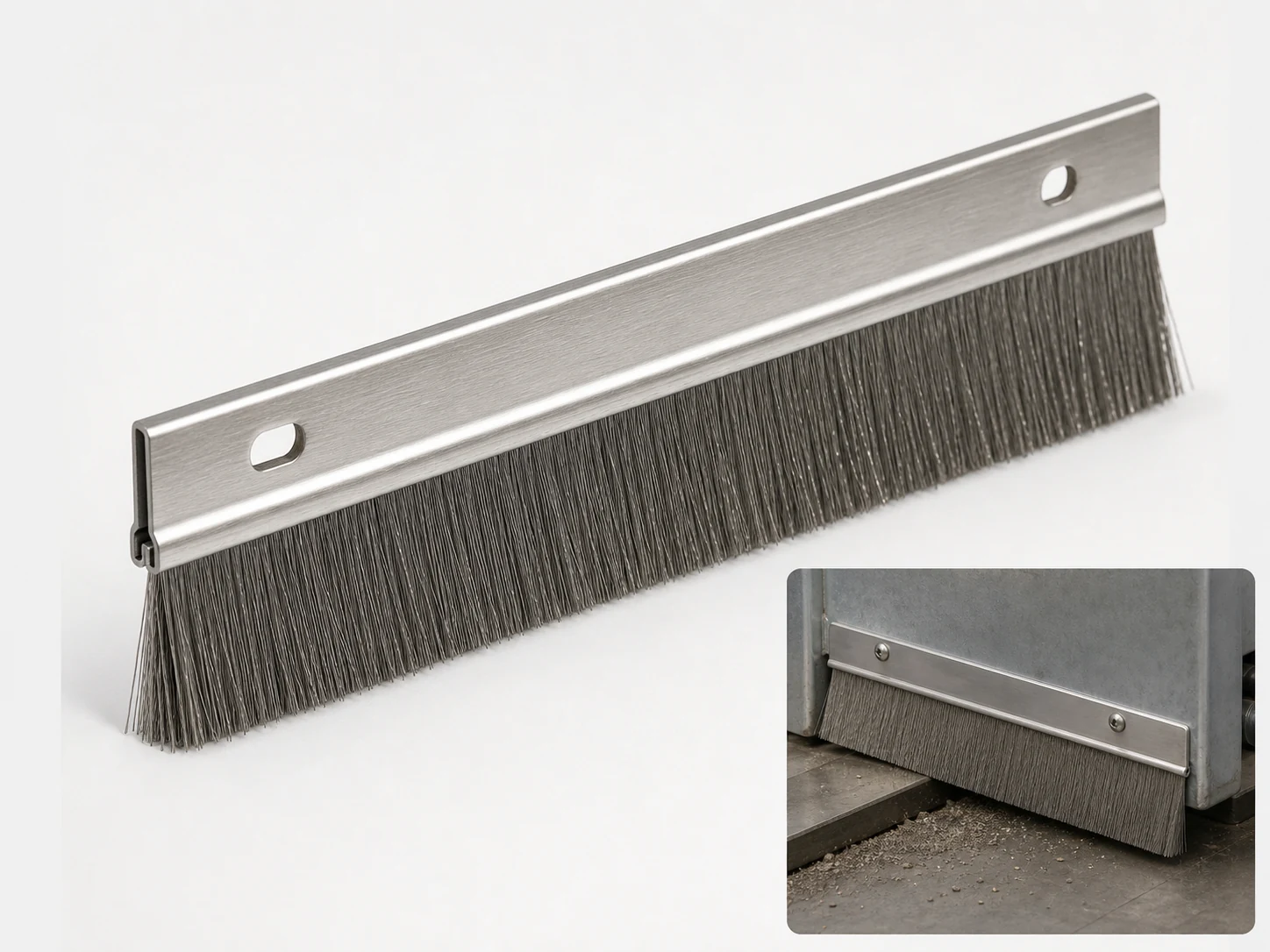

Straight strip brush in aluminum or polymer holder, single or opposed arrangement.

How the brush is usually carried on the machine:

• Driven brush — use when dust, airflow leakage, chips, light, noise, and loose particles needs repeatable scrubbing or controlled relative movement
• Passive or free-running brush — use for loose contamination and lower process complexity on gaps, edges, door leaves, cable openings, rails, and machine enclosures
• Localized hand, strip, or tube brush — use where only an edge, gap, port, or maintenance point needs contact

In practical brush terms: match the construction to the access before anything else. A geometry that cannot reach the target will not be rescued by a better filament.

Nylon, PP, PBT or natural fiber chosen based on weather, friction and temperature; conductive or flame-rated grade only with documents.

What the duty rules out before you start comparing grades:

Gap height sets the trim, the frame’s channel sets the holder, and any smoke, fire or weather rating decides whether brush is permissible at all.

Work through it in this order:

1. Identify the target part and measure the access opening or clearance
2. Describe the residue: what it is, how thick it sits, and how strongly it holds
3. Choose the construction that can physically reach that target
4. Set the filament from surface risk, working temperature and cleaning chemistry
5. Fix filament diameter, free trim length and density for the contact pressure you need
6. Run one cycle and check the result before committing to a production quantity

Before you commit to a quantity, send the gap height, the trim length required, the holder profile the frame accepts, and any rating that applies.

Where an acoustic, fire or weather rating governs the opening, a compression or drop-down seal is the correct product, because a brush seal leaks by design. Choose brush only where the gap must stay passable and low friction matters more than a tight seal.

• Giving door width instead of gap height, trim length and the holder profile the frame accepts
• Changing brush material while leaving excessive engagement, poor alignment, or no discharge path unchanged
• Copying a worn brush without recording motion, direction, mounting, and the original working diameter

If the brush is already in service and the result is wrong, work from the symptom:
