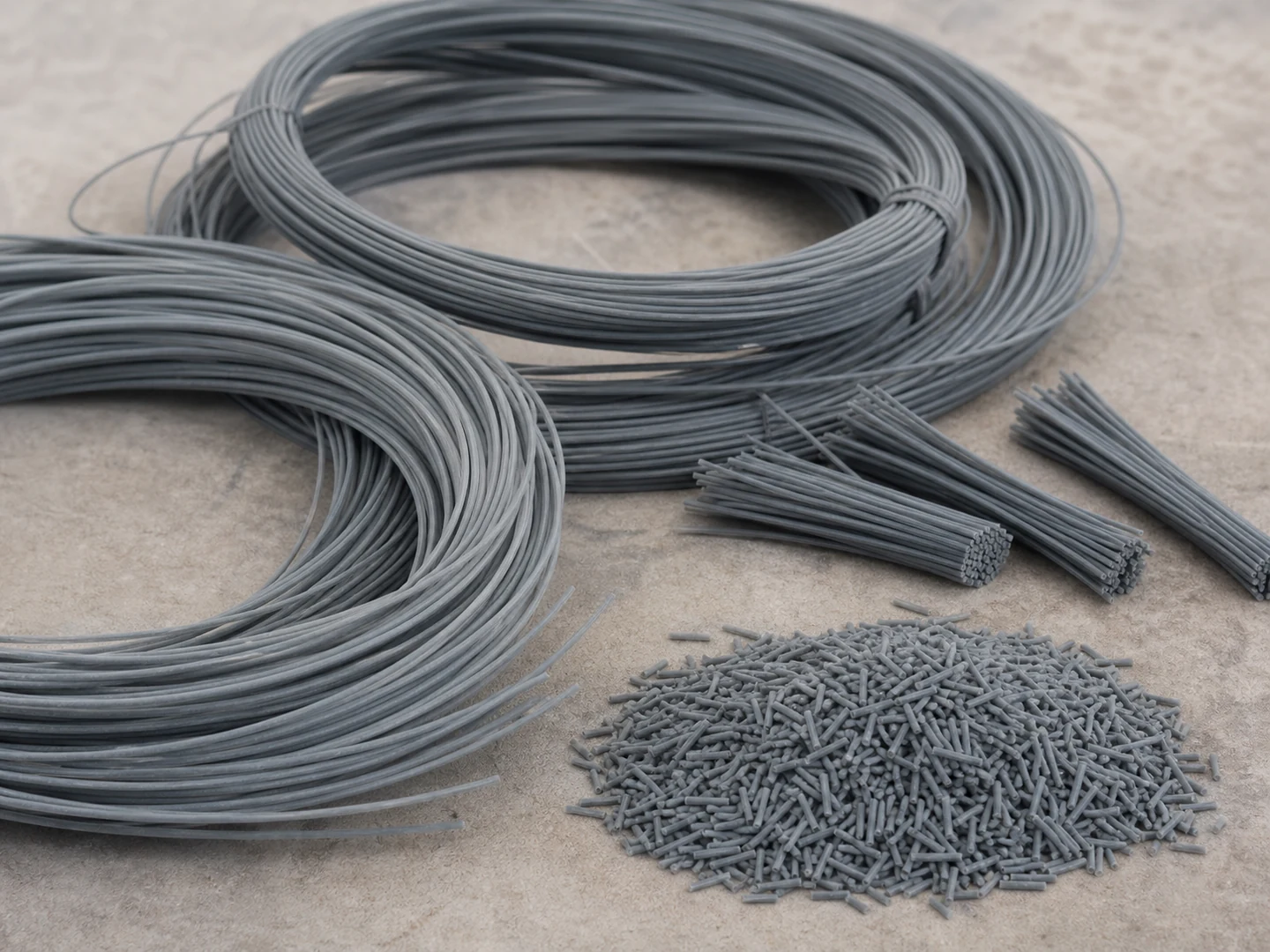

Diamond Abrasive Filament

Diamond Abrasive Filament sits in the abrasive-filled polymer filament family, supplied as diamond-filled abrasive nylon tube brush, wheel brush, end brush and precision deburring filament, drawn in round and rectangular sections and set in straight rows, helical, staggered and zoned fill patterns.

Diamond Abrasive Filament is used in custom cleaning brushes for micro-deburring, edge radiusing and precision finishing of carbide, ceramic, glass and other hard materials.

Compare Diamond Abrasive Filament with Silicon-carbide abrasive nylon, aluminum-oxide filament, ceramic abrasive filament. Change material when wet stiffness, temperature, chemical resistance, conductivity, particle shedding, or surface marking becomes the limiting factor.

Diamond Abrasive Filament is stiffness is controlled by the polymer and filament diameter; cutting intensity also is controlled by diamond mesh and loading, and Diamond Abrasive Filament changes brush stiffness through filament diameter, free trim, density, crimp, and contact. Use finer filament and longer trim for conformable contact; use coarser filament, shorter trim, or higher density for stronger displacement or cutting.

The part people get wrong: the number that decides scrubbing pressure is diameter over trim length, not the grade name. Two brushes in this material can behave nothing alike.

Diamond Abrasive Filament takes up 0.3–2.0% (Depending on Nylon Carrier, ISO 62/ASTM D570).

PA6 and PA66 absorb moisture; PA610, PA612 and PA12 retain stiffness better in wet service; this moisture response matters in micro-deburring, edge radiusing and precision finishing of carbide, ceramic, glass and other hard materials.

What this means for your application: water changes the working diameter and the spring rate together, so wet performance has to be checked rather than assumed from a dry trial.

A practical check: soak a sample for an hour and re-measure the trim. If it has moved enough to change the contact band, the grade is wrong for the duty.

90–120°C for the polymer carrier.

Design to that answer rather than to a raw-material datasheet figure: a brush rating already accounts for filament working under load rather than raw polymer sitting in an oven.

Where it stops working: validate with a sample if the process sits near the top of that band. A permanent bend under load means the answer is a higher-temperature filament family, not a heavier trim.

The usable limit also moves with diameter, trim and contact pressure. A fine filament under light load tolerates more than a thick one under heavy scrubbing.

It stands up to water, oils, mild detergents and dilute alkalis.

What degrades it: strong mineral acids, phenols and strong oxidizers.

The same cleaner can be harmless or destructive depending on how strong it is, how hot it runs and how long it sits. Quote the concentration and the dwell time, not just the product name.

Before you commit to a quantity: Specify the exact Diamond Abrasive Filament grade or alloy, filament or profile size, color, straight or crimped form, working temperature, wet or dry use, chemical exposure, surface finish, and any required material documentation.

About 0.15 mm. Below that the filament turns fragile and breaks under ordinary contact pressure, so 0.15–1.50 mm is the working range.

Free trim runs 3–100 mm, and the two interact: a finer filament needs a shorter trim to keep useful stiffness, while a thicker one carries a longer trim and still lands pressure on the tip.

Split the range by duty: roughly 0.15–0.49 mm for light wiping, dusting and surfaces that mark easily, and 0.49–1.50 mm where residue is packed on and point pressure matters more than surface risk.

Tip treatments available on this filament: cut-to-length and resin coupling treatment.

In practical brush terms: reaching deep into a bore or crevice is a diameter problem before it is a length problem. A thicker filament on a moderate trim pushes further in before the tips fold over.

Micro-deburring, edge radiusing and precision finishing of carbide, ceramic, glass and other hard materials.

The cleaning work it is specified for most often:

• Ceramic Glaze Line & Tile Brush Use
• Deburring & Edge Breaking
• Polishing
• Metal Acid Pickling & Degreasing Line Brush Use
• Textile Dyeing, Printing & Finishing Brush Use
• Leather & Shoe Processing Brush Use

Brush types built with this fill:

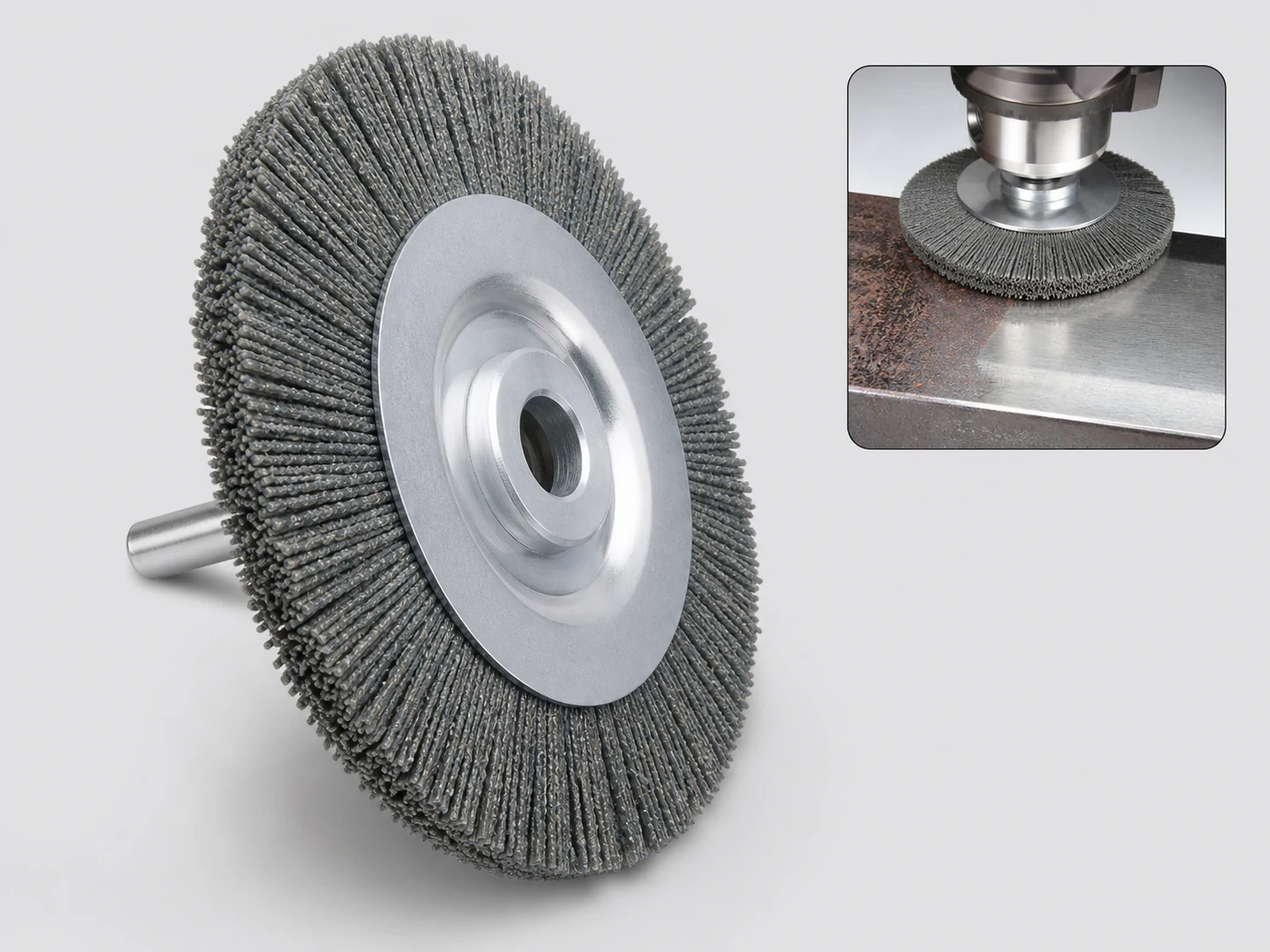

• Custom Wheel Brushes

The trade-off: High cost and aggressive action; not appropriate for general cleaning, soft metals, coated surfaces or uncontrolled manual use.

A usable specification carries the construction, the filament diameter and free trim, the density and contact setting, and the service conditions: wet or dry, temperature, and what the cleaner actually is.

The mistakes that most often send a sample back:

• Selecting Diamond Abrasive Filament from the material name alone without setting filament diameter, trim length, and density
• Using dry stiffness to predict wet behavior without checking moisture absorption or liquid exposure
• Ignoring trapped abrasive particles, chemical concentration, temperature, or contact motion when assessing surface risk

Reference standards behind the figures on this page: ISO 527-1:2019; ASTM D638; ISO 62:2008; ASTM D570-22; ISO 868:2003; ASTM D2240-15(2021); ISO 4892-3:2024; ASTM G154-23; UL 94; ISO 6344 series.

Source: Perlon — Abrasive Filaments. Public manufacturer or material data supports the material form and performance direction used on this page.
