Application
Window Track Cleaning
A window or sliding-door track is cleaned with a narrow, stiff brush whose head matches the channel width: 5–25 mm wide, with a squared or notched tip that reaches the corners and the drainage slots. Fine PBT or nylon on a molded PP handle is the standard build.
At a glance
- Cleaning target
- Dust / sand / insect debris / mold / compacted dirt
- Working environment
- Indoor / Outdoor / Damp Area
- Cleaning method
- Dry Brushing / Wet Brushing
- Requirements to check
- No specific certification; surface and seal material compatibility required
Why does a window track need its own brush?
A track is a narrow channel with square corners and drainage slots at the ends. Grit, sand, insect debris and mold do not lie on the surface there; they compact into the corners, where a cloth or a vacuum nozzle cannot press them out.
A track brush is shaped for that channel. Its head is as wide as the track, its tip reaches the corner, and its fill is stiff enough to break up packed dirt but fine enough to get between the rail and the wall.
Track brushes often sell in sets with a thin crevice brush for the drainage slots. Like most of what we make, they usually go out under our customers’ own brands.
What does a track brush have to clean?
| Part or area | Residue type | Cleaning requirement |
|---|---|---|
| Sliding Window Track | Dust, sand, insect debris, mold, compacted dirt | Enter the channel, reach the square corners and clear the drainage slots without packing grit deeper. |
Sizes from the track and gap brushes we make:
| Parameter | Typical range |
|---|---|
| Head width | 5–25 mm, matched to the inner channel width |
| Working head length | 30–115 mm |
| Overall length | 180–250 mm |
| Filament diameter | 0.15–0.25 mm |
| Ultra-thin gap brush head | 2–5 mm wide, 60–130 mm long, for drainage slots and seams |
What shape of brush cleans a track?
| Cleaning target | Recommended brush type | Why it fits |
|---|---|---|
| Sliding Window Track | Handheld Detail Brushes | A track is a narrow channel with square corners that pack with dirt, so a hand-guided head reaches the corner and drags the debris out along the run. |
Choose the head profile by the track. A straight head suits an open U-channel. A corner-notch or tapered tip gets into the square corners at the ends. An angled head lets the hand stay above the frame while the bristles stay flat in the channel.
Add an ultra-thin brush, 2–5 mm wide, for the drainage slots and the gap between the sliding sash and the frame. Together the two brushes cover the whole track.
Which bristle material holds up in a track?
| If the condition is… | Filament to start with | Why |
|---|---|---|
| Compacted grit in aluminum and PVC tracks | PBT | Stiff for its diameter and keeps that stiffness when used with water |
| General dust and dry debris | Nylon PA | Firm and springy, with good wear life on rough aluminum |
| Low-cost brushes sold in large volumes | Polypropylene PP | Economical, light and molds into the handle color |
| Tracks where mold keeps coming back | Antibacterial Synthetic Filament | Treated filament for brands that sell on hygiene |
Keep the filament at 0.15–0.25 mm. Thicker fill will not fit between the rail and the frame wall; thinner fill folds over on packed grit.
How is a track cleaned with a brush?
- Brush dry first, loosening the packed dirt in the corners and pulling it toward one end.
- Vacuum the loosened debris, then clear the drainage slots with the thin brush.
- Finish with a damp cloth or a little mild detergent; PBT and nylon both work wet.
- Keep solvents away from the seals and the brush; the track seals are rubber.
What do we need to quote a track brush or set?
- The channel width and depth of the tracks it is sold for, or the range you want covered.
- Head profile: straight, angled, tapered or corner notch.
- Single brush or a set, and what else goes in the set.
- Handle color, logo and packaging.
- Quantity per design. Our minimum for small hand brushes is 500 pieces.
When is a brush the wrong tool for a track?
A track brush clears dirt; it does not fix a sash that binds. If the window still drags after cleaning, the rollers or the rail are worn. Heavy mold staining in the rubber seals needs a mold remover after the brushing, because the stain sits in the rubber itself.
What mistakes make a track brush a poor product?
- A head wider than the common channel sizes, so it rides on top of the rails instead of entering the track.
- A rounded tip that cannot reach the square corners where the dirt packs hardest.
- Soft fill that folds over on compacted grit.
- No thin brush in the set, so the drainage slots stay blocked and the track floods in rain.
Questions buyers ask about Window Track Cleaning
How wide should a window track brush be?
As wide as the inner channel, typically 5–25 mm, so the bristles sit in the track instead of riding on the rails. Add a 2–5 mm brush for the drainage slots.
Should a window track be brushed wet or dry?
Dry first, to loosen packed grit and vacuum it out; then wet with a mild detergent to lift the remaining film. Keep solvents off the rubber seals.
Guides that go deeper on this
We have not written a guide specific to this one yet. The material that covers selection, filament, dimensions, maintenance and sourcing is collected in the technical resources library.
Continue Exploring
Recommended Reading & Related Brush Resources
Window Track Cleaning Brush
Custom window track cleaning brush for sliding doors and narrow channels. Nylon, PBT or PP bristles; head widths 5–25 mm; built to OEM track specs.
See the specification
Seal Strip Cleaning Brush
The fill is sized to channel depth, so the tips reach the base of door, window and sunroof seal grooves while protecting the rubber sealing face.
See the specification
Ultra-Thin Crevice Cleaning Brush
Ultra-thin crevice cleaning brush with 2–5 mm head for window tracks, grout lines, and appliance seams. PET/PBT/PP filaments, 210–360 mm reach.
See the specification
Custom Handheld Detail Brushes
A handheld detail brush puts the operator's hand pressure into a small place: a seam, a grout line, a vent, a connector, a mold vent or a grinder chute.
See how this type is built
Custom Strip Seal Brushes
A strip brush is a continuous line of fill held in a channel or backing.
See how this type is built
PBT
PBT is a polyester brush filament that takes up almost no water, so it keeps its stiffness and spring in wet and washdown work where nylon goes soft.
Compare this material
Polypropylene PP
Polypropylene (PP) bristles absorb almost no water, so a PP brush scrubs as firmly wet as it does dry and stands up to most acids, alkalis and detergents.
Compare this material

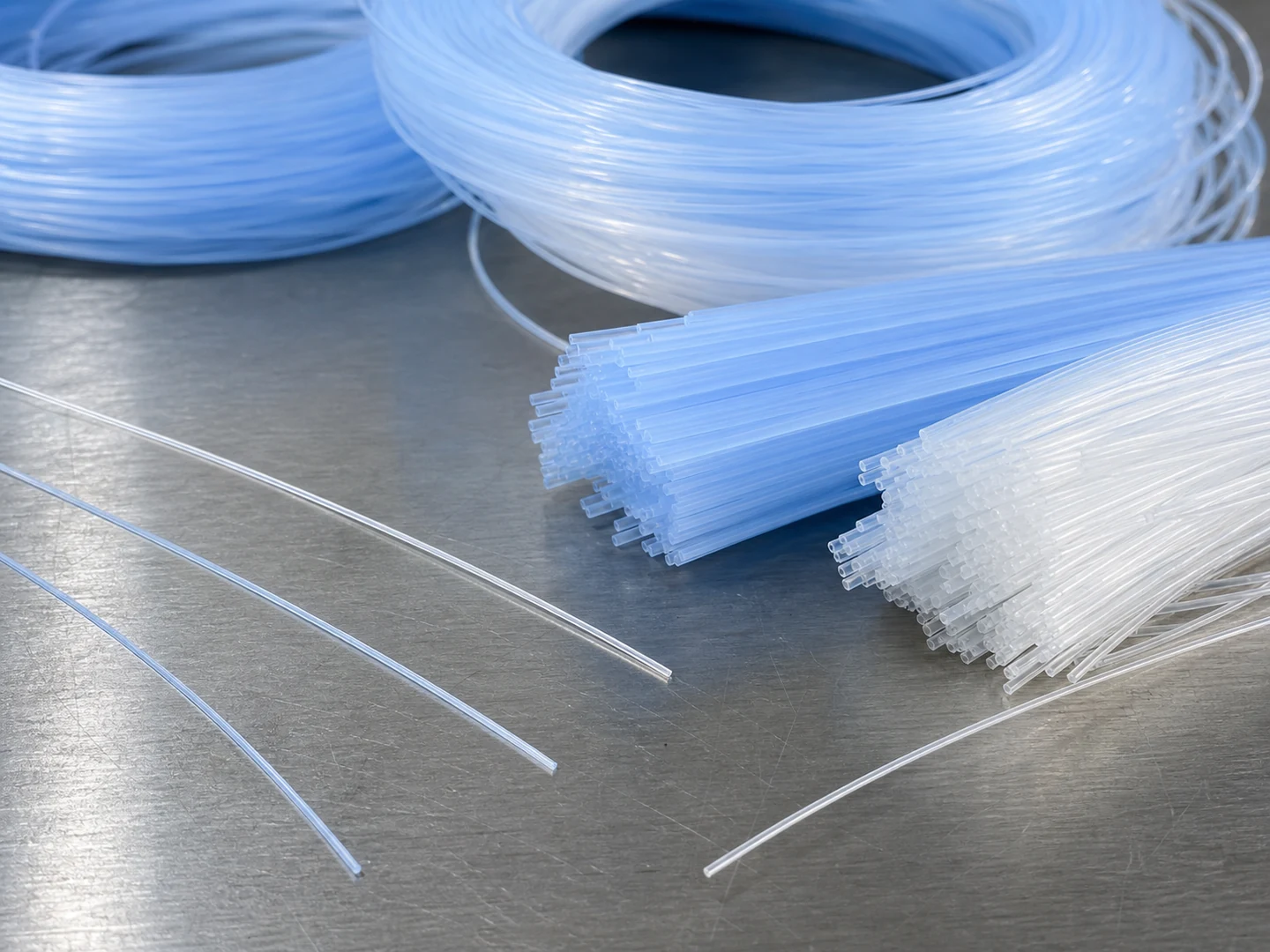

Antibacterial Synthetic Filament
