Straw Cleaning

The main difficulty is removing liquid film, product residue, biofilm, powder, and particles from internal container walls, necks, shoulders, bases, and narrow openings without damaging the surface, loading the brush, or carrying contamination back into the process.

The work happens in indoor wet area and food-service area against beverage residue, pulp, milk film and biofilm.

The part people get wrong: the residue tells you the filament, but the access opening tells you the construction. Get them in that order and the shortlist is short.

One target, and it is the whole job: the bore from mouthpiece to base, at a single diameter along its length.

The dimensional envelope those targets impose on the brush:

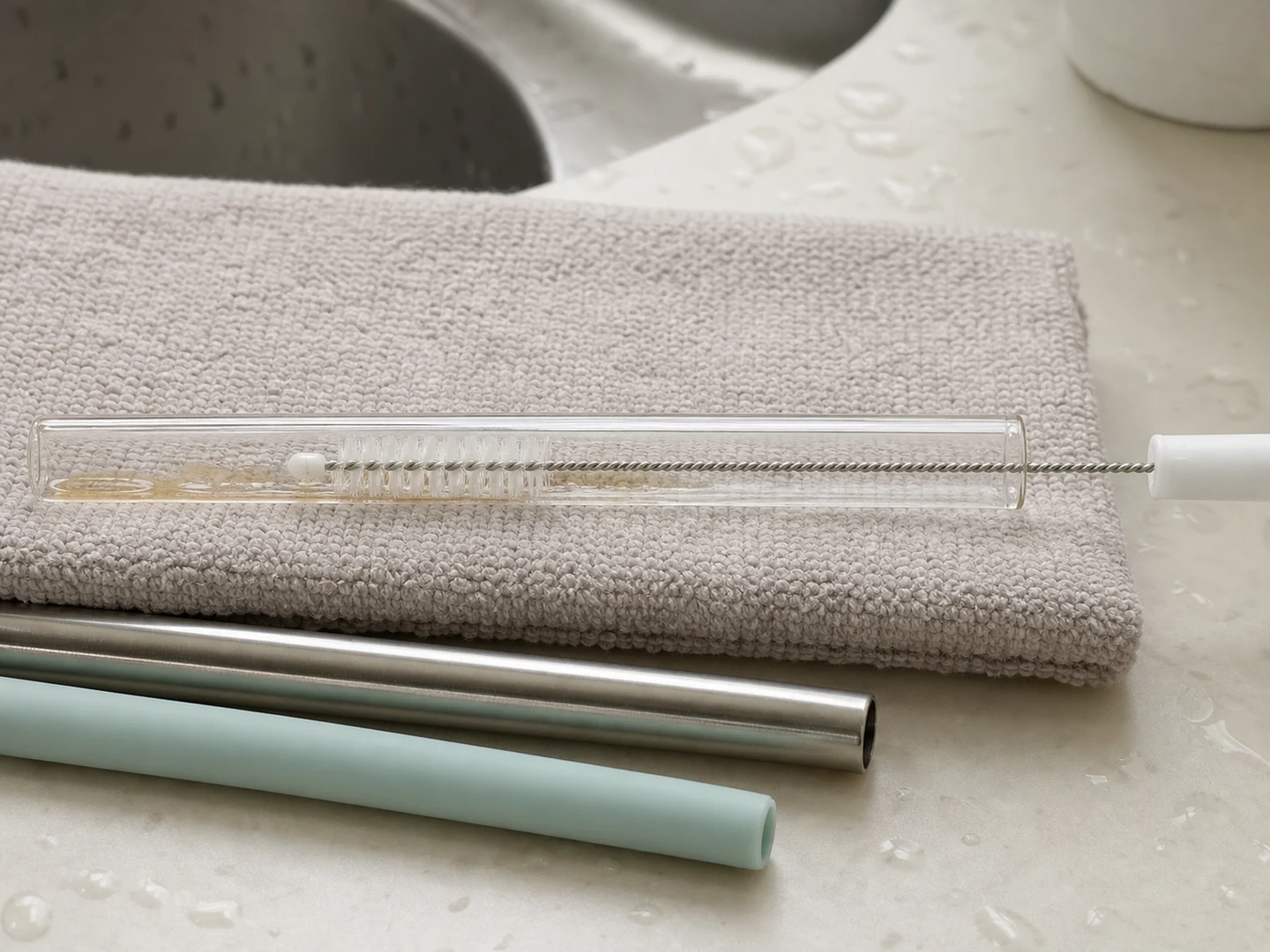

Single-stem single-spiral tube brush with a narrow protected tip and sufficient working length.

The layouts this application is normally built in:

• Driven brush — use when liquid film, product residue, biofilm, powder, and particles needs repeatable scrubbing or controlled relative movement
• Passive or free-running brush — use for loose contamination and lower process complexity on internal container walls, necks, shoulders, bases, and narrow openings
• Localized hand, strip, or tube brush — use where only an edge, gap, port, or maintenance point needs contact

In practical brush terms: reach first, then residue. A brush that fits but is too soft can be stiffened; a brush that does not fit is simply the wrong tool.

Soft nylon or PBT with protected wire; silicone-tipped or polymer-stem designs where metal contact is unacceptable.

The constraints this application puts on the filament:

Two numbers decide it — bore diameter sets the spiral, straw length sets the working length. Tip protection is the third, and it is not optional on metal or glass.

Work through it in this order:

1. Identify the target part and measure the access opening or clearance
2. Describe the residue: what it is, how thick it sits, and how strongly it holds
3. Choose the construction that can physically reach that target
4. Set the filament from surface risk, working temperature and cleaning chemistry
5. Fix filament diameter, free trim length and density for the contact pressure you need
6. Run one cycle and check the result before committing to a production quantity

Before you commit to a quantity, send the straw bore, its length and its material, and say whether the tip may touch stainless or glass.

Where straws are washed by the hundred, a dishwasher basket with a straw insert beats brushing them one at a time. And once the bore has crimped or the wall has been scored, no brush restores it — that straw is scrap.

• Specifying straw length without the bore, so the brush either will not enter or will not hold contact
• Changing brush material while leaving excessive engagement, poor alignment, or no discharge path unchanged
• Copying a worn brush without recording motion, direction, mounting, and the original working diameter

When a brush is running but not cleaning, start here rather than adding pressure:
