Application
Cable Entry Sealing
Cable Entry Sealing is a process-use page rather than a general cleaning category. Select the brush from the required contact function, working surface, motion, and interface, then verify how Dust / airflow leakage / insects / light splash water and Data Center / Electrical Cabinet / Industrial Enclosure affect the construction.
At a glance
- Cleaning target
- Dust / airflow leakage / insects / light splash water
- Working environment
- Data Center / Electrical Cabinet / Industrial Enclosure
- Cleaning method
- Dry Service / Periodic Dry Cleaning
- Requirements to check
- IEC 60529 enclosure-protection context; IEC 61340 where ESD control is required

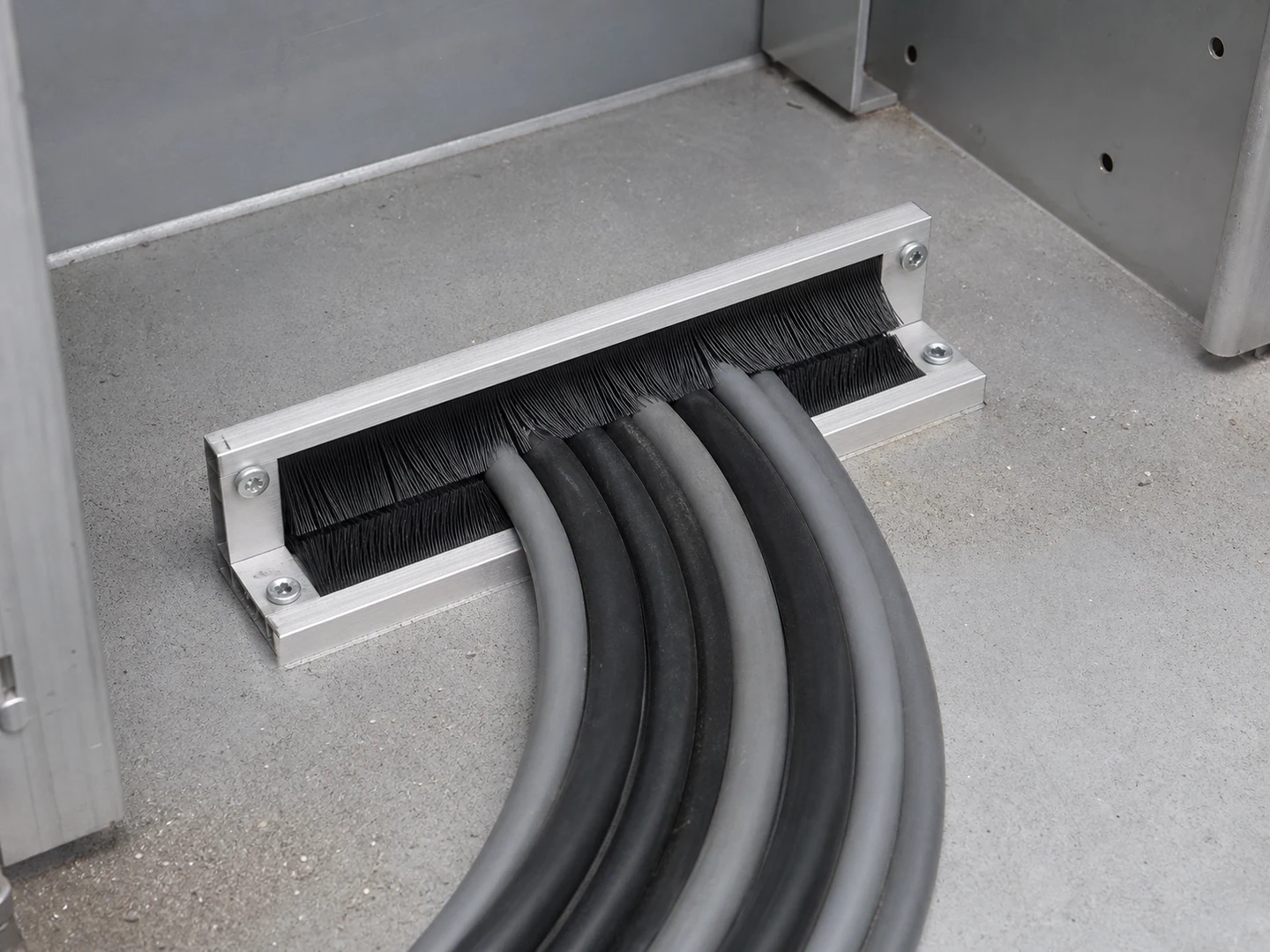

Cable-entry brushes exist to stop bypass airflow while cables keep passing through, so the filament has to close behind the cable and the panel has to fit the opening it replaces.
What makes Cable Entry Sealing different from other specialty brush functions cleaning?
The main difficulty is removing dust, airflow leakage, chips, light, noise, and loose particles from gaps, edges, door leaves, cable openings, rails, and machine enclosures without damaging the surface, loading the brush, or carrying contamination back into the process.
The work happens in data center, electrical cabinet and industrial enclosure against dust, airflow leakage, insects and light splash water.
The part people get wrong: this is not one job. The same equipment carries several targets, each with a different opening and a different residue, and one brush rarely covers them all.
What are the most common cleaning targets in Cable Entry Sealing?
There are 5 distinct targets here, and the brush that suits one will usually not reach another.
| Part or area | Residue type | Cleaning requirement |
|---|---|---|
| Data-Center Rack Brush Panel | Dust, airflow leakage, insects, light splash water | The strip must run the full length of the gap and keep light, continuous contact without binding. |
| Raised-Floor Cable Grommet | The brush must cover a large area per pass and keep even pressure across the whole width. | |
| Electrical-Cabinet Cable Entry | The head must reach the working face and apply even contact without marking the surface. | |
| Desk and Workstation Cable Port | The head must be narrower than the opening and stiff enough to lift residue without splaying at the mouth. | |
| Server-Room Floor Opening | The brush must cover a large area per pass and keep even pressure across the whole width. |
The dimensional envelope those targets impose on the brush:
| Parameter | Typical range |
|---|---|
| Filament diameter | 0.10–0.60 mm; 0.10–1.27 mm |
| Custom strip length | 100–3000 mm |
| trim height | 12.7–152.4 mm |
| Channel width | 3.2–14.3 mm |
| Strip length | 50–3,000 mm |
| Trim height | 5–200 mm |
| Working compression | 5–25% of trim |
Which brush types work for each cleaning target?
Opposed strip brushes, split grommet panel or removable holder frame.
| Cleaning target | Recommended brush type | Why it fits |
|---|---|---|
| Data-Center Rack Brush Panel | Strip Seal Brushes | A brush panel closes the cable cutout while letting cables pass: the filament parts around each cable and closes behind it, which no cut plate does. |
| Raised-Floor Cable Grommet | A floor grommet has to hold underfloor static pressure with a bundle running through it, and a brush seal keeps that closure as cables are added or pulled out. | |
| Electrical-Cabinet Cable Entry | A brush strip seals the gland-plate opening against dust and insects while leaving the cables free to move, which a foam block prevents. | |
| Desk and Workstation Cable Port | A desk port is seen and touched daily, so a brush strip finishes the opening and hides the bundle while cables can still be pulled through by hand. | |
| Server-Room Floor Opening | A large floor opening leaks conditioned air continuously, so a brush strip around its perimeter recovers most of that bypass without blocking the cable route. |
The layouts this application is normally built in:
- Driven brush — use when dust, airflow leakage, chips, light, noise, and loose particles needs repeatable scrubbing or controlled relative movement
- Passive or free-running brush — use for loose contamination and lower process complexity on gaps, edges, door leaves, cable openings, rails, and machine enclosures
- Localized hand, strip, or tube brush — use where only an edge, gap, port, or maintenance point needs contact
In practical brush terms: reach first, then residue. A brush that fits but is too soft can be stiffened; a brush that does not fit is simply the wrong tool.
What filament materials work best for Cable Entry Sealing?
Soft nylon or polypropylene; conductive/antistatic filament only with grounding and electrical design; documented flame grade.
| If the condition is… | Filament to start with | Why |
|---|---|---|
| Sensitive or coated surface | Nylon PA | balanced flex life and abrasion resistance |
| Wet, washdown, or detergent service | Polypropylene PP | acid, alkali, water, and detergent resistance |
| Bonded residue or aggressive cleaning | PBT | stable wet stiffness and low moisture uptake |
The constraints this application puts on the filament:
| Constraint | Value for this application |
|---|---|
| Filament hardness | Soft to Medium |
| Maximum service temperature | 120°C |
| Chemical exposure | Indoor air, humidity, equipment-cleaning agents and intermittent oil mist |
| Cleaning method | Dry Service, Periodic Dry Cleaning |
How do I choose the right brush for my cable entry sealing equipment?
Cut-out dimensions size the panel, cable bundle diameter sets the fill density, and change frequency decides between a brush entry and a fixed grommet.
The order that avoids rework:
- Identify the target part and measure the access opening or clearance
- Describe the residue: what it is, how thick it sits, and how strongly it holds
- Choose the construction that can physically reach that target
- Set the filament from surface risk, working temperature and cleaning chemistry
- Fix filament diameter, free trim length and density for the contact pressure you need
- Run one cycle and check the result before committing to a production quantity
Before you commit to a quantity, send the cut-out dimensions, the cable bundle diameter, and how often cables are added or moved.
When is a cable entry sealing brush the wrong tool?
A gland or a sealed grommet is the answer wherever an IP rating, fire-stopping or a pressure boundary applies, since a brush seal is rated for none of them. Brush entries exist for airflow management with frequent cable changes, and nothing beyond that.
What common mistakes should I avoid in Cable Entry Sealing?
- Ordering by rack size rather than the cut-out dimensions and the cable bundle that has to pass
- Changing brush material while leaving excessive engagement, poor alignment, or no discharge path unchanged
- Copying a worn brush without recording motion, direction, mounting, and the original working diameter
When a brush is running but not cleaning, start here rather than adding pressure:
| Symptom | What to change |
|---|---|
| Residue remains | Increase relative motion or discharge, then change filament diameter or density; do not add pressure before checking loading by dust, airflow leakage, chips, light, noise, and loose particles. |
| Surface marks or scratches | Reduce engagement, use finer or softer fill, and remove trapped abrasive particles from contact with gaps, edges, door leaves, cable openings, rails, and machine enclosures. |
| Rapid wear or uneven cleaning | Check alignment, runout, support, motion, temperature, chemical attack, and whether the brush covers the complete working path. |
| Brush loads or redeposits residue | Open the fill pattern or add wash, vacuum, air, scraping, or a collection path so removed dust, airflow leakage, chips, light, noise, and loose particles leaves the contact zone. |
Questions this page is asked
What protection can a cable-entry brush claim without enclosure testing?
It may be documented as an airflow, dust or debris-management accessory for the installed cable opening when those functions are verified. It must not be presented as preserving an IP, fire, smoke or electromagnetic rating unless the complete enclosure, opening, cables and insert are covered by the applicable test or certification.
How should a cable-entry brush be trialed with the real cable population?
Install the smallest, largest and expected rearranged bundles and verify fill around voids while cables can be inserted, withdrawn and serviced without excessive drag, jacket marking or forced bend. Reinspect after movement for parted rows, trapped connectors, loose filaments and an opening that no longer returns around the bundle.
When can a cable-entry brush be part of an ESD control plan?
Use a conductive or dissipative construction only when the site plan defines its purpose, qualified resistance range, holder bonding and ground reference for the complete installed path. Verify that path initially and at the required compliance interval, because an unbonded conductive filament label does not demonstrate controlled charge dissipation.
Continue Exploring
Recommended Reading & Related Brush Resources

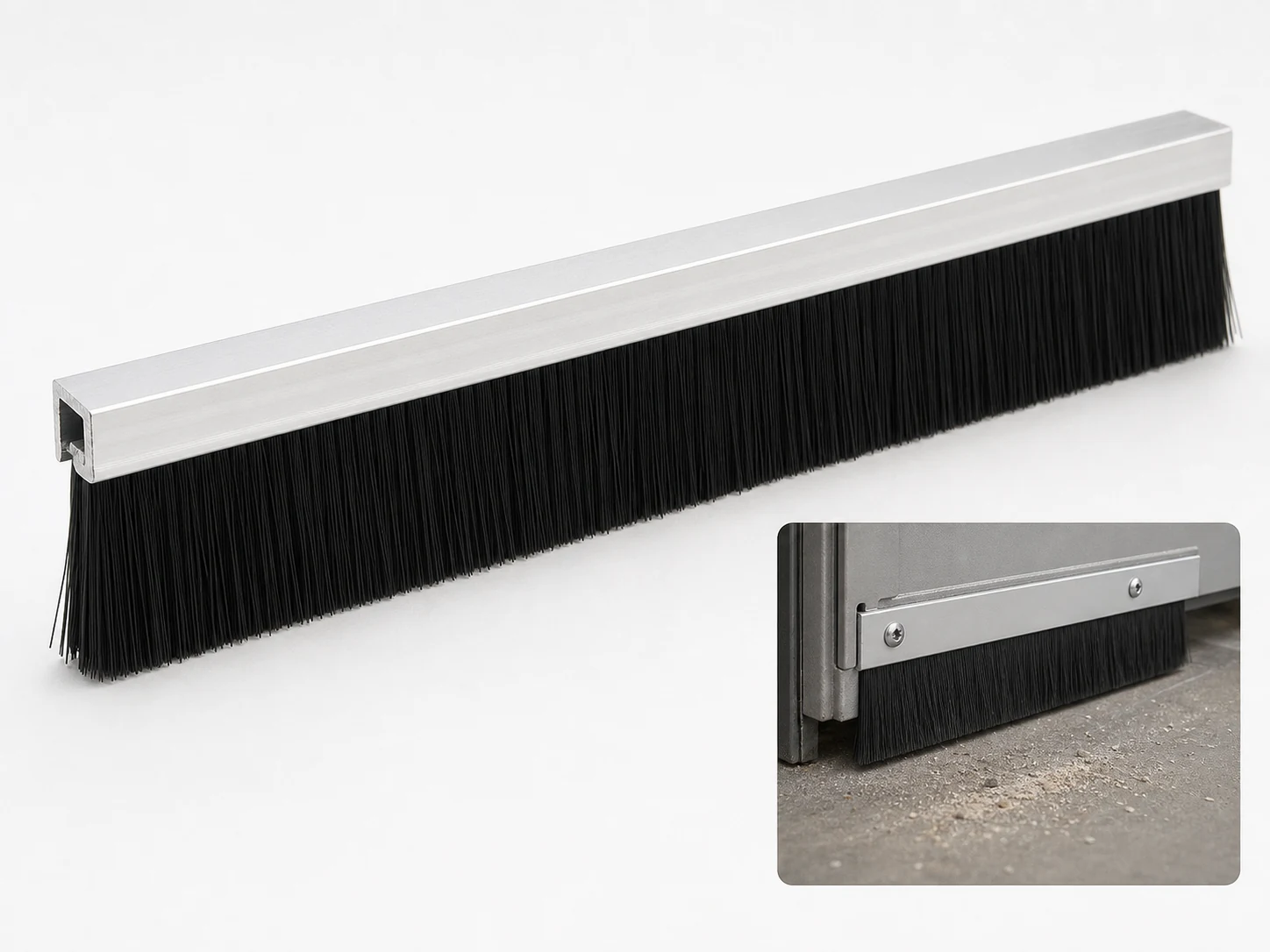

Strip Brush
