Application

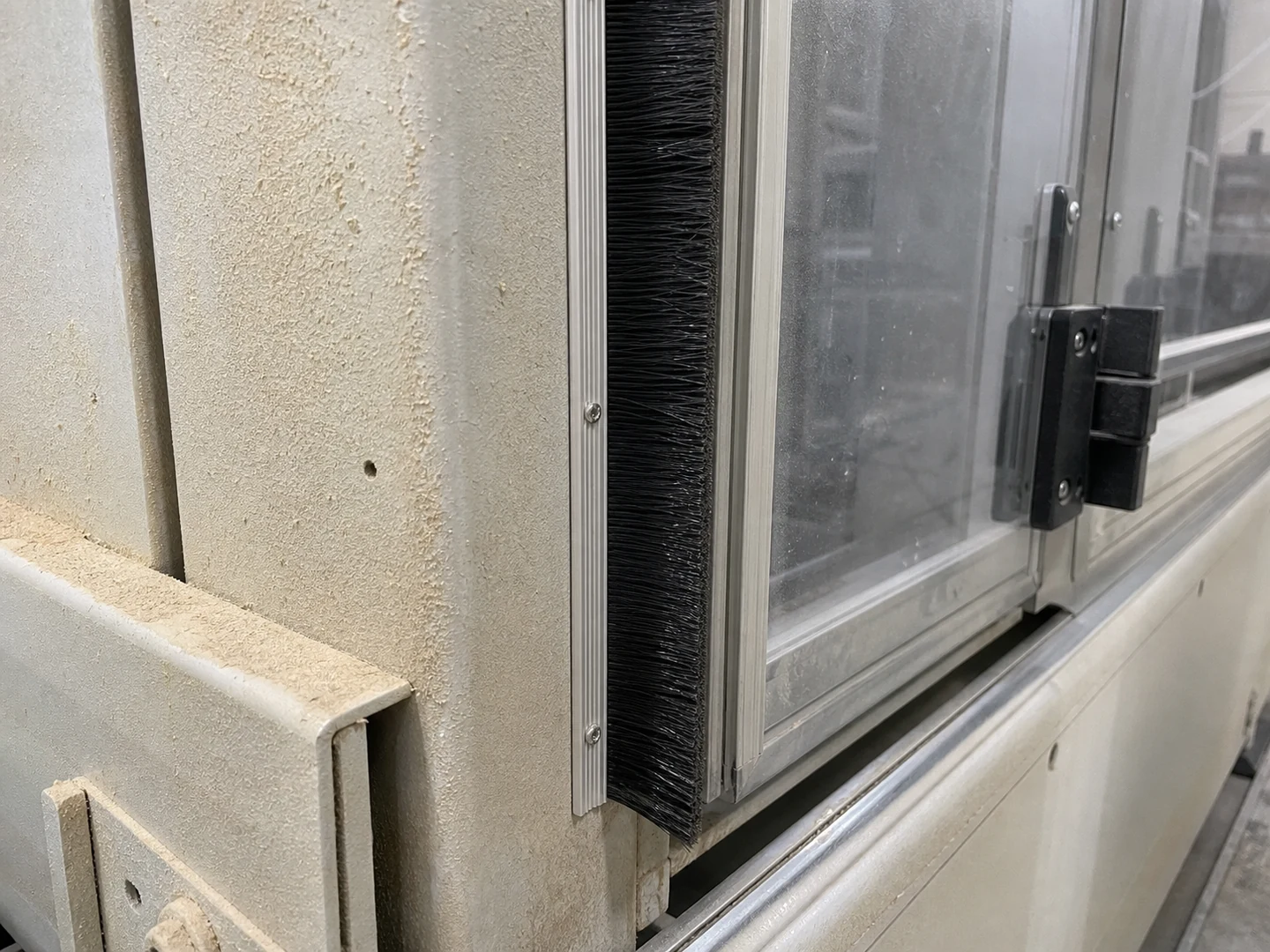

Machine Guard Sealing
Machine Guard Sealing is a process-use page rather than a general cleaning category. Select the brush from the required contact function, working surface, motion, and interface, then verify how Dust / chips / coolant mist / light / airflow and Industrial Production Area / Machine Enclosure affect the construction.
At a glance
- Cleaning target
- Dust / chips / coolant mist / light / airflow
- Working environment
- Industrial Production Area / Machine Enclosure
- Cleaning method
- Dry Service / Periodic Wet Cleaning
- Requirements to check
- Machine-guarding and enclosure requirements; ISO 14120 context where applicable
Guard seals hold chips and coolant mist inside the enclosure while the guard still slides, so the strip is specified by channel size, deflection, and the direction debris travels.
What makes Machine Guard Sealing different from other specialty brush functions cleaning?
The main difficulty is removing dust, airflow leakage, chips, light, noise, and loose particles from gaps, edges, door leaves, cable openings, rails, and machine enclosures without damaging the surface, loading the brush, or carrying contamination back into the process.
The work happens in industrial production area and machine enclosure against dust, chips, coolant mist, light and airflow.
The part people get wrong: the surface, the residue and the access opening decide the brush together. Fix on any one of them alone and the geometry comes out wrong.
What are the most common cleaning targets in Machine Guard Sealing?
The work breaks into 5 targets. They look similar from outside the machine and behave nothing alike at the brush.
| Part or area | Residue type | Cleaning requirement |
|---|---|---|
| CNC Enclosure Door Seal | Dust, chips, coolant mist, light, airflow | The strip must run the full length of the gap and keep light, continuous contact without binding. |
| Conveyor Gap Seal | The head must be narrower than the opening and stiff enough to lift residue without splaying at the mouth. | |
| Sliding Guard Seal | The strip must run the full length of the gap and keep light, continuous contact without binding. | |
| Dust and Chip Exclusion Seal | Dust, powder and compacted fines | |
| Noise and Light Barrier Seal | Dust, chips, coolant mist, light, airflow |
The dimensional envelope those targets impose on the brush:
| Parameter | Typical range |
|---|---|
| Filament diameter | 0.10–0.60 mm; 0.10–1.27 mm |
| Custom strip length | 100–3000 mm |
| trim height | 12.7–152.4 mm |
| Channel width | 3.2–14.3 mm |
| Strip length | 50–3,000 mm |
| Trim height | 5–200 mm |
| Working compression | 5–25% of trim |
Which brush types work for each cleaning target?
Channel strip brush, flexible strip, opposed seal or edge guide in a rigid holder.
| Cleaning target | Recommended brush type | Why it fits |
|---|---|---|
| CNC Enclosure Door Seal | Strip Seal Brushes | The door has to seal against coolant and still slide daily, so a brush strip closes the gap with almost no friction where a wiper drags and tears. |
| Conveyor Gap Seal | The gap is where the belt passes through the guard, so the seal has to close around a moving surface, which only filament does without wearing a groove. | |
| Sliding Guard Seal | A sliding guard has a running gap along its whole travel, so a brush strip keeps contact through the full stroke without adding load to the mechanism. | |
| Dust and Chip Exclusion Seal | Chips would cut a rubber lip, so a brush strip is used instead: individual filaments deflect around the debris and then recover. | |
| Noise and Light Barrier Seal | A dense brush strip breaks the straight line of sight and the direct sound path through the gap while leaving the guard free to move. |
The layouts this application is normally built in:
- Driven brush — use when dust, airflow leakage, chips, light, noise, and loose particles needs repeatable scrubbing or controlled relative movement
- Passive or free-running brush — use for loose contamination and lower process complexity on gaps, edges, door leaves, cable openings, rails, and machine enclosures
- Localized hand, strip, or tube brush — use where only an edge, gap, port, or maintenance point needs contact
In practical brush terms: reach first, then residue. A brush that fits but is too soft can be stiffened; a brush that does not fit is simply the wrong tool.
What filament materials work best for Machine Guard Sealing?
Nylon, PBT, PP, natural fiber or metal filament chosen based on temperature, chips, oil and abrasion.
| If the condition is… | Filament to start with | Why |
|---|---|---|
| Sensitive or coated surface | Nylon PA | balanced flex life and abrasion resistance |
| Wet, washdown, or detergent service | Polypropylene PP | acid, alkali, water, and detergent resistance |
| Bonded residue or aggressive cleaning | Anti-static Filament | controlled static dissipation |
The constraints this application puts on the filament:
| Constraint | Value for this application |
|---|---|
| Filament hardness | Medium |
| Maximum service temperature | 120°C |
| Chemical exposure | Coolant, lubricant, water and neutral or alkaline cleaner |
| Cleaning method | Dry Service, Periodic Wet Cleaning |
How do I choose the right brush for my machine guard sealing equipment?
Channel size fixes the holder, guard travel fixes the deflection, and the debris being held back decides fill density and stiffness.
The sequence that gets a usable sample first time:
- Identify the target part and measure the access opening or clearance
- Describe the residue: what it is, how thick it sits, and how strongly it holds
- Choose the construction that can physically reach that target
- Set the filament from surface risk, working temperature and cleaning chemistry
- Fix filament diameter, free trim length and density for the contact pressure you need
- Run one cycle and check the result before committing to a production quantity
Before you commit to a quantity, send the channel size, the gap the strip must close, the guard’s travel, and the debris it holds back.
When is a machine guard sealing brush the wrong tool?
Where coolant must be fully contained or the guard forms a safety-interlock boundary, a lip or wiper seal is the correct component. Brush strip is for gaps that keep moving and must stay low-friction while chips and mist are held back.
What common mistakes should I avoid in Machine Guard Sealing?
- Giving guard length without the channel size and the deflection the moving guard imposes
- Changing brush material while leaving excessive engagement, poor alignment, or no discharge path unchanged
- Copying a worn brush without recording motion, direction, mounting, and the original working diameter
When a brush is running but not cleaning, start here rather than adding pressure:
| Symptom | What to change |
|---|---|
| Residue remains | Increase relative motion or discharge, then change filament diameter or density; do not add pressure before checking loading by dust, airflow leakage, chips, light, noise, and loose particles. |
| Surface marks or scratches | Reduce engagement, use finer or softer fill, and remove trapped abrasive particles from contact with gaps, edges, door leaves, cable openings, rails, and machine enclosures. |
| Rapid wear or uneven cleaning | Check alignment, runout, support, motion, temperature, chemical attack, and whether the brush covers the complete working path. |
| Brush loads or redeposits residue | Open the fill pattern or add wash, vacuum, air, scraping, or a collection path so removed dust, airflow leakage, chips, light, noise, and loose particles leaves the contact zone. |
Questions this page is asked
Can a brush strip serve as the machine guard itself?
No flexible strip should replace a required fixed or movable guard, interlock, safe opening or other risk-control measure. Treat it only as a supplemental gap, chip, light or airflow component after the machine risk assessment confirms that the complete guard still prevents access and does not create a hazard.
What should a full-travel trial check after a guard brush is installed?
Under the machine's safe setup procedure, move every door, cover and workpiece path through its full range while checking hinges, latches, sensors, interlocks, emergency access and nearby pinch or entanglement points. Accept the installation only when trim contact remains stable without delaying closure, masking a fault, shedding into the process or being pulled into motion.
How is a guard brush qualified around chips, coolant or oil mist?
Run the representative process and verify that chips and liquid move to the intended capture or drain without pooling, wicking outside, clogging the trim or rebounding toward people and equipment. Inspect the holder and filaments for swelling, softening, corrosion, cut ends and shedding, and set a service interval from the observed loading and enclosure performance.
Continue Exploring
Recommended Reading & Related Brush Resources

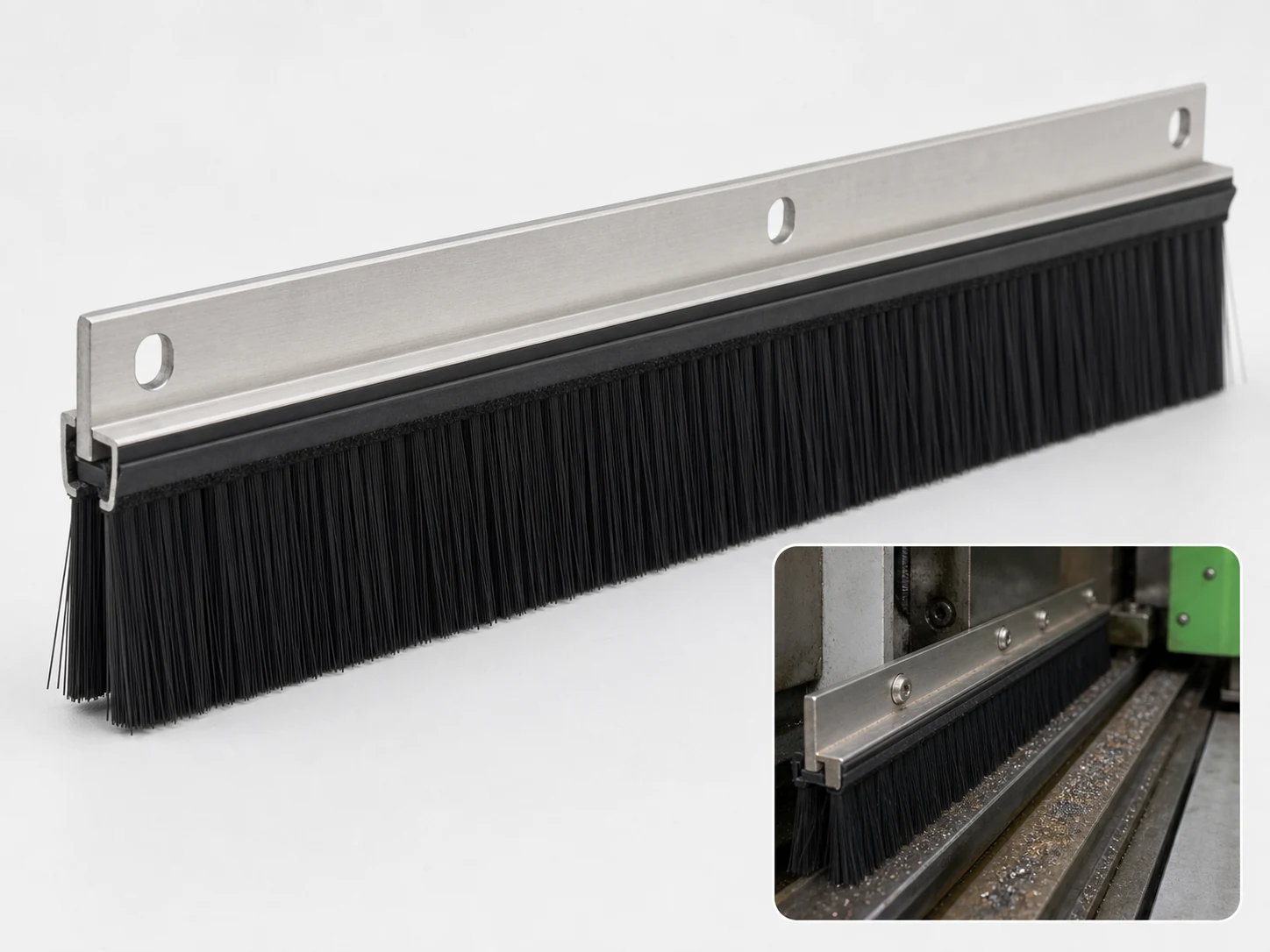

Machine Guide Rail Brush
Custom machine guide rail brush for cleaning slots, rails, pins, and narrow machine paths.…
See the specification

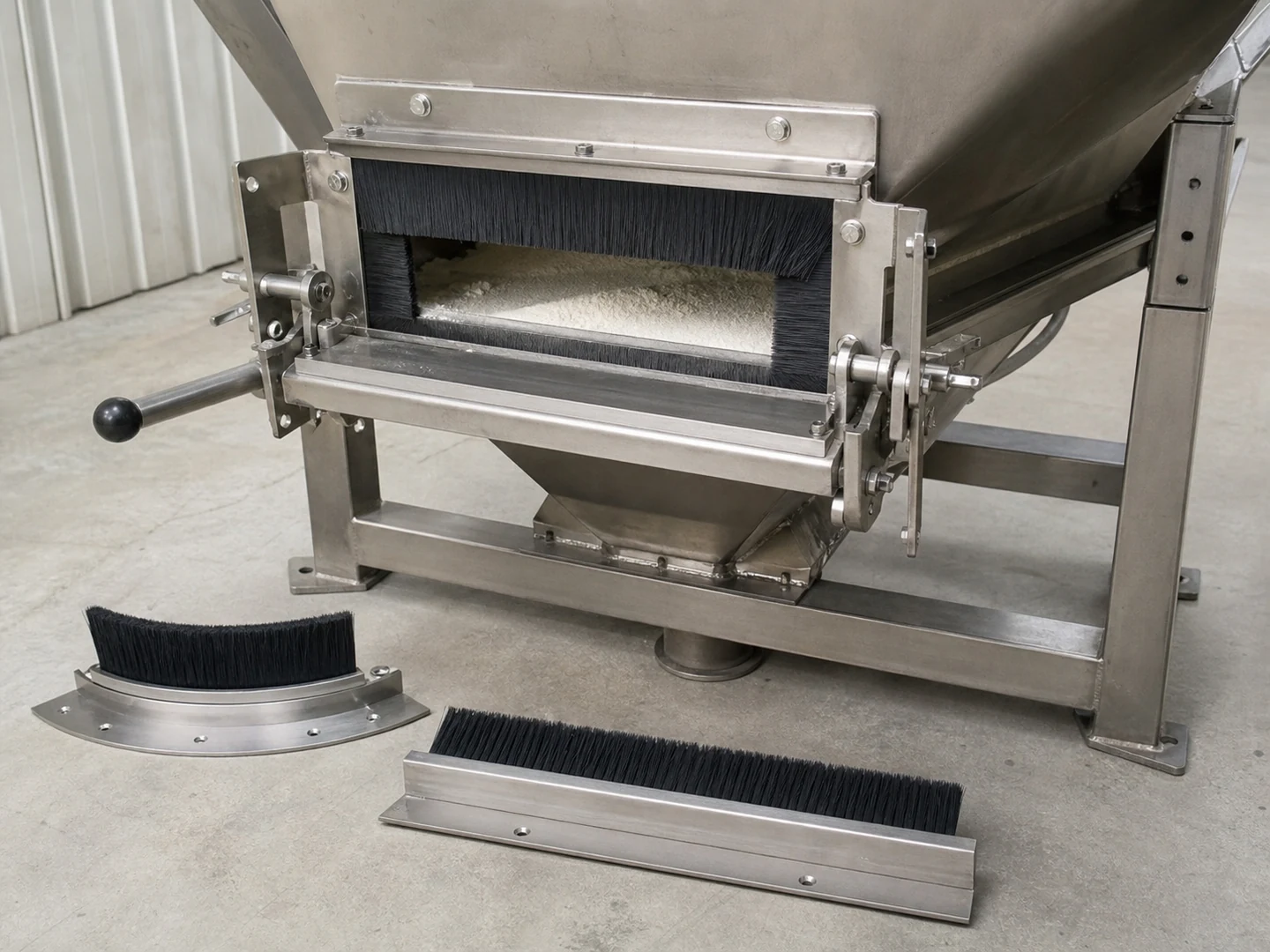

Silo Dust Control Brush
