Application

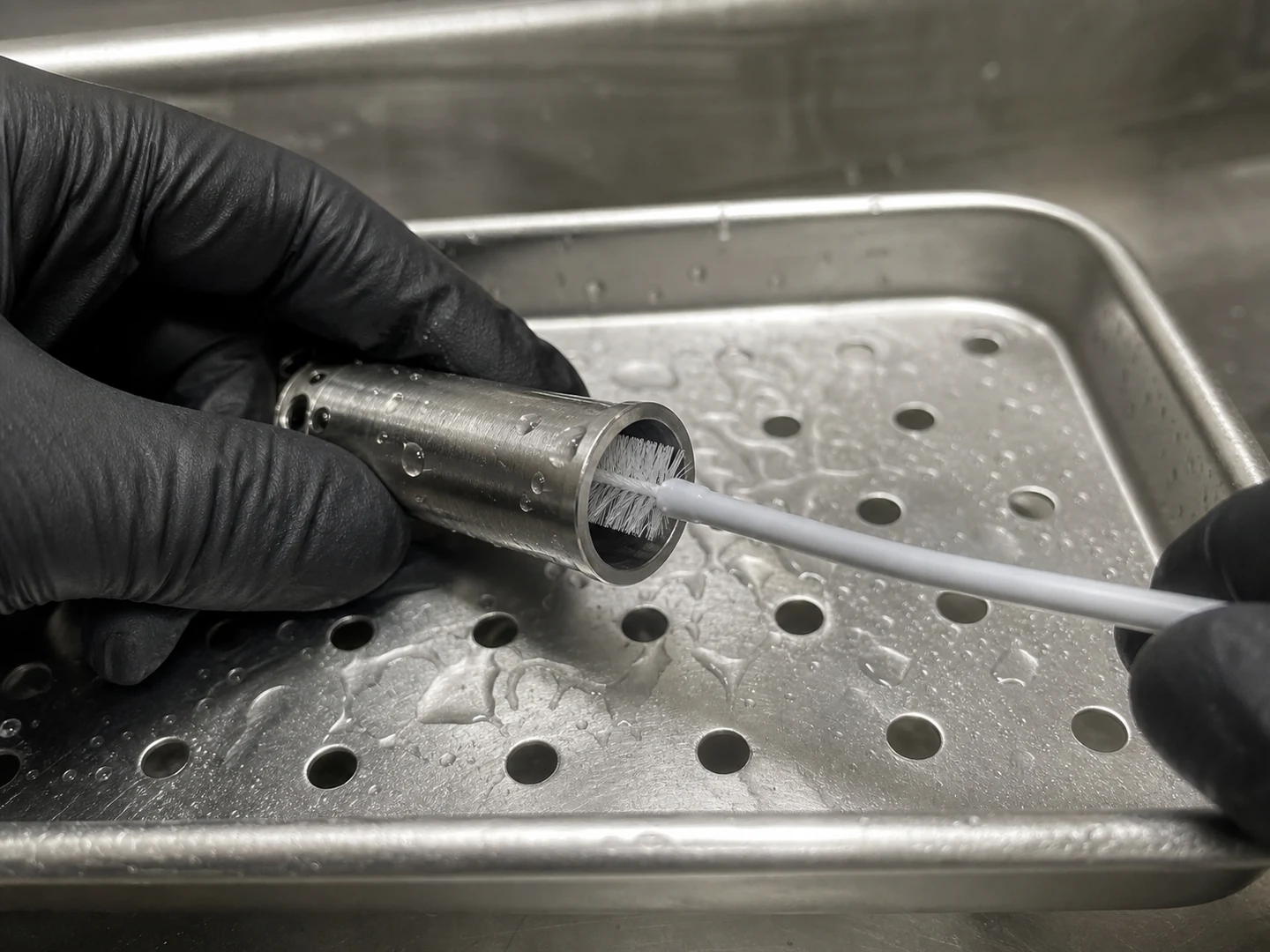

Dental Tool Cleaning
For Dental Tool Cleaning, the brush must reach the working area, disturb or collect blood / tissue residue / polishing compound / biofilm, and release it without creating unacceptable surface damage or process interference. Access, contact movement, and the selected cleaning method determine which brush structure will work.
At a glance
- Cleaning target
- Blood / tissue residue / polishing compound / biofilm
- Working environment
- Dental Clinic / Medical Reprocessing Area
- Cleaning method
- Wet Brushing / Soaking / Steam Sterilization-Compatible Cleaning
- Requirements to check
- ISO 17664 processing instructions; ISO 15883 washer-disinfector context where applicable
Dental instruments combine fine internal channels with hinged joints, so cleaning uses miniature bore brushes alongside small external brushes, both bounded by what the instrument IFU permits.
What makes Dental Tool Cleaning different from other medical and laboratory cleaning?
The main difficulty is removing oil, carbon, scale, biofilm, process residue, and particles from bores, channels, tubes, hoses, ports, and internal passages without damaging the surface, loading the brush, or carrying contamination back into the process.
The work happens in dental clinic and medical reprocessing area against blood, tissue residue, polishing compound and biofilm.
The part people get wrong: this is not one job. The same equipment carries several targets, each with a different opening and a different residue, and one brush rarely covers them all.
What are the most common cleaning targets in Dental Tool Cleaning?
There are 5 distinct targets here, and the brush that suits one will usually not reach another.
| Part or area | Residue type | Cleaning requirement |
|---|---|---|
| Dental Handpiece Channel | Blood, tissue residue, polishing compound, biofilm | The brush must pass the full length of the passage and hold contact with the wall without folding over at the far end. |
| Bur and File | The head must reach the working face and apply even contact without marking the surface. | |
| Suction Tube | The brush must pass the full length of the passage and hold contact with the wall without folding over at the far end. | |
| Instrument Joint | The head must reach the working face and apply even contact without marking the surface. | |
| Dental Laboratory Appliance |
What the equipment leaves you to work inside:
| Parameter | Typical range |
|---|---|
| Internal diameter | 1–300 mm |
| Passage length | 20–10,000 mm |
Which brush types work for each cleaning target?
Small external instrument brush, miniature bore brush or model-specific detail tool.
| Cleaning target | Recommended brush type | Why it fits |
|---|---|---|
| Dental Handpiece Channel | Tube & Pipe Bore Brushes | A handpiece carries fine internal air and water lines, so a small bore brush is the only tool that reaches their walls during manual pre-clean. |
| Bur and File | Handheld Detail Brushes | A bur is a cutting flute that must not be dulled, so a hand-guided head works between the flutes and leaves the cutting edge alone. |
| Suction Tube | Tube & Pipe Bore Brushes | A suction tube runs the length of the chair unit and loads with protein, so a long bore brush is drawn through it before the tube goes to disinfection. |
| Instrument Joint | Handheld Detail Brushes | Hinged instruments hide residue in the box lock, so a hand-guided head opens the joint and cleans inside it where a bath alone may not reach. |
| Dental Laboratory Appliance | A lab appliance is an irregular contoured surface full of undercuts, so a hand-guided head lets the technician follow the form into each one. |
How the brush is usually carried on the machine:
- Driven brush — use when oil, carbon, scale, biofilm, process residue, and particles needs repeatable scrubbing or controlled relative movement
- Passive or free-running brush — use for loose contamination and lower process complexity on bores, channels, tubes, hoses, ports, and internal passages
- Localized hand, strip, or tube brush — use where only an edge, gap, port, or maintenance point needs contact
In practical brush terms: match the construction to the access before anything else. A geometry that cannot reach the target will not be rescued by a better filament.
What filament materials work best for Dental Tool Cleaning?
Documented nylon/PBT or approved metal/abrasive filament only where the instrument IFU allows it.
| If the condition is… | Filament to start with | Why |
|---|---|---|
| Instrument surfaces covered by the IFU | Nylon PA, documented grade | the instrument’s own instructions decide the fill before the soil does |
| Enzymatic and alkaline cleaner at pH 6–12 | PBT | no swelling over repeated reprocessing cycles |
| Steam sterilisation of the brush itself | PA612 Nylon | low water uptake, so the head returns to size after the autoclave |
What the duty rules out before you start comparing grades:
| Constraint | Value for this application |
|---|---|
| Filament hardness | Soft to Medium |
| Maximum service temperature | 134°C |
| Chemical exposure | Enzymatic or alkaline instrument cleaner, typically pH 6–12 |
| Cleaning method | Wet Brushing, Soaking, Steam Sterilization-Compatible Cleaning |
How do I choose the right brush for my dental tool equipment?
Channel diameter sizes the bore brush, joint geometry sizes the external one, and the IFU decides which of the two you are permitted to use.
The order that avoids rework:
- Identify the target part and measure the access opening or clearance
- Describe the residue: what it is, how thick it sits, and how strongly it holds
- Choose the construction that can physically reach that target
- Set the filament from surface risk, working temperature and cleaning chemistry
- Fix filament diameter, free trim length and density for the contact pressure you need
- Run one cycle and check the result before committing to a production quantity
Before you commit to a quantity, send the channel diameter and length, the joint geometry, and the IFU’s cleaning instructions.
When is a dental tool brush the wrong tool?
Handpiece maintenance units, ultrasonic tanks and washer-disinfectors are the validated routes, and lumen brushing is a pre-clean rather than the cycle itself. Where the IFU excludes a brush from an internal channel, that exclusion stands.
What common mistakes should I avoid in Dental Tool Cleaning?
- Naming the instrument without the channel diameter and the IFU’s own cleaning limits
- Changing brush material while leaving excessive engagement, poor alignment, or no discharge path unchanged
- Copying a worn brush without recording motion, direction, mounting, and the original working diameter
If the brush is already in service and the result is wrong, work from the symptom:
| Symptom | What to change |
|---|---|
| Residue remains | Increase relative motion or discharge, then change filament diameter or density; do not add pressure before checking loading by oil, carbon, scale, biofilm, process residue, and particles. |
| Surface marks or scratches | Reduce engagement, use finer or softer fill, and remove trapped abrasive particles from contact with bores, channels, tubes, hoses, ports, and internal passages. |
| Rapid wear or uneven cleaning | Check alignment, runout, support, motion, temperature, chemical attack, and whether the brush covers the complete working path. |
| Brush loads or redeposits residue | Open the fill pattern or add wash, vacuum, air, scraping, or a collection path so removed oil, carbon, scale, biofilm, process residue, and particles leaves the contact zone. |
Questions this page is asked
What must be confirmed before a dental instrument is brush-cleaned for reuse?
Confirm that the item is reusable and obtain its current reprocessing instructions, including disassembly, approved cleaner, water quality, brush or automated method, rinsing, inspection and later disinfection or sterilization. Do not create a manual brushing method for a single-use item or a reusable device whose manufacturer supplies no compatible reprocessing instructions.
How should manual dental-instrument brushing reduce sharps exposure?
Use the facility's designated decontamination area, required utility gloves and splash protection, and a long-handled brush that keeps the scrubbing hand away from points and cutting edges. Do not reach into an opaque sink or tray of submerged sharps, and use approved mechanical cleaning when the procedure selects it to reduce manual handling.
What should be checked after dental tools are cleaned but before packaging or sterilization?
Rinse away detergent as instructed, inspect under suitable light for remaining soil, damage and brush fragments, and verify any lumen or hinge according to the device IFU. Return a failed item to the defined cleaning step or remove it from service rather than expecting sterilization to compensate for retained debris.
Guides that go deeper on this
We have not written a guide specific to this one yet. The material that covers selection, filament, dimensions, maintenance and sourcing is collected in the technical resources library.
Continue Exploring
Recommended Reading & Related Brush Resources

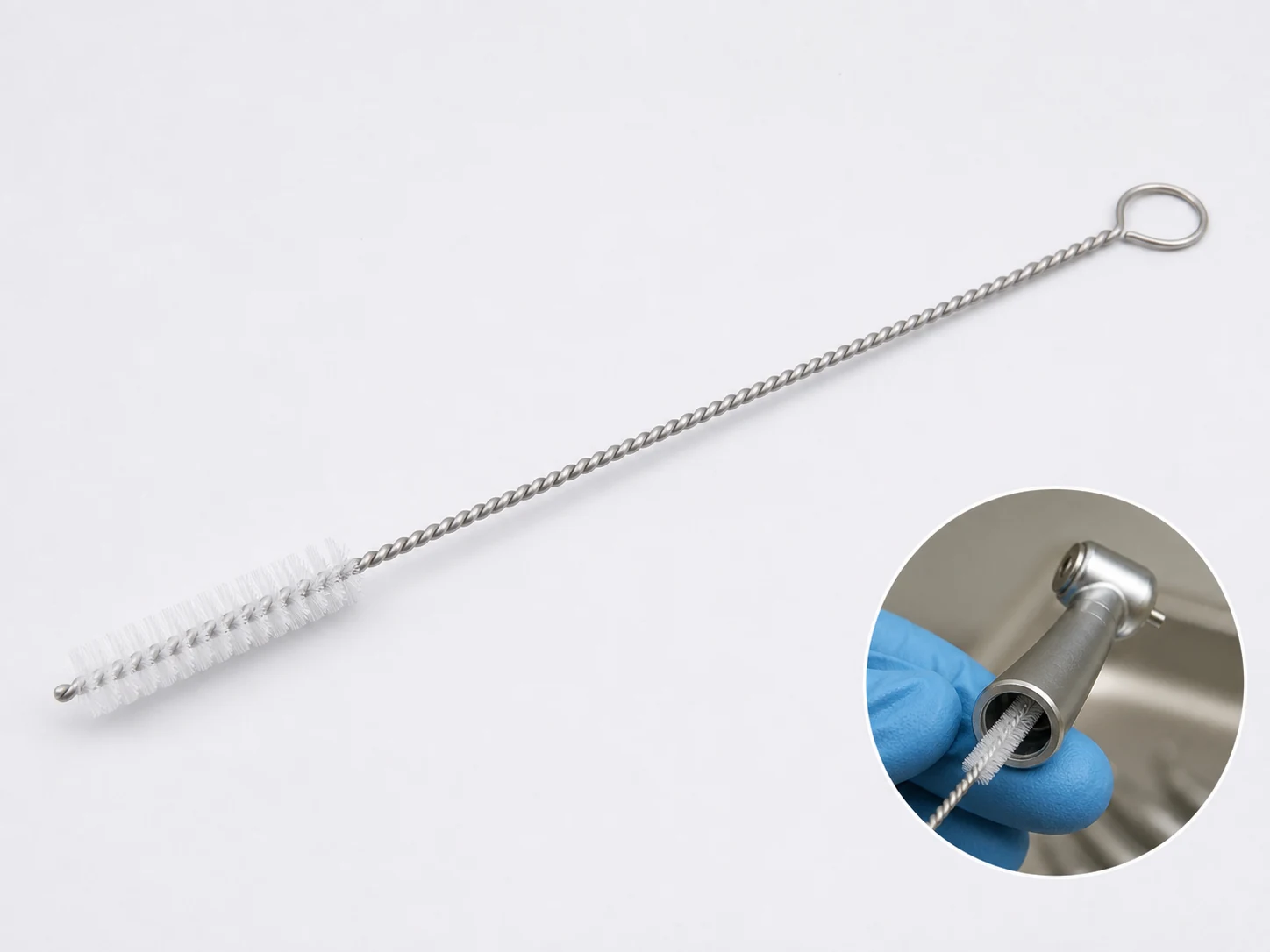

Dental Instrument Cleaning Brush
Order dental instrument cleaning brushes with 0.05–0.35 mm PBT/nylon filaments for hinged, serrated, and…
See the specification

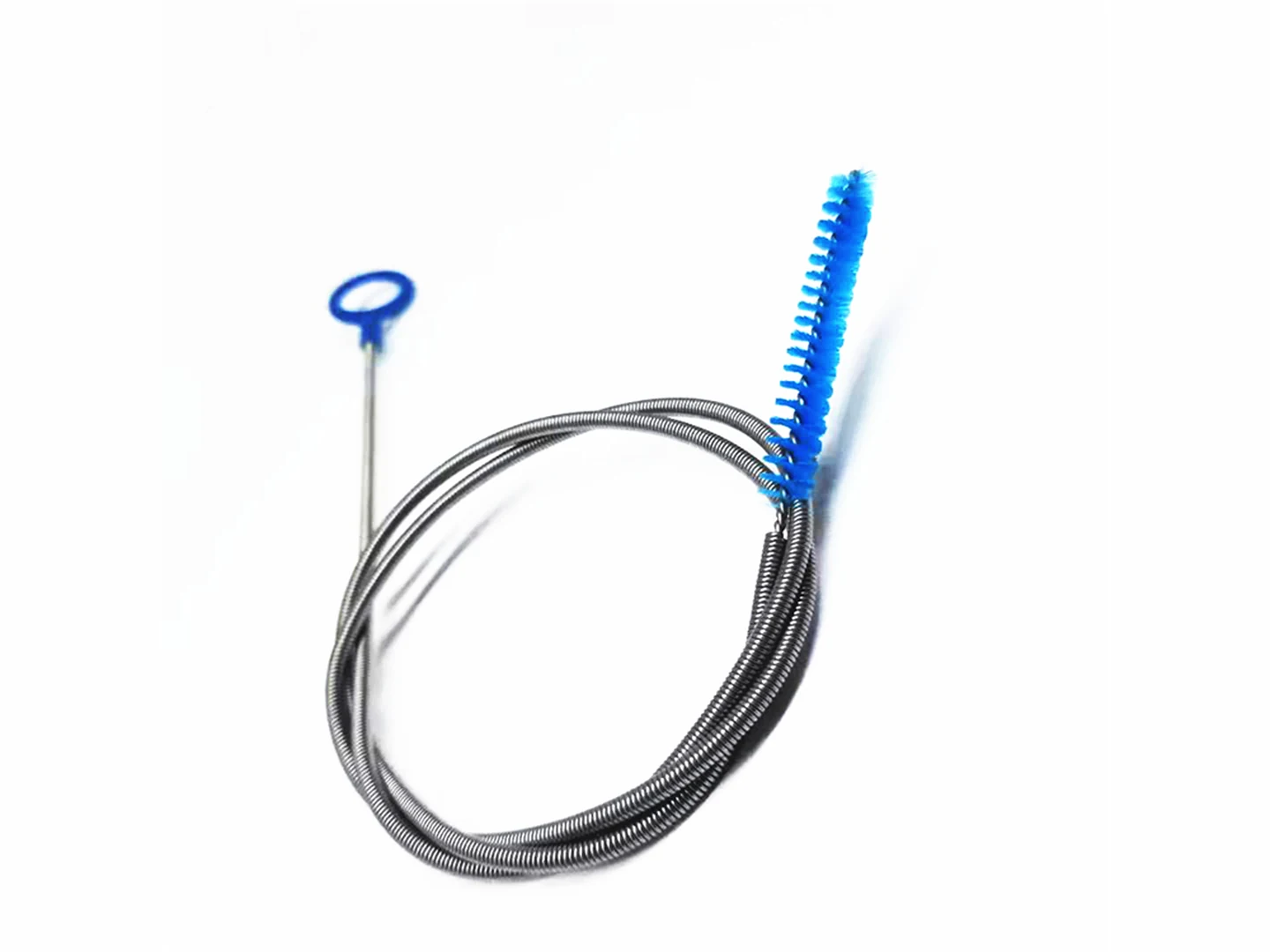

Customizable Reusable Flexible Medical Cleaning Brush
Configure a reusable flexible medical cleaning brush for instrument hinges, lumens and channels from…
See the specification

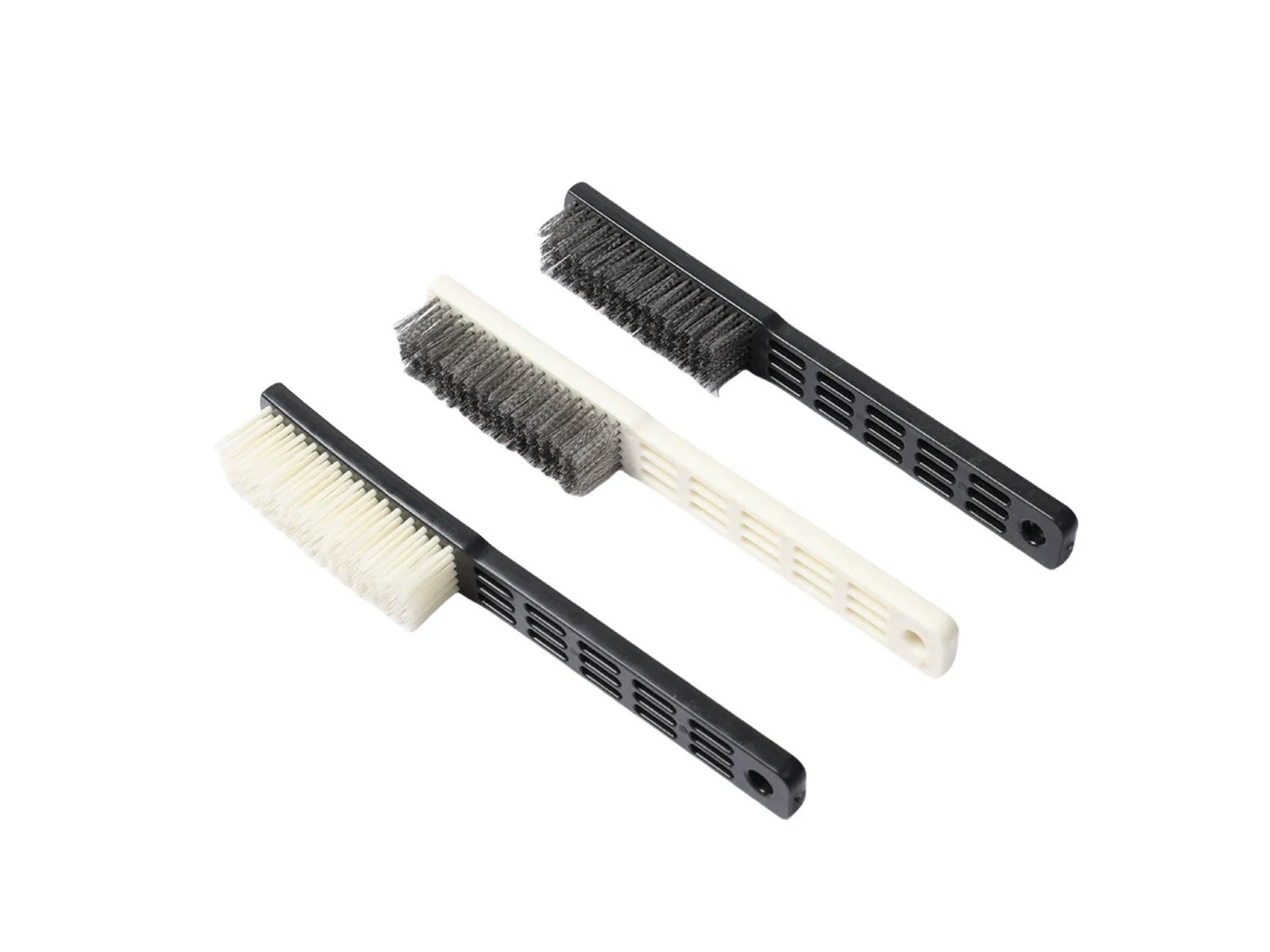

Instrument Wire Cleaning Brushes
