Copper Wire

Copper Wire sits in the non-ferrous metal wire filament family, supplied as wire bristle, drawn in round, crimped round and flat sections and set in straight rows, helical, staggered and zoned fill patterns.

Copper Wire is used in custom cleaning brushes for soft conductive contact, light oxide removal and polishing where steel wire would be too aggressive.

Compare Copper Wire with Compare with brass for greater spring and wear, phosphor bronze for resilience and stainless steel for aggressive corrosion-resistant cutting. Change material when wet stiffness, temperature, chemical resistance, conductivity, particle shedding, or surface marking becomes the limiting factor.

Copper Wire is firm non-ferrous metallic wire; softer than carbon/stainless steel wire and less aggressive on softer metal parts. It Copper Wire changes brush stiffness through filament diameter, free trim, density, crimp, and contact. Use finer filament and longer trim for conformable contact; use coarser filament, shorter trim, or higher density for stronger displacement or cutting.

The part people get wrong: the number that decides scrubbing pressure is diameter over trim length, not the grade name. Two brushes in this material can behave nothing alike.

Copper wire absorbs no water; in wet service it will patinate, and that green film transfers to the work.

Metal wire does not absorb water; alloy and holder corrosion resistance control wet service.

What this means for your application: the brush behaves the same wet or dry, but copper is soft — it is chosen for conductivity and low marking, not for cutting.

A practical check: after a wet run, look for oxide on the wire and colour on the workpiece. Both mean the brush needs drying between uses.

Suitable for moderate-heat conductive contact.

The filament tables quote 150–200°C continuous and 250–300°C peak. The tighter number above is the one to build to, because a brush is loaded while it is hot.

Where it stops working: validate with a sample if the process sits near the top of that band. A permanent bend under load means the answer is a higher-temperature filament family, not a heavier trim.

Diameter, trim length and applied load all shift the real limit, so a thin filament touching lightly survives conditions that would flatten a thick one under pressure.

Good corrosion resistance with softer metal contact than carbon or stainless steel wire.

Compatibility is a function of concentration, temperature and contact time together. A short rinse in a dilute solution is a different exposure from an overnight soak in a concentrated one, even with the same chemical on the label.

Before you commit to a quantity: Specify the exact Copper Wire grade or alloy, filament or profile size, color, straight or crimped form, working temperature, wet or dry use, chemical exposure, surface finish, and any required material documentation.

The floor is roughly 0.03 mm; finer than that and the filament snaps rather than flexes. In practice you are choosing inside 0.03–0.80 mm.

Free trim runs 3–150 mm, and the two interact: a finer filament needs a shorter trim to keep useful stiffness, while a thicker one carries a longer trim and still lands pressure on the tip.

Split the range by duty: roughly 0.03–0.22 mm for light wiping, dusting and surfaces that mark easily, and 0.22–0.80 mm where residue is packed on and point pressure matters more than surface risk.

Tip treatments available on this filament: straight, crimped, tin-plated, polished and anti-oxidation coating.

In practical brush terms: reaching deep into a bore or crevice is a diameter problem before it is a length problem. A thicker filament on a moderate trim pushes further in before the tips fold over.

Soft conductive contact, light oxide removal and polishing where steel wire would be too aggressive.

The cleaning work it is specified for most often:

• Tube & Pipe Cleaning
• Pipe Robot Brush Attachment Use
• Hose Cleaning
• CPAP Hose Cleaning
• Metal Acid Pickling & Degreasing Line Brush Use
• Printer & Scanner Cleaning

Brush types built with this fill:

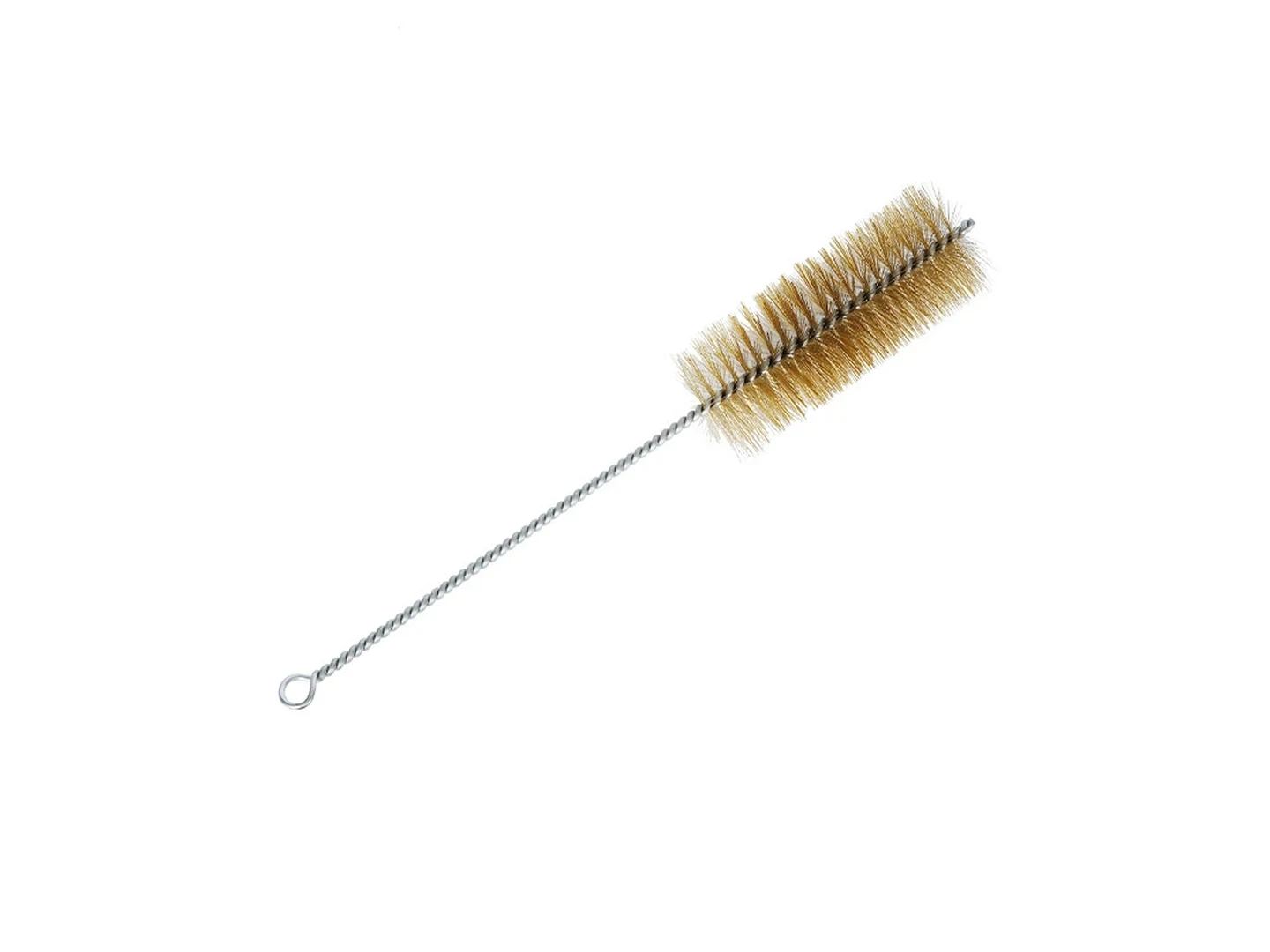

• Custom Tube & Pipe Bore Brushes
• Custom Wheel Brushes
• Custom Roller and Conveyor Brushes

If the sample comes back rejected: Too soft for heavy scale removal and prone to wear or metal transfer; not suitable where copper contamination is unacceptable.

Send the brush type, filament diameter, free trim length, density, contact setting, wet or dry duty, working temperature and the actual cleaning chemistry together. Any one of them on its own leaves the stiffness undefined.

What usually goes wrong at this step:

• Selecting Copper Wire from the material name alone without setting filament diameter, trim length, and density
• Using dry stiffness to predict wet behavior without checking moisture absorption or liquid exposure
• Ignoring trapped abrasive particles, chemical concentration, temperature, or contact motion when assessing surface risk

Reference standards behind the figures on this page: ISO 6892-1; ASTM E8/E8M; ASTM B117; IEC 61340-5-1:2024; IEC TS 61340-5-4:2021; ASTM D257.

Source: Copper Development Association — Wrought copper — UNS alloy data. Pure copper wire is chosen for conductivity and softness rather than for cutting. It work-hardens as it flexes, so a copper-filled brush loses spring before it loses diameter.
