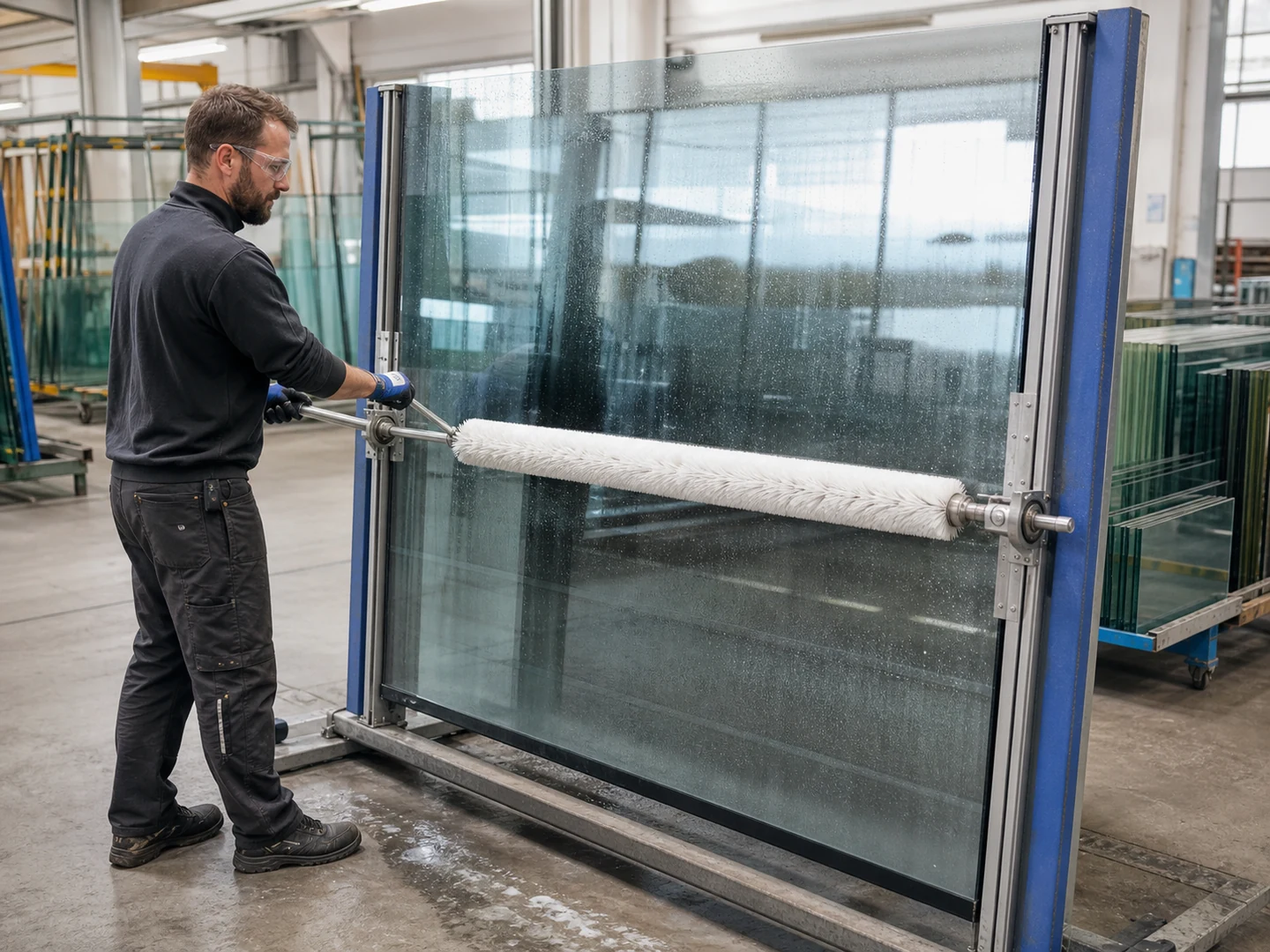

Glass Surface Cleaning

The main difficulty is removing dust, mineral film, fingerprints, process particles, and water spots from glass, coated panels, photovoltaic modules, and smooth sheets without damaging the surface, loading the brush, or carrying contamination back into the process.

The work happens in indoor, outdoor and cleanroom-compatible area against dust, fingerprints, adhesive, mineral spots and process residue.

The part people get wrong: the surface, the residue and the access opening decide the brush together. Fix on any one of them alone and the geometry comes out wrong.

The work breaks into 5 targets. They look similar from outside the machine and behave nothing alike at the brush.

What the equipment leaves you to work inside:

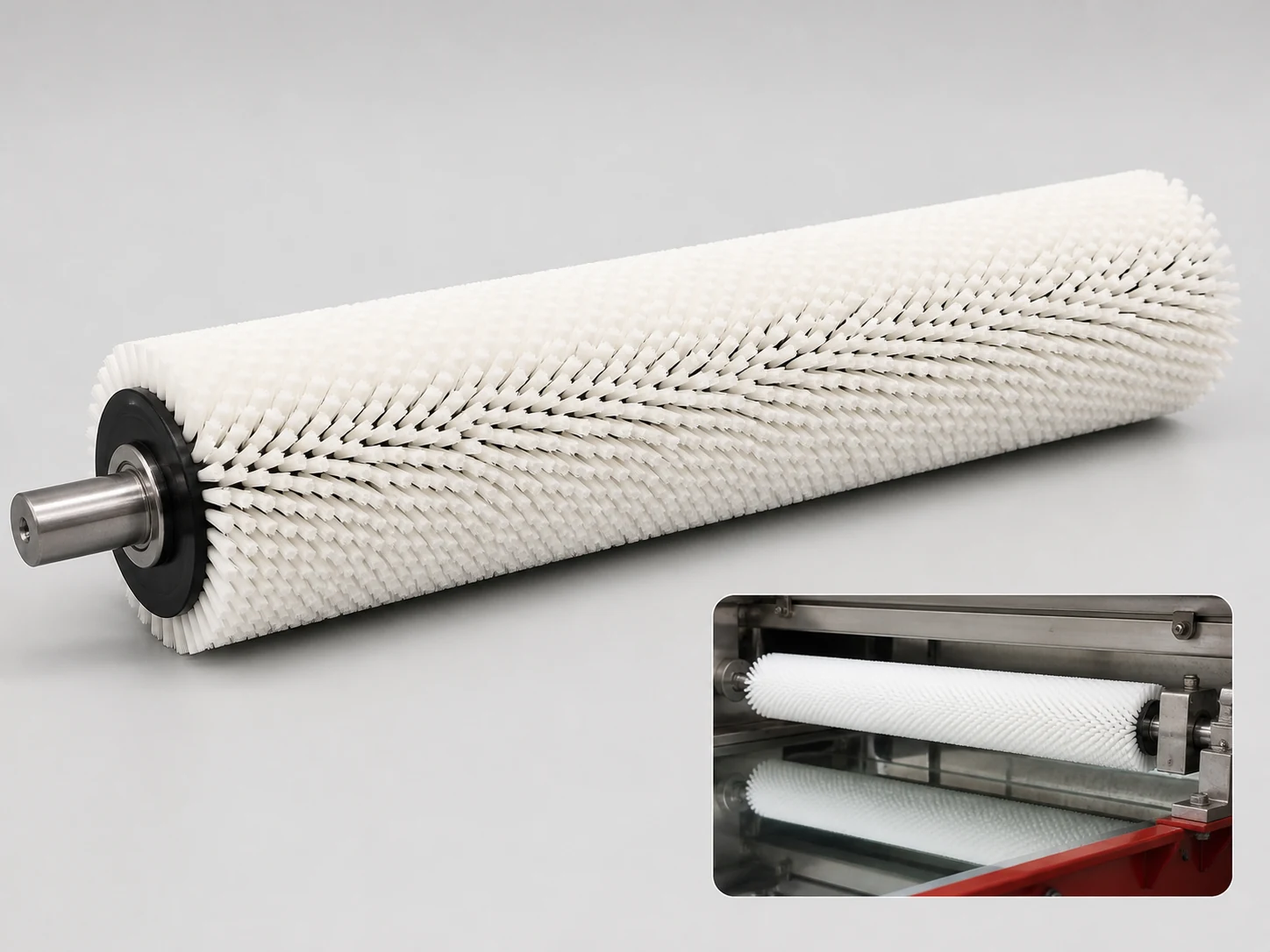

Hand pad/detail brush, long washing roller or water-fed head matched to panel size.

How the brush is usually carried on the machine:

• Driven brush — use when dust, mineral film, fingerprints, process particles, and water spots needs repeatable scrubbing or controlled relative movement
• Passive or free-running brush — use for loose contamination and lower process complexity on glass, coated panels, photovoltaic modules, and smooth sheets
• Localized hand, strip, or tube brush — use where only an edge, gap, port, or maintenance point needs contact

In practical brush terms: match the construction to the access before anything else. A geometry that cannot reach the target will not be rescued by a better filament.

Soft nylon/PBT, microfiber, sponge or selected natural fiber; no abrasive or metal without a surface-specific process.

What the duty rules out before you start comparing grades:

Identify the coating first — plain float, Low-E, or a processing surface — then let panel size and access decide hand, roller or water-fed.

The sequence that gets a usable sample first time:

1. Identify the target part and measure the access opening or clearance
2. Describe the residue: what it is, how thick it sits, and how strongly it holds
3. Choose the construction that can physically reach that target
4. Set the filament from surface risk, working temperature and cleaning chemistry
5. Fix filament diameter, free trim length and density for the contact pressure you need
6. Run one cycle and check the result before committing to a production quantity

Before you commit to a quantity, say whether the glass is coated, Low-E or plain float, and send the panel size and the access you have.

A squeegee and wash solution outperform any brush on flat float glass, and heavy mineral spotting needs an acid or a cerium polish. Coated and Low-E surfaces carry a documented cleaning method, and where that method excludes contact it excludes the brush.

• Saying glass without saying whether the surface is coated, Low-E or plain float
• Changing brush material while leaving excessive engagement, poor alignment, or no discharge path unchanged
• Copying a worn brush without recording motion, direction, mounting, and the original working diameter

If the brush is already in service and the result is wrong, work from the symptom:
