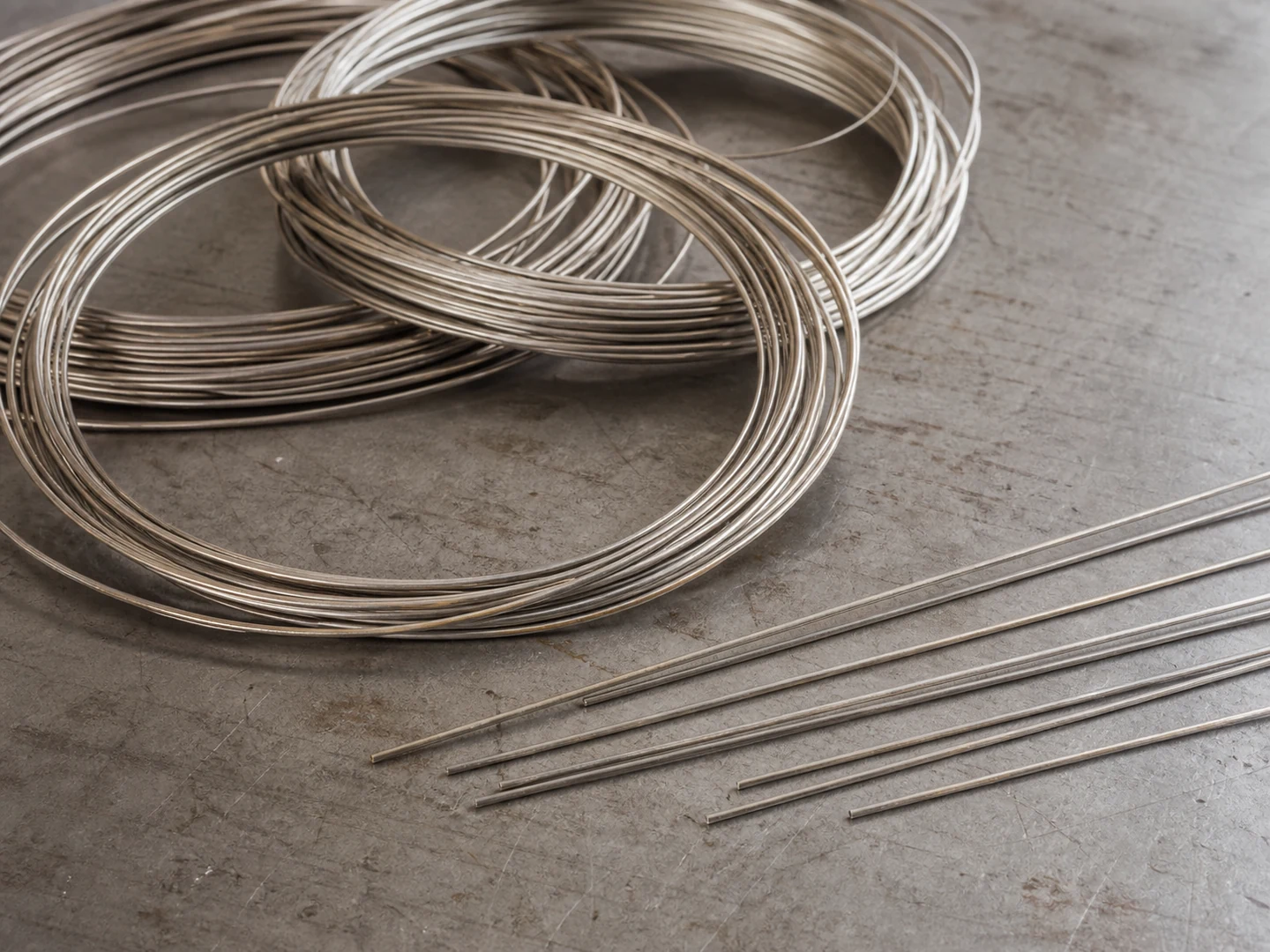

Monel Wire

Monel Wire belongs to the nickel-copper alloy wire group, supplied as wire diameter 0.10–0.50 mm and straight or crimped, drawn in round, flat and crimped sections and set in straight rows, helical, staggered, zoned, wavy and random fill patterns.

Monel Wire is used in custom cleaning brushes for marine, saltwater, chemical equipment and non-ferrous component cleaning.

The realistic alternatives are AISI 316 stainless steel wire and Inconel wire. The polymer columns below are a scale reference for how differently a filament behaves, not a list of substitutes.

Step down to AISI 316 where the chemistry is milder; step up to Inconel where temperature rather than seawater is the limit.

Monel Wire is firm; resilient corrosion-resistant metal contact, which is why Monel Wire changes contact through its filament or media size, free trim, density, profile, and engagement.

Published ranges for the filament itself. Read them as a shortlist tool, not as brush performance.

The part people get wrong: stiffness is not a property of the material on its own. A 0.50 mm filament on a 15 mm trim is stiffer than a 0.30 mm filament on a 25 mm trim in the same grade. Fix diameter and trim first, then confirm the material.

Monel wire takes up no water at all, so the wet-service question here is corrosion rather than uptake.

MONEL 400 is widely used in marine service and has strong resistance in flowing seawater, while stagnant crevices can still pit; validate the exact brush geometry and environment.

What this means for your application: nothing moves when the brush gets wet. Monel does not swell, so the contact band you set on the bench is the one that reaches the work.

A practical check: watch the crevices rather than the wire. Flowing seawater is where this alloy performs; a stagnant pocket inside the holder is where it pits.

MONEL alloy data cover subzero and elevated temperatures, but those alloy-property temperatures are not a finished-brush service rating. Wire condition, anchoring, hub, atmosphere, speed and contact load set the usable brush temperature.

Design to that answer rather than to a raw-material datasheet figure: a brush rating already accounts for wire working under load rather than bare wire held at temperature with nothing pushing on it.

Where it stops working: validate with a sample if the process sits near the top of that band. A permanent bend under load means the answer is a higher-temperature filament family, not a heavier trim.

The usable limit also moves with diameter, trim and contact pressure. A fine filament under light load tolerates more than a thick one under heavy scrubbing.

MONEL 400 resists many reducing media and several acid environments, but resistance depends on the exact medium and conditions. Check chemical, concentration, temperature, aeration, exposure time and crevice conditions.

The same cleaner can be harmless or destructive depending on how strong it is, how hot it runs and how long it sits. Quote the concentration and the dwell time, not just the product name.

Before you commit to a quantity: Specify Monel Wire form, diameter or grade, trim, density, working temperature, cleaning fluid, and surface finish.

About 0.05 mm. Below that the filament turns fragile and breaks under ordinary contact pressure, so 0.05–0.80 mm is the working range.

Free trim runs 3–300 mm, and the two interact: a finer filament needs a shorter trim to keep useful stiffness, while a thicker one carries a longer trim and still lands pressure on the tip.

Split the range by duty: roughly 0.05–0.24 mm for light wiping, dusting and surfaces that mark easily, and 0.24–0.80 mm where residue is packed on and point pressure matters more than surface risk.

Tip treatments available on this filament: degreasing, plating, passivation and crimping.

In practical brush terms: reaching deep into a bore or crevice is a diameter problem before it is a length problem. A thicker filament on a moderate trim pushes further in before the tips fold over.

Marine, saltwater, chemical equipment and non-ferrous component cleaning.

The applications that keep coming back to this grade:

• Laboratory Tube Cleaning
• CPAP Hose Cleaning
• Medical Instrument Cleaning
• Dental Tool Cleaning
• Pipe Robot Brush Attachment Use
• Tube & Pipe Cleaning

The constructions that usually carry it:

• Custom Handheld Detail Brushes
• Custom Tube & Pipe Bore Brushes
• Custom Wheel Brushes
• Custom Roller and Conveyor Brushes
• Custom Strip Seal Brushes

If the sample comes back rejected: High material cost; can mark soft metals and is unnecessary for mild environments.

A usable specification carries the construction, the filament diameter and free trim, the density and contact setting, and the service conditions: wet or dry, temperature, and what the cleaner actually is.

The mistakes that most often send a sample back:

• Selecting Monel Wire without setting diameter, trim and density
• Using the material on a surface that cannot accept its contact level
• Ignoring temperature, liquid, motion or residue retention

Reference standards behind the figures on this page: ISO 6892-1; ASTM E8/E8M; ASTM B117.

Source: Special Metals — Nickel-alloy technical bulletins. Special Metals publishes grade-specific bulletins for the nickel-copper and nickel-chromium alloys used as special-order brush wire. No single generic brush-service temperature is asserted here — the assembly decides it.
