Application
Road Sweeping
Road sweeper brooms are wear parts built to the machine: main brooms of 320–700 mm diameter and 700–1,800 mm width in wafers or a spiral, and side brooms of 400–650 mm for the curb. PP sweeps general grit and litter, PA66 lasts longer, and a steel wire mix cuts packed mud and concrete fines.
At a glance
- Cleaning target
- Sand and Gravel/Dust/Leaves/Litter Debris
- Working environment
- Outdoor
- Cleaning method
- Dry Brushing / Wet Brushing
- Requirements to check
- Road-Work Safety; Wear / UV / Salt Spray Resistance Requirements
What makes a road sweeper broom different from other brushes?
It wears for a living. A sweeper broom runs against asphalt and concrete for hours each shift, lifting grit, leaves, litter, and on building sites mud and concrete fines. The fill grinds down a little every hour, and the broom is replaced as a scheduled wear part.

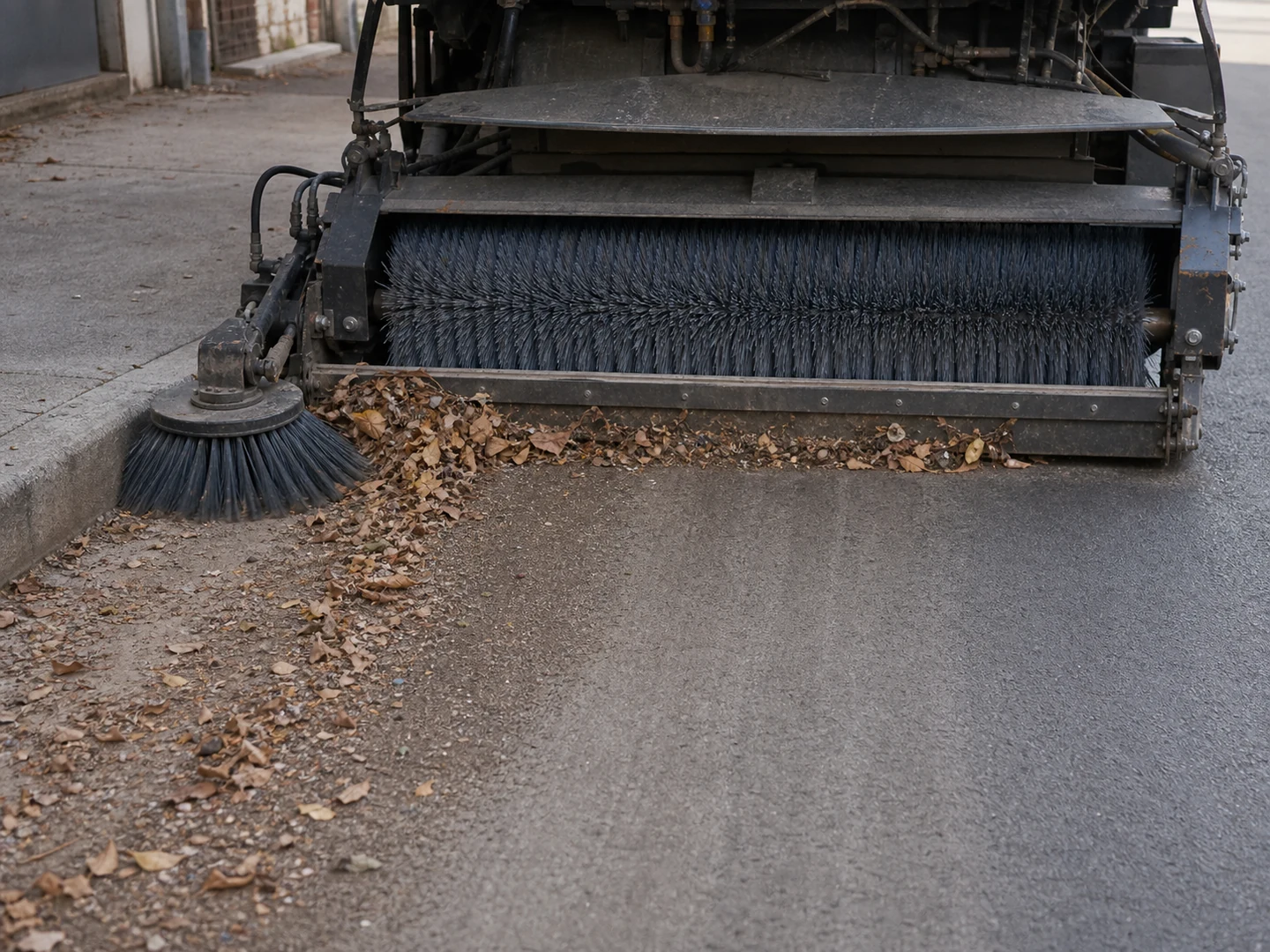

So a sweeper broom is chosen on two things: whether it fits and drives correctly on the machine, and how many hours it lasts on the job. The main broom throws debris into the hopper or conveyor; the side brooms pull it out of the curb line and into the main broom’s path.
Some jobs add their own rules. On airport runways, a broom must not shed anything; foreign-object debris is the very thing being removed. In snow, the fill has to stay flexible in the cold.
Which sweeping jobs use these brooms?
| Part or area | Residue type | Cleaning requirement |
|---|---|---|
| Municipal Street Sweeping | Grit, leaves and litter along the curb | A main broom and side brooms that lift grit and litter along the curb line. |
| Construction Site Sweeping | Mud, sand, gravel and concrete fines tracked onto the road | Fill that lifts mud and concrete fines and survives heavy wear. |
| Airport Runway Sweeping | Loose stones, rubber fragments and other foreign-object debris | Broom fill that is retained securely, so the broom does not shed debris onto the runway. |
| Industrial Yard Sweeping | Dust, spilled bulk material and pallet debris | Durable fill that copes with spilled bulk material and pallet debris. |
| Snow and Debris Sweeping | Snow, slush, road grit, de-icing salt, litter debris | Fill that stays flexible in cold and throws snow and slush clear. |
Sizes from the sweeper brooms we make:
| Parameter | Typical range |
|---|---|
| Main broom diameter | 320–700 mm |
| Main broom width | 700–1,800 mm, in 25–100 mm wafers |
| Side broom diameter | 400–650 mm, 200–300 mm trim |
| Snow broom | 360–800 mm diameter, 1,200–3,000 mm wide |
| Filament diameter | 0.50–2.50 mm |
| Ground contact band | 25–50 mm |
Which broom construction suits each job?
| Cleaning target | Recommended brush type | Why it fits |
|---|---|---|
| Municipal Street Sweeping | Road Sweeper Brooms | A municipal sweeper carries the load on a driven main broom with side brooms working the curb line, so this is a Road Sweeper construction sized to the machine, not a hand tool. |
| Construction Site Sweeping | Site sweeping means heavy grit and rubble over rough ground, so the Road Sweeper broom is filled stiff enough to move it and rebuilt as a wear part. | |
| Airport Runway Sweeping | Runway sweeping runs wide and fast with a foreign-object tolerance measured in millimeters, so the Road Sweeper broom is specified for even contact across the full working width. | |
| Industrial Yard Sweeping | Yard sweeping mixes fines with dropped hardware over concrete, so the Road Sweeper broom is filled to sweep grit without throwing what it cannot lift. | |
| Snow and Debris Sweeping | Snow sweeping needs a broom that clears slush without scraping the surface, so the Road Sweeper construction is filled softer and run at lower engagement than a grit broom. |

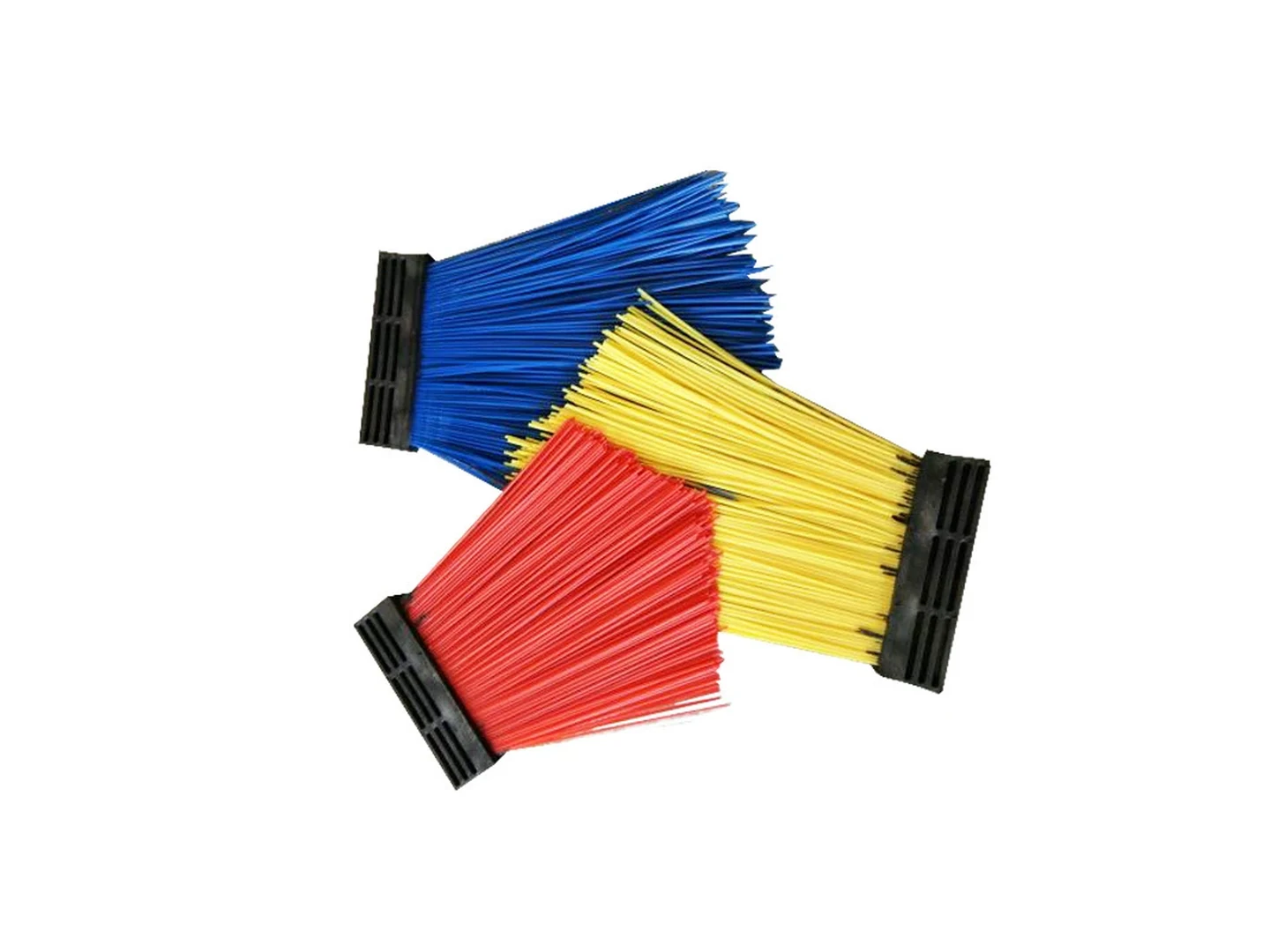

Main brooms are built either from wafers stacked on a core, which are cheaper to replace, or as a continuous spiral on a steel tube with a quick-change coupling. The fill pattern, chevron, window, sand wedge or full fill, sets how the broom moves debris towards the pickup.
Side brooms are discs with a dense outer ring and a long trim, 200–300 mm, so they reach into the curb and gutter. Rotation is directional on both: confirm left or right for the machine before production.
Which fill lasts longest on the road?
| If the condition is… | Filament to start with | Why |
|---|---|---|
| Municipal streets, leaves and litter | Polypropylene PP | Economical and stiff enough for general sweeping |
| Long shifts where broom life matters | PA66 Nylon | Wears slower than PP and keeps its spring, used to about 300 rpm |
| Packed mud and concrete fines on sites | Carbon Steel Wire | Mixed into the fill, it cuts compacted soil that plastic only polishes |
| Snow brooms in cold, wet service | Nylon PA | Stays flexible down to about -30°C; PA610 and PA612 take up less water |
| Fine dust on sidewalks and yards | PBT | Holds its stiffness wet for finer sweeping |
For runways, specify fill set firmly in the core and no wire at all; a lost wire is itself foreign-object debris. Use UV- and salt-resistant grades for brooms that work in winter road salt.
How should sweeper brooms be set and run?
- Set the main broom to a 25–50 mm contact band on a flat surface, and recheck it as the fill wears.
- Run at the machine’s rated speed; too much down pressure wears the broom without sweeping better.
- Set side broom angle and curb reach on flat ground.
- Wet the road in dry dusty conditions to keep dust down.
- Replace the broom when the contact band can no longer be held at the minimum diameter.
What do we need to quote sweeper brooms?
- Sweeper make and model, or the core, drive and diameter of the broom you replace.
- Main, side or snow broom, and the rotation direction.
- The job: streets, sites, runways, yards or snow.
- Fill material and pattern.
- Quantity: medium and large brooms from 100 pieces.
When is a broom not enough for the road?
Thick mud on construction haul roads is often washed or scraped before sweeping. Oil and fuel spills are absorbed, not swept. A broom that throws debris instead of lifting it is set too hard or too fast, not too weak.
What mistakes shorten broom life?
- Too much down pressure, which grinds the fill away in a fraction of its normal hours.
- Ordering a broom that turns the wrong way for the machine.
- Wire fill on runway brooms.
- Never resetting the contact band as the broom wears.
Questions buyers ask about Road Sweeping
How do I order a replacement sweeper broom that fits?
Send the sweeper make and model, or the broom's core, drive fitting, diameter and width, and the rotation direction. Main and side brooms are directional, so left or right matters.
PP or nylon sweeper brooms?
PP is the economical choice for streets, leaves and litter. PA66 nylon wears slower and keeps its spring on long shifts. Add steel wire to the mix for packed mud and concrete fines, never for runways.
Continue Exploring
Recommended Reading & Related Brush Resources

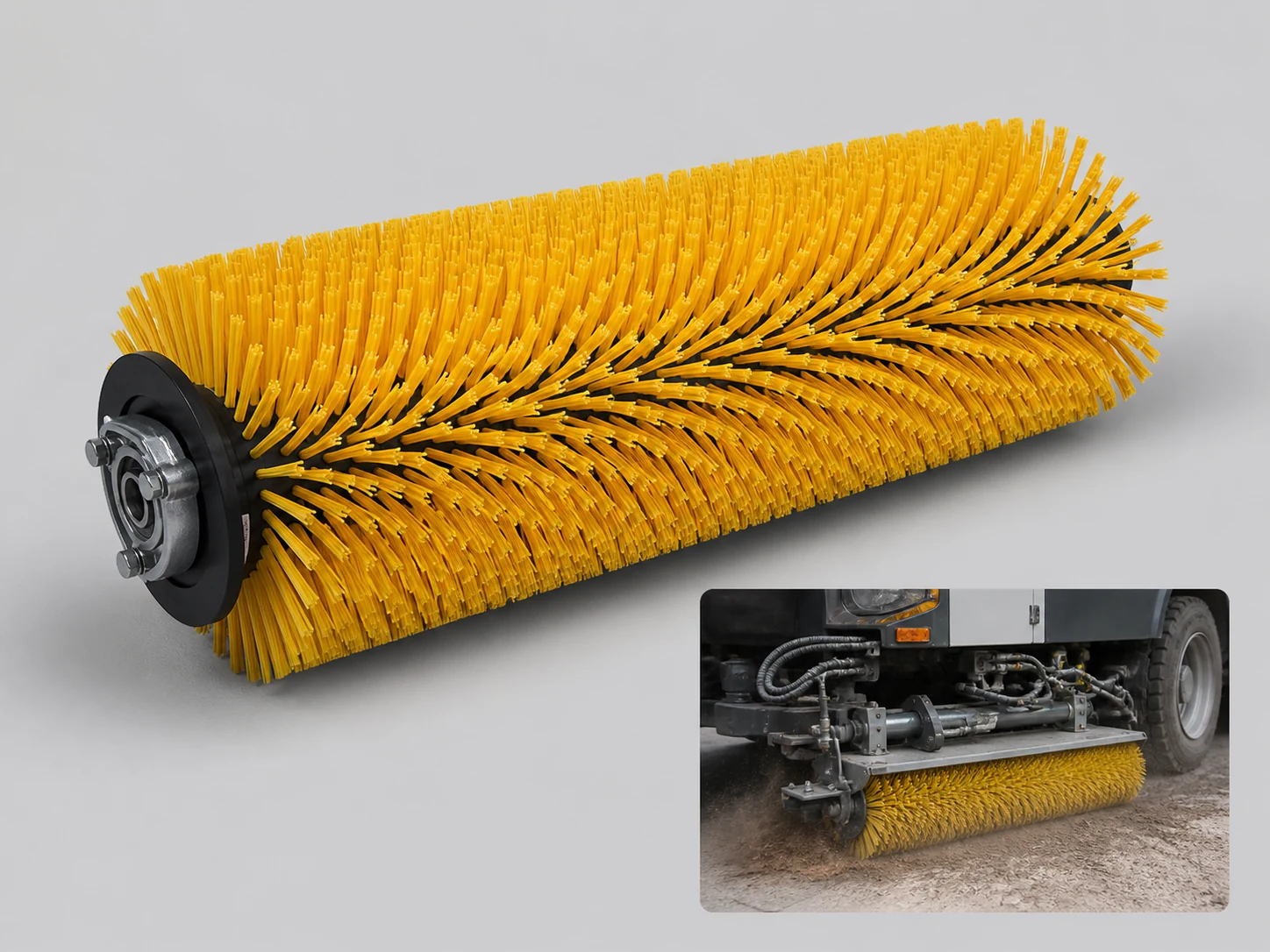

Road Sweeper Brush
Rotating main broom in PP, nylon PA or carbon steel wire, configured to your sweeper model, debris mix and curb-edge conditions across the full path.
See the specification

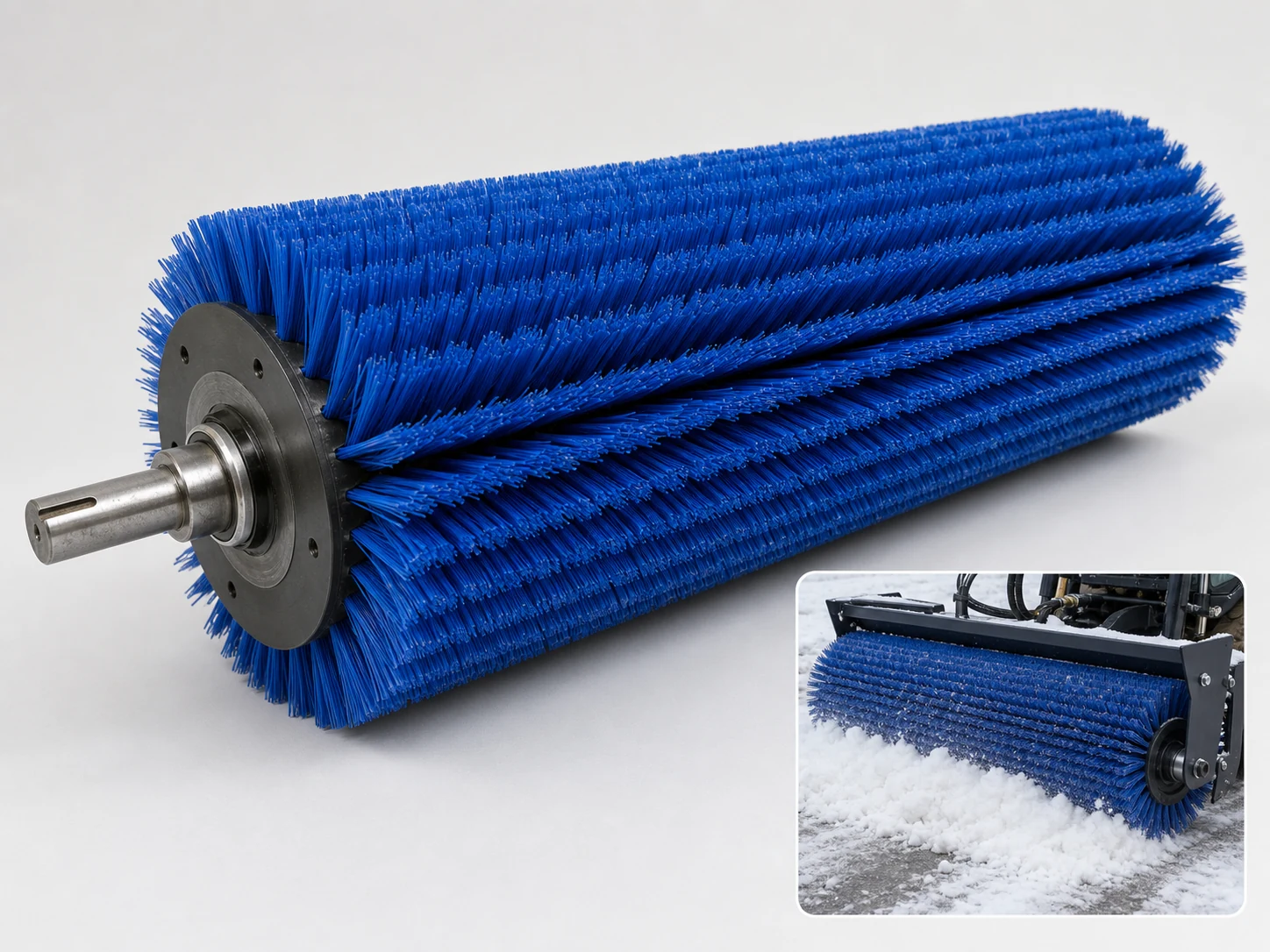

Snow Sweeping Roller Brush
