What Is Trim Length and Why Does It Matter?
Trim length is the distance a bristle or filament extends from the brush body or base. It is normally measured from the face of the brush block or stem to the tip of the filament. Common units are millimeters (mm) or inches.
For engineering drawing, dimensions, tolerance, thread, fit, and RFQ specification context, this section references ASME — Y14.5 Dimensioning and Tolerancing.
For SI measurement and unit specification context, this section references NIST — Metric SI.
For brush construction terminology, bristle/fill/backing/stem terms, this section references American Brush Manufacturers Association — Brush Lingo.
Trim length directly affects how aggressively the brush works, how much material it reaches, and how the bristles flex under load. A longer trim bends more, covers a wider contact area, and wears differently than a shorter trim.
What Is Bristle Density and How Is It Measured?
Bristle density refers to how tightly filaments are packed in the brush. It is most often specified as the number of filaments per square centimeter (filaments/cm²) or, for strip and coil brushes, as the number of tufts or filaments per linear unit.
A higher density means more contact points per area, which can improve cleaning or finishing consistency but also increases stiffness, material cost, and manufacturing complexity. A lower density can save money when the application does not demand maximum fill.
How Trim Length Affects Performance and Brush Life
- Flexibility and aggressiveness: Longer bristles flex more, which can soften the brushing action. Shorter bristles transfer more energy directly, making the brush feel harder.
- Reach and clearance: Longer trim reaches deeper recesses, irregular surfaces, or larger bores. If the trim is too short, the brush may not make good contact.
- Wear pattern: Longer trim wears differently because the filament bends more during use. In some cases, it can lead to uneven tip wear or premature fatigue near the base.
- Brush life: A slightly longer trim can sometimes extend useful life if the application tolerates the increased flex, because more filament length is available to wear before replacement.
Common Trim Length and Density Ranges by Application
| Application Type | Typical Trim Length | Typical Density Range | Why It Works |
|---|---|---|---|
| Internal cleaning (tubes, cylinders) | 5–25 mm | Medium to high | Short enough to stay rigid inside bores; high density for thorough contact |
| Surface polishing | 10–30 mm | Low to medium | Longer flex evens out pressure; lower density prevents overloading |
| Conveyor cleaning / strip brushes | 25–150 mm | Variable; often specified as tufts/inch | Long trim for adjustable contact; tuft spacing governs cleaning intensity |
| Deburring / edge radiusing | 10–20 mm | Medium to high | Shorter, denser fill ensures consistent edge contact |
How to Specify Trim Length and Density in a Custom Order
When you prepare a technical quotation request, include these details to get an accurate proposal:

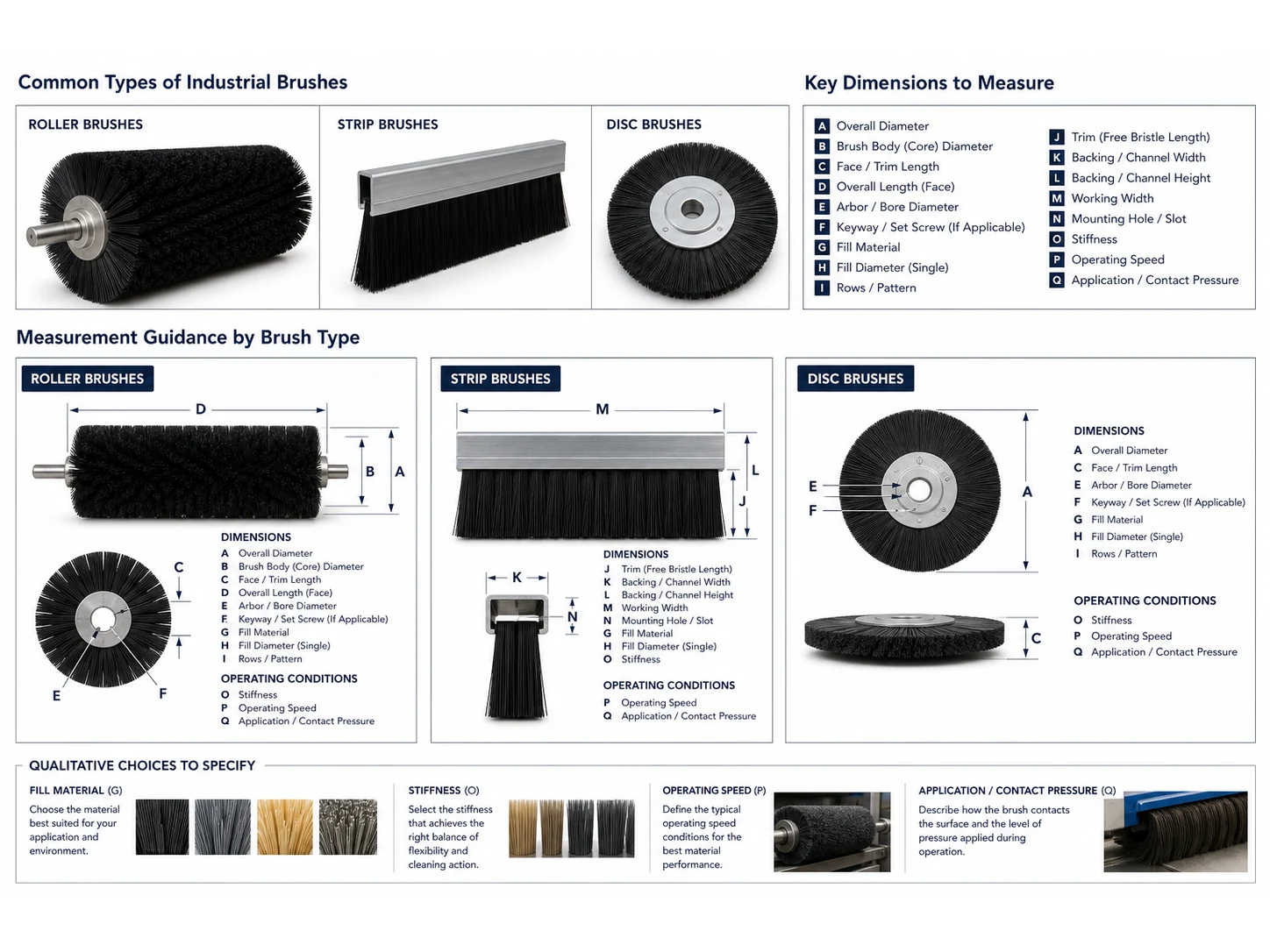

- Trim length: State the required length from the base to the filament tip. Use mm or inches and specify whether the measurement includes any backing or hub.
- Overall brush diameter (for rotary brushes): If the brush is round, the trim length is often half the difference between the overall diameter and the core diameter. Mention both if possible.
- Density: Specify filaments per cm², tufts per linear inch/cm, or a reference standard (e.g., “same density as sample A”). If you cannot measure density, provide a photo or sample.
- Filament material and diameter: Density alone does not define stiffness; filament gauge and material also matter. Mention both.
- Application description: A short note about what the brush will do helps the supplier confirm whether your numbers are realistic.
Common Mistakes When Specifying Brush Dimensions
- Over-specifying density: Requesting the highest possible density can drive up cost and make the brush overly stiff, reducing flexibility and increasing the risk of filament breakage. Unless your process demands extreme fill, a moderate density often performs better and lasts longer.
- Confusing trim length with overall length: For brushes with a handle or shaft, the trim length is only the protrusion of the filaments from the body, not the total length of the tool.
- Ignoring filament diameter: A thin filament at high density may still be soft; a thick filament at low density can be very aggressive. Balance both together.
- Using density alone to control stiffness: Bristle stiffness is largely determined by material, filament cross‑section, and trim length. Two brushes with the same density can feel completely different if the filament type differs.
- Omitting tolerance expectations: Trim length and density always have manufacturing tolerances. Not stating acceptable limits can lead to a brush that works differently than intended on first test.
When Do You Need a Physical Sample for Density Reference?
If density is critical—for example, when cleaning a sensitive surface or matching an existing brush in the field—a physical sample can eliminate guesswork. Ask the supplier to produce a small sample section with the proposed density. You can then evaluate feel, stiffness, and contact pattern before committing to full production.
Samples are especially useful when:
- The application involves food contact or requires compliance with specific sanitary standards.
- You are switching filament material and need to compare feel and wear directly.
- The brush works in a complex profile (e.g., spiral, internal grooves) where theoretical density may not play out as expected in practice.
How to Decide Between a Few Sample Brushes vs. Direct Order
If you have measured density on an existing brush and the supplier confirms they can replicate it within a reasonable tolerance, direct ordering is often safe. However, if your specification is based on a surface finish requirement (“must leave Ra < 0.8 µm”) rather than a hard density number, a test sample is almost always cheaper than a full batch that does not perform.
Practical Use Note
In daily use, the practical test is simple: check whether the brush reaches the full contact area, removes the target residue, and leaves the surface in the required condition. Record what changes when drawings, dimensions, mounting interface, filament material, stiffness, sample testing, and actual working conditions changes, because many brush failures are caused by the working condition shifting rather than by the brush body alone.
Bottom Line
The best result comes from matching brush trim length and density: how to specify for custom orders to the real cleaning task rather than forcing one brush to solve every condition. Confirm access, residue, surface limits, and replacement routine first; then use a small trial or inspection step before scaling the method into daily work.
Frequently Asked Questions
What is the difference between filaments per cm² and tufts per inch?
Filaments per cm² counts individual bristle strands per square centimeter. Tufts per inch (or per centimeter) counts the number of holes or bundles along a strip. A single tuft can contain many filaments, so the two numbers are not directly interchangeable without knowing the filaments per tuft.
How do I measure trim length on an existing brush?
Measure from the base of the filament (where it exits the brush body) to the tip. For strip brushes, measure in several places along the length and average those values. For rotary brushes, measure from the core surface to the outer tip; half the difference between overall diameter and core diameter is the trim length.
Can I specify density based on a competitor’s part number?
Competitor part numbers do not reliably communicate density. Most catalog brushes do not publish exact filament counts. Instead, provide a sample brush or measure density yourself using a simple grid counting method. Suppliers can often match a sample more accurately than a guessed specification.
Will a higher density always make the brush last longer?
Not necessarily. Very high density can restrict filament movement, concentrate stress at the base, and cause early breakage. The filament material, diameter, and application speed often matter more for brush life than density alone.
What tolerance should I allow for trim length and density?
Trim length tolerance typically ranges from ±10% for common applications to ±5% for precision finishing. Density tolerance is harder to nail down; a ±15% variation in filament count is common in industrial brushes unless a tighter range is specifically agreed upon with the manufacturer.
Is it possible to order a brush with two different trim lengths?
Yes. Some strip brushes, cup brushes, or end brushes are produced with dual or graduated trim lengths. If your application needs a stiff inner ring and softer outer ring (or vice versa), ask the supplier about dual‑trim options early in the specification process.
How do I convert between inches and millimeters for trim length?
Multiply inches by 25.4 to get millimeters. For example, 0.5 inch = 12.7 mm. Most industrial brush manufacturers work in both units, but drawings should clearly state which unit is used to avoid conversion errors.
Do I need to specify density if I provide a brush drawing?
A drawing that shows hole patterns, tuft locations, and filament type can be enough if it closely controls the layout. For dense fills, also state the expected number of filaments per hole or per area to avoid a loosely packed brush that looks right in the drawing but feels wrong in use.
