What Is a Double Ended Cleaning Brush?
A double ended cleaning brush is a maintenance tool with two working ends, typically equipped with different bristle types, sizes, or shapes. In rust removal, each end serves a distinct purpose: one end might aggressively knock off heavy rust scale, while the other reaches into corners or polishes the surface. These brushes are commonly used in gunsmithing for cleaning barrels, in automotive work for restoring engine parts, and in industrial maintenance for scrubbing pipes and valves.
Common Types and Options for Rust Removal
Not all double ended cleaning brushes are built alike. The option that works well on hardened steel firearm parts may scratch aluminum or brass components. Below are the main configurations you’ll encounter:
- Wire bristle materials: Carbon steel, stainless steel, brass, and nylon. Each offers different aggression and corrosion resistance.
- Brush shapes: Cylindrical, tapered, and spiral. Shapes affect how the bristles engage rust in corners or along contours.
- Shaft and mounting options: Hex shank, quick-change, or threaded ends for compatibility with drills, rotary tools, and cleaning rods.
- Bristle configuration: Crimped, twisted, or straight wire. Crimped bristles provide even wear; twisted bristles offer aggressive cutting.
Key Factors for Selecting the Right Brush
Matching the brush to the job prevents damage and reduces rework. Evaluate these factors before purchase:
Bristle Material and Hardness
For heavily rusted steel parts, carbon steel bristles cut fast but can embed and cause corrosion if not cleaned properly. Stainless steel bristles resist corrosion and are better for cleaning stainless or aluminum components. Brass and nylon brushes are non-marring and ideal for soft metals or final finishing.
Diameter and Reach
A double ended brush often combines two diameters. For gun barrels, one end matches the bore size exactly; the other might be oversize to clean the chamber. In industrial pipe cleaning, a narrow end clears the pipe interior while a wider end brushes threads or flanges.
Mounting Style and Tool Compatibility
Ensure the shank fits your rotary tool, drill, or manual handle. Some brushes screw onto a rod; others have hex shanks. Quick-change designs reduce downtime during high-volume rust removal.
Chemical Resistance
If you use rust dissolvers or penetrating oils, select bristles that won’t degrade. Nylon bristles resist most solvents, while natural fiber brushes may swell. Stainless steel wire holds up well to acids and alkalis.
Using Your Double Ended Brush Effectively
Always wear eye protection and inspect the brush for loose wires before use. Run the brush at the recommended RPM—excessive speed can throw wires and damage the surface. For deep rust, start with the aggressive end, then switch to the finer end for a clean finish. Apply light, even pressure; let the bristles do the work. Clean the brush after use to prevent rust transfer.
Surface and Brush Match Table
| Check point | What to confirm | Why it matters |
|---|---|---|
| Base material | Confirm hardness, coating, and scratch tolerance | A brush that is too aggressive changes the part, not just the residue |
| Target finish | Define burr removal, oxide removal, or blending goal | Prevents over-brushing and inconsistent results |
| Speed and pressure | Control contact force and dwell time | Extends brush life and reduces heat or gouging |
| Inspection point | Check the surface after a short trial | Validates the process before full production |

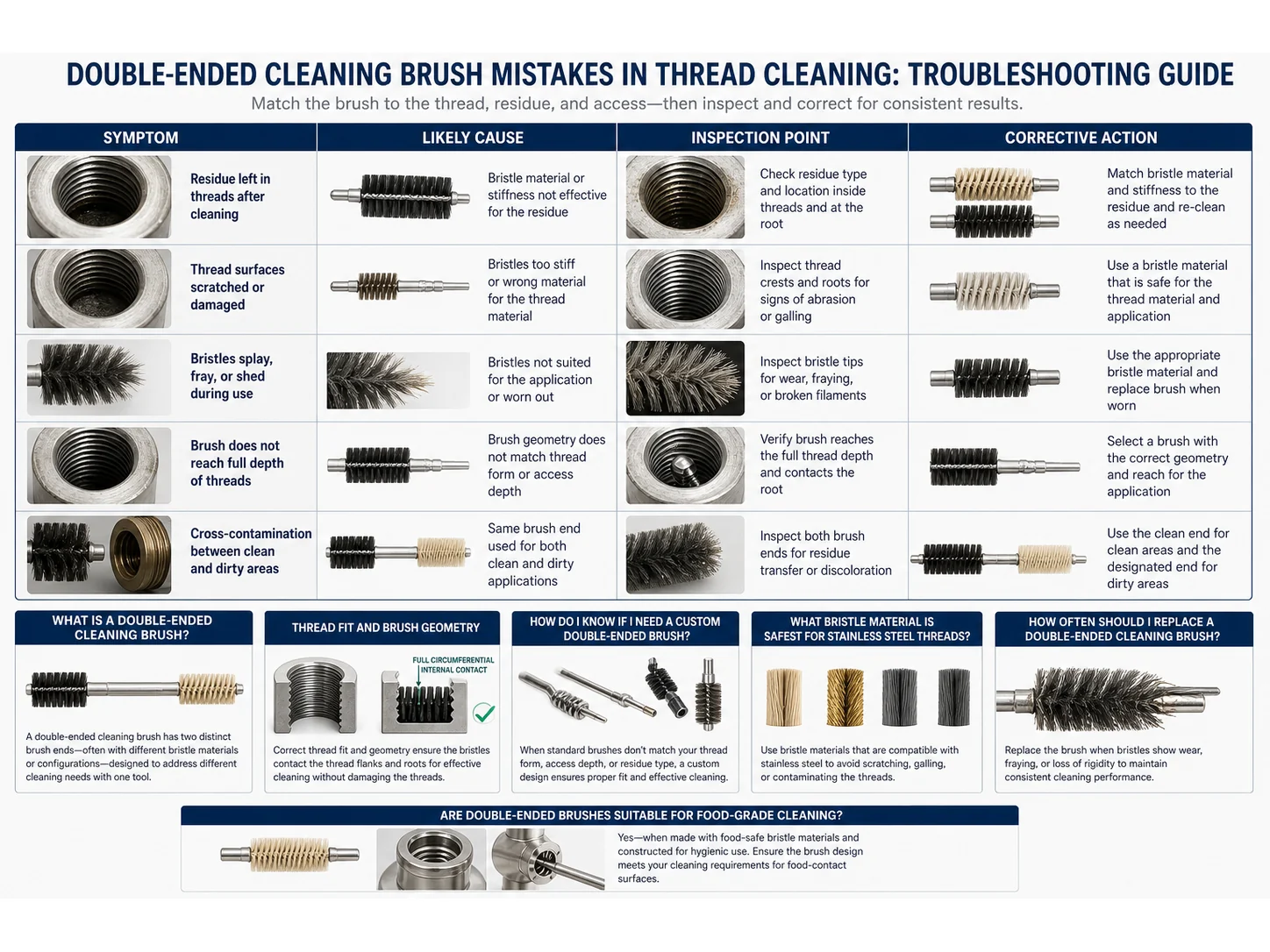

Common Mistakes to Avoid
- Choosing only by product name instead of access, residue, and surface limits.
- Using a brush that is too aggressive because the first trial looks faster.
- Ignoring where loosened debris will go after brushing.
- Keeping the brush in service after bristles bend, shed, load with residue, or stop reaching the target area.
- Treating brushing as the whole cleaning method when inspection, flushing, vacuuming, machine adjustment, or sanitation controls are also needed.
When a Double-Ended Cleaning Brush Is the Wrong Choice
This brush is not enough when the main problem is blocked access, unsafe working conditions, damaged equipment, incompatible chemicals, or a process setting that keeps recreating the residue. In those cases, review head size, filament type, solvent handling, and the surface finish requirement and confirm the surrounding cleaning method before increasing brush stiffness or contact pressure.
How to Check the Result
After brushing, inspect both the cleaned area and the brush. A good result removes the target soil while leaving the surface, bristles, mounting, and nearby components in acceptable condition. If cleaning improves only when pressure is increased sharply, the brush specification or the surrounding process should be reviewed.
Bottom Line
The best result comes from matching double ended cleaning brush for rust removal to the real cleaning task rather than forcing one brush to solve every condition. Confirm access, residue, surface limits, and replacement routine first; then use a small trial or inspection step before scaling the method into daily work.
Frequently Asked Questions
Can a double ended cleaning brush remove rust from gun barrels without damaging the rifling?
Yes, when you choose a brush with appropriately sized brass or nylon bristles. Always use a cleaning rod guide and avoid steel bristles unless the barrel is heavily rusted and you’re prepared to re-crown or lap afterward.
What RPM should I use for a wire brush in a drill?
Typically, 2,500–3,500 RPM for crimped wire brushes. Exceeding this can cause wire breakage and increased risk of injury. Refer to the brush manufacturer’s specifications.
How do I prevent flash rust after mechanical cleaning?
Immediately after rust removal, wipe the surface with a lint-free cloth and apply a rust inhibitor or light oil. If you used a water-based cleaner, dry the part completely before storage.
Are double ended brushes only for power tools?
No. Many double ended brushes come with looped handles or are designed for manual cleaning rods. Manual use gives you more control for delicate parts or when working in tight spaces.
Why do the two ends usually differ in stiffness rather than only in size?
Because the pairing is a sequence, not a choice between two brushes. The stiffer end breaks and lifts the scale; the softer end clears what has been loosened without cutting into the metal that has just been exposed. Using the stiff end for both steps leaves visible scoring on the surface the first step just uncovered.
Technical References
Which steel wire grade fits this job — AISI 304 Stainless Steel Wire, AISI 316 Stainless Steel Wire or Carbon Steel Wire?
| Wire grade | Continuous temperature (°C) | Peak temperature (°C) | Water absorption | Hardness |
|---|---|---|---|---|
| AISI 304 Stainless Steel Wire | 400 | 500 | 0% | Rockwell B 70–95 depending on temper and cold work |
| AISI 316 Stainless Steel Wire | 400 | 500 | 0% | Rockwell B 70–95 depending on temper and cold work |
| Carbon Steel Wire | 200–300 | 350–450 | 0% | Rockwell C 40–60 |
| Galvanized Steel Wire | 150–200 | 250–300 | 0% | Rockwell B 70–100 |
Figures as published by Alleima; Material manufacturer TDS / ISO / ASTM / industry reference. Confirm the exact grade against the supplier datasheet before ordering.
What should replace AISI 304 Stainless Steel Wire when it stops working?
- AISI 304 Stainless Steel Wire — Use AISI 316 stainless steel wire for chloride, marine, dairy, beverage, chemical washdown, or higher pitting-resistance requirements. Use carbon steel for dry aggressive cutting and brass or abrasive nylon for lower marking risk.
- Nylon PA — Compare Nylon PA with PP, PBT, PET. Change material when wet stiffness, temperature, chemical resistance, conductivity, particle shedding, or surface marking becomes the limiting factor.
