What Is an Endoscope Channel Cleaning Brush?
An endoscope channel cleaning brush is a thin, flexible brush designed to physically remove organic debris and biofilm from the internal channels of an endoscope. It typically consists of a twisted wire or plastic-coated shaft, with bristles or a scrubbing tip at the distal end, and a handle or connector at the proximal end. For biopsy channels, the brush must be small enough to pass through the full working length without scratching the delicate inner lining, yet abrasive enough to loosen dried residue after each procedure.
Common Types and Material Options
For reusable medical-device cleaning claims, the practical boundary is the device maker’s validated instructions and the FDA — Reprocessing Medical Devices in Health Care Settings rather than a brush-only rule.
For healthcare cleaning language, this article keeps its claims within the general boundary of the CDC — Disinfection and Sterilization Guideline, which is written for disinfection and sterilization in healthcare facilities.
Where the article discusses healthcare settings rather than ordinary cleaning, the CDC — Core Infection Prevention and Control Practices is used as the general infection-control frame.
For brush terminology and construction language, this section references American Brush Manufacturers Association — Brush Lingo.
Before ordering a custom brush, it helps to understand the typical variations available. The three main areas where customization is possible are bristle material, shaft construction, and tip design.
- Nylon bristles are soft and non-abrasive, ideal for delicate channel linings. They are compatible with most enzymatic cleaners and high-level disinfectants.
- Polypropylene bristles offer slightly more stiffness for stubborn residue but remain gentle enough for scope channels.
- Stainless steel bristles should be avoided for biopsy channels unless the channel is rated for such abrasion; they are more common in rigid scopes or non-medical tubing.
- Brush shafts often use twisted stainless steel wire, which provides excellent pushability and torque control. A plastic or polymer coating over the wire reduces the risk of scratching the channel interior.
- Tip configurations range from single-ended brushes to double-ended designs, and some include a soft sponge tip or a retrieval mechanism for biopsy caps or foreign bodies.
Comparison of Brush Shaft and Bristle Options for Biopsy Channels
| Feature | Nylon Bristle / Coated Wire Shaft | Polypropylene Bristle / Coated Wire Shaft | Bare Twisted Wire Shaft | All-Plastic Monofilament Shaft |
|---|---|---|---|---|
| Channel compatibility | Excellent for flexible endoscopes | Excellent for flexible endoscopes | Risk of scratching; use with caution | Only if shaft is smooth and kink-resistant |
| Residue removal | Good for routine biofilm and mucus | Better for sticky or dried debris | Very effective but abrasive | Low residue removal; more suited for flushing |
| Shaft flexibility | High, easily navigates bends | High, easily navigates bends | High but may damage channel walls | Moderate; may kink in tight curves |
| Sterilization compatibility | Autoclave, EtO, H2O2 plasma | Autoclave, EtO, H2O2 plasma | Autoclave, EtO, H2O2 plasma | Check material; limited thermal tolerance |
| Reusability | Often reusable if validated | Often reusable if validated | Reusable but risk of channel wear | Typically single-use |
| Custom sizing | Easy to tailor diameter and length | Easy to tailor diameter and length | Easy to tailor diameter and length | Limited length due to extrusion constraints |
Key Factors to Verify When Ordering a Custom Brush
To ensure the custom brush fits your scope and cleaning protocol, include these specifications in your RFQ or design review:
- Channel inner diameter (ID) and working length: Measure the exact ID of the biopsy channel (often 2.0, 2.8, or 3.2 mm for gastroscopes and colonoscopes). The brush outer diameter should be slightly smaller, usually 0.5–0.8 mm less, to allow free passage while maintaining contact. Provide the precise working length (tip of insertion tube to biopsy port).
- Bristle stiffness and material: Specify the type of debris you are cleaning (mucus, tissue, biofilm, or dried blood) and the channel lining material. Nylon is a safe default; polypropylene may be needed for heavier residue.
- Shaft coating: Request a polymer coating (e.g., PTFE or polyolefin) on the twisted wire shaft to prevent metal-to-channel contact. If an uncoated shaft is necessary for flexibility, ensure it is polished and burr-free.
- Tip design: Decide between a simple bristle tip, a double-sided brush for bidirectional cleaning, or a specialized tip (e.g., sponge, cup, or retrieval loop) if you also need to remove foreign objects.
- Handle or connector type: The proximal end must terminate in a secure grip or a luer lock-style adapter if the brush is used with a flushing device. Check compatibility with your cleaning station.
- Sterilization method: Confirm that all brush components withstand your facility’s sterilization process (steam autoclave, ethylene oxide, or hydrogen peroxide gas plasma). Request material certifications or test data.
- Packaging and single-use vs. reusable: If the brush is intended for single-use, specify sterile, individual peel pouches. For reusable brushes, request cleaning and sterilization instructions valid for the expected number of cycles.
- Regulatory documentation: Ask for the brush’s status under your local medical device regulations (e.g., FDA 510(k) clearance, CE marking) and any biocompatibility test reports, without assuming the supplier has them.

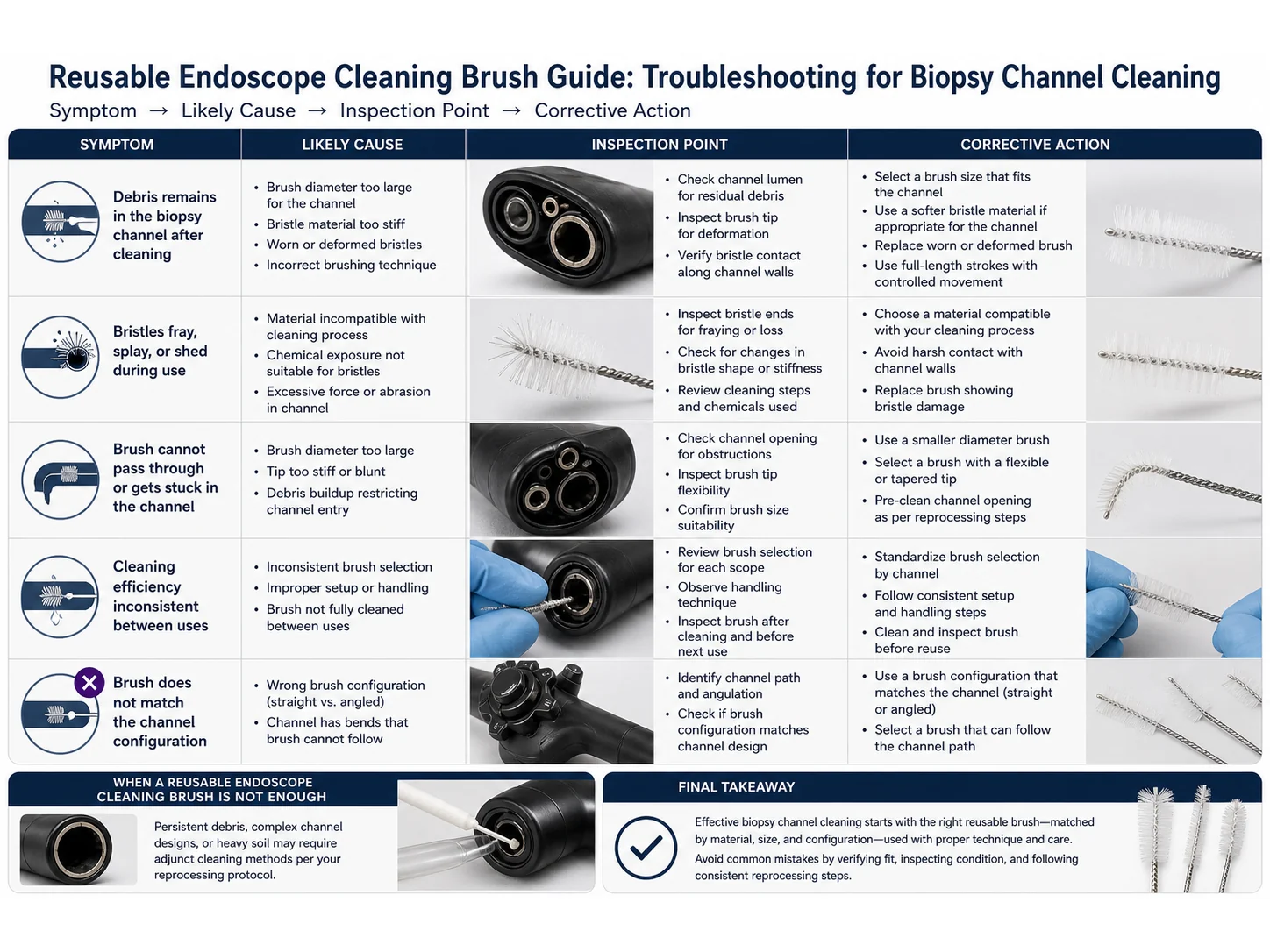

Common Mistakes to Avoid
- Measuring the outer diameter of the scope, not the channel: The biopsy channel is a small inner lumen; its diameter must be measured using a pin gauge or by consulting the scope manufacturer’s specifications. Never estimate from the insertion tube OD.
- Assuming one brush fits all endoscopes: Different scope brands and models (Olympus, Pentax, Fujifilm) have slightly different channel diameters and working lengths. Always verify per model.
- Ignoring the brush tip profile during insertion: A brush with a sharp or blunt tip can catch on the biopsy port edge or valve, causing damage. Confirm that the distal tip is smooth and atraumatic.
- Overlooking shaft column strength: A very long, thin shaft can buckle inside the channel if it lacks sufficient stiffness. Ask for pushability test data or a sample.
- Choosing bristles solely on cleaning power: Aggressive bristles may remove residue effectively but can micro-abrade the channel, leading to increased biofilm retention over time. Balance cleaning efficacy with surface preservation.
- Failing to validate sterilization compatibility: A brush that deforms or releases particles after repeated sterilization cycles can itself become a contamination source. Perform your own cycle testing with a sample.
When an Endoscope Channel Cleaning Brush Is Not Enough
An endoscope channel cleaning brush is essential, but it has limits. If the biopsy channel has deep scratches, pitting, or visible damage, brushing alone will not restore safety—the scope may need manufacturer evaluation or repair. For channels with heavy, hardened biofilm that resists manual brushing, an automated endoscope reprocessor (AER) with enzymatic pre-soaking and pressure flushing is often required. In rare cases, a biopsy channel replacement may be necessary. Also, some flexible ureteroscopes have ultra-thin channels (< 1.2 mm) that require purpose-designed micro-brushes, not standard biopsy brushes. Always consult your scope IFU (Instructions for Use) and involve clinical engineering if channel integrity is in question.
Final Takeaway
Ordering a custom endoscope channel cleaning brush for biopsy channel cleaning starts with precise measurements and a clear understanding of the residue challenge and channel sensitivity. Use the checklist of factors above to build a complete RFQ, request a supplier drawing or sample for in-house testing, and never sacrifice channel safety for aggressive cleaning. A well-matched brush extends scope life, improves patient safety, and streamlines reprocessing workflows.
Frequently Asked Questions
Can I use the same brush for different scope models if the channel diameter seems similar?
Not without verification. Even a 0.1 mm difference in internal diameter can cause a brush to stick, scratch, or fail to clean effectively. Always check the exact channel specifications for each model and, if in doubt, request a brush sample for fit testing before bulk ordering.
How do I measure the biopsy channel diameter accurately?
Use a calibrated pin gauge set or refer to the endoscope manufacturer’s technical data. Do not rely on caliper measurements of the scope exterior. For custom brushes, providing the exact gauge size that passes freely through the entire channel is the most reliable method.
What is the safest bristle material for routine biopsy channel cleaning?
Nylon bristles with a soft to medium stiffness are generally the safest for most flexible endoscopes. They remove organic debris without scratching the channel lining and are compatible with common enzymatic cleaners and high-level disinfectants. If tougher residue is present, a slightly stiffer polypropylene may be acceptable after testing.
Should I order reusable or disposable endoscope channel cleaning brushes?
Disposable brushes eliminate the risk of cross-contamination from inadequate sterilization and are often preferred for single-procedure use. Reusable brushes reduce waste and per-procedure cost but require validated cleaning and sterilization processes. The decision depends on your facility’s throughput, infection control policies, and the ability to inspect and replace reusable brushes at set intervals.
How can I check that the custom brush won’t damage my scope before using it in production?
Request a pre-production sample and perform a visual and tactile inspection in a non-critical, off-service scope. Run the brush through the full working length several times while observing for any resistance, scratching, or debris shedding. Use a borescope inspection of the channel afterward to confirm no surface changes. Only after passing these tests should you approve the design for full production.
What information should I include in a request for quotation (RFQ) for a custom brush?
Include the exact channel inner diameter and working length, scope model and manufacturer, bristle material preference, shaft coating requirement, tip configuration, sterilization method, single-use or reusable designation, regulatory documentation needs (e.g., biocompatibility, FDA class), expected annual volume, and target cost drivers range. Attach a simple drawing or dimensions worksheet to reduce ambiguity.
How do I validate that a custom brush meets regulatory standards for medical use?
Ask the supplier for a Declaration of Conformity if CE marked, or a 510(k) summary for FDA-cleared devices. Request biocompatibility test reports according to ISO 10993, and material certificates for all polymer and metal components. Do not rely solely on supplier claims; verify documentation with your quality or regulatory affairs team before clinical use.
