What Is a Precision Wafer Brush?
A precision wafer brush is a contamination-controlled brush used in semiconductor, flat panel display, and other high-tech manufacturing environments. Its primary role is to clean wafer carriers, cassettes, and transport trays that hold silicon wafers, photomasks, or glass substrates during fabrication. Unlike general-purpose brushes, these tools are made from ultra-clean, low-shedding materials with tightly controlled filament dimensions. Even a tiny particle release or outgassing can cause yield loss, making material choice and construction quality critical.
Key Material and Construction Options
For static-control claims, this article uses EOS/ESD Association — ESD Fundamentals as the ESD reference.
For static-control claims, this article uses EOS/ESD Association — Principles of ESD Control as the ESD reference.
For semiconductor and wafer-cleaning context, NISTIR 4653 — Metrology for the Semiconductor Industry is used as the precision-cleaning and contamination-control reference.
For cleanroom-classification language, this article points to the official ISO 14644-1 Cleanrooms and Associated Controlled Environments standard page rather than inventing cleanliness claims.
For brush terminology and construction language, this section references American Brush Manufacturers Association — Brush Lingo.
Selecting the right material is the first step. The table below compares common filament materials used in precision wafer brushes, along with their typical characteristics.
| Material | Stiffness (Typical) | Chemical Compatibility | Particle Shedding Risk | Common Use Case |
|---|---|---|---|---|
| High-purity PVA (Polyvinyl Alcohol) | Low to medium | Good with water and mild solvents; swells in strong acids | Very low (soft, absorbent) | General carrier cleaning in ISO 5+ environments |
| Nylon (6, 6/6, or specialty grades) | Medium to high | Resistant to many solvents; avoid strong acids | Low (when properly trimmed) | Stubborn residue removal on metal or robust carriers |
| PTFE (Teflon®) | Medium | Excellent chemical resistance; compatible with most chemicals | Low to medium (depends on fiber finish) | Wet chemical or solvent-based cleaning of quartz/polysilicon carriers |
| Conductive fibers (e.g., carbon-infused nylon) | Medium | Similar to base nylon; conductivity may affect chemical behavior | Low (ESD-safe, static dissipative) | Cleaning carriers in static-sensitive areas (e.g., back-end, assembly) |
Note: Filament diameter, density, and tip treatment also affect brush performance. A supplier’s material certificate and cleanroom packaging data should be reviewed for critical processes.
Stiffness and Diameter Considerations
Filament stiffness directly impacts cleaning effectiveness and the risk of scratching. A harder brush may remove baked-on residues faster but can also abrade soft surfaces like quartz or coated aluminum. The brush diameter must match carrier slot dimensions—too large can cause jamming; too small leaves residues. Work with internal or supplier drawings to specify tolerances.
Handles and mounting interfaces often include threaded adapters, magnetic quick-connects, or collet systems for automated scrubbers. Ensure compatibility with your wet bench or robotic tool interface before ordering.
How to Choose the Right Precision Wafer Brush for Your Carrier
Use this checklist to narrow down your options:
- Residue type: Is it organic (resist, oils), inorganic (oxide residues, metal particles), or a mix? PVA excels at light organic films; nylon or PTFE may be needed for tougher deposits.
- Surface material: Quartz, stainless steel, anodized aluminum, or high-performance plastics each have different scratch sensitivities.
- Equipment interface: Manual cleaning vs. automated end-effector. The brush must physically fit and operate within the tool’s motion envelope.
- Cleaning chemistry: Will the brush contact corrosive chemicals, strong acids, solvents, or only DI water? Verify material compatibility data from the supplier.
- Cleanroom classification: ISO Class 4 to 6 often demands low particle shedding and non-outgassing materials. Ask for outgassing test data if needed.
- Replacement frequency: High-usage lines may require replacing brushes weekly. Consider brush life in consumable cost calculations.
- Custom dimensions: Many carriers are proprietary. A non-standard brush may require a drawing review and sample lot for validation.

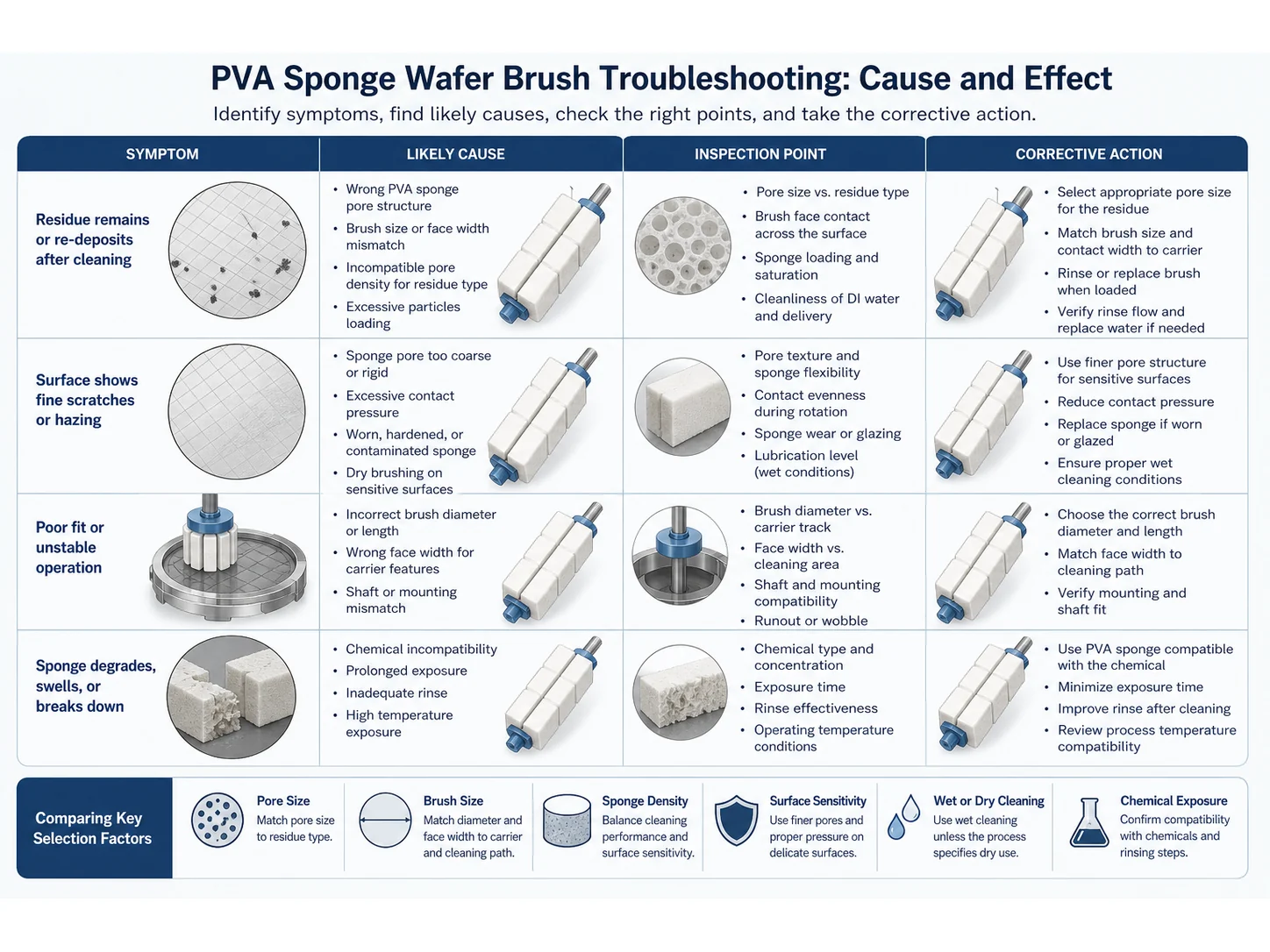

Common Mistakes When Selecting a Precision Wafer Brush
- Over-specifying stiffness: Choosing the stiffest brush available “just to be safe” often leads to micro-scratches that compromise carrier integrity over time.
- Ignoring chemical compatibility: A brush that works perfectly with DI water can dissolve or shed fibers when exposed to aggressive cleaning solutions.
- Prioritizing cost drivers over cleanroom compatibility: Sourcing a low-cost brush without cleanroom packaging or material traceability can introduce uncontrolled contamination.
- Neglecting the handle interface: Even a correctly specified filament can render the brush useless if it doesn’t attach securely to the cleaning tool.
- Skipping sample testing: Assumptions about residue removal or shed rates can be misleading. Always test with actual carrier lots before full rollout.
When a Precision Wafer Brush Is Not Enough
Precision wafer brushes are excellent for routine cleaning of accessible, smooth surfaces. However, they have limits:
- Extreme contamination: Carriers with baked-on carbon residues or deep scratches may require ultrasonic cleaning, aggressive chemical baths, or manual scraping before brush use.
- Non-standard form factors: If your carrier has complex internal channels or recesses, a standard brush may miss critical areas. A custom brush might be designed, but sometimes a combination of spray, immersion, and brush cleaning is more effective.
- Ultra-high cleanliness demands: For processes below ISO Class 3 or with tight outgassing requirements, even the best brush may not suffice. Consider wiping, immersion with certified cleanroom wipers, or a supplier’s fully validated system.
- High-volume automation: If cycle time and consistency push beyond a simple brush, an integrated cleaning module with multiple brush types and fluidics may be justified.
In these cases, consult with your brush supplier’s engineering team for a joint development approach, including drawing review and sample testing.
Final Takeaway
Choose a precision wafer brush when you need repeatable, low-damage cleaning of high-value carriers in controlled environments. Define your residue type, surface material, chemical exposure, and tool interface before comparing materials. Always validate with real samples, and don’t hesitate to request a supplier drawing review and cleanroom data when the process demands it. The right brush protects both the carrier and the wafers it holds.
Practical Use Note
In daily use, the practical test is simple: check whether the brush reaches the full contact area, removes the target residue, and leaves the surface in the required condition. Record what changes when ESD control, slot access, particle type, contact pressure, and component sensitivity changes, because many brush failures are caused by the working condition shifting rather than by the brush body alone.
Frequently Asked Questions
What makes a precision wafer brush different from a standard cleaning brush?
Precision wafer brushes are manufactured under stricter contamination controls, using materials with lower particle shedding and outgassing. Filament dimensions are held to tighter tolerances, and they often come with cleanroom packaging and traceability documentation.
Can I use a precision wafer brush with automated wafer handling equipment?
Yes, many precision brushes are designed with standardized mounting interfaces such as threaded studs, magnetic couplers, or collet chucks. Always verify mechanical compatibility with your specific tool’s end-effector specifications.
How often should I replace a precision wafer brush?
Replacement cycles depend on usage frequency, residue abrasiveness, and cleaning chemistry. In high-usage fabs, brushes may be replaced weekly. Monitor filament wear, chemical attack, and shed counts to establish a preventive replacement schedule.
What chemical cleaning agents are typically safe with these brushes?
It depends on the filament material. PVA is generally safe with DI water and mild alkaline cleaners but degrades in strong acids. PTFE withstands most common solvents and acids. Always request a chemical compatibility chart from the supplier before introducing new chemistries.
Is a stiffer brush always better for stubborn residues?
No. Stiffer filaments can increase cleaning rate but also risk micro-scratching sensitive carrier surfaces. Start with a softer material and only increase stiffness if testing on non-critical carriers shows insufficient removal without damage.
Do I need a custom brush size for my carrier?
If your carrier slots or dimensions do not match standard brush sizes, a custom design may be necessary. Provide accurate drawings and tolerance requirements to the brush manufacturer; they can often match existing tool interfaces while customizing the filament area.
How do I validate that a brush meets cleanroom standards?
Request material certifications, particle release test data (often following IEST-RP-CC004 or similar), outgassing reports if needed, and packaging conformity certificates. Then run in situ tests with your actual carriers and cleaning process to confirm performance.
