What Is a PVA Sponge Brush?
A PVA sponge brush is a brush roller or brush insert whose body is made from porous, absorbent polyvinyl acetal sponge. In wafer cleaning, it is typically used in scrubber tools to remove particles, residues, and chemical contamination from silicon, gallium arsenide, or other substrates without scratching. The open-cell structure holds cleaning fluids and allows for gentle mechanical contact, making it suitable for intermetal dielectric or bare silicon surfaces where scratch sensitivity is high.
Common PVA Sponge Brush Options for Wafer Cleaning
For semiconductor and wafer-cleaning context, NISTIR 4653 — Metrology for the Semiconductor Industry is used as the precision-cleaning and contamination-control reference.
For cleanroom-classification language, this article points to the official ISO 14644-1 Cleanrooms and Associated Controlled Environments standard page rather than inventing cleanliness claims.
For material-selection language, this section is supported by British Plastics Federation — Thermoplastics.
For brush terminology and construction language, this section references American Brush Manufacturers Association — Brush Lingo.
PVA sponge brushes are not one-size-fits-all. They vary in several key dimensions that determine performance and compatibility with different wafer scrubber tools. Common options include:
- Stiffness grade – typically soft, medium, or hard, controlled by pore size and material formulation.
- Diameter and length – must match the roller assembly and wafer size (e.g., 200mm or 300mm wafers).
- Core design – solid, tubular, or channeled cores for fluid flow and mounting.
- End style – plain, flanged, or custom caps to fit drive mechanisms.
- Surface contour – smooth, grooved, or helical patterns to influence fluid dynamics and contact pressure.
- Custom dimensions – many suppliers offer made-to-order brushes for specific tool models or novel cleaning stages.
PVA Sponge vs. Other Wafer Cleaning Brush Materials
While PVA is a common choice, other materials may be more suitable depending on the cleaning application. The table below compares key brush types used in semiconductor wafer cleaning.
| Brush Material | Typical Use Case | Key Advantages | Key Limitations |
|---|---|---|---|
| PVA Sponge | Post-CMP cleaning, delicate dielectric or bare silicon surfaces | High absorbency, very soft, low particle shedding, good fluid retention | Limited chemical resistance (pH 2–10 typical), swells in some solvents, shorter lifespan with aggressive chemistries |
| Nylon Brush | Heavy particle removal, oxide strip cleaning | Chemically durable, can withstand higher pH and temperature, good mechanical strength | Can scratch sensitive surfaces, may generate more particles, less absorbent |
| Mohair or Natural Hair Brush | Final cleaning, high-purity applications | Ultra-soft, very low defect potential, excellent wettability | Higher cost, limited chemical compatibility, may shed fibers, shorter tool life |
How to Choose the Right PVA Sponge Brush for Your Wafer Process
Selecting the correct brush requires evaluating several process-specific factors. Use the following checklist to guide your decision:
- Residue type – organic residues, metal contaminants, or abrasive particles? PVA excels at removing soft, water-soluble residues but may not handle hard particles well.
- Surface sensitivity – what is the scratch threshold? For low-k dielectrics or very fine line structures, a soft PVA grade is essential.
- Chemical exposure – what chemicals does the brush contact? PVA degrades in strong acids (pH < 2) or bases (pH > 10) and some organic solvents. Always verify chemical compatibility with the brush supplier.
- Equipment interface – note the roller diameter, length, core ID, drive keyway, and mounting style. Provide a tool model or drawing to ensure the brush fits correctly.
- Wet process conditions – temperature, immersion depth, scrubber pressure, and rotation speed can affect brush life and performance.
- Hygiene requirements – cleanroom class and cross-contamination risks. PVA brushes are inherently clean but must be stored and handled properly.
- Maintenance frequency – how often will brushes be replaced? A longer-lasting material may reduce downtime but cost more per brush.
- Custom sizing – if your tool uses a non-standard brush dimension, request a drawing review from the supplier. Do not assume off-the-shelf parts will fit.

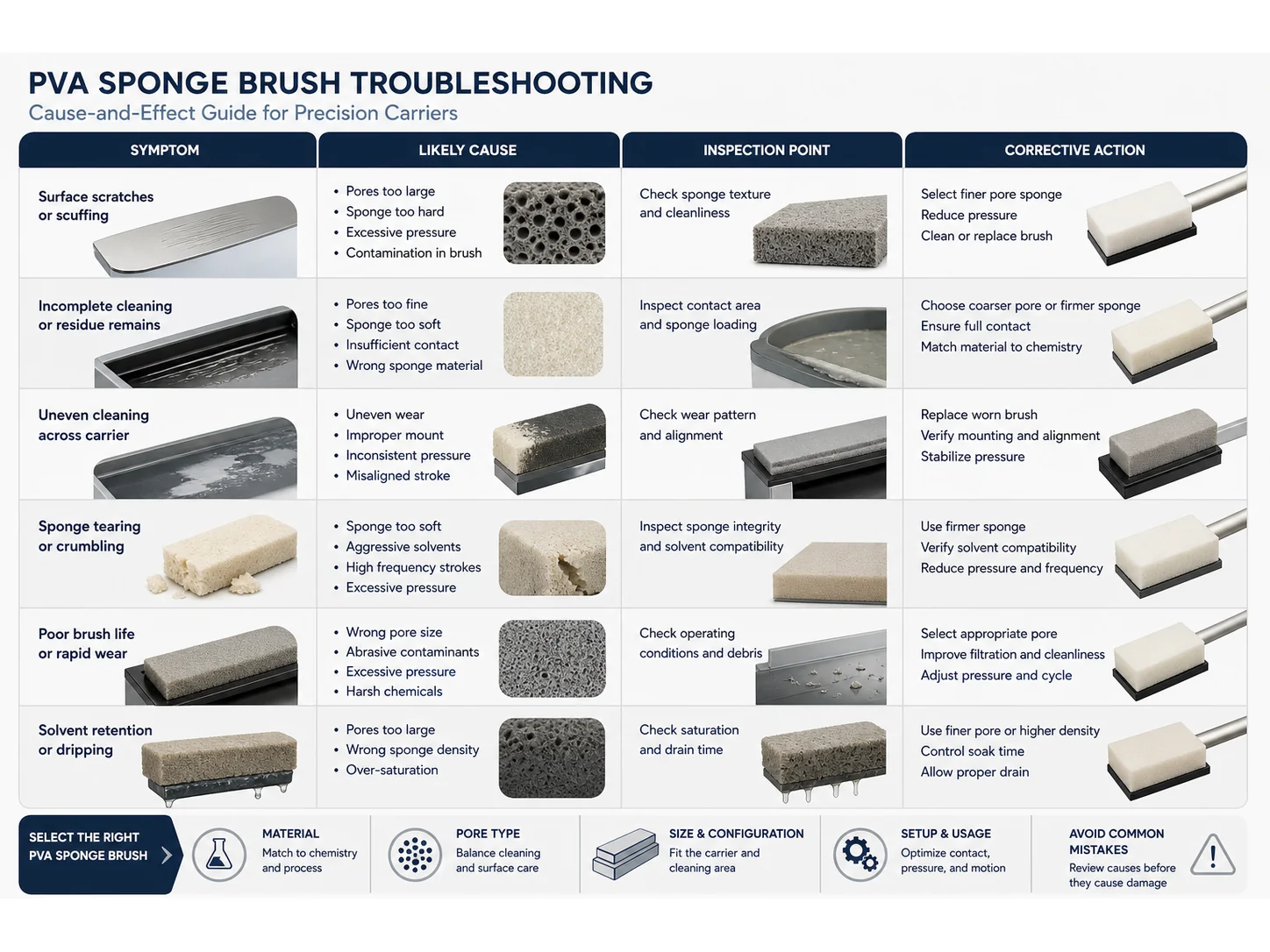

Common Mistakes When Selecting or Using PVA Sponge Brushes
Even experienced teams can overlook critical details. Avoid these frequent errors:
- Choosing by cost drivers alone – a cheaper brush that fails prematurely or scratches wafers costs far more in yield loss than the initial savings.
- Ignoring chemical compatibility – a PVA brush can swell, soften, or disintegrate in incompatible chemicals, contaminating the line and damaging wafers.
- Skipping sample testing – Some teams invest in bulk without validating the brush in their actual process. A sample test under real chemical and mechanical conditions is essential to confirm cleaning performance and particle removal efficiency.
By understanding the material properties, process conditions, and available options, engineers can confidently select the right PVA sponge brush for wafer cleaning. Always prioritize sample testing and follow supplier guidelines to maintain process stability and high yield.
Practical Use Note
In daily use, the practical test is simple: check whether the brush reaches the full contact area, removes the target residue, and leaves the surface in the required condition. Record what changes when ESD control, slot access, particle type, contact pressure, and component sensitivity changes, because many brush failures are caused by the working condition shifting rather than by the brush body alone.
Bottom Line
The best result comes from matching a pva sponge brush the right choice for wafer cleaning? to the real cleaning task rather than forcing one brush to solve every condition. Confirm access, residue, surface limits, and replacement routine first; then use a small trial or inspection step before scaling the method into daily work.
Frequently Asked Questions
What is a PVA sponge brush made of?
A PVA sponge brush is manufactured from polyvinyl alcohol (PVA) that has been chemically crosslinked to form a soft, highly porous sponge. The material is hydrophilic, meaning it absorbs water readily, which helps it retain cleaning fluids during the scrubbing process.
How often should PVA sponge brushes be replaced in a wafer scrubber?
Replacement frequency depends on process conditions, such as chemical exposure, mechanical pressure, and contamination levels. Typically, PVA brushes are replaced after a set number of wafer passes or when inspection reveals physical wear or particle shedding. Many fabs track brush lifetime and replace them preventively to avoid yield loss.
Can PVA sponge brushes be used with all semiconductor cleaning chemicals?
No. PVA has limited chemical resistance. It is generally stable in pH 2–10 solutions but can degrade in strong acids, highly alkaline solutions, and some organic solvents. Always consult the brush manufacturer’s chemical compatibility chart and test under actual process conditions.
What are the main advantages of PVA over nylon brushes for post-CMP cleaning?
PVA brushes are softer and more absorbent than nylon, making them less likely to scratch delicate surfaces. They also hold more cleaning fluid, which can enhance particle removal efficiency for soft residues. However, nylon may be preferred for tougher particle challenges due to its greater mechanical strength.
How should PVA sponge brushes be stored when not in use?
PVA brushes should be stored in a cool, dry environment away from direct sunlight and chemicals. They must be kept moist if the supplier recommends it to prevent the sponge from drying out and becoming brittle. Always follow the manufacturer’s storage instructions to maximize brush life.
