What Is a PVA Sponge Roller Brush?
A PVA sponge roller brush is a cylindrical cleaning or liquid transfer tool made from polyvinyl alcohol (PVA) sponge, a synthetic, hydrophilic material known for its high water absorption capacity, softness, and controllable porosity. PVA sponges are created through a controlled foaming and curing process that yields a network of interconnected or closed micro-cells, giving them unique properties not found in traditional bristle or cloth rollers.
Key material properties of PVA sponge rollers include:
- Porosity: Typically 80–95% void volume, allowing high liquid uptake.
- Hardness: Usually Shore OO 10–40, offering a gentle, non-scratching contact surface.
- Water Absorption: Can absorb 6–12 times its dry weight in water, replenishing quickly.
- Chemical Resistance: Stable in weak acids and alkalis, but degrades in strong oxidizers and high temperatures.
These rollers are commonly used in precision cleaning, chemical mechanical planarization (CMP) post-clean, glass handling, and surface preparation where scratch-free performance, controlled moisture delivery, and particle entrapment are critical.
Common Types of PVA Sponge Structures
PVA sponge rollers are classified primarily by cell structure and pore size. Understanding these categories will guide your selection.
Cell Structure
Open‑cell sponges have interconnected pores, making them highly absorbent and compressible. They act like a reservoir, releasing liquid under pressure and reabsorbing quickly. These are ideal for flood cleaning or where maximum liquid transfer is needed.
Closed‑cell sponges have individual sealed pores, resulting in lower absorption but higher dimensional stability and better resistance to compression set. They work well when controlled, minimal liquid delivery or dry buffing is required.
Pore Size
Pore size determines the smallest particle the roller can effectively trap and remove.
- Fine pore (∼ 10–50 µm): Best for sub‑micron particle contamination control, as in semiconductor wafer cleaning.
- Medium pore (∼ 50–150 µm): General‑purpose cleaning where moderate debris is expected.
- Coarse pore (∼ 150–500 µm): Suitable for larger particles or when higher liquid flow is prioritized.
Comparing Open‑Cell and Closed‑Cell PVA Sponges
| Feature | Open‑Cell | Closed‑Cell |
|---|---|---|
| Pore interconnection | Highly interconnected | Isolated, non‑connected |
| Water absorption | Very high (8–12 × dry weight) | Moderate (2–5 × dry weight) |
| Compressibility | High; rebounds well | Lower; more rigid |
| Liquid release under pressure | Smooth, controlled | Minimal; mainly surface moisture |
| Typical uses | Semiconductor post‑CMP clean, glass washing, fluid transfer | Dry buffing, final wipe, low‑moisture transport |
| Durability | Good under wet conditions; may wear faster when dry | Better dimensional stability; resists permanent set |
How to Choose the Right Pore Size for Your Application
Pore size directly influences brush particle removal efficiency and liquid handling. Select based on the size range of particles you need to capture and the required flow rate.
- Target particle size: For sub‑visible contamination (< 50 µm), fine pores deliver the best mechanical entrapment. For visible debris (50–500 µm), a medium to coarse pore size offers enough cavity volume without quickly plugging.
- Viscosity: When transferring viscous fluids (e.g., slurries, gels), a coarser pore helps maintain flow. Fine pores may clog or restrict movement.
- Cleaner contact time: Short contact applications may need a more open, fast‑absorbing fine pore sponge to quickly load liquid and release it onto the surface.
- Surface sensitivity: High‑pore‑density fine sponges provide a more uniform contact pressure, reducing the risk of micro‑scratches on delicate substrates.
In practice, many processes use a series of rollers with descending pore sizes to progressively remove particles without cross‑contamination.
Common Mistakes When Using PVA Sponge Rollers
Avoid these frequent errors to extend roller life and maintain cleaning performance:
- Improper storage after use: Leaving a PVA sponge roller wet in a sealed container encourages mold and bacterial growth. Conversely, allowing it to dry completely without reconditioning can cause the material to harden permanently. Always store in a moist, breathable environment.
- Using the wrong pore size: A too‑coarse pore will miss fine particles; a too‑fine pore will quickly load with large debris, causing scratching or requiring frequent replacement.
- Applying excessive pressure: Over‑compressing an open‑cell PVA roller can collapse the cell structure, reducing absorbency and creating flat spots. Follow the manufacturer’s recommended compression range.
- Ignoring chemical compatibility: PVA degrades in strong acids, bases, and oxidizers (e.g., concentrated hydrogen peroxide). Submersion in aggressive chemicals will weaken the sponge matrix.
- Skipping initial conditioning: New PVA rollers may be shipped dry and hard. They must be soaked in deionized water or a compatible fluid for a specified time to regain full softness and absorption before use.

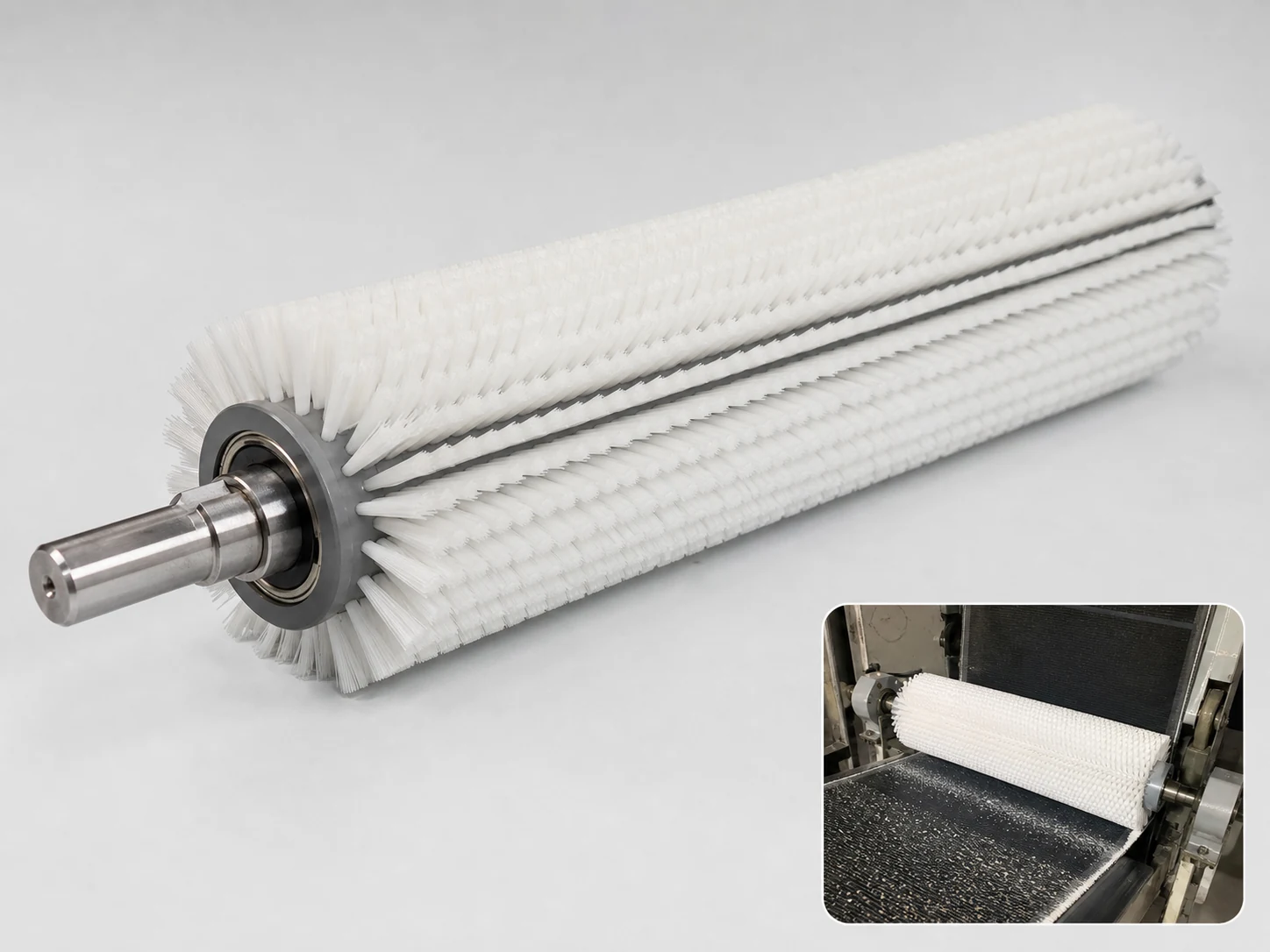

When a Nylon Roller Brush Is a Better Choice
PVA sponge rollers excel in gentle, clean, high‑moisture environments, but they are not universally suitable. Consider switching to a nylon brush (bristle‑type or abrasive‑filled nylon) under these conditions:
| Condition | Why Nylon Works Better |
|---|---|
| Heavy, large debris (metal chips, ceramic fragments) | Nylon bristles aggressively dislodge chunks without trapping them in a soft matrix. |
| Rough or textured surfaces | Nylon’s cut‑resistance and stiffness prevent rapid wear and tearing. |
| High operating temperatures (> 60°C / 140°F) | PVA softens and loses integrity; nylon retains mechanical properties up to ~120°C. |
| Strong chemical environments (pH < 3 or > 11) | Nylon 6/6 offers far broader chemical resistance without hydrolyzing. |
| Need for aggressive scrubbing / material removal | Nylon can be impregnated with abrasives; PVA is non‑abrasive by nature. |
If your process requires gentle buffing with zero scratch risk and controlled moisture, stay with PVA. But if you are removing heavy grinding swarf or working with solvent‑based fluids, a nylon roller brush will likely provide longer life and more consistent results.
Key Properties to Evaluate Before Purchase
Beyond cell structure and pore size, review these technical parameters to match the roller to your process requirements:
- Porosity (%): Indicates void fraction; higher values give more liquid capacity.
- Hardness (Shore OO): Softer sponges conform to contoured surfaces; harder ones offer more scrubbing pressure.
- Water absorption ratio: Grams of water absorbed per gram of dry sponge – critical for moisture transfer calculations.
- Chemical resistance: pH operating range and solvent compatibility – verify with your exact cleaning chemistry.
- Compression set (%): Permanent deformation after repeated compression; lower is better for long‑term use.
- Abrasion resistance: Important for long‑running automated lines; often reported as weight loss per contact cycle.
Final Takeaway
Choosing a PVA sponge roller brush starts with your particle removal target and moisture delivery needs. Select open‑cell structures for maximum absorption and release, closed‑cell for dimensional stability and low‑moisture tasks. Match pore size to the smallest particle you must capture, and always condition new rollers properly. Avoid the common storage mistakes that lead to mold or hardening. And remember: when heavy debris, high heat, or harsh chemicals are involved, a nylon brush may be the more robust, cost‑effective solution.
Frequently Asked Questions
What is the typical pore size range for PVA sponge rollers?
PVA sponge rollers are commonly available with pore sizes ranging from about 10 µm (fine) up to 500 µm (coarse). The specific distribution depends on the manufacturer’s foaming process, but many will quote an average or cut‑point pore diameter.
Can I use PVA sponge rollers with strong acids?
Generally, no. PVA sponges degrade in strong acids (pH < 2) and strong bases (pH > 12), as well as in oxidizing environments like concentrated hydrogen peroxide. Always check chemical compatibility with your supplier and test a sample before full deployment.
How do I store PVA sponge rollers to prevent mold?
After use, rinse the roller with clean water, squeeze out excess liquid, and store it in a cool, ventilated area. Avoid airtight plastic bags while still wet. If you need to stop the line for longer periods, store the roller slightly damp in a breathable wrap or container, or re‑condition it before restarting.
How do I rehydrate a hardened PVA sponge roller?
Soak the hardened roller in room‑temperature deionized water or a compatible cleaning solution for at least 30–60 minutes. Avoid using hot water, as heat can permanently damage the cell structure. Once softened, gently squeeze and rinse to ensure even rehydration.
Are PVA sponge rollers lint‑free?
High‑quality PVA sponge rollers are chemically produced to be virtually lint‑free, making them suitable for cleanroom environments. However, excessive wear or chemical degradation can cause shedding. Regular inspection under a microscope or particle test results is advised in critical processes.
What is the difference between PVA and polyurethane sponge rollers?
PVA sponges are hydrophilic and designed for water‑based absorption and gentle cleaning. Polyurethane (PU) sponges are hydrophobic or only slightly water‑absorbent and often offer higher chemical resistance and abrasion tolerance. PU is better for solvent‑based processes or where more aggressive scrubbing is needed, but PVA is preferred when maximum water uptake and scratch‑free contact are essential.
How often should I replace a PVA sponge roller?
Replacement intervals depend on process intensity, contamination levels, and chemical exposure. In high‑precision cleaning, rollers may be replaced every few hundred cycles, while lighter applications can last thousands of cycles. Monitor for visible signs of wear, loss of absorption, or particle release as triggers for replacement.
Technical References
Which bristle material fits this job — PVA Sponge, Nylon PA or PA6 Nylon?
| Material | Continuous temperature (°C) | Peak temperature (°C) | Water absorption | Hardness |
|---|---|---|---|---|
| PVA Sponge | 60 | 90 | — | Soft absorbent contact material; hardness/compression is controlled by foam or sponge density. |
| Nylon PA | 93 | 121 | 0.3–9% by PA grade and conditioning | Medium to firm; filament diameter and trim length control bending force. |
| PA6 Nylon | 80–100 | 130–160 | 1.5–3.0% | Shore D 75–85 |
| PA66 Nylon | 100–120 | 150–180 | 1.0–1.8% | Shore D 80–88 |
| PA612 Nylon | 90–110 | 130–150 | 0.3–0.7% | Shore D 70–80 |
Figures as published by Brushtec / DuPont. Confirm the exact grade against the supplier datasheet before ordering.
When are Roller and Conveyor Brushes the wrong choice for nylon roller brush?
- Roller and Conveyor Brushes — Use a stationary strip brush for a fixed linear seal or wipe, or another process when rotating line contact interferes with the product or cannot discharge the residue safely.
- PVA Sponge — Not for abrasive scrubbing or dry high-friction brushing.
- Nylon PA — The nylon family spans several grades, so heat, moisture and chemical limits should follow the selected PA resin rather than a generic nylon value.
- PA6 Nylon — PA6 takes up more moisture than long-chain nylons, which can reduce stiffness and dimensional stability in continuously wet service.
What should replace Roller and Conveyor Brushes for nylon roller brush?
- Roller and Conveyor Brushes — Roller and conveyor brushes hold cylindrical line contact across a working width, including helix-wound builds where the filament path is set to move loosened material toward one side; a strip brush holds the same line without rotating, so it seals or wipes but cannot carry residue along the width.
- PVA Sponge — Compare PVA Sponge with PU sponge, PP sponge, microfiber. Change material when wet stiffness, temperature, chemical resistance, conductivity, particle shedding, or surface marking becomes the limiting factor.
- Nylon PA — Compare Nylon PA with PP, PBT, PET. Change material when wet stiffness, temperature, chemical resistance, conductivity, particle shedding, or surface marking becomes the limiting factor.
- PA6 Nylon — Compare PA6 Nylon with PA66, PP, PBT. Change material when wet stiffness, temperature, chemical resistance, conductivity, particle shedding, or surface marking becomes the limiting factor.
