What Is a PVA Sponge Wafer Brush?
A PVA sponge wafer brush is a cylindrical or custom-shaped cleaning tool that uses an open-cell, highly absorbent, and lint-free PVA foam body to remove particles, residues, and thin films from sensitive surfaces like silicon wafers, photomasks, or flat panel displays. Unlike traditional bristle brushes, PVA brushes present a soft, continuous sponge surface that minimizes scratching, particle generation, and re-contamination. They are commonly used in post-CMP cleaning, pre-photolithography preparation, and final cleaning steps where traditional brush damage or fiber shedding is unacceptable.
Common Types and Configurations
For static-control claims, this article uses EOS/ESD Association — ESD Fundamentals as the ESD reference.
For static-control claims, this article uses EOS/ESD Association — Principles of ESD Control as the ESD reference.
For semiconductor and wafer-cleaning context, NISTIR 4653 — Metrology for the Semiconductor Industry is used as the precision-cleaning and contamination-control reference.
For cleanroom-classification language, this article points to the official ISO 14644-1 Cleanrooms and Associated Controlled Environments standard page rather than inventing cleanliness claims.
For material-selection language, this section is supported by British Plastics Federation — Thermoplastics.
For brush terminology and construction language, this section references American Brush Manufacturers Association — Brush Lingo.
PVA sponge wafer brushes differ mainly by:
- Material blend and porosity: Pure PVA or PVA composite with varying pore sizes to control stiffness, absorbency, and chemical resistance.
- Outer diameter and length: From 20 mm to over 200 mm, matching wafer or substrate dimensions and the process chamber layout.
- Core and mounting design: Hollow shaft insertion, solid core with end brackets, quick-connect studs, or magnetic mounts to fit specific equipment interfaces.
- Surface profile: Smooth, grooved, or contoured shapes to manage fluid flow, contact pressure, and debris removal.
- Stiffness grades: Ultra-soft for delicate films (e.g., porous low-k), medium for standard oxide layers, and firm for persistent organic residues.
Key Selection Factors
When shortlisting a PVA sponge wafer brush, evaluate these factors in order of importance:
- Residue type and adhesion: Light dust, slurry particles, organic films, or metal-ion contamination; each demands a specific pore structure and cleaning chemistry compatibility.
- Surface sensitivity: Non-patterned wafers, patterned wafers with fragile structures, or coated optics require matched hardness to avoid micro-scratches or pattern collapse.
- Equipment interface: Brush outer diameter, core bore, and overall length must fit your existing brush station, spindle, or robotic arm without modification.
- Wet or dry process: PVA brushes can run in fully wetted, semi-dry (damp), or dry contact modes; confirm the foam’s behavior under your process conditions.
- Chemical exposure: Resistance to acids, alkaline solutions, solvents, and oxidizers over hundreds of cycles—check chemical compatibility data from the brush manufacturer.
- Cleanroom and hygiene requirements: Ionic contamination, TOC (total organic carbon) leach-out, and particle shedding levels must meet your class limits (ISO Class 5 or better).
- Maintenance frequency and service life: How many wafers or hours before brush replacement? Consider cleaning, conditioning, and storage intervals.
- Custom size availability: Non-standard diameters or lengths often require a supplier drawing review; allow lead time for sampling.
Comparison of Common PVA Wafer Brush Options
| Attribute | Standard Soft PVA | Ultra-Soft Microporous PVA | Firm High-Density PVA | Composite PVA-Abrasive |
|---|---|---|---|---|
| Typical use case | General CMP post-clean, oxide films | Porous low-k dielectrics, resist residue | Heavy organic residues, hard contamination | Stubborn particles, light polishing action |
| Stiffness / Contact Pressure | Medium – gentle scrubbing | Very low – minimal pressure | High – more aggressive friction | Medium/high – includes micro-abrasives |
| Chemical resistance | Good in mild‑pH cleaners | Similar to soft PVA; avoid strong solvents | Better resistance; handles alkaline solutions | Chemistry‑dependent; check binder compatibility |
| Particle generation risk | Low | Very low | Low to moderate | Moderate (abrasive grains) |
| Service life | Moderate (hundreds of cycles) | Shorter – tears easier | Longer – durable structure | Varies; abrasive wears out |
| Mounting compatibility | Common sizes available | Less stocked; custom ordering common | Standard diameters; may need core adapter | Application‑specific; often custom |
How to Choose Based on Your Process
Start with the most demanding variable: surface sensitivity. If your cleaning recipe already works with a medium-soft PVA but you’re seeing yield loss, test an ultra-soft variant. Next, verify dimensional fit—measure the shaft bore, brush holder clearance, and allowable runout. Engage with your brush supplier to share the cleaning chemical list and target particle removal specification; they should provide a technical data sheet including compression force, water absorption rate, and recommended conditioning procedure. Finally, order a small batch for a side‑by‑side trial under identical process conditions before committing to a full rollout.

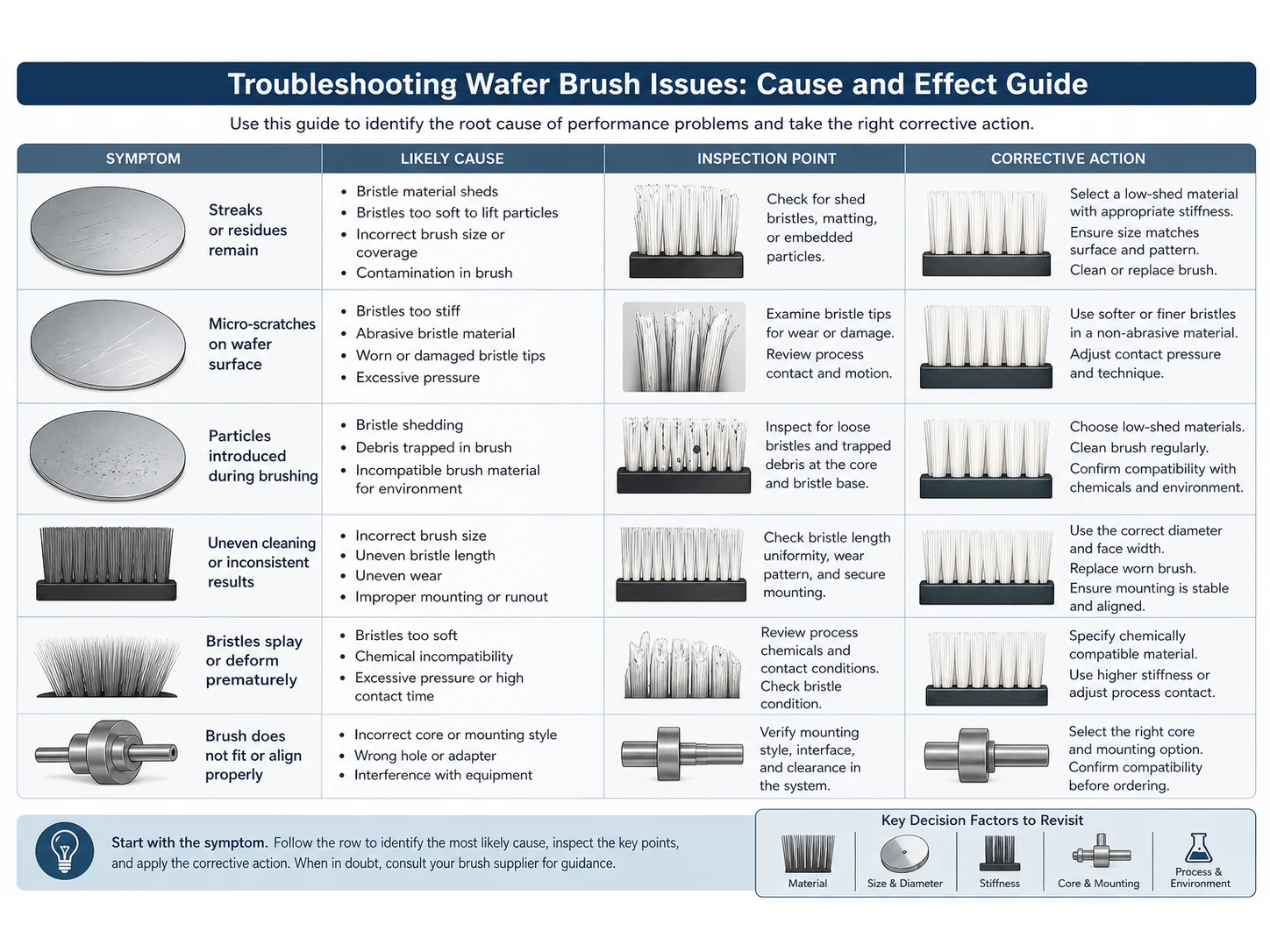

Common Mistakes When Selecting a PVA Wafer Brush
- Choosing by diameter only: Ignoring core type and mounting style leads to fitment rejection during installation.
- Assuming all PVA foams are the same: Pore structure, density, and blend affect cleaning performance dramatically; always request a data sheet.
- Overlooking conditioning requirements: A dry PVA brush must be properly soaked and rinsed before use; skipping this step can cause particle bursts.
- Neglecting chemical compatibility: Using aggressive cleaners can dissolve or harden the foam prematurely, contaminating the wafer.
- Running beyond recommended life: Worn PVA brushes shed more particles and require higher contact pressure, risking surface damage.
When a PVA Sponge Wafer Brush Is Not Enough
A PVA sponge wafer brush excels at planar wafer cleaning, but it is not a universal solution. For deep via cleaning, post‑etch residue inside high‑aspect‑ratio structures, or severe organic stains on non‑planar surfaces, you may need:
- A bristle‑type cleanroom brush with ultra‑thin nylon or goat hair filaments.
- Megasonic or spray‑only cleaning with specialized chemistry.
- Custom‑shaped PVA brushes designed through supplier CAD collaboration.
If the required brush geometry differs significantly from off‑the‑shelf options, or if your cleaning chemistry is experimental, request a sample test with your exact process recipe before finalizing the design. Discussing a supplier drawing review early can save months of trial‑and‑error.
Final Takeaway
Selecting the right PVA sponge wafer brush means matching stiffness, pore structure, and chemical resistance to your specific residue type and surface sensitivity, while ensuring perfect mechanical fit to your cleaning equipment. Always verify dimensional compatibility, request conditioning instructions, and run a small‑scale in‑process trial. This methodical approach minimizes yield loss and extends brush service life, turning a simple consumable into a reliable process control point.
Practical Use Note
In daily use, the practical test is simple: check whether the brush reaches the full contact area, removes the target residue, and leaves the surface in the required condition. Record what changes when ESD control, slot access, particle type, contact pressure, and component sensitivity changes, because many brush failures are caused by the working condition shifting rather than by the brush body alone.
Frequently Asked Questions
What is the difference between a PVA sponge wafer brush and a traditional bristle brush?
PVA sponge brushes use a continuous, absorbent foam surface that reduces scratching and particle shedding compared to bristle brushes, making them ideal for very smooth, contamination‑sensitive wafers. Bristle brushes can reach deeper into microscale features but pose a higher risk of fiber contamination.
How do I determine the correct stiffness for my PVA wafer brush?
Base stiffness choice on the fragility of your surface layer and the adhesion strength of residues. Start with a medium‑soft grade for standard oxide films; move to ultra‑soft if you notice microscratches, or to firm if residues are not being removed with adequate contact pressure.
Are PVA wafer brushes reusable, and how should they be cleaned between cycles?
Yes, they are typically reusable for hundreds of cycles when properly maintained. Between runs, flush the brush with DI water or a mild cleaning solution, and store it damp in a clean container to prevent drying and cracking. Follow the supplier’s conditioning procedure after prolonged dry storage.
Can one brush handle both wet and dry cleaning processes?
PVA brushes are primarily designed for wet or semi‑dry conditions; running completely dry can accelerate foam degradation and increase particle generation. If your process requires intermittent dry contact, consult the manufacturer for a compatible material blend and reduced service life expectations.
What mounting options are commonly available, and how do I avoid compatibility issues?
Mounting options include hollow‑shaft (press‑fit onto a spindle), solid core with end brackets, and threaded studs. Always provide the equipment make and model, shaft diameter, and allowable brush length to the supplier. Request an engineering drawing before ordering.
How important is particle and ionic contamination testing when selecting a brush?
For cleanroom‑adjacent and direct wafer contact applications, particle counts and total organic carbon (TOC) leach‑out must be validated against your cleanliness specifications. Reputable manufacturers provide test data; conduct your own acceptance test if the data does not cover your exact chemistry.
When should I consider a custom‑shaped PVA brush instead of a standard cylindrical one?
When cleaning non‑circular substrates, substrates with edge exclusion zones, or when fluid dynamics require a specific contact pattern, a custom‑shaped PVA brush may be necessary. Work with the supplier’s design team to model the cleaning footprint and avoid uneven wear.
