When Is a Semiconductor Cassette Brush the Right Choice for Cleanroom-Adjacent Work?

What Is a Semiconductor Cassette Brush?

A semiconductor cassette brush is a specialized brush used in electronics manufacturing to clean the slots, walls, and contact points of wafer cassettes and similar carriers. These brushes are engineered with materials that minimize particle shedding, resist common process chemicals, and can include anti-static properties. Unlike generic cleaning brushes, cassette brushes are designed to clean tight geometries without damaging the cassette surface or leaving behind residues that could contaminate wafers.

Common Types and Construction Options

For static-control claims, this article uses EOS/ESD Association — ESD Fundamentals as the ESD reference.

For static-control claims, this article uses EOS/ESD Association — Principles of ESD Control as the ESD reference.

For semiconductor and wafer-cleaning context, NISTIR 4653 — Metrology for the Semiconductor Industry is used as the precision-cleaning and contamination-control reference.

For cleanroom-classification language, this article points to the official ISO 14644-1 Cleanrooms and Associated Controlled Environments standard page rather than inventing cleanliness claims.

For brush terminology and construction language, this section references American Brush Manufacturers Association — Brush Lingo.

Semiconductor cassette brushes come in several configurations to match different cassette designs and cleaning tasks. Key construction elements include:

• Bristle material: nylon, PBT (polybutylene terephthalate), horsehair, or synthetic blends; some incorporate conductive carbon fibers for ESD control.
• Stiffness: soft (for delicate surfaces), medium (general use), and firm (for stubborn residues).
• Handle or core: heat-resistant plastic, stainless steel, or aluminum.
• Mounting style: threaded ferrule, quick-connect shank, or press-fit stem.
• Size and shape: brush diameter and length must match the cassette slot width and depth.

Many brushes are available off the shelf, but custom brush rolls can be specified for unique equipment interfaces.

Comparing Brush Materials, Stiffness, and Mounting Styles

How to Choose the Right Semiconductor Cassette Brush

Selecting the right brush involves prioritizing the cleaning task’s specific demands:

1. Residue type: Optical films and dried chemistries may require a stiffer bristle, while loose particles can be removed with a soft brush. Know your contaminant.
2. Surface sensitivity: If cassettes have anti-static coatings or polished areas, avoid abrasive materials. A softer nylon or PBT brush is safer.
3. Equipment interface: Measure the cassette slot dimensions. The brush diameter must clean without forcing, and the length must reach the bottom. Overly tight fits can cause scratching or bristle breakage.
4. Wet or chemical exposure: If the brush contacts solvents, choose a material rated for that chemistry. PBT often outperforms nylon in aggressive solutions.
5. Hygiene expectations: In ISO Class 5 or better, use brushes that are pre-cleaned and packaged in a cleanroom. Conductive bristles may be needed for static-sensitive areas.
6. Maintenance frequency: A high-use brush wears faster. Select materials with proven abrasion resistance if the brush will be run in automated systems or used for hundreds of cycles per day.
7. Custom size requirements: Standard brushes range from 3 mm to 15 mm in diameter. If your cassette has non-standard slot widths, a custom brush roll may be justified to ensure full contact without damage.

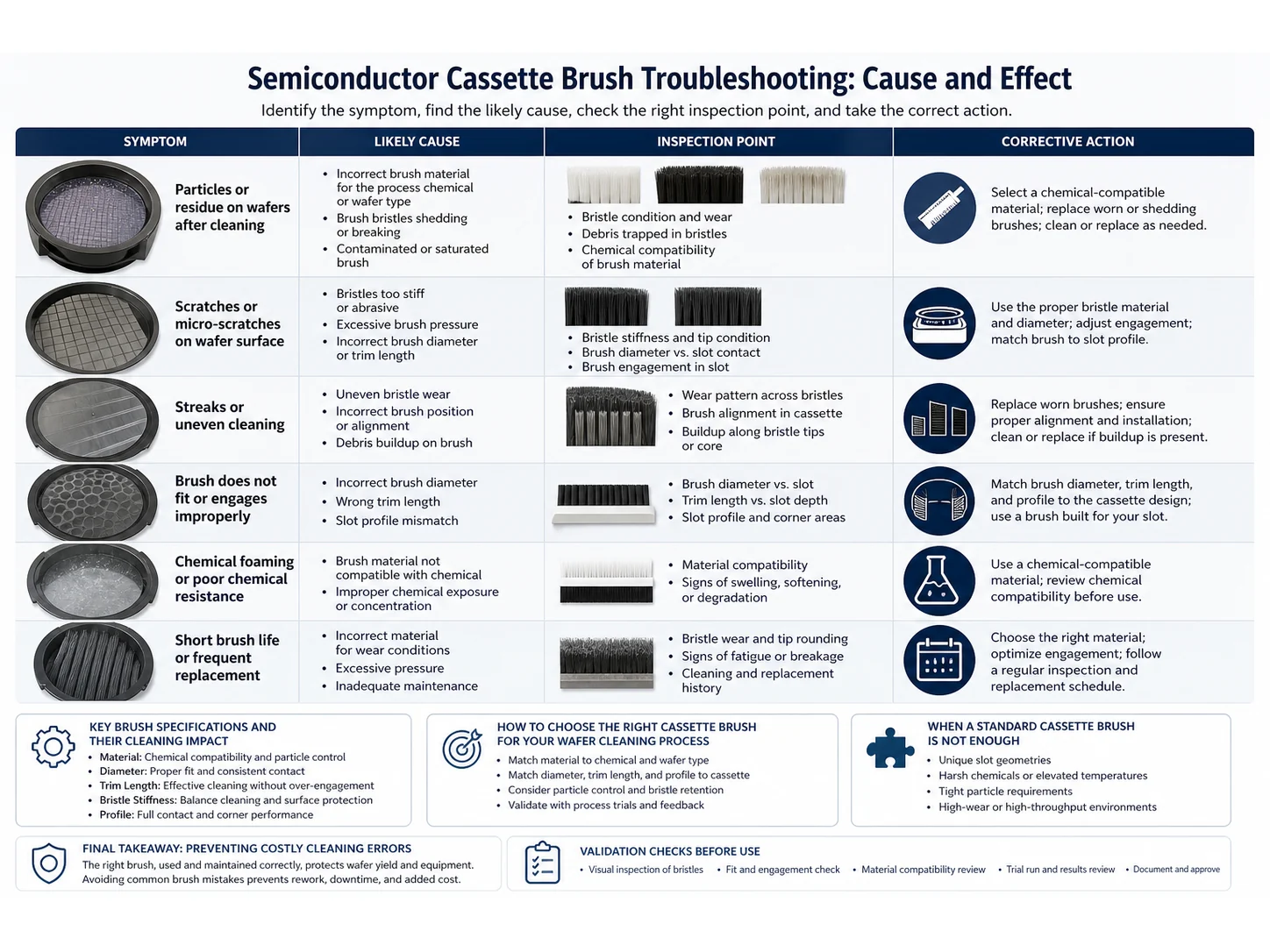

Common Mistakes When Selecting a Cassette Brush

1. Choosing by bristle color or cost drivers alone: Color is not a reliable indicator of material or cleanliness. A cheaper brush may shed more particles, costing more in scrap.
2. Ignoring chemical compatibility: A nylon brush used with acetone can swell and lose stiffness, leaving bristles inside the cassette.
3. Overlooking ESD requirements: Non-conductive brushes can generate static, attracting particles to the cassette walls. In sensitive steps, a conductive brush is essential.
4. Using one brush for all cassette models: Different cassettes have different slot geometries and surface coatings. A universal brush often compromises cleaning efficacy.
5. Not considering brush maintenance: Dirty brushes redeposit contamination. Establish a replacement or cleaning schedule based on visual inspection and particle coupon testing.
6. Skipping a sample trial: Before committing to a large order, test the brush on actual cassettes with the target residue. A quick trial prevents expensive mismatches.

When a Semiconductor Cassette Brush Is Not Enough

A cassette brush is effective for moderate, accessible contamination, but there are situations where it reaches its limit:

• Baked-on or carbonized residues: If plasma etch or high-temperature processes have hardened the residue, mechanical brushing may not remove it. Consider ultrasonic or megasonic cleaning first.
• Extremely tight or complex geometries: Some cassettes have undercuts or internal channels that a brush cannot reach. In these cases, custom-designed swabs, foam tips, or automated fluid agitation may be necessary.
• Class 1 (ISO 3) cleanroom requirements: For the strictest environments, even the cleanest brush could introduce unacceptable particle levels. Pre-saturated wipes or gas-based cleaning may be preferred.
• Repeated chemical exposure degrading the brush: If the cleaning process involves aggressive acids or oxidizers, the brush itself may break down, contaminating the cassette. In that case, single-use tools or non-brush alternatives should be evaluated.
• High-precision surface finish preservation: When the cassette surface must remain optically smooth, any contact can cause micro-scratches. Non-contact cleaning methods like CO2 snow or laser cleaning may be safer.

In any of these scenarios, consult with the cleaning tool supplier for a drawing review, request a material compatibility chart, and run a controlled trial before finalizing the selection.

Final Takeaway

A semiconductor cassette brush is the right choice when the cleaning goal is routine particle and light-residue removal from cassette surfaces in cleanroom-adjacent areas, provided the brush material is compatible with your chemicals and ESD requirements. However, it is not a universal solution. Evaluate your specific residue, surface, and cleanliness class demands. When in doubt, test the brush on your actual cassettes under real conditions. The cost of a sample is almost always less than the cost of contaminated wafers.

Practical Use Note

In daily use, the practical test is simple: check whether the brush reaches the full contact area, removes the target residue, and leaves the surface in the required condition. Record what changes when ESD control, slot access, particle type, contact pressure, and component sensitivity changes, because many brush failures are caused by the working condition shifting rather than by the brush body alone.
