How to Choose Copper Wire Tube Brush

What Is a Copper Wire Tube Brush?

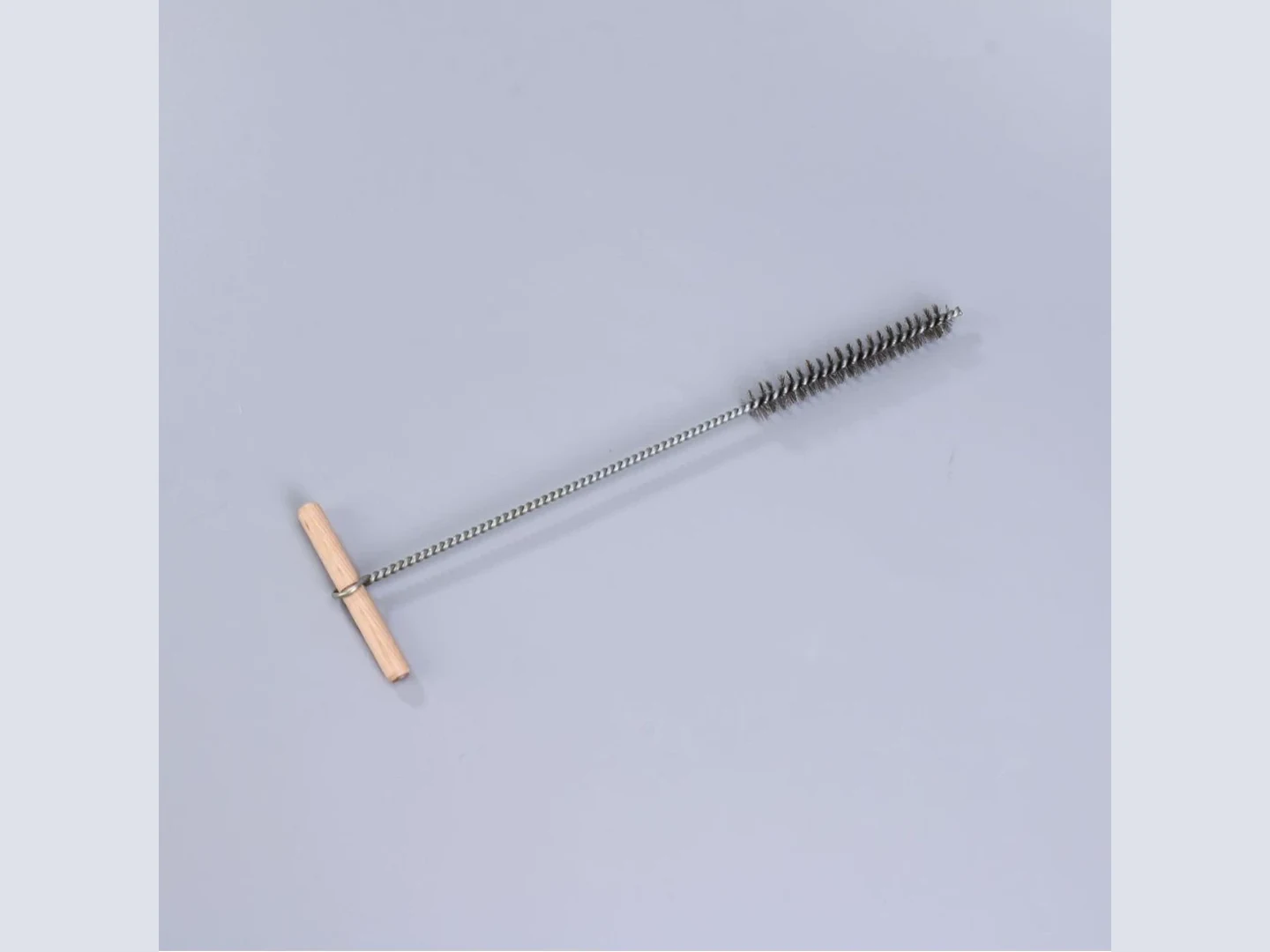

A copper wire tube brush is a tube cleaning brush whose bristles are made from copper wire, typically crimped or straight and set into a twisted wire stem or molded holder. It is used to remove deposits, scale, corrosion, paint, or debris from the inside of tubes, pipes, heat exchanger tubes, fittings, and small bores. The defining characteristic is the bristle material itself: copper is softer than steel, non-sparking, and electrically conductive. These properties make it suitable for applications where spark safety, static dissipation, or surface protection is required.

Copper Wire Tube Brush vs. Other Bristle Materials

For material-selection language, this section is supported by Copper Development Association — Electrical Conductivity of Copper.

For material-selection language, this section is supported by World Stainless — Corrosion Resistance of Stainless Steels.

For brush terminology and construction language, this section references American Brush Manufacturers Association — Brush Lingo.

Choosing the right bristle material is often the first and most important decision. Below is a comparison of common bristle materials used in tube brushes, with emphasis on where copper excels and where another option may be more appropriate.

Common Types and Configurations

Copper wire tube brushes come in several physical forms to match different cleaning methods and equipment:

• Single-spiral / double-spiral twisted stem: Most common; bristles are captured between twisted wires, available in single or double spiral for more fill.
• Double-stem / twin-stem: Two spiral sections on a looped handle for manual cleaning.
• Machine-mounted / power brushes: Shank or arbor for use with electric or pneumatic drills and tube cleaning machines.
• Handle brushes: With a plastic or wood handle for manual operation.
• Custom-diameter brushes: Built to match exact tube IDs for maximum bristle contact.

How to Select the Right Copper Wire Tube Brush

Use the following decision factors to narrow down the brush that will work reliably in your application. Copper wire is not the answer for every job, but when its properties align, it can prevent damage and improve safety.

• Tube inner diameter (ID): Choose a brush diameter slightly larger than the tube ID so bristles maintain good contact. A common rule is 5–15% oversize, but this depends on bristle stiffness and desired pressure.
• Tube length: Match the brush stem length to reach the full section you need to clean. For long tube bundles, multiple passes or a rotating system may be required.
• Residue type: Copper wire removes light to medium deposits like soot, light scale, flux residue, or oxidation. For hard, baked-on carbon or heavy rust, stainless steel may be needed first, followed by a copper brush for final cleaning.
• Surface sensitivity: Copper wire is less likely to scratch copper tubing, brass fittings, and some aluminum grades compared to steel. For highly polished or coated surfaces, nylon or a softer brush may be safer.
• Static control requirement: Because copper is conductive, it helps dissipate static charges when both the brush and the object are properly grounded. This is critical in explosive atmospheres, electronics cleaning, or fuel system maintenance.
• Dry vs. wet operation: Wet cleaning with solvents or water reduces bristle wear and heat buildup. Copper wire can be used wet or dry, but dry cleaning at high speed can generate enough heat to soften the copper.
• Machine speed: For power-drive applications, keep RPM within limits recommended for the brush diameter. Excess speed can cause bristle breakage, stem deformation, or heat buildup.
• Temperature exposure: Copper retains good strength at moderate temperatures but softens at elevated temperatures. For applications involving continuous high heat, other materials or specialized copper alloys may be needed.
• Chemical compatibility: Copper can react with strong acids, ammonia, or certain cleaning chemicals. Check chemical compatibility in your solvent or cleaning agent before use.

Common Mistakes When Choosing a Copper Wire Tube Brush

• Using copper wire when steel is required: Some operators choose copper to “play it safe,” but copper won’t remove hard scale or heavy rust effectively. The result is longer cleaning time and higher brush consumption.
• Ignoring stem material and construction: Even if the bristles are appropriate, a stem that is too thin or made from a reactive material can fail in wet or corrosive environments. Stainless steel stems are often paired with copper bristles for durability.
• Selecting by cost alone: low-cost copper brushes may use low-density bristles, uneven wire, or poorly twisted stems that unwind early. Consistent fill and twist quality affect cleaning performance and brush life.
• Oversizing the brush diameter dramatically: Too much interference can cause bristle breakage, excessive drag, and possible tube wall damage, especially in thin-wall tubing.
• Running dry at high speed for too long: Friction heats the copper, making it soft and causing rapid wear. In dry automated systems, cycle times must consider this effect.
• Forgetting about static dissipation path: A conductive brush does not support static control unless there is a grounding path from the brush to the tube and workpiece. Verify the setup if static control is important.

When a Standard Copper Wire Tube Brush Is Not Enough

Copper wire tube brushes handle many routine cleaning tasks, but they have clear boundaries. Consider moving to a different material, a custom design, or a multi-step cleaning process when:

• Hard, baked-on carbon or thick scale: Stainless steel or abrasive nylon brushes are more effective for aggressive removal. Copper will polish the deposit without removing it efficiently.
• Highly polished or soft metal surfaces: Even copper can leave microscratches on delicate surfaces like soft aluminum or plated finishes. Natural fiber or nylon brushes may be required.
• High-speed, fully automated tube cleaning machines: Brush durability and heat generation become critical. Copper may need to be replaced with a harder material or a custom alloy blend to meet cycle life requirements.
• Food-grade or sanitary environments: Copper can oxidize and leave residue. Stainless steel or brushes made from supported by food-contact documentation materials are often specified.
• Static-sensitive environments: While copper helps dissipate static, the entire system must be designed for static control. A standard brush with an insulated stem may not provide a reliable ground path.
• Custom residue profiles: If standard copper brushes wear out too quickly or don’t clean completely, a custom bristle blend (e.g., copper-brass mix) or different trim length may be needed. In these cases, sample testing with the actual residue and tube condition is strongly recommended.

Final Takeaway

Choose a copper wire tube brush when you need non-sparking, conductive cleaning on copper, brass, or similar tubing with light to moderate soil. Verify the tube ID, stem length, and operating conditions, and don’t hesitate to perform a small trial if the process is new or residue type is uncertain. When in doubt, a supplier with application experience can help you confirm whether copper is the right material or if a hybrid approach will deliver better results.
