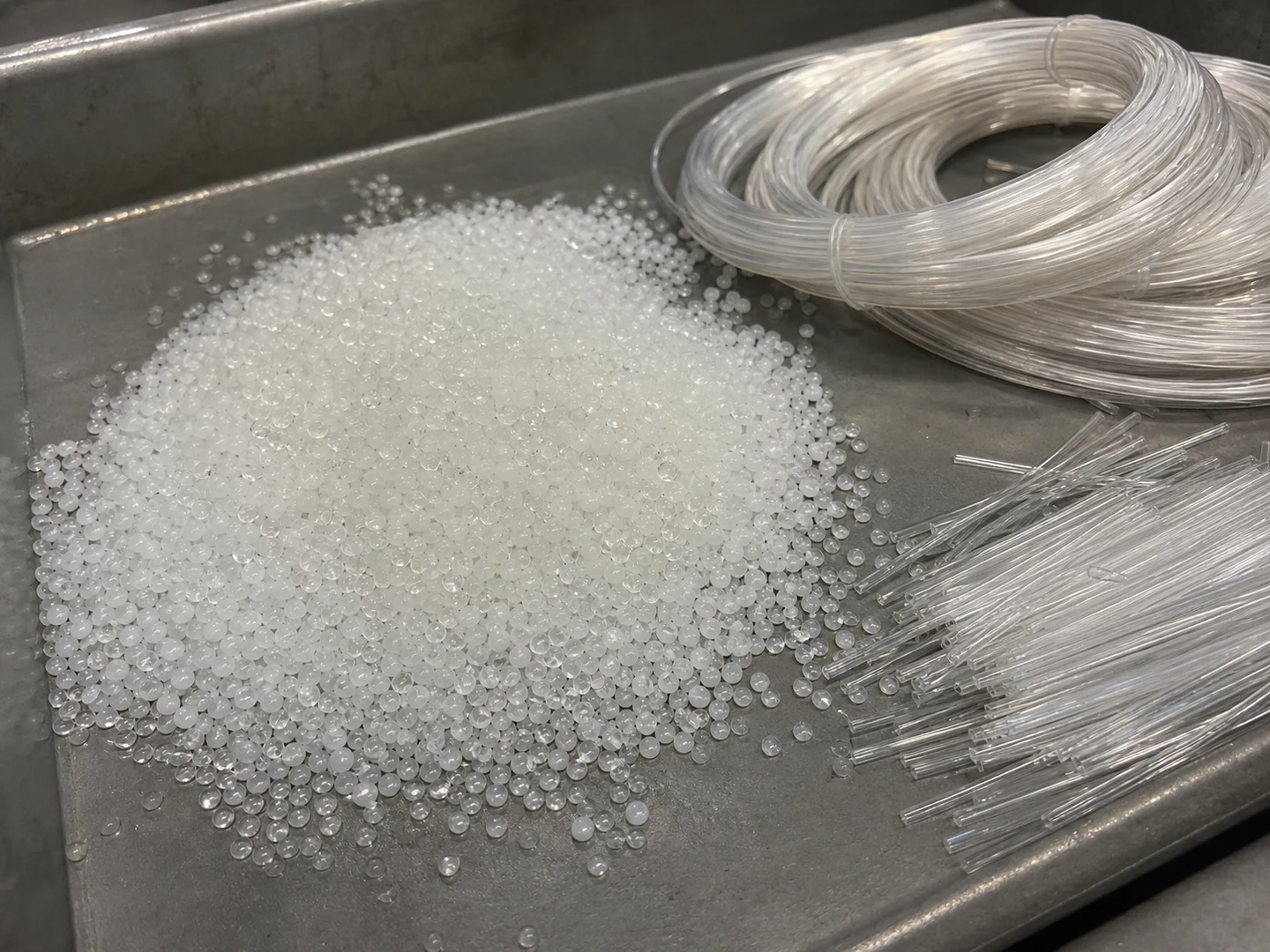

Polystyrene Filament

Polystyrene Filament belongs to the synthetic filament group, supplied as filament diameter 0.15–1.20 mm and straight or crimped, drawn in round, triangular, cross-shaped, hollow, star-shaped and rectangular sections and set in straight rows, helical, staggered, zoned, wavy and random fill patterns.

Polystyrene Filament is used in custom cleaning brushes for dry dusting, low-cost strip brushes, static applications and disposable cleaning tools.

The realistic alternatives are Nylon PA, PBT and Polypropylene PP. What separates them here is moisture uptake and working temperature, not headline strength.

Use a softer polymer or natural fiber for lower marking; use abrasive or metal wire for greater cutting action.

Polystyrene Filament is medium to firm; lower bend fatigue than nylon; polystyrene Filament changes contact through its filament or media size, free trim, density, profile, and engagement.

Published ranges for the filament itself. Read them as a shortlist tool, not as brush performance.

The part people get wrong: stiffness is not a property of the material on its own. A 0.50 mm filament on a 15 mm trim is stiffer than a 0.30 mm filament on a 25 mm trim in the same grade. Fix diameter and trim first, then confirm the material.

Polystyrene Filament takes up 0.1–1.0% (24 h; industry reference range).

Suitable for the wet or dry conditions stated in the application list; wash and dry retained-residue constructions after use.

What this means for your application: moisture uptake is low enough to ignore in service, which is why this grade holds its stiffness through washdown.

A practical check: run one wet cycle and compare tip contact against the dry state. If the wet brush leaves residue behind or no longer reaches the bottom of the bore, change the material rather than the geometry.

-10–70°C.

The filament tables quote 70°C continuous and 100°C peak. The tighter number above is the one to build to, because a brush is loaded while it is hot.

Where it stops working: validate with a sample if the process sits near the top of that band. If the filament takes a permanent set under load, step up to PBT or Polypropylene PP, which hold a higher continuous temperature.

Diameter, trim length and applied load all shift the real limit, so a thin filament touching lightly survives conditions that would flatten a thick one under pressure.

Use the grade-specific chemical profile and confirm it against the actual chemical, temperature, exposure-time, and load conditions of your application.

Compatibility is a function of concentration, temperature and contact time together. A short rinse in a dilute solution is a different exposure from an overnight soak in a concentrated one, even with the same chemical on the label.

Before you commit to a quantity: Specify Polystyrene Filament form, diameter or grade, trim, density, working temperature, cleaning fluid, and surface finish.

The floor is roughly 0.05 mm; finer than that and the filament snaps rather than flexes. In practice you are choosing inside 0.05–3.00 mm.

Free trim runs 3–300 mm, and the two interact: a finer filament needs a shorter trim to keep useful stiffness, while a thicker one carries a longer trim and still lands pressure on the tip.

Split the range by duty: roughly 0.05–0.79 mm for light wiping, dusting and surfaces that mark easily, and 0.79–3.00 mm where residue is packed on and point pressure matters more than surface risk.

Tip treatments available on this filament: end rounding, tapered-tip grinding, silicone-oil coating, anti-static coating and antibacterial coating.

In practical brush terms: reaching deep into a bore or crevice is a diameter problem before it is a length problem. A thicker filament on a moderate trim pushes further in before the tips fold over.

Dry dusting, low-cost strip brushes, static applications and disposable cleaning tools.

The applications that keep coming back to this grade:

• Laboratory Tube Cleaning
• CPAP Hose Cleaning
• Household Dish, Teapot & Kitchen Detail Cleaning
• Beverage Equipment Cleaning
• Food Equipment Cleaning
• Tube & Pipe Cleaning

The constructions that usually carry it:

• Custom Handheld Detail Brushes
• Custom Tube & Pipe Bore Brushes
• Custom Roller and Conveyor Brushes
• Custom Strip Seal Brushes
• Custom Floor Scrubber Sweeper Brushes

If the sample comes back rejected: Limited heat, impact and solvent resistance; avoid high-cycle wet scrubbing.

Send the brush type, filament diameter, free trim length, density, contact setting, wet or dry duty, working temperature and the actual cleaning chemistry together. Any one of them on its own leaves the stiffness undefined.

What usually goes wrong at this step:

• Selecting Polystyrene Filament without setting diameter, trim and density
• Using the material on a surface that cannot accept its contact level
• Ignoring temperature, liquid, motion or residue retention

Reference standards behind the figures on this page: ISO 527-1:2019; ASTM D638; ISO 62:2008; ASTM D570-22; ISO 868:2003; ASTM D2240-15(2021); ISO 4892-3:2024; ASTM G154-23; UL 94.

Source: Westlake — PVC and PS resin property summary. Polystyrene filament is brittle relative to polyamide and is used where low cost and stiffness matter more than fatigue life. It has no useful chemical resistance to solvents.
