What Is a Tire Brush for Mold Grooves?
A tire brush for mold grooves is a specialized cleaning tool used to remove cured rubber residue, mold release agents, and micro-debris from the intricate grooves and vents of tire curing molds. It is typically mounted on automated cleaning stations, robotic arms, or manual rotary tools and must match the groove profile, mold material, and production hygiene requirements.
Common Types of Tire Brushes for Mold Grooves
For material-selection language, this section is supported by World Stainless — Corrosion Resistance of Stainless Steels.
For tire, wheel, and vehicle-safety context, the relevant source is NHTSA — Tire Safety Ratings and Awareness.
For brush terminology and construction language, this section references American Brush Manufacturers Association — Brush Lingo.
The market offers several brush types defined by bristle material, fill pattern, and overall shape. The main families include:
- Nylon filament brushes – Abrasive-impregnated or pure nylon; good for light residue on aluminum molds.
- Wire brushes – Brass-coated steel, stainless steel, or bronze wire; used for stubborn carbon deposits but risk scratching softer mold surfaces.
- Abrasive nylon wheels and cylinders – Silicone carbide or aluminum oxide grit bonded to nylon strands; combine cutting action with flexibility.
- Horsehair or tampico brushes – Natural fiber bristles; gentle enough for polished mold surfaces and wet chemical applications.
- Custom-formed brush profiles – Brushes ground or press‑formed to match a specific groove width, depth, or undercut.
Key Selection Factors at a Glance
| Factor | Common Options | Typical Use Case | Trade‑offs |
|---|---|---|---|
| Bristle material | Nylon, abrasive nylon, brass, stainless steel, horsehair | Nylon for aluminum molds; steel for heavy carbon; horsehair for polished finishes | Aggressive materials clean faster but can scratch; soft materials are safer but slower |
| Brush diameter | 6 mm to 150 mm or custom | Must match groove width; undersized brushes miss residue, oversized ones jam | Custom sizes raise cost but Help confirm fit; standard sizes reduce lead time |
| Stiffness (filament diameter) | 0.2 mm – 1.0 mm and up | Fine wires/filaments for narrow vent holes; thicker ones for wide grooves | Stiffer filaments remove tough residue but may deform thin groove walls |
| Mounting / shank | 1/4″ hex, round shank, threaded arbor, quick‑change | Robot‑mounted tools use precision shanks; manual tools often use hex drives | Wrong shank stops production; adapter solutions may introduce runout |
| Chemical resistance | Nylon excels; horsehair tolerates mild acids; steel may corrode | Ultrasonic baths, solvent sprays, or alkaline mold cleaners | Material swelling or corrosion shortens brush life and contaminates molds |
| Operating speed | 500–6,000 RPM typically | High‑speed automated lines vs. low‑speed manual touch‑up | Excess speed melts nylon or sheds wires; too slow reduces cleaning efficiency |
How to Choose Based on Your Cleaning Requirements
Start with the mold material and the type of residue. For aluminum molds with light talc or release‑agent buildup, an abrasive‑nylon wheel in the 120–240 grit range often balances cleaning and surface safety. For steel molds with hardened carbon deposits, a stainless‑steel wire brush can be effective, but you must verify it does not gall the mold surface. If your plant runs wet cleaning processes with alkaline solutions, check that the brush core and filaments are chemically compatible—nylon is generally safe, while carbon‑steel cores may rust.
Next, match the brush diameter to the narrowest groove that must be cleaned. Measure a cross‑section of the mold and allow 10–20% clearance on each side to prevent jamming while still reaching the groove floor. For automated lines, confirm the shank diameter, overall brush length, and balance grade required by the robot or CNC station. A brush that is too long or unbalanced can cause vibration and poor cleaning uniformity.
Finally, evaluate cleaning frequency. High‑volume lines running 24/7 may benefit from longer‑life abrasive filaments even if the initial cost is higher, while low‑volume specialty tire production can use lower‑cost nylon brushes and replace them more often.

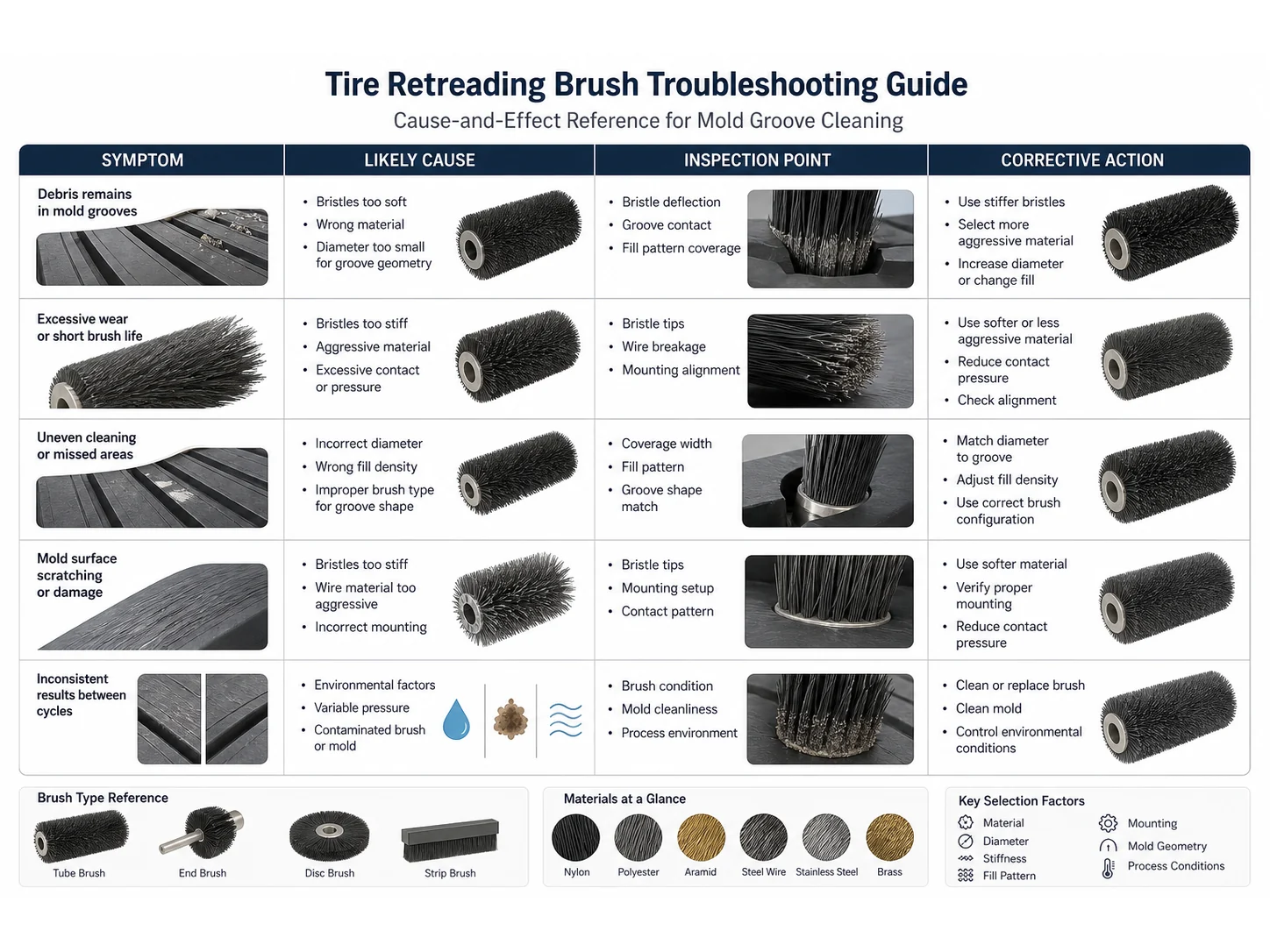

Common Mistakes When Selecting a Tire Brush
- Assuming one brush fits all molds. A tread mold, sidewall mold, and bladder drum each have different groove geometries and residue profiles.
- Choosing by diameter alone. Fill density, trim length, and filament material matter just as much.
- Using steel wire on aluminum molds without testing. Even fine stainless wire can leave micro‑scratches that become visible on the cured tire surface.
- Ignoring the shank interface. A brush that slips in the collet or chuck will wear unevenly and may damage the mold.
- Skipping a sample test. Cleaning a spare mold segment with a candidate brush under production conditions reveals problems that datasheets cannot.
When a Standard Tire Brush Is Not Enough
Standard off‑the‑shelf brushes work well for common groove widths and medium‑volume production. However, a standard brush may fall short when:
- Groove depth‑to‑width ratio exceeds 3:1, requiring a brush with a long, slender profile.
- The mold contains blind pockets or undercuts that only a custom‑shaped brush can reach.
- Hygiene requirements (e.g., white‑sidewall or medical‑grade tire molds) demand filament materials that shed no particles.
- Chemical exposure is extreme (concentrated acids, high‑temperature solvents) and standard nylon cores soften or swell.
- Vibration or brush runout causes inconsistent cleaning in a validated process, requiring a balanced, precision‑ground assembly.
In these situations, involve your brush supplier’s engineering team. Provide a mold drawing or 3D scan and request a sample for line‑side validation. A small investment in a custom solution often prevents mold damage and reduces rework.
Final Takeaway
Choosing the right tire brush for mold grooves is a step‑by‑step process: define the residue, measure the groove dimensions, select filament material and stiffness accordingly, verify chemical and mechanical compatibility, and test a sample on your actual molds. By treating the brush as a precision cleaning tool—not a commodity—you protect mold life, improve cleaning repeatability, and avoid unscheduled downtime.
Practical Use Note
In daily use, the practical test is simple: check whether the brush reaches the full contact area, removes the target residue, and leaves the surface in the required condition. Record what changes when surface finish, solvent exposure, access angle, scratch tolerance, and soil severity changes, because many brush failures are caused by the working condition shifting rather than by the brush body alone.
Frequently Asked Questions
What bristle material is safest for aluminum tire molds?
Nylon with or without fine‑grit abrasive (120–240 grit) is the safest widely used choice. Horsehair or tampico can be even gentler for polished molds. Always test on a non‑critical mold first.
Can the same brush clean both steel and aluminum molds?
It is risky. Steel wire brushes that are effective on steel molds can scratch aluminum. If you must use one brush type, choose a medium‑grit abrasive nylon and carefully test on both mold materials to ensure acceptable surface finish.
How do I determine the correct brush diameter?
Measure the narrowest groove opening and subtract at least 0.5 mm (0.020 in.) clearance on each side. For automated stations, also factor in runout of the spindle and any robotic positioning error.
What shank size should I specify?
Match the shank exactly to the tool holder: common sizes for automated lines are 6 mm, 8 mm, or 1/4″ round, and 1/4″ hex for manual tools. Do not use a sleeve adapter unless the brush supplier has verified concentricity under load.
How often should tire brushes be replaced?
There is no single answer. Set a replacement interval by monitoring cleaning effectiveness (e.g., residue left after a standard cycle) or when bristle length wears down by more than 30%. In high‑volume plants, weekly or bi‑weekly visual checks of critical brushes are common.
Is a wire brush ever recommended for tire mold cleaning?
Yes, for hardened carbon on steel molds. Brass‑coated steel wire or stainless steel wire can break up tough deposits. However, confirm that wire stubs do not break off and remain in the mold, which could appear as defects on the tire.
What if my mold grooves are extremely narrow (under 1 mm)?
Look for micro‑filament brushes with wire or fine abrasive nylon strands in the 0.1–0.2 mm diameter range. A custom‑ground profile may be necessary to concentrate bristle density in the groove without over‑filling it.
How can I get a sample for testing without an obligation to buy?
Most reputable brush manufacturers will provide a small set of test brushes against a purchase order or a sample agreement. Supply a mold drawing or groove measurement sheet and request a cleaning trial under your normal cycle parameters.
