What Is a Wire Roller Brush for Weld Cleanup?

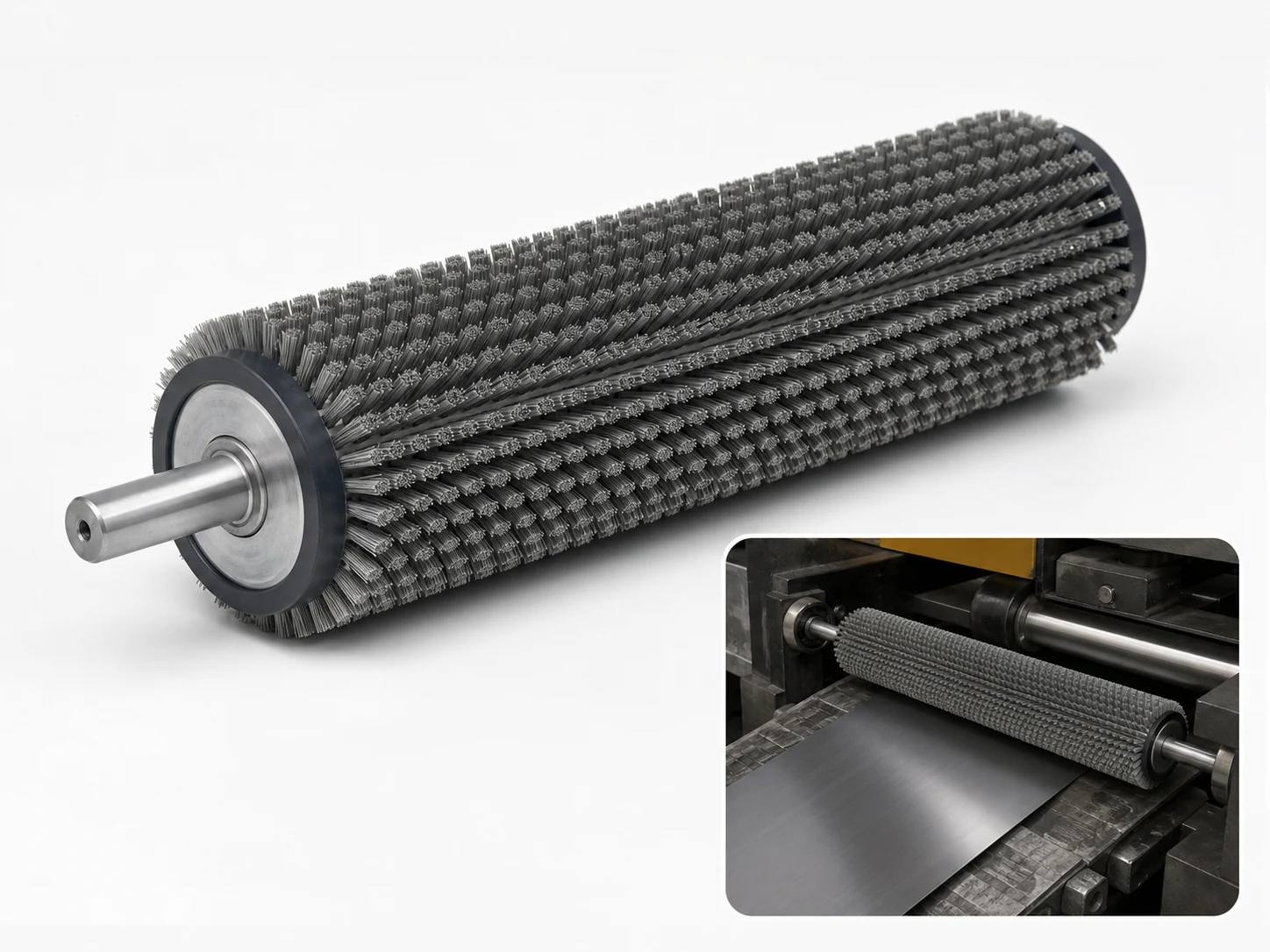

A wire roller brush is a powered rotary brush in which wire filaments are secured around a central core. In weld cleanup, the brush rotates against the workpiece to mechanically remove unwanted material left by the welding process. The brush can be mounted on a shaft, driven by a motor, and integrated into a cleaning station or handheld tool. The term “wire” refers to the bristle material, which can be steel, stainless steel, brass, or even abrasive-impregnated nylon, depending on the surface being cleaned.
Common Types and Options for Custom Wire Roller Brushes
For the safety point in this section, the relevant OSHA reference is OSHA — Hexavalent Chromium.
For material-selection language, this section is supported by World Stainless — Corrosion Resistance of Stainless Steels.
For brush terminology and construction language, this section references American Brush Manufacturers Association — Brush Lingo.
When you specify a custom wire roller brush, you decide more than just the overall length and diameter. The following are the main variables that suppliers will ask about:
- Bristle material: carbon steel, stainless steel (304, 316), brass, or abrasive nylon.
- Wire diameter (gauge): affects stiffness and aggression.
- Trim length: the free length of the wire from the core; longer trim gives more flexibility, shorter trim is more aggressive.
- Core type: shafted (with a keyway or set screw), arbor hole (for mounting on a spindle), or quick-change adapter.
- Bristle pattern: spiral wrap, full-face fill, or narrow strip/coil style.
- Overall dimensions: outer diameter, face width, and core diameter.
- Operating speed and temperature: critical for safety and brush life.
Key Options Comparison: Wire Material and Application Fit
| Material | Best for | Surface Impact | Contamination Risk | Typical Applications | Cost Factor |
|---|---|---|---|---|---|
| Carbon Steel Wire | Heavy slag, rust, thick scale | Aggressive, can scratch | High risk of rust transfer | Carbon steel weldments, pre-paint prep | Low |
| Stainless Steel Wire (304/316) | Stainless steel and aluminum welds | Moderate; 0.003–0.006 in. wire often used | No rust, but can embed iron if not dedicated | Food-grade tanks, sanitary pipe, chemical equipment | Medium |
| Brass Wire | Non-sparking cleaning, soft metals | Gentle, reduces scratching | Non-rusting, non-magnetic | Aluminum, brass, copper assemblies, flammable environments | Medium–High |
| Abrasive Nylon (with grit) | Light coating removal, satin finish | Low aggression, uniform finish | No metal contamination | Stainless steel blend lines, cosmetic weld finishing | High |
How to Choose the Right Wire Roller Brush for Your Weld Cleanup
Selecting a custom wire roller brush requires matching the brush’s characteristics to your specific weld cleaning task. Use the following decision points as a checklist:
- Weld residue type: Hard spatter and heavy slag demand stiffer, coarser wires (carbon steel or thick stainless). Light oxidation or discoloration can be cleaned with softer brass or abrasive nylon.
- Base metal sensitivity: Stainless steel and aluminum require brushes that will not leave after-rust or embed ferrous particles. Dedicated stainless wire brushes are a must; brass is often used on aluminum.
- Surface finish requirements: If you must achieve a specific Ra value or avoid scratches, choose finer wire diameters, longer trim lengths, or abrasive nylon filaments.
- Chemical exposure: If cleaning agents, passivation acids, or washdown fluids contact the brush, the core and wire must withstand corrosion. Stainless steel wire and plated or stainless cores are common.
- Equipment interface: Note your machine’s shaft diameter, keyway, maximum RPM, and available torque. The brush core and mounting must fit precisely.
- Hygiene and contamination control: For food, pharmaceutical, or semiconductor applications, brushes should be easily cleanable, non-shedding, and made of FDA-compliant materials when necessary.
- Custom dimensions: If the brush must fit inside a tube, clean a specific weld preparation bevel, or match an existing housing, provide a detailed drawing with tolerances.
- Maintenance and life expectancy: Estimate how many linear feet or hours of operation you expect before the brush loses effectiveness. This informs wire density, trim length, and speed recommendations from the supplier.
Common Ordering Mistakes to Avoid
- Ignoring wire diameter and stiffness. A thicker wire cleans faster but can scar the parent metal; a wire that’s too fine may not remove weld spatter at all.
- Overlooking the core mounting. A brush specified with a smooth arbor hole when the shaft needs a keyway will slip under load.
- Forgetting to define operating speed and temperature. Exceeding the safe RPM can cause wire breakage and safety hazards; heat can anneal wires and reduce cutting ability.
- Choosing the wrong material for the environment. Carbon steel wire in a passivation tank or humid area will rust quickly and contaminate the workpiece.
- Not requesting a sample or test run. Even with perfect specs, wire behavior on a specific weld profile can be surprising. A sample brush run on your actual parts prevents expensive batch failures.
- Assuming all stainless steel wire is the same. 304 vs. 316 stainless matters when chloride exposure or high corrosion resistance is required.
- Neglecting brush wear indicators. Without defining what “worn out” means, operators may run the brush until it damages the workpiece or the core rubs the surface.
When a Custom Wire Roller Brush Is Not Enough
A wire roller brush excels at removing loosely adherent weld debris and light scale, but it has limits:
- Heavily embedded slag or deep weld spatter may require a needle scaler, chipping hammer, or grinding before brushing.
- Intricate crevices or inside corners often need a cup brush, end brush, or small-diameter pencil brush instead of a wide roller.
- Multiple surface finishes in a single pass (e.g., a polished weld bead next to mill-scale plate) may call for a combination of abrasive belts and brushes, not a single roller brush.
- Chemical cleaning requirements (pickling, passivation) might make mechanical brushing a complementary step rather than the primary method.
Before placing a large order, consider having the supplier review your weld sample and provide a process recommendation. A drawing review ensures the brush fits the machine and the cleaning pattern reaches the correct area.
Final Checklist Before You Order
When you prepare a request for quotation or a custom brush order, include at least the following information. This reduces back-and-forth and helps the supplier recommend the right build.
| Specification Item | What to Provide |
|---|---|
| Brush dimensions | Outer diameter, face width, core/ID dimensions, overall length |
| Wire material and diameter | e.g., 304 stainless steel, 0.008 in. wire |
| Trim length | Distance from core OD to brush OD |
| Core type and mounting | Shafted (keyway, set screw) or arbor hole with bore tolerance |
| Operating speed (RPM) | Nominal and maximum |
| Weld contaminants to remove | Spatter, slag, oxide, heat tint, rust |
| Base metal and surface post-treatment | e.g., 304L stainless, passivated after brushing |
| Chemical exposure | Any cleaners, acids, or washdown fluids present |
| Required quantity | Prototype, pilot, and production volumes |
| Target lead time | Sample delivery and production shipment dates |
| Sample request | Yes/no, and quantity of sample brushes needed |
Bottom Line
The best result comes from matching wire roller brush for weld cleanup to the real cleaning task rather than forcing one brush to solve every condition. Confirm access, residue, surface limits, and replacement routine first; then use a small trial or inspection step before scaling the method into daily work.
Frequently Asked Questions
What wire diameter should I specify for removing weld spatter on stainless steel?
A wire diameter between 0.006 and 0.012 inch is common for stainless steel weld cleanup. Finer wires produce a smoother finish but may not remove heavy spatter; thicker wires cut faster but can leave scratches. Testing a sample brush on your actual welds is the most reliable way to confirm the right gauge.
Can one wire roller brush handle both carbon steel and stainless steel welds?
It is not recommended. Using the same brush on carbon steel and stainless steel can embed carbon steel particles into the stainless surface, leading to rust spots and intergranular corrosion. Dedicated brushes—or separate brushes for each material group—prevent cross-contamination.
How do I know if I need a spiral or full-face bristle pattern?
A spiral-wound brush allows debris to clear more easily and runs with less load, making it suitable for fast, continuous cleaning. A full-face fill gives a denser brushing footprint and is preferred when you need uniform coverage across a wide path, such as finishing a flat weld bead. Discuss your line speed and coverage requirements with the supplier to decide.
What core type works best for a shaft-mounted cleaning station?
For shaft mounting, a core with a keyway and set screws provides positive drive and minimizes slip under torque. If you need quick changeover, consider a hub-style or quick-change adapter system, but always verify the RPM and torque ratings match your motor.
How often should a wire roller brush be replaced in a continuous weld line?
Replacement timing depends on wire wear, not just runtime. Monitor the brush for bristle breakage, reduced cleaning effectiveness, or when the trim length becomes too short to safely clean without the core contacting the workpiece. In high-production lines, many plants track the number of parts or feet cleaned and establish change intervals accordingly.
What information should I include in a drawing for a custom brush supplier?
Include overall dimensions, core geometry with bore or shaft detail, bristle material, wire diameter, trim length, bristle pattern, and any special feature such as end plates or flanges. Note the operating RPM, direction of rotation, and environmental conditions. A photograph or sketch of the weld area also helps the supplier understand the cleaning task.
Is a wire roller brush safe to use with cleaning chemicals?
It depends on the brush material. Stainless steel wire and a corrosion-resistant core (e.g., stainless or plated) can tolerate many mild acidic or alkaline cleaning agents. Carbon steel wire will corrode rapidly. Always specify any chemical exposure so the supplier can select compatible materials.
When should I request a sample brush before placing a full order?
Always request a sample when the brush configuration is new, the weld profile is complex, or the surface finish requirement is critical. A sample run on your actual parts reveals whether the brush cleans aggressively enough, wears at an acceptable rate, and avoids damaging the workpiece.
