What Are Roller Brush Process Factors?
Roller brush process factors are the adjustable machine, tool, and workpiece conditions that influence the final surface quality when using a rotating brush for cleaning, deburring, edge radiusing, or surface finishing. These factors include rotational speed, applied pressure or depth of engagement, brush filament type and density, feed rate, the use of coolant or lubrication, and how the part is held or guided. Together, they determine how the brush tips strike the surface, how material is removed, and whether the finish is uniform from part to part.
Common Types of Roller Brushes for Finishing
For the safety point in this section, the relevant OSHA reference is OSHA — Machine Guarding.
For the safety point in this section, the relevant OSHA reference is OSHA — Control of Hazardous Energy.
For brush terminology and construction language, this section references American Brush Manufacturers Association — Brush Lingo.
Before tuning process parameters, it helps to know the main categories of roller brushes used in finishing operations:
- Abrasive filament brushes: Filaments are loaded with abrasive grains (silicon carbide, ceramic, etc.) for aggressive material removal and surface conditioning.
- Wire brushes: Use steel, stainless steel, or brass wire for heavy deburring, rust removal, or surface texturing.
- Non-woven or fiber brushes: Made from nylon or other synthetics with embedded abrasive; softer, conformable, good for blending and final finish.
- Natural fiber brushes (e.g., Tampico, horsehair): Used for light cleaning, polishing, or when a gentle touch is required with compound.
- Composite or elastomeric brushes: Flexible binder with abrasive particles; used for precise edge rounding and consistent finishes on complex geometries.
Each type interacts differently with the process factors, so selection must match the material, shape, and finish target.
Key Adjustment Factors and Their Effects on Surface Finish
Changing one factor often shifts the effect of others. The table below summarizes how primary process parameters influence consistency.
| Factor | How It Affects Finish | Adjustment Notes |
|---|---|---|
| Rotational Speed (RPM) | Higher speed increases tip impact force and heat; can improve cutting but may scorch or melt soft materials. Too low reduces action. | Start with manufacturer range, then adjust in small increments while measuring roughness. |
| Brush Pressure / Depth of Engagement | More pressure deepens filament contact, raising material removal and potential for uneven wear or part deformation. | Use consistent force; monitor brush diameter change over time. |
| Brush Filament Density (fill density) | Denser brushes provide more contact points, yielding finer finishes and longer life. Sparse fills cut faster but leave coarser pattern. | Match density to step requirement: coarse, medium, fine. |
| Bristle / Filament Material | Harder materials (ceramic grit, steel) cut aggressively; softer (nylon, natural) are for light blending or polishing. | Pair filament to workpiece hardness; abrasive filament type also matters. |
| Feed Rate (part travel speed) | Slower feed exposes surface to more brush rotations, producing finer finish; too fast can skip areas. | Balance with RPM to maintain consistent tip-work contact time. |

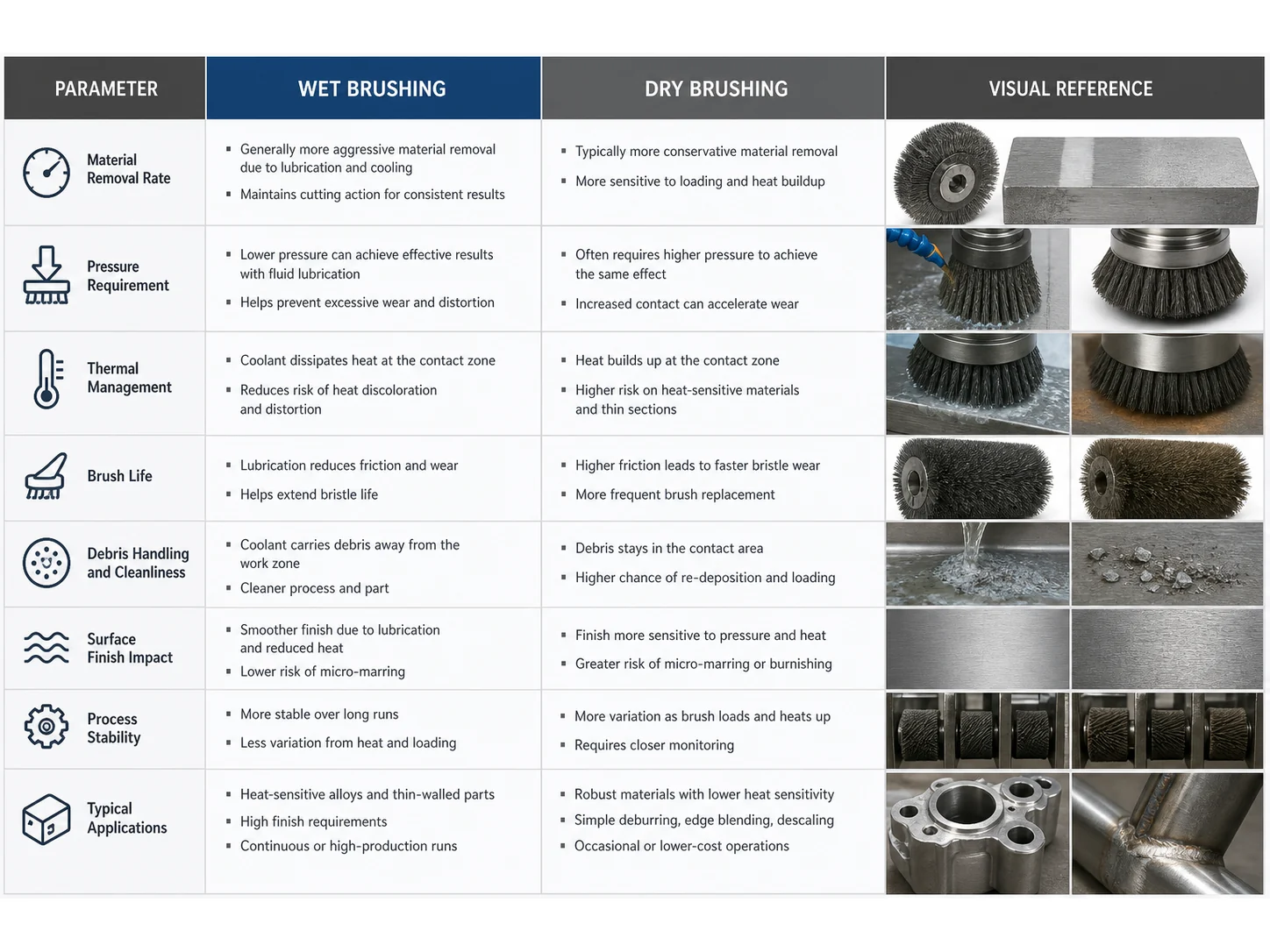

| Wet vs Dry Operation | Wet reduces heat and dust, improves surface lubricity, but can alter abrasive action and cause loading. | Test both; wet often yields more consistent finish on aluminum or stainless. |
| Workpiece Support & Guidance | Part vibration or misalignment creates stripe patterns, chatter, or uneven finish. Rigid, precise fixturing is essential. | Use guides, rollers, or vacuum tables; check for part stability at operating speeds. |
How to Run Sample Tests and Document Changes
Process consistency depends on controlled experimentation. Follow these steps:
- Baseline measurement: Run a set of parts with current settings; record surface roughness (Ra, Rz), visual appearance, and any defects.
- Isolate one factor: Change only rotational speed, for example, and run a new batch. Keep all other settings fixed.
- Measure output: Compare roughness, gloss, edge radius, or any key finish metric. Use a profilometer or reference samples.
- Document results: Log speed, pressure, feed, wet/dry, brush type, batch number, and operator in a set-up sheet.
- Iterate: Move to the next factor only after understanding the effect of the first. This builds a matrix of cause and effect.
- Verify repeatability: Run the best setting on multiple parts across different shifts to ensure consistency.
Without documentation, tuning becomes guesswork, and consistency is nearly impossible to transfer between operators or machines.
Common Mistakes When Tuning Roller Brush Processes
- Changing speed and pressure at the same time without measurement: You won’t know which adjustment caused the change, making it impossible to reproduce or scale.
- Ignoring brush wear: As diameter decreases, effective engagement changes. If you don’t compensate, finish drifts. Check and adjust regularly.
- Assuming one setting fits all parts: Part geometry, material thickness, and prior surface condition all influence the result. Tune per part family.
- Overlooking wet/dry consistency: Turning coolant on and off between runs alters thermal and lubricity conditions unpredictably.
- Sacrificing fixture rigidity for speed: Quick-change fixtures that allow vibration will usually produce a less consistent finish than a robust setup.
- Copying settings from a different brush type: A wire brush at 1200 RPM acts very differently than an abrasive filament brush. Always start with the brush maker’s guidelines.
When Surface Finish Consistency Targets Require More Than Process Tweaks
Process factor adjustments can only do so much. When finish requirements demand tight tolerances (e.g., Ra ≤ 0.2 µm or specific edge radius values), basic tuning may not be enough. Consider the following boundaries:
- Measured surface data is mandatory: If specifications require SPC or statistical control, you need real-time or frequent measurement feedback—not just operator feel.
- Environmentally controlled process: Ambient temperature, humidity, or coolant concentration may need to be held within narrow limits.
- Closed-loop force control: Instead of fixed position or pressure, active force feedback systems adjust brush engagement in real time to compensate for wear and part variation.
- Specialized brush designs: Some high-precision tasks require segmented brushes, custom tuft patterns, or adaptive filaments that standard general-purpose brushes can’t provide.
- Alternative technologies: For extremely fine or critical surfaces, processes like vibratory finishing, super-finishing, or electro-polishing may be necessary alongside or instead of brush finishing.
Recognize when process adjustments cease to be cost-effective and a fundamentally different method or higher investment in monitoring is warranted.
Final Takeaway
Consistent surface finish with roller brushes relies on treating process factors as a system rather than isolated knobs. Pick one variable to change at a time, measure the output, and document the cause-effect relationship. Pair the right brush type with workpiece material and finish goal, then lock down feed, speed, pressure, and fixturing. When the finish requirement includes numerical tolerances, move beyond feel and into measured process control. The goal is repeatability—and that comes from controlled testing, not guesswork.
Practical Use Note
In daily use, the practical test is simple: check whether the brush reaches the full contact area, removes the target residue, and leaves the surface in the required condition. Record what changes when base material, burr or oxide level, target finish, brush speed, pressure, and acceptable surface change changes, because many brush failures are caused by the working condition shifting rather than by the brush body alone.
When This Brush Is Not Enough
This brush is not enough when the main problem is blocked access, unsafe working conditions, damaged equipment, incompatible chemicals, or a process setting that keeps recreating the residue. In those cases, review base material, burr or oxide level, target finish, brush speed, pressure, and acceptable surface change and confirm the surrounding cleaning method before increasing brush stiffness or contact pressure.
Frequently Asked Questions
Can I use the same speed for all roller brush materials?
No. Wire, abrasive nylon, and natural fiber brushes all have different optimal speed ranges. Start with the brush manufacturer’s recommended range for the filament type and adjust based on finish results.
How do I know if I’m using too much pressure?
Signs of excess pressure include rapid brush wear, part deflection, excessive heat buildup (discoloration on parts or brush), and a rougher-than-expected finish. Use minimal pressure needed to achieve the desired action.
Does brush filament density affect how often I need to adjust settings?
Yes. Denser brushes tend to wear more slowly and hold their shape longer, which keeps the engagement depth more consistent over time. Sparse brushes wear faster and may require more frequent compensation.
Should I always use a wet process for a finer finish?
Not always. Wet operation can improve finish on many metals by reducing heat and washing away debris, but it can cause filaments to load up with swarf or lose stiffness. Test both dry and wet to see which yields the most consistent results for your specific application.
How can I check if my workpiece support is causing finish inconsistency?
Look for vibration marks, chatter, or uneven patterns across the surface. Run a few parts with extra rigid fixturing or temporary clamping; if finish uniformity improves, your support needs reinforcement.
What’s the simplest way to start documenting settings for repeatability?
Create a standard set-up sheet with fields for brush type (manufacturer and part number), speed (RPM), feed rate, engagement depth or pressure setting, wet/dry, coolant type, and target surface roughness. Update it each time you make a change, and only change one factor at a time.
When is it time to replace the roller brush rather than tweak parameters?
If you’ve compensated for diameter wear and still see inconsistent finish, or if filaments are broken, matted, or excessively glazed, replacement is due. A worn brush cannot deliver the same tip geometry and force profile as a new one.
