Solar Panel Brush Technique: Non-Damaging Cleaning Pattern

What Is a Non-Damaging Solar Panel Cleaning Technique?

A non-damaging solar panel cleaning technique is a systematic method of removing dust, pollen, bird droppings, and other debris from panel surfaces using tools and motions that avoid scratching the anti-reflective glass coating. The core elements are: top‑to‑bottom brush strokes, light and even pressure, straight overlapping passes, and—where practical—water-fed rinsing to float particles away before any mechanical contact.

For solar-panel and PV-glass context, the article references Department of Energy — Solar Photovoltaic Technology Basics.

For brush terminology and construction language, this section references American Brush Manufacturers Association — Brush Lingo.

Micro‑scratches appear invisible at first but accumulate over repeated cleanings. They scatter sunlight, lower panel efficiency, and can become dirt traps that accelerate performance loss. A controlled cleaning pattern prevents this cumulative damage while keeping the array in peak condition.

Common Brush Types for Solar Panel Cleaning

The brush you choose determines the baseline risk. Most commercial cleaning brushes fall into three families:

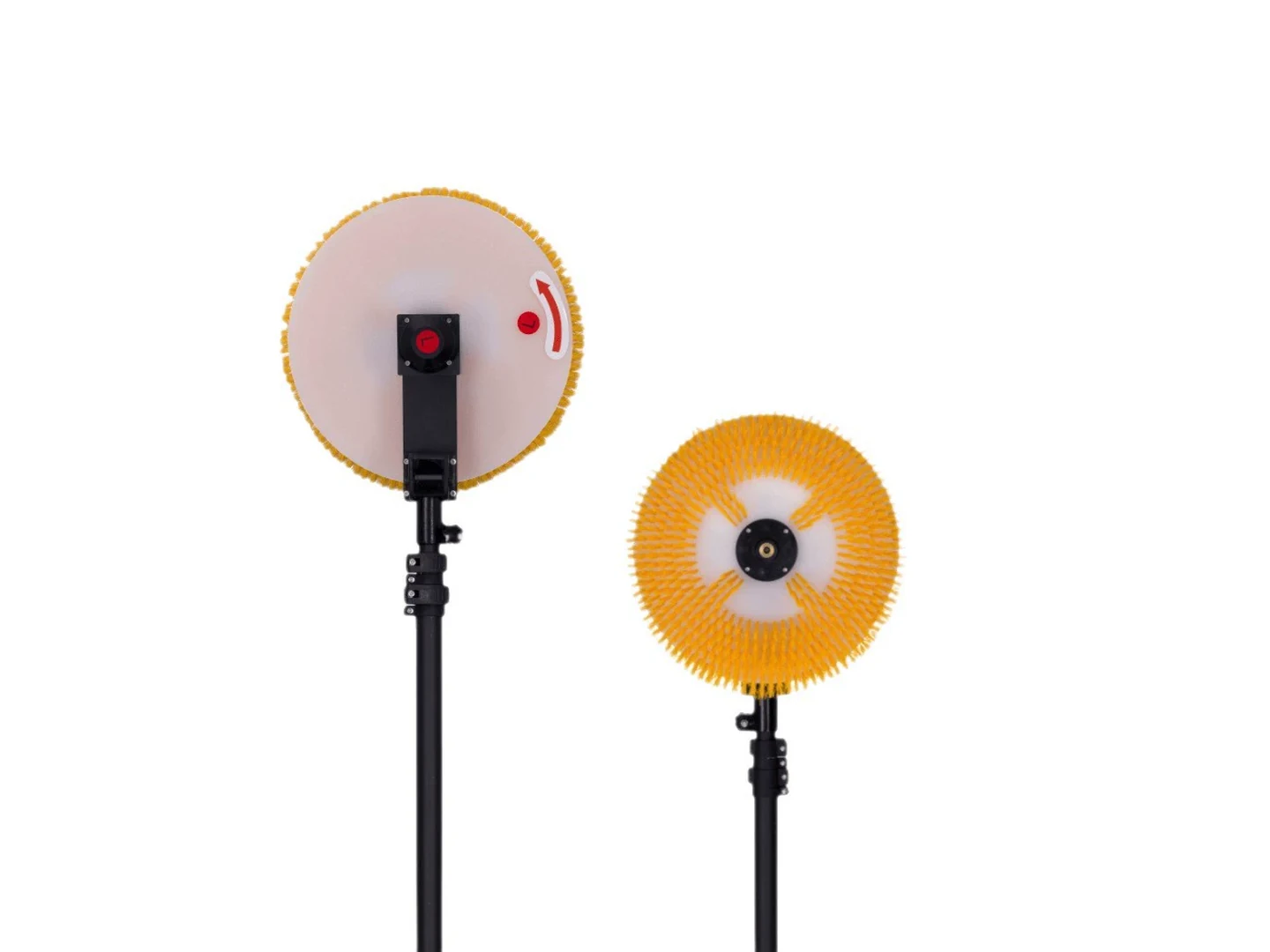

• Water-fed telescopic brushes – Soft nylon or polyester bristles, with a hollow pole that delivers deionized or filtered water to the brush head. Water constantly rinses the surface, drastically lowering scratch potential.
• Dry cleaning roller brushes – Often used in handheld or pole‑mounted configurations; rely on fine, soft bristles and, in some designs, anti‑static properties to lift dust without water. Best for light, non‑sticky soiling.
• Automated rotary brushes – Driven by robotic cleaners or tractor‑mounted systems. These apply consistent pressure and pattern but require correct programming and maintenance to avoid micro‑scratch risks on large arrays.

No single brush fits every site; the technique must be matched to the brush type, soiling level, and water availability.

Water-Fed vs Dry Cleaning: Which Pattern Reduces Micro‑Scratches?

The choice between water‑fed and dry brush cleaning directly influences the stroke pattern and pressure needed. Water‑fed generally allows a simpler, safer technique because the water suspends and flushes particles before the bristles pass over them. Dry brushing demands more careful stroke control and lighter touch.

For most commercial and utility settings, water‑fed brushing is the safer choice and permits a more forgiving technique. Dry brushing may be necessary where water is scarce, but it requires stricter adherence to the non‑scratch pattern described below.

How to Execute a Safe Cleaning Pattern: Direction, Pressure, and Strokes

The following step‑by‑step technique minimizes micro‑scratch risk regardless of brush type:

• Direction: Always top‑to‑bottom. Start from the highest edge of the panel and bring the brush straight down. This works with gravity, allowing loosened debris and rinse water to fall away instead of being scrubbed back onto the clean area. Never move the brush upward or sideways against the flow of gravity.
• Pressure: Use only the weight of the brush head. Do not lean or push down. If the brush is water‑fed, the water jet plus brush weight is enough. For dry brushes, hold the pole so the bristles barely contact the surface—you should feel the bristles flex slightly but not flatten.
• Stroke pattern: Straight, overlapping vertical passes. Move the brush in continuous, smooth downward strokes. Overlap each pass by about one‑third of the brush width to ensure full coverage without missing stripes. Avoid circular motions, scrubbing, or back‑and‑forth sawing—these motions trap particles and drag them across the glass in multiple directions, multiplying scratch potential.
• Pre‑inspection: Before brushing, visually scan for bird droppings, heavy mud, or grit patches. Remove these either with a targeted rinse or a soft, damp microfiber cloth before the brush pass, so the brush does not drag abrasive material across the panel.

Setup and Usage Factors That Protect the Panel Surface

Even a perfect stroke pattern can fail if working conditions and process limits or tool setup are wrong. Pay attention to:

• Brush condition: Bristles must be clean, free of embedded grit, and not frayed. Rinse brushes thoroughly after each use and replace when bristles start to splay or harden.
• Water quality: For water‑fed systems, use deionized or low‑TDS water to prevent mineral spots that can act as micro‑abrasives. Tap water with high calcium or silica can leave residues that build up and scatter light.
• Panel temperature: Avoid cleaning during peak heat when the glass surface is hot. Sudden cooling from water can cause thermal shock stress, and dry debris can bake onto hot glass, requiring more aggressive—and more risky—brushing.
• Wind and dust: Do not clean on windy days when airborne grit will immediately re‑soil the panel and get trapped under the brush.
• Worker training: Even the best brush in untrained hands can cause damage. Train operators to feel the brush contact and to stop if they see streaks or hear abnormal scraping.

Common Mistakes That Lead to Micro‑Scratches

Many scratches come from simple, avoidable errors. The most frequent are:

• Using a brush with hard or contaminated bristles. Never use household scrub brushes, wire brushes, or any bristle that feels rough to the back of your hand. Re‑using a brush stored on the ground that has picked up sand is equally harmful.
• Applying too much pressure. Operators often lean on the pole to speed cleaning. The extra force drives particles into the glass. A light touch is slower but safe; train teams to accept the pace.
• Dry brushing heavy or sticky soiling. Trying to remove bird droppings or caked mud with a dry roller brush requires rubbing; this almost always leaves micro‑scratches. Pre‑soak or spot‑clean sticky areas first.
• Skipping the pre‑rinse or pre‑wipe. Going straight to the brush without first flushing away loose grit is a primary cause of scratching in water‑fed cleaning.
• Moving the brush in circles or sideways. This recirculates debris and multiplies scratch directions, causing diffuse light scattering that is worse than linear marks.
• Using non‑deionized water. Hard water spots bond to the glass and become nucleation points for dirt; removing them later often requires abrasive scrubbing.

When a Manual Brush Cleaning Technique Is Not Enough

The manual technique described here works well for small to mid‑sized rooftop installations, ground‑mount arrays of a few hundred panels, and areas with easy access. However, when faced with very large utility‑scale solar farms, steep or difficult terrains, or extremely tight O&M schedules, a manual top‑to‑bottom brush stroke becomes impractical.

In those cases, automated cleaning robots or tractor‑mounted rotary brush systems can offer a more consistent cleaning pattern with less human variability. The boundary is not about panel protection alone—a properly programmed robot can be just as gentle—but about labor coverage, speed, and the risk of human fatigue leading to bad technique. If you manage thousands of panels, evaluate whether automated systems with soft rollers and controlled pressure can maintain the non‑damaging pattern at scale while meeting cleaning frequency targets.

Final Takeaway

A repeatable, safe solar panel cleaning technique relies on three pillars: top‑to‑bottom straight strokes, pressure limited to the brush weight, and water‑fed rinsing whenever possible. Combine these with clean, soft tools and a pre‑inspection step, and you will avoid the micro‑scratches that quietly eat into array performance. Scale the technique to your installation size, and know when automation may be the better tool to sustain this pattern across many panels.
