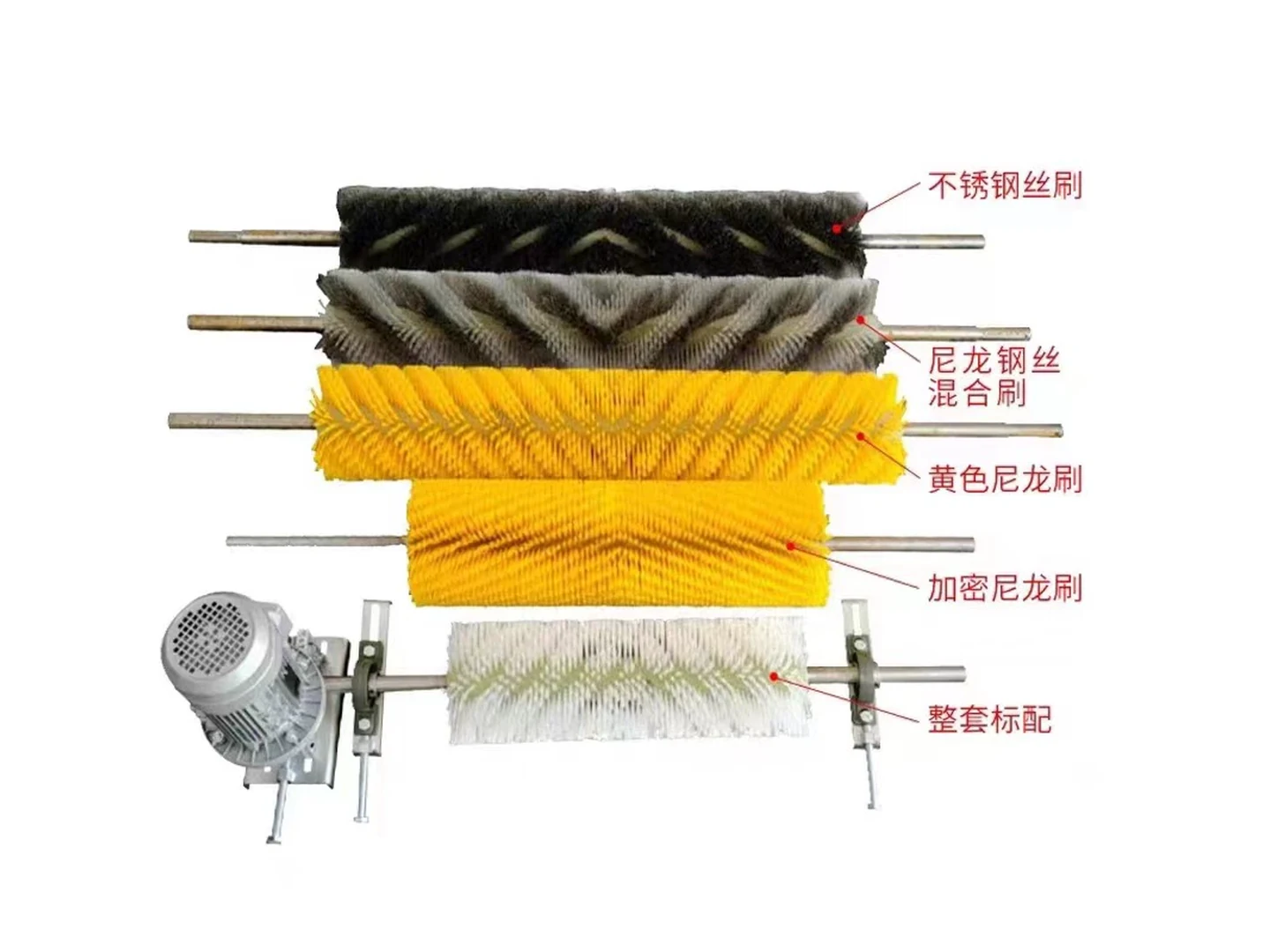

What Is a Dust Removal Conveyor Brush?
A dust removal conveyor brush is a cylindrical brush designed to clean the surface of a conveyor belt or the product being conveyed. Unlike scrapers, which use rigid blades, brush bristles conform to uneven surfaces and remove fine particles without gouging or damaging the belt. They are widely used in industries that handle bulk solids, powders, or granular materials.
Common Types of Dust Removal Conveyor Brushes
For the safety point in this section, the relevant OSHA reference is OSHA — Machine Guarding.
For the safety point in this section, the relevant OSHA reference is OSHA — Control of Hazardous Energy.
For the safety point in this section, the relevant OSHA reference is OSHA — Combustible Dust.
For the environmental or chemical-safety point in this section, the supporting reference is EPA — Particulate Matter Basics.
For brush terminology and construction language, this section references American Brush Manufacturers Association — Brush Lingo.
There is no universal brush, so suppliers offer different constructions to match application needs. The three most common industrial styles are:
- Strip brush (channel base): Bristles are held in a metal or plastic channel that slides into a matching bracket. Popular for belt edges and low-abrasion dust. Easy to replace.
- Spiral wound brush: Bristles are wound onto a core in a continuous spiral. Delivers a smooth wiping action, good for delicate surfaces and even contact.
- Segmented brush roll: Individual brush segments (discs) stacked on a shaft. Used when high-density filling is needed or when segments can be replaced individually after uneven wear.
Comparing Brush Construction Options
Selecting the right build depends on what you are cleaning, how often you replace it, and your mounting constraints. The table below helps you compare key factors.
| Feature | Strip Brush | Spiral Wound | Segmented Roll |
|---|---|---|---|
| Best for | Light dust, belt edges, simple retrofits | Even contact, gentle wiping, wet or sticky light debris | Heavy fines, abrasive grit, high-speed lines |
| Bristle density | Low to medium | Medium, controlled by pitch | High (densely packed discs) |
| Mounting style | Slide-in channel or bolt-on bracket | Shaft ends with bearings, flanges, or quick-release | Shaft with keyway, set screws, or taper lock |
| Replacement | Easy, just slide out the old strip | Usually replace the whole roll unless brush sleeve design | Individual discs can be changed |
| Cost factor | Low upfront, high availability | Moderate, custom pitch/length | Higher initial cost, but lower lifecycle if frequent wear |
Bristle Material Options
Bristle material directly affects cleaning performance, belt life, and chemical resistance. The most common choices for dust removal conveyor brushes include:
- Nylon (general purpose): Flexible, moisture-resistant, and inexpensive. Use for fine, dry dust on smooth belts. Standard 6.6 nylon works up to about 200 °F (93 °C).
- Abrasive nylon: Nylon impregnated with silicon carbide or aluminum oxide grit. It scrubs off stubborn residues, cake, or scale while still being “soft” enough not to damage rubber belts when properly specified.
- Polypropylene: Good chemical resistance and stiffness, often used in wet or corrosive environments. Lower melting point than nylon, so avoid high-friction applications.
- Horsehair or natural fiber blends: Very soft, anti-static, and gentle. Used in food, electronics, or fine powder conveying where scratching or static discharge is a concern.
- Wire (carbon steel, stainless, brass, bronze): For aggressive removal of rust, scale, or heavy buildup. Always verify belt material compatibility, as wire can gouge soft belts. Stainless steel wire is common in wet or washdown environments.
How to Choose Based on Your Real Equipment and Operating Conditions
Start with the four questions that most affect which brush style and material will perform reliably:
- What is the brush cleaning – the belt return side, the product, or a component? A belt-cleaning brush usually runs against the empty belt return. A product-cleaning brush touches the conveyed material. That changes contact angle and bristle stiffness needs.
- What type of residue or dust must be removed? Dry fine dust behaves very differently from sticky clay, hot ash, oily chips, or abrasive sand. Soft bristles are fine for light, dry dust; abrasive or wire bristles may be required for caked-on material.
- What is the operating environment? Temps above 200 °F (93 °C) rule out standard nylon, pushing you toward heat-stabilized nylon, polyester, or metal. Washdown areas require stainless steel components and bristle materials that won’t absorb water or harbor bacteria.
- How is the brush mounted and driven? Some brushes free-wheel against the belt; others are motor-driven at a different surface speed. Check shaft diameter, keyway size, bearing support, and available clearance. A brush that is too large will flex excessively; one too small won’t reach the surface.
An effective selection balances these factors against maintenance access and budget. Many plants start with a medium-fill nylon spiral wound brush on a driven shaft and adjust from there after observing wear and cleaning results over the first month.
Common Mistakes and How to Avoid Them
- Picking by cost alone: A low-cost strip brush that wears out in two weeks costs more in downtime and labor than a durable abrasive nylon brush that lasts six months.
- Ignoring the shaft interface: Ordering a brush with the wrong bore size or no keyway leads to slipping, vibration, and early failure. Always confirm your shaft dimensions before ordering.
- Using wire bristles on a soft belt: Stainless wire will tear into standard rubber belts. If you need aggressive cleaning, consider abrasive nylon first or verify that your belt can handle wire contact without damage.
- Overlooking static electricity: In grain, plastic, or electronics handling, static discharge from a nylon brush can be dangerous or damage products. Ground the shaft and evaluate anti-static bristle materials (horsehair, carbon-filled nylon).
- Mounting the brush too far from the surface: The tips should just kiss the surface with light interference. Excessive pressure accelerates bristle wear and can overheat the belt.
When a Standard Brush Is Not Enough
Catalog-style strip and spiral brushes cover many simple applications, but they are not a fit for extreme or highly engineered cleaning tasks. You may need a custom brush roll when:
- The brush must clean an irregular profile, such as ribbed belt, spiral conveyor, or product with cavities.
- Operating temperature exceeds 400 °F (204 °C) or involves direct contact with food or corrosive chemicals.
- Cleanliness standards require brush to be built with no crevices, specified surface finish, and supported by food-contact documentation materials.
- You are experiencing uneven wear, indicating that bristle density, fill pattern, or end treatment needs engineering.
In these cases, provide the brush manufacturer with a drawing of the conveyor cross-section, a sample of the residue, and details about your line speed, belt material, and environmental conditions. A custom sample or test roll before a full production order reduces risk and proves the design.
Final Takeaway
Choosing a dust removal conveyor brush is about matching bristle material and construction to the specific residue, belt surface, and environment. Start by describing your contact surface and dust type, then test the lightest brush that can do the job before moving to aggressive abrasives or wire. When catalog options fall short, investing in engineering and a sample saves time and prevents damage to your conveyor system.
Frequently Asked Questions
What is the difference between a strip brush and a spiral wound brush?
A strip brush uses a metal or plastic channel that slides into a holder; it is easy to replace but offers lower bristle density. A spiral wound brush has bristles coiled onto a core, providing even contact and better cleaning for moderate fines.
Can I cut a conveyor brush to length on site?
Strip brushes are typically cut to length with a hacksaw or grinder. Spiral wound and segmented rolls should be ordered to exact overall length (OAL) as cutting can damage the core or alter the pitch.
How often should I replace a dust removal brush?
There is no fixed schedule. Monitor bristle length and cleaning performance. Replace when bristles are worn to half their original trim length or when you notice increased carryback, belt wear, or motor load.
What bristle material is best for very fine, dry powder?
For fine powder like flour, cement dust, or fly ash, a soft natural fiber or fine nylon brush works well. Nylon is economical; horsehair is used where static dissipation matters.
Are metal bristles safe for all types of conveyor belts?
No. Metal bristles can score rubber and PVC belts. Use them only on metal mesh belts or hardened surfaces, or when the belt supplier confirms compatibility. For light scaling on rubber, try abrasive nylon first.
What information should I provide when I ask for a brush quotation?
You should share the brush’s overall length, shaft diameter and keyway, available clearance, belt speed and width, material being removed (photo helpful), operating temperature, and whether the brush is free-wheeling or driven. A sketch or photo of the installation area helps the supplier confirm fit.
Does a faster brush speed clean better?
Faster surface speed can improve cleaning but also increases bristle wear, heat buildup, and static generation. Usually a brush tip speed 10–20% faster than the belt speed gives good cleaning without excessive wear.
