What Is a Wire Brush Roller?

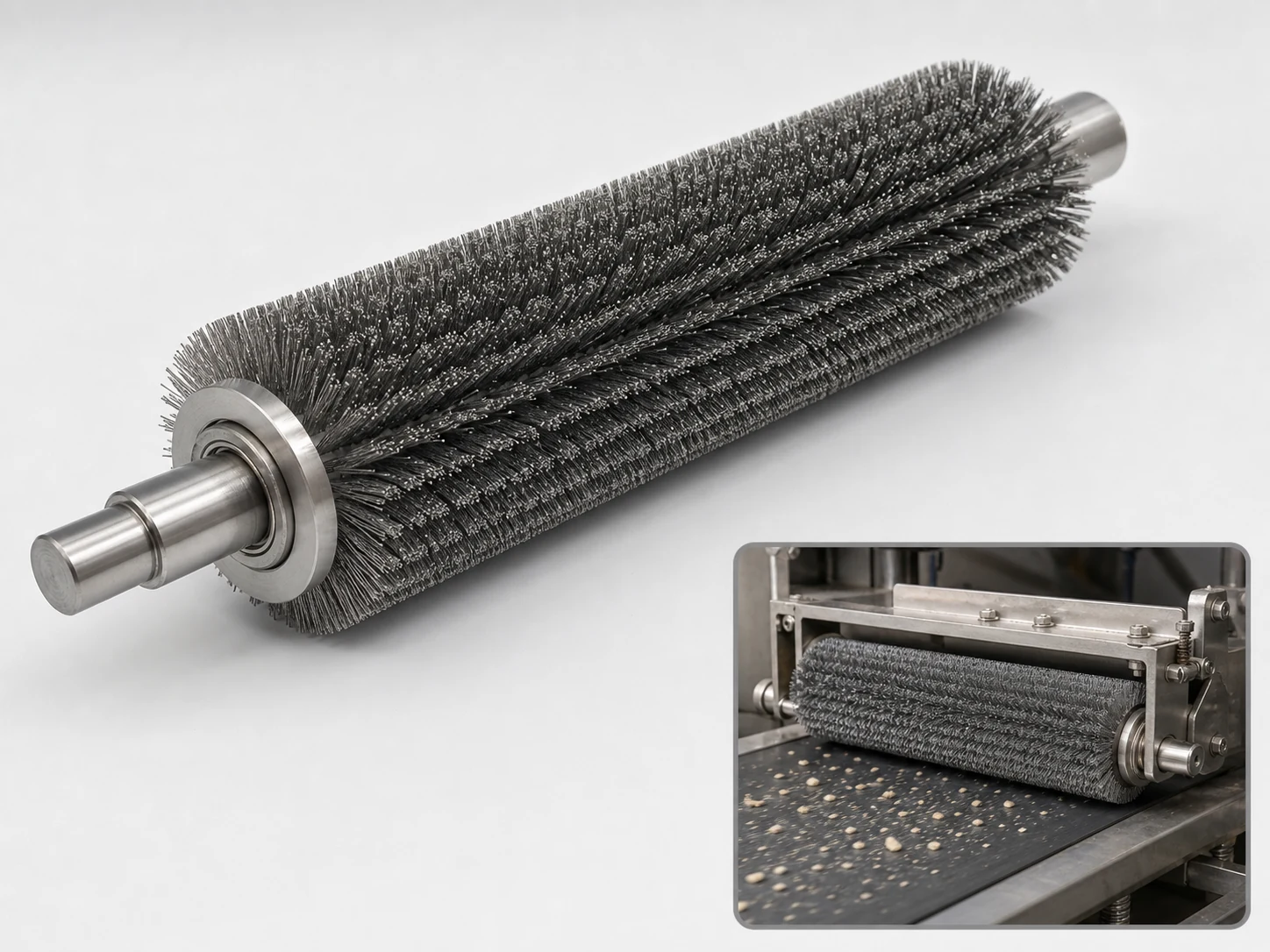

A wire brush roller is a cylindrical brush assembly with wire filaments protruding radially from a central core or shaft. When mounted in a powered machine, the roller rotates against a moving product or surface, mechanically dislodging contaminants, scale, rust, paint, or burrs. Wire brush rollers are common in coil cleaning, metal strip processing, deburring lines, edge cleaning, and surface texturing applications.
For machine guarding and moving-part safety context, this section references OSHA — Machine Guarding.
For lockout/tagout and maintenance isolation context, this section references OSHA — 1910.147 Control of Hazardous Energy.
For abrasive wheel and high-speed rotating tool safety context, this section references OSHA — 1910.215 Abrasive Wheel Machinery.
For portable and hand-held power-tool safety context, this section references OSHA — 1910.242 Hand and Portable Powered Tools.
For PPE and operator protection context, this section references OSHA — Personal Protective Equipment.
For stainless steel corrosion, contamination, passivation, and chloride-sensitivity context, this section references World Stainless — Corrosion Resistance of Stainless Steels.
Common Types of Wire Brush Rollers
Wire brush rollers are categorized primarily by bristle material, but also by filament shape, density, and mounting style. The most common material types include:
- Carbon steel wire – High aggressiveness, lower cost, used where ferrous contamination is acceptable.
- Stainless steel wire – Corrosion-resistant, suitable for food-grade or wet environments, moderate aggressiveness.
- Brass wire – Softer, non-sparking, reduces risk of scratching softer metals or sensitive surfaces.
- Phosphor bronze wire – Similar to brass but with better spring properties, often used in non-sparking or anti-static applications.
- Nylon/abrasive filament – Nonmetallic option with embedded abrasive grit, ideal for light cleaning, anti-static requirements, or scratch-sensitive surfaces.
Comparing Wire Brush Roller Materials
| Material | Stiffness & Aggressiveness | Surface Safety | Wear Resistance | Temperature Tolerance | Chemical Compatibility | Static Control | Typical Applications |
|---|---|---|---|---|---|---|---|
| Carbon steel wire | High | Can scratch softer metals | Moderate | Up to moderate heat | Prone to rust, avoid moisture & chemicals | Conductive, no static buildup | Heavy rust/scale removal, ferrous surfaces |
| Stainless steel wire | Medium–high | Safer than carbon steel, but can still gall | Good | Higher than carbon steel | Good resistance to many chemicals, wet environments | Conductive | Food processing lines, wet cleaning, corrosion-prone areas |
| Brass wire | Low–medium | Gentle on aluminum, copper, and soft alloys | Lower than steel | Lower than steel | More resistant to oxidation, not for strong acids | Conductive | non-sparking cleaning, soft metal surface prep |
| Phosphor bronze wire | Low–medium | Similar to brass, slightly more spring | Similar to brass | Similar to brass | Similar to brass | Conductive, used in anti-static setups | Electronic component cleaning, static-sensitive lines |
| Nylon/abrasive filament | Low | Safest for delicate surfaces | Moderate (abrasive wears over time) | Limited by polymer | Resistant to many solvents, not for extreme pH | Can be anti-static with additives | Light deburring, anti-static cleaning, sensitive substrates |
How to Choose the Right Wire Brush Roller
Selecting a wire brush roller requires weighing multiple application variables. Start with these six decision factors:
- Contact surface material: A harder workpiece can tolerate more aggressive wire; softer or precision-machined parts need gentler filament.
- Residue type: Heavy scale or thick coatings call for stiff carbon steel; light oxidation or dust may only need nylon or brass.
- Machine speed: Higher rotational speeds increase cleaning action but also heat buildup and wear. Stiffer filaments at high speed can cause surface damage.
- Dry or wet operation: Wet processes require corrosion-resistant wire (stainless, brass) or non-hygroscopic synthetic filaments. Dry processes with fine dust may need anti-static properties.
- Temperature exposure: Elevated temperatures can soften nylon, accelerate wire corrosion, or alter bristle tension. Verify material limits with your supplier.
- Static electricity concerns: If static discharge could damage the product or create a safety hazard, prioritize conductive materials or anti-static filament blends.
Operational Factors That Affect Your Choice
Beyond material, the brush roller’s design and the machine environment influence performance:
- Roller diameter and bristle length determine linear surface speed at the tip, which dictates cleaning aggressiveness.
- Filament density (fill density) balances cleaning power with the ability to retain contaminants without clogging.
- Mounting style (shaft, arbor, or quick-change hub) must match the machine’s drive system.
- Wet lubrication or chemical spray may require sealed bearings and compatible hub materials.
Common Mistakes When Selecting a Wire Brush Roller
- Choosing solely by cost: Low-cost carbon steel may rust quickly or damage a workpiece, leading to higher rework rates.
- Ignoring base metal compatibility: Iron wire on stainless steel parts can cause embedded iron particles and subsequent rust spots (rouge).
- Overlooking static buildup: Synthetic brushes without anti-static treatment can attract dust or damage electronics.
- Assuming all stainless steel is the same: Different grades (e.g., 304 vs. 316) affect corrosion resistance; confirm with your application requirements.
- Neglecting machine alignment: Even the best brush roller will wear unevenly or damage product if installed out of alignment.
When a Standard Wire Brush Roller Is Not Enough
Off-the-shelf wire brush rollers work well for many common applications, but consider a custom solution or sample testing when:
- The surface finish requirement is unusually tight (e.g., Ra < 0.5 µm).
- The residue is a unique mixture that standard wire cannot handle without excessive pressure or wear.
- Operating conditions involve a corrosive chemical bath that standard materials cannot tolerate.
- You need a specific static dissipative property that typical selections do not support.
- Throughput demands exceed the design limits of standard roller fatigue life.
In these cases, work with a supplier to develop a material blend, custom filament shape, or altered fill density, and always validate performance through controlled sample testing on your actual production line.
Final Takeaway
The right wire brush roller boils down to balancing aggressiveness, material compatibility, and operating conditions. Define the contact surface, residue type, environment, and machine parameters first. Then use the comparison table above to shortlist candidate materials. If no standard option fits, explore custom configurations, and always test before committing to large-volume orders. A specification-driven selection process reduces downtime, protects product quality, and lowers total cost of ownership.
Practical Use Note
In daily use, the practical test is simple: check whether the brush reaches the full contact area, removes the target residue, and leaves the surface in the required condition. Record what changes when screen opening, belt or surface material, carryback, uptime risk, and whether the brush can clean without process damage changes, because many brush failures are caused by the working condition shifting rather than by the brush body alone.
Frequently Asked Questions
What is the difference between a steel and stainless steel wire brush roller?
Carbon steel wire provides maximum aggressiveness but rusts quickly if exposed to moisture or chemicals. Stainless steel offers better corrosion resistance and is suitable for food-related or wet environments. Choose stainless when rust contamination is unacceptable.
When should I use a brass wire brush roller instead of steel?
Brass is softer than steel, non-sparking, and less likely to scratch soft metals like aluminum or copper. Use brass when the workpiece surface must remain undamaged or in potentially explosive atmospheres where sparks must be avoided.
Can a wire brush roller damage the workpiece surface?
Yes, especially if the wire material is harder than the workpiece, or if machine speed and pressure are too high. Always match filament hardness to the workpiece and validate settings through testing.
How does wire brush roller speed affect cleaning performance?
Faster rotation increases bristle tip force and contact frequency, improving cleaning but also raising heat and wear. Optimal speed depends on filament type, density, and the desired balance between productivity and brush life.
What is meant by anti-static brush roller?
An anti-static brush roller prevents the buildup and discharge of static electricity, which can attract dust or damage sensitive electronics. This is achieved by using conductive materials (metal wire) or special anti-static additives in synthetic filaments.
How do I determine the correct bristle density for my application?
Density (fill) determines how many filaments contact the surface. Higher density offers more cleaning points but may trap debris if gaps are too small. Base the decision on particle size, material removal rate, and cleaning environment. Consult your supplier with residue samples for the best recommendation.
Can I run a wire brush roller in wet conditions?
Yes, but the brush material and hub must be corrosion-resistant. Stainless steel or brass wire and sealed bearings are typical choices. Avoid carbon steel unless the process is not water-based and the environment remains dry.
When is it advisable to request a sample test before ordering?
Request a sample test when introducing a new material, cleaning a unique residue, targeting a tight surface finish, or scaling up to high-volume production where brush life is critical. Real-world validation reduces the risk of unexpected performance issues.
